AsRock Rack ROMED8-2T ATX Server Motherboard SP3 (LGA4094) AMD EPY 7002/7001 (ROME) series processor

In stock.
Ships from United States.
Most customers receive within 3-9 days.
  • ATX 12.0" x 9.6"
  • Support single Socket SP3 (LGA4094) support AMD EPYC 7002/7001 series processor family, max 225W
  • Support 8 x DIMM slots, 8 Channels DDR4 3200/2933/2666/2400 RDIMM,LRDIMM/NV DIMM
  • Support 8 x SATA3 6.0 Gb/s (from 2 x mini SAS HD) + 2 x M.2
  • Support 7 x PCIe 4.0 x16
  • Support 2 x OCulink(share with PCIE2 by Jumper)
  • Support 2 X 10G LAN by Intel X550 -AT2 + 1 x Dedicated IPMI
LOADING...
Specs
Reviews

Learn more about the ASRock Rack ROMED8-2T

Model
Brand AsRock Rack
Model ROMED8-2T
Supported CPU
CPU Socket Type Socket SP3
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Channel Supported Eight Channel
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 PCIE1: Gen4 x16 link
PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
PCIE3: Gen4 x16 link
PCIE4: Gen4 x16 link
PCIE5: Gen4 x16 link
PCIE6: Gen4 x16 link
PCIE7: Gen4 x16 link
Storage Devices
SATA 8 x SATA3 6.0 Gb/s (SATA_0_3:by miniSASHD.SATA_3 share with SATA_8(by BOM option), SATA_4_7: by miniSASHD,share with PCIE2 by Jumper)
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel X550-AT2
LAN Speed 10Gbps
Second LAN Chipset RTL8211E
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 10Gbps

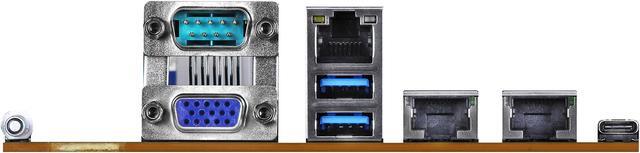

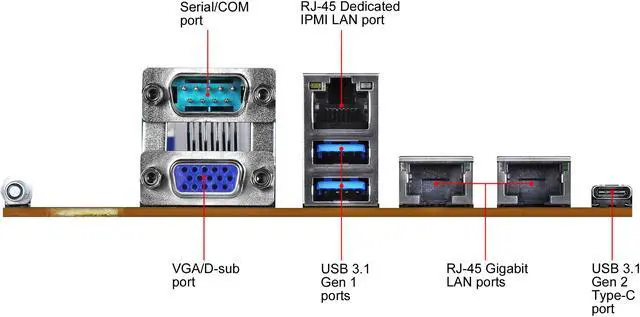

Rear Panel Ports
COM 1
Video Ports 1 x D-Sub
RJ45 3 x RJ45
USB 3.1 2 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen2 Port (Type C)
Onboard Ports
Other Connectors SATA DOM: 1(BOM option)
M.2: 2(M2_1(share with PCIE2 by Jumper): 2230/2242/2260/2280, SATA/PCIE Gen4(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header: 1
TPM Header: 1
IPMB Header: 1
Fan Header: 7 Fans x 6-pin (1CPU/4Front/2Rear)
ATX Power: 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.0 ports)
USB 3.1 (Gen2) Header: 1 (supports 2 USB 3.0 ports)
NMI Button: 1
Front Panel: 1(rst, pwrbtn, hddled, pwrled)
Speaker Header: 1(4pin)
BMC_SMB Header: 1
Clear CMOS: 1
PSU SMB Header: 1

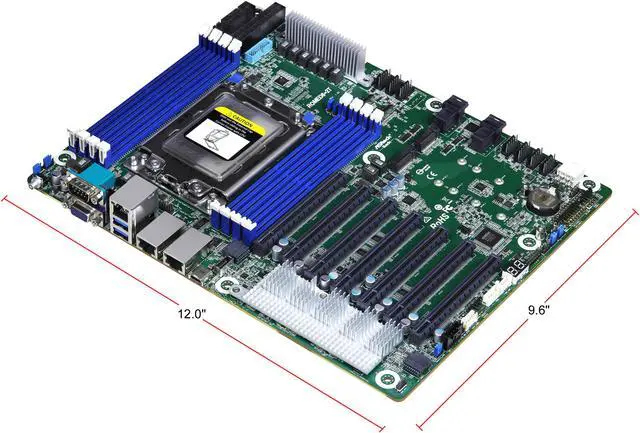

Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
Date First Available August 10, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by IPC Store Return Policy
