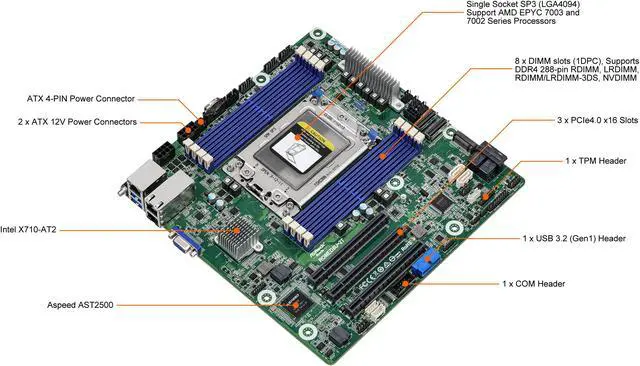

AsRock Rack ROMED8U-2T Micro-ATX Server Motherboard AMD SP3 (LGA4094) EPYC 7003 and 7002 Series Dual 10GbE
- Micro-ATX (9.6" x 9.6")
- Support AMD EPYC 7003 and 7002 series Processors
- Support 8 x DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM Memory
- Support 3 x PCIe4.0 x16
- Support 2 x SlimSAS (PCIe4.0 x8)
- Support 1 x M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- Support 11 x SATA 6Gb/s (from 2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2)
- Support 2 x RJ45 (10GbE) by Intel X710-AT2 + 1 x dedicated IPMI
Learn more about the ASRock Rack ROMED8U-2T
| Brand | AsRock Rack |
|---|---|
| Model | ROMED8U-2T |
| CPU Socket Type | Single Socket SP3 (LGA4094) |
|---|---|
| CPU Type | Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors *A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology |
| North Bridge | Soc |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | RDIMM/ LRDIMM: max. 3200MHz NVDIMM: max. 2666MHz |
| Maximum Memory Supported | RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB NVDIMM: up to 32GB |
| Registered | Yes |
| PCI Express 4.0 x16 | 3 |
|---|
| SATA | 11 x SATA 6.0Gb/s |
|---|---|
| SAS | 2 SlimSAS (PCIe4.0 x8) |
| M.2 | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| Max LAN Speed | 2 x 10Gbps |

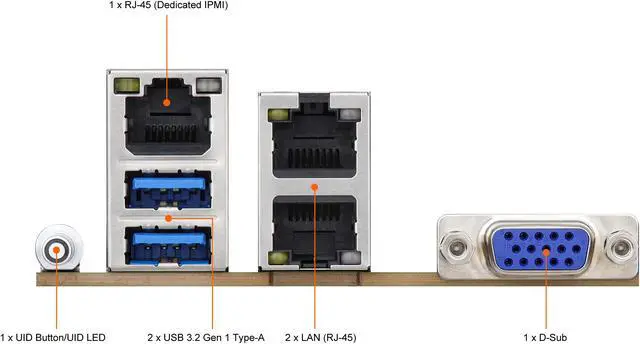

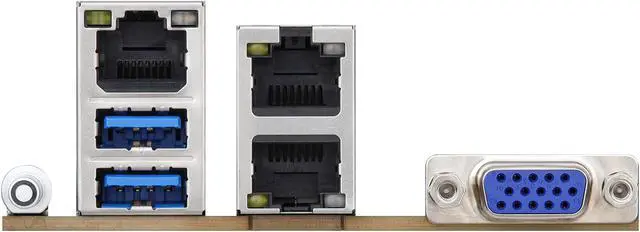

| Back I/O Ports | 1 x D-Sub 2 x USB 3.2 Gen 1 Type-A Lan Port: 2 RJ45 (10GbE) Dedicate LAN: 1 RJ45 (Dedicated IPMI) |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) |
|---|---|
| Other Connectors | COM Header: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, locate, SMBus TPM Header: 1 (13-pin, SPI), 1 (17-pin, LPC) Thermal Sensor Header: 1 IPMB Header: 1 PMBus CONN: 1 Fan Header: 6 (6-pin) Other Power Connectors: 1 (6-pin) for HDD power NMI Button: 1 System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 SGPIO Header: 1 CPU HSBP: 1 Power Connector: 2 (8-pin, ATX 12V), 1 (4-pin, ATX) Clear CMOS: 1 (contact pads) |
| Form Factor | Micro ATX |
|---|---|

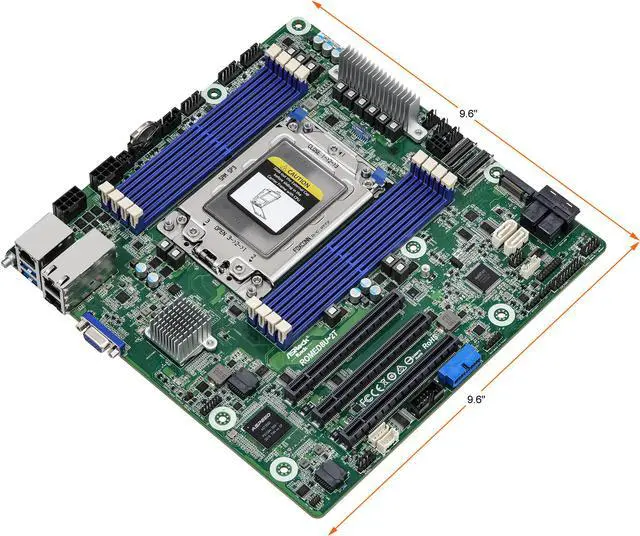

| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | November 15, 2021 |
|---|
