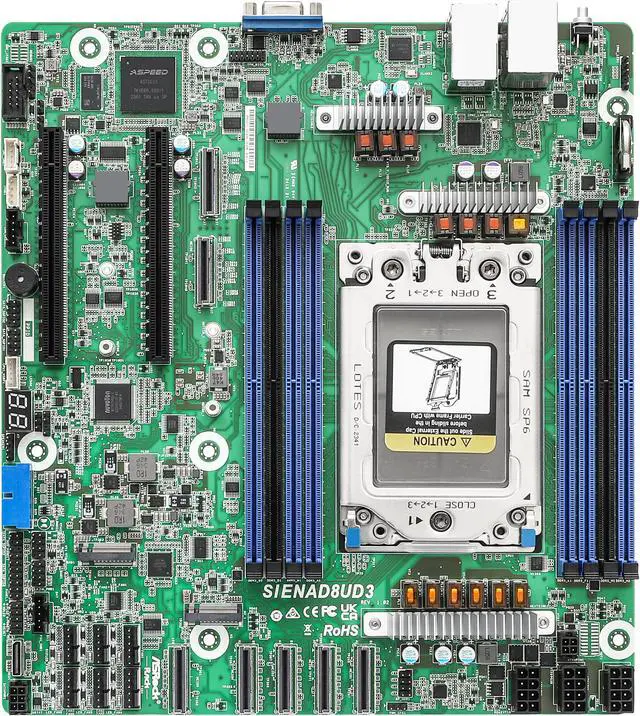

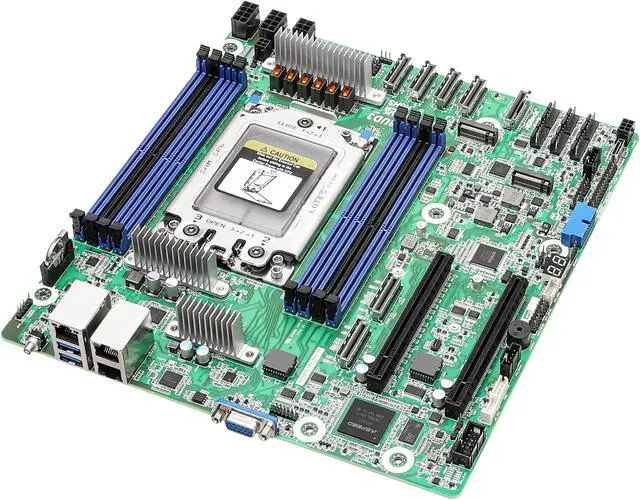

Name: ASRock Rack Server Motherboard SIENAD8UD3 Deep Micro-ATX Single Socket SP6 (LGA 4844), AMD EPYC™ 8004 series
Brand: ASRock Rack
SKU: N82E16813140154
Price: 526.60 USD
Availability: InStock

ASRock Rack Server Motherboard SIENAD8UD3 Deep Micro-ATX Single Socket SP6 (LGA 4844), AMD EPYC™ 8004 series

Supports ATX PSU or 12V DC-in
Deep Micro-ATX (9.6" x 10.5")
Single Socket SP6 (LGA 4844), supports AMD EPYC 8004 series processors
8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
2 PCIe5.0 / CXL1.1 x16
4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
1 OCuLink (PCIe3.0 x4)
2 M.2 (PCIe5.0 x4)
Up to 32 SATA 6Gb/s
2 RJ45 (1GbE) by Intel i210
Remote Management (IPMI)

CPU Support List

EPYC 8004	8534PN(100-000001172)
EPYC 8004	8434PN(100-000001174)
EPYC 8004	8324PN(100-000001162)
EPYC 8004	8224PN(100-000001164)
EPYC 8004	8124PN(100-000001166)
EPYC 8004	8024PN(100-000001170)

EPYC 8004	8534P(100-000000875)
EPYC 8004	8434P(100-000000877)
EPYC 8004	8324P(100-000001133)
EPYC 8004	8224P(100-000001134)
EPYC 8004	8124P(100-000001135)
EPYC 8004	8024P(100-000001136)

Memory QVL

Micron MTC40F204WS1RC48BB1IGFF	96GB DDR5 4800 RDIMM
Micron MTC40F2046S1RC48BA1MGCC	64GB DDR5 4800 RDIMM
SMART SR8G8RD5445-SB	64GB DDR5 4800 RDIMM
Micron MTC20F2085S1RC48BA1NGCC	32GB DDR5 4800 RDIMM
Micron MTC10F1084S1RC48BA1NICC	16GB DDR5 4800 RDIMM

Samsung M321RYGA0BB0-CQKZJ	96GB DDR5 4800 RDIMM
Micron MTC40F2046S1RC48BA1GCCH	64GB DDR5 4800 RDIMM
Kingston KSM48R40BD8KMM-32HMR	32GB DDR5 4800 RDIMM
Kingston KSM48R40BS8KMM-16HMR	16GB DDR5 4800 RDIMM
SMART SR2G8RD5285-SB	16GB DDR5 4800 RDIMM

TPM QVL

TPM SPI 13 pin SLB9672VU20	TPM-SPI/INFINEON*

TPM SPI 13 pin SLB9670VQ2.0	TPM-SPI/INFINEON*

CPU Socket Type	Socket SP6
CPU Type	Supports AMD EPYC 8004 series processors
Number of Processor Support	1

Memory Slots	8 x DDR5 288-pin
Memory Standard	DDR5 4800
Maximum Memory Supported	768GB
Registered	Yes

PCI Express 5.0 x16	SLOT6: PCIe5.0 / CXL1.1 x16 SLOT4: PCIe5.0 / CXL1.1 x16
Other Slots	4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) 3 MCIO (PCIe5.0 x8) 1 OCuLink (PCIe3.0 x4)

LAN Chipset	Intel I210
LAN Speed	10Gbps
Max LAN Speed	2 x 1Gbps

Onboard USB	USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
Other Connectors	Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in Other Power Connectors: 1 (6-pin) for HDD power Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Speaker Header: 1 (4-pin) Buzzer: 1 Fan Header: 6 (6-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 3 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) Front Lan LED Connector: 1 NMI Header: 1

ASRock Rack Server Motherboard SIENAD8UD3 Deep Micro-ATX Single Socket SP6 (LGA 4844), AMD EPYC™ 8004 series

Learn more about the ASRock Rack SIENAD8UD3

Customer Reviews of the ASRock Rack SIENAD8UD3

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	AsRock Rack
Model	SIENAD8UD3

Dimensions
Form Factor	Deep Micro-ATX
Dimensions (W x L)	9.6" x 10.5"
