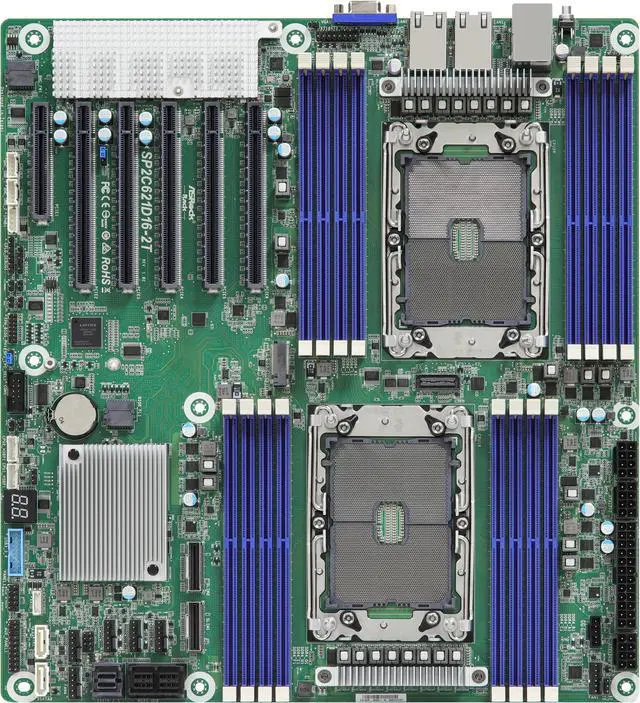

AsRock Rack SP2C621D16-2T EEB Server Motherboard,Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- EEB (12" x 13")
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- 8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel® Optane™ Persistent Memory
- 5 PCIe4.0 x16, 1 PCIe4.0 x8
- 2 SlimSAS (PCIe4.0 x8)
- Supports 1 M.2 (PCIe4.0 x4)
- 14 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X710
- Remote management (IPMI)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack SP2C621D16-2T
| Brand | AsRock Rack |
|---|---|
| Model | SP2C621D16-2T |
| CPU Socket Type | LGA 4189 |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
| Number of Processor Support | 2 |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8+8 DIMM slots (1DPC) |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT6: PCIe4.0 x16 [CPU1] SLOT5: PCIe4.0 x16 [CPU1] SLOT4: PCIe4.0 x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU0] SLOT2: PCIe4.0 x16 [CPU0] |
|---|---|
| PCI Express x8 | SLOT1: PCIe4.0 x8 [CPU0] |
| SATA | 14 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| SAS | 2 SlimSAS (PCIe4.0x8) [CPU0] |
| M.2 | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU0] |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X550-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |
| Back I/O Ports | 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A |
|---|
| Other Connectors | Internal Connector/Headers Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Video output: 1 Fan Header: 4 (8-pin), 2 (6-pin) TPM Header: 1 (13-pin, SPI) VROC header: 1 HSBP: 1 SMBus header: 1 PMB header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) Power Connector: 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V) |
|---|
| Form Factor | EEB |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | April 12, 2023 |
|---|
