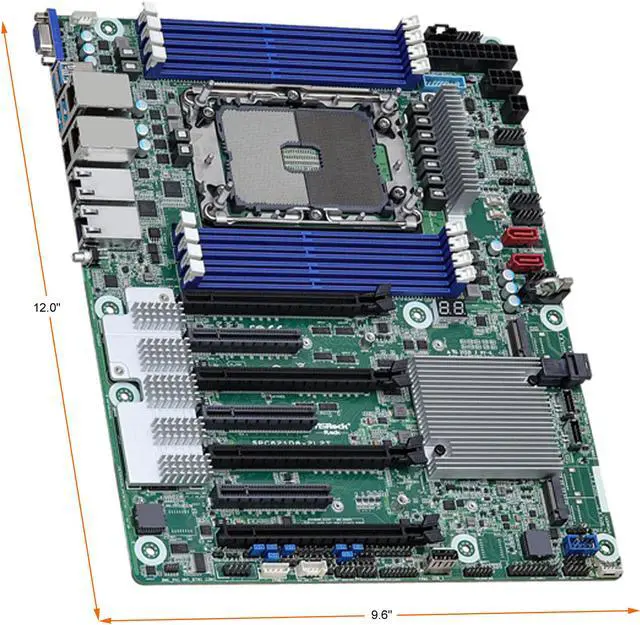

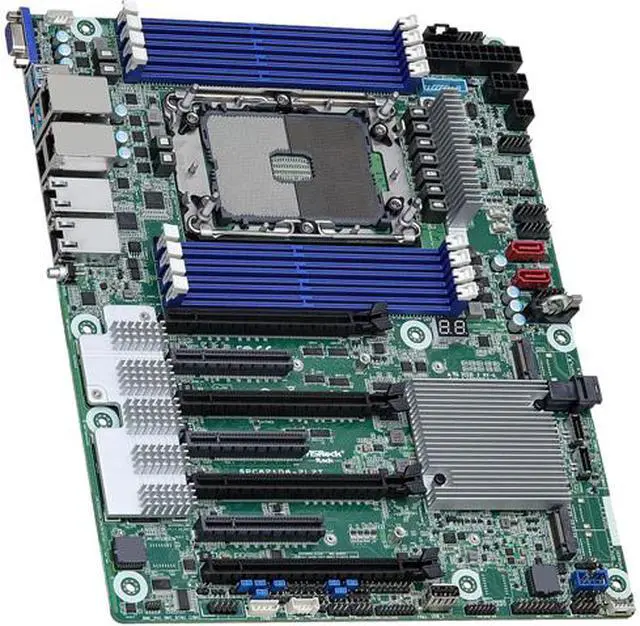

AsRock Rack SPC621D8-2T ATX Server Motherboard LGA 4189 Intel C621A
- ATX (12" x 9.6")
- Supports 3rd Gen Intel Xeon Scalable Processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory
- 4 PCIe4.0 x16, 3 PCIe4.0 x8
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
- 12 SATA 6Gb/s (including 2 ports from M.2)
- 2 RJ45 (10GbE) by Intel X710-AT2
- Remote management (IPMI)
+
+
Learn more about the ASRock Rack SPC621D8-2T
| Brand | AsRock Rack |
|---|---|
| Model | SPC621D8-2T |
| CPU Socket Type | LGA 4189 |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
| Number of Processor Support | 1 |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 DIMM slots (1DPC) |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT7: PCIe4.0 x16* SLOT5: PCIe4.0 x16* SLOT3: PCIe4.0 x16* SLOT1: PCIe4.0 x16 * SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied |
|---|---|
| PCI Express x8 | SLOT6: PCIe4.0 x8 SLOT4: PCIe4.0 x8 SLOT2: PCIe4.0 x8 |
| SATA | 12 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |
| Back I/O Ports | 1 DB15, 4 Type-A (USB3.2 Gen1), 2 RJ45 (10GbE) |
|---|
| Other Connectors | Internal Connector/Headers Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Video output: 1 Speaker Header: 1 Buzzer: 1 Fan Header: 5 (6-pin) Thermal Sensor Header: 1 TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) VROC header: 1 SGPIO Header: 1 SMBus header: 1 PMB header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) USB 2.0 Header: 1 (9-pin, 2 USB2.0) Type A USB 2.0 Port: 1 (Type-A, 1 USB2.0) NMI Header: 1 Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power) ME/SPS Recovery: 1 NC-SI: 1 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | December 30, 2021 |
|---|
