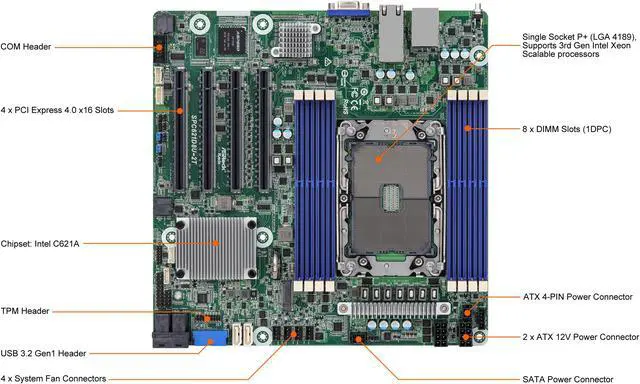

AsRock Rack SPC621D8U-2T Micro ATX Server Motherboard LGA 4189 Intel C621A
- Micro-ATX (9.6" x 9.6")
- Supports 3rd Gen Intel Xeon Scalable Processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory
- 4 PCIe4.0 x16
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 11 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X710-AT2
- Remote management (IPMI)
+
+
Learn more about the ASRock Rack SPC621D8U-2T
| Brand | AsRock Rack |
|---|---|
| Model | SPC621D8U-2T |
| CPU Socket Type | LGA 4189 |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
| Number of Processor Support | 1 |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 DIMM slots (1DPC) |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT7: PCIe4.0 x16 SLOT6: PCIe4.0 x16 SLOT5: PCIe4.0 x16 SLOT4: PCIe4.0 x16 |
|---|
| SATA | 11 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |

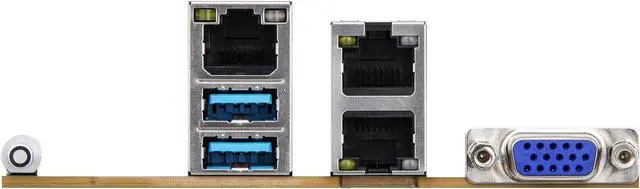

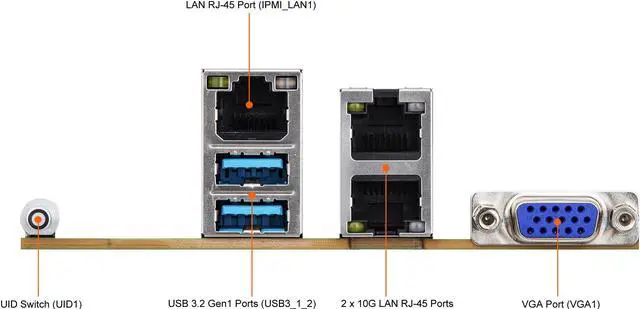

| Back I/O Ports | 1 DB15, 2 Type-A (USB3.2 Gen1), 2 RJ45 (10GbE) |
|---|
| Other Connectors | Internal Connector/Headers Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Fan Header: 4 (4-pin) TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) VROC header: 1 HSBP: 1 SMBus header: 1 PMB header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) NMI Header: 1 Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
LOADING...
LOADING...
The ASRock Rack SPC621D8U-2T is a Micro-ATX server motherboard for one 3rd Gen Intel Xeon Scalable processor, with IPMI remote management, dual 10GbE, eight DDR4 DIMM slots, and four PCIe 4.0 x16 slots; it suits compact server and workstation builds needing enterprise-oriented connectivity and expansion.
Recommended For
- Builders of compact enterprise NAS or storage servers who need a Micro-ATX board with 10GbE, server-class memory support, and extensive SATA connectivity.
- Workstation builders using a compatible 3rd Gen Intel Xeon Scalable processor who need four PCIe 4.0 x16 slots for expansion cards in a compact system.
- Server operators managing a machine remotely or without a monitor, who can use the board’s BMC/IPMI features for out-of-band access and system monitoring.
- Builders of rendering or other workstation systems who want 10GbE networking and server-platform expansion in a Micro-ATX form factor.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Single-processor Micro-ATX server builds using 3rd Gen Intel Xeon Scalable processors |
| Processor And Chipset | LGA 4189 socket for one 3rd Gen Intel Xeon Scalable processor, with Intel C621A chipset |
| Memory Configuration | Eight DDR4 DIMM slots (1DPC), supporting DDR4 3200 and up to 1,024 GB |
| Expansion Slots | Four PCIe 4.0 x16 slots for PCI Express expansion cards |
| Storage And RAID | Eleven SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support, plus one M-key M.2 slot for 2280 drives using PCIe 3.0 x4 or SATA |
| Networking | Dual-port Intel X710-AT2 10GbE networking |
| Onboard Graphics And Rear I/O | Aspeed AST2500 onboard video with one DB15 connector; rear I/O also includes two USB 3.2 Gen 1 Type-A ports and two 10GbE RJ45 ports |
| Internal Headers And Connectors | Internal USB 3.2 Gen 1 header for two USB ports; four 4-pin fan headers; COM, TPM, VROC, HSBP, SMBus, PMB, IPMB, NMI, auxiliary panel, and system panel headers; clear-CMOS contact pads |
| Power Connections | 24-pin ATX adapter cable, two 8-pin ATX 12V connectors supporting 12V DC-in, ATX PSU signal connector, and a 4-pin HDD power connector for use with a 12V DC-in source |
| Form Factor And Dimensions | Micro ATX, measuring 9.6 × 9.6 inches |
| Model Identifiers | ASRock Rack SPC621D8U-2T |
