AsRock Rack TRX40D8-2N2T ATX Server Motherboard AMD sTRX4 3rd Gen Ryze Threadripper
Used - Like New Product Type
Brand new without retail package.
- ATX 12" x 9.6"
- Support 3rd Gen AMD Ryze Threadripper
- Support 8 x DIMM slots, DDR4 ECC and non-ECC UDIMM 3200/2933/2667/2400/2133 , max. 32GB per DIMM
- Support 3 x PCIe4.0 x16 + 1 x PCIe 4.0 x8 +2 x M.2
- Support 6 x SATA3 6.0 Gb/s
- Support 2 x RJ45 10 GbE Intel X710-AT2 + 2 x RJ45 2.5 GbE Intel i225 + 1 x Dedicated IPMI
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now

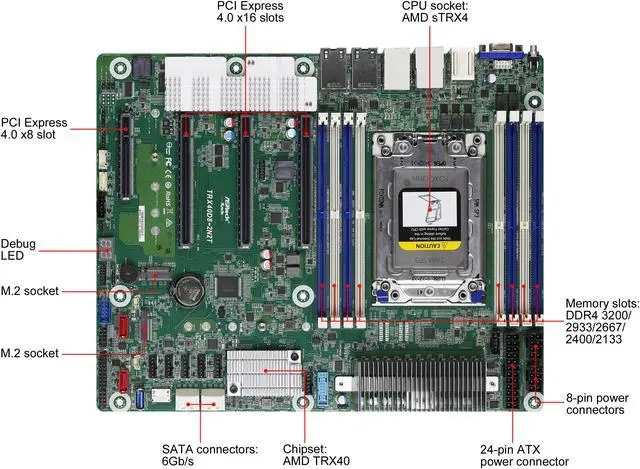

Learn more about the ASRock Rack TRX40D8-2N2T
| Brand | AsRock Rack |
|---|---|
| Model | TRX40D8-2N2T |
| CPU Socket Type | Socket sTRX4 |
|---|---|
| CPU Type | 3rd Gen AMD Ryzen Threadripper series processors |
| North Bridge | AMD TRX40 |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 32GB |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | Slot 7: Latch PCIe x16 (PCIe 4.0 x16) Slot 5: Latch PCIe x16 (PCIe 4.0 x16) Slot 3: Latch PCIe x16 (PCIe 4.0 x16) |
|---|---|
| PCI Express x8 | Slot 1:Open-end PCIe x8 (PCIe4.0 x8) |
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| M.2 | 2 M-key (PCIe4.0 x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10Gbps |

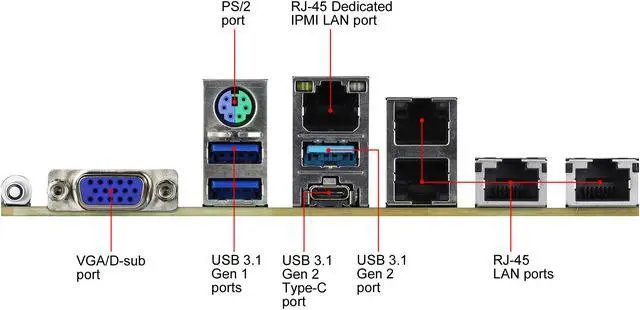

| PS/2 | 1 |
|---|---|
| RJ45 | 4 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen1 Port Type A 1 x USB 3.1 Gen2 Port Type A 1 x USB 3.1 Gen2 Port Type C |
| Other Connectors | COM Header: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 1 (13-pin, LPC), 1( 13-pin, SPI) Thermal Sensor Header: 1 IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 6 (6-pin) USB 3.1 (Gen1) Header: 1 USB 2.0 Header: 1 Type A USB 3.1 (Gen1) Port: 1 Thunderbolt AIC Connector: 1 System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | ATX |
|---|---|

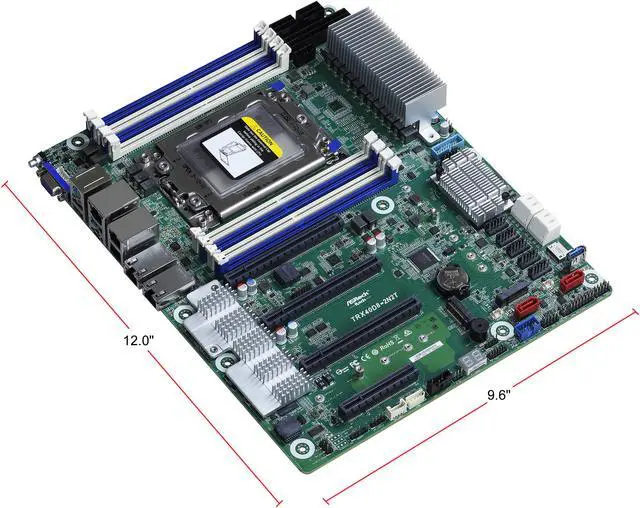

| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | April 14, 2025 |
|---|
