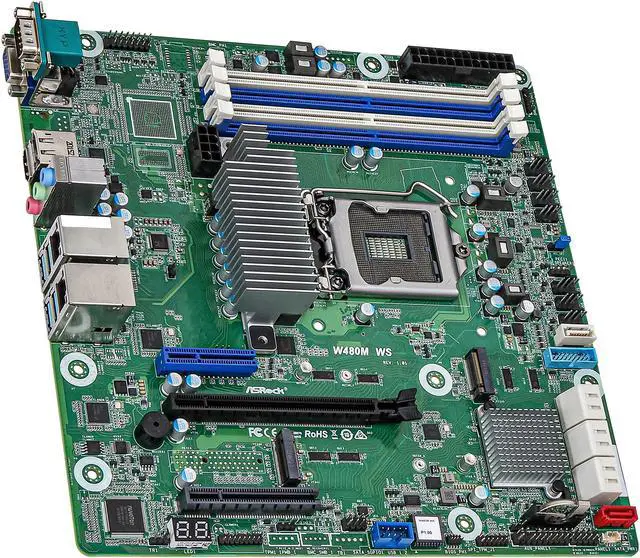

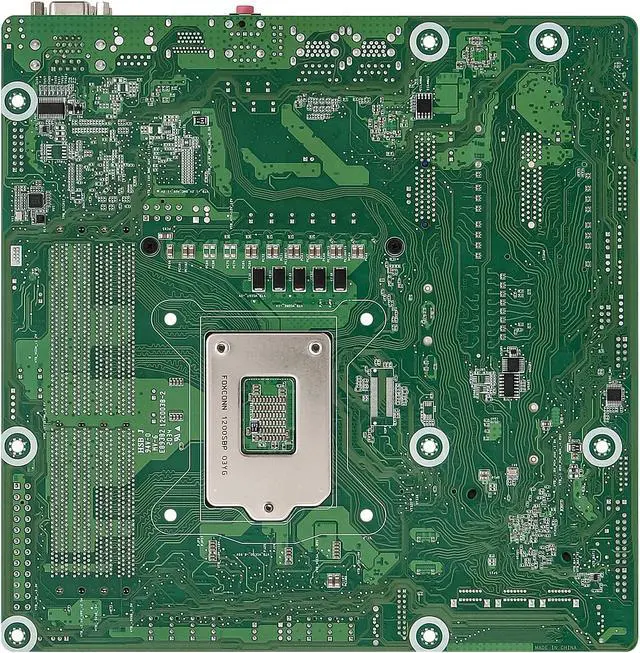

AsRock Rack W480M WS mATX Workstation Motherboard Intel LGA 1200 Xeon W-1200 W480
- mATX 9.6'' x 9.6''
- Support Intel Xeon W-1200 & Intel 10th Gen Intel Core? Processors
- Support 4 x DIMM slots, DDR4 ECC/ UDIMMs, max. 2933MHz 32GB per DIMM
- Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 2 x M.2 (PCIe3.0 x4)
- Support 8 x SATA 6Gb/s (7 x SATA 7-pin + 1 x SATA 7+2 pin for SATA DOM)
- Support 2 x RJ45 1GbE LAN ports by Intel i210
- Support CPU integrated Intel UHD Graphics: 1 x HDMI + 1 x DP + 1 x DB15 + 1 x (15-pin) header
- Support Audio Codec ALC892
- Entry Workstation Board with Multi Video Output
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack W480M WS
| Brand | AsRock Rack |
|---|---|
| Model | W480M WS |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Intel Xeon W-1200, 10th Gen Intel Core Processors |
| North Bridge | Intel W480 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933*/2666/2400 *2933 MHz supported by Intel Xeon W-1290/W-1270 series processors, and 10th Gen Intel Core i9/i7 processors |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | SLOT6: PCI Express 3.0 x16 (auto switch to x8 when SLOT4 is populated) |
|---|---|
| PCI Express x8 | SLOT4: PCI Express 3.0 x8 |
| PCI Express x4 | SLOT7: PCI Express 3.0 x4 |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 2 M-key (PCIe3.0 x4); supports 2280/2242 form factor |
| Audio Chipset | Realtek ALC892 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| COM | 1 |
|---|---|

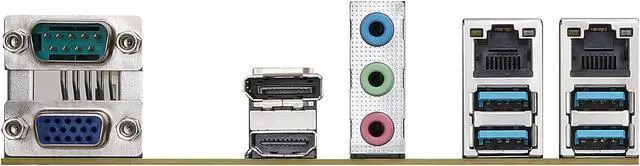

| Video Ports | 1 x HDMI,1 x VGA, 1 x DisplayPort |
| RJ45 | 2 x RJ45 |
| USB 3.0 | 2 x USB 3.2 Gen 1 Type-A |
| USB 3.1 | 2 x USB 3.2 Gen 2 Type-A |
| Audio Ports | 3 Ports |
| Other Connectors | SATA DOM: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. Thermal Sensor Header: 1 VGA Header: 1 Buzzer: 1 Fan Header: 7 (4-pin) USB 3.2 (Gen1) Header: 1 (supports 2 USB3.2 Gen1 ports) USB 2.0 Header: 1 ( supports 2 USB2.0 ports) System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 SGPIO Header: 1 Power Connector: 24-pin (ATX), 8-pin (12V), 4pin (12V) ME/SPS Recovery: 1 Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | Micro ATX |
|---|---|

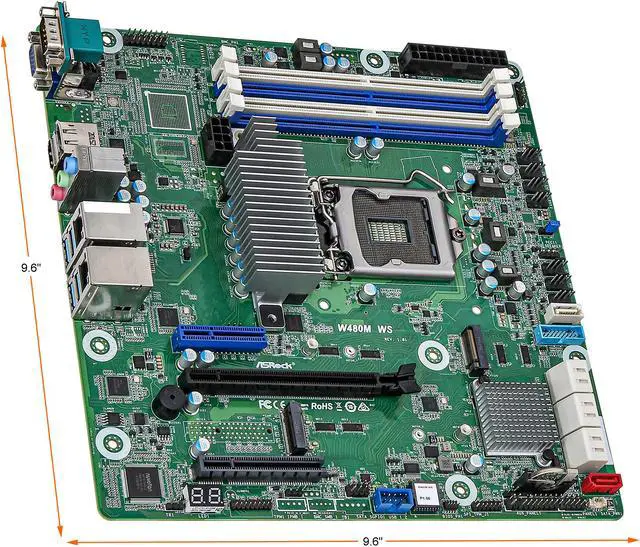

| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | March 24, 2021 |
|---|
