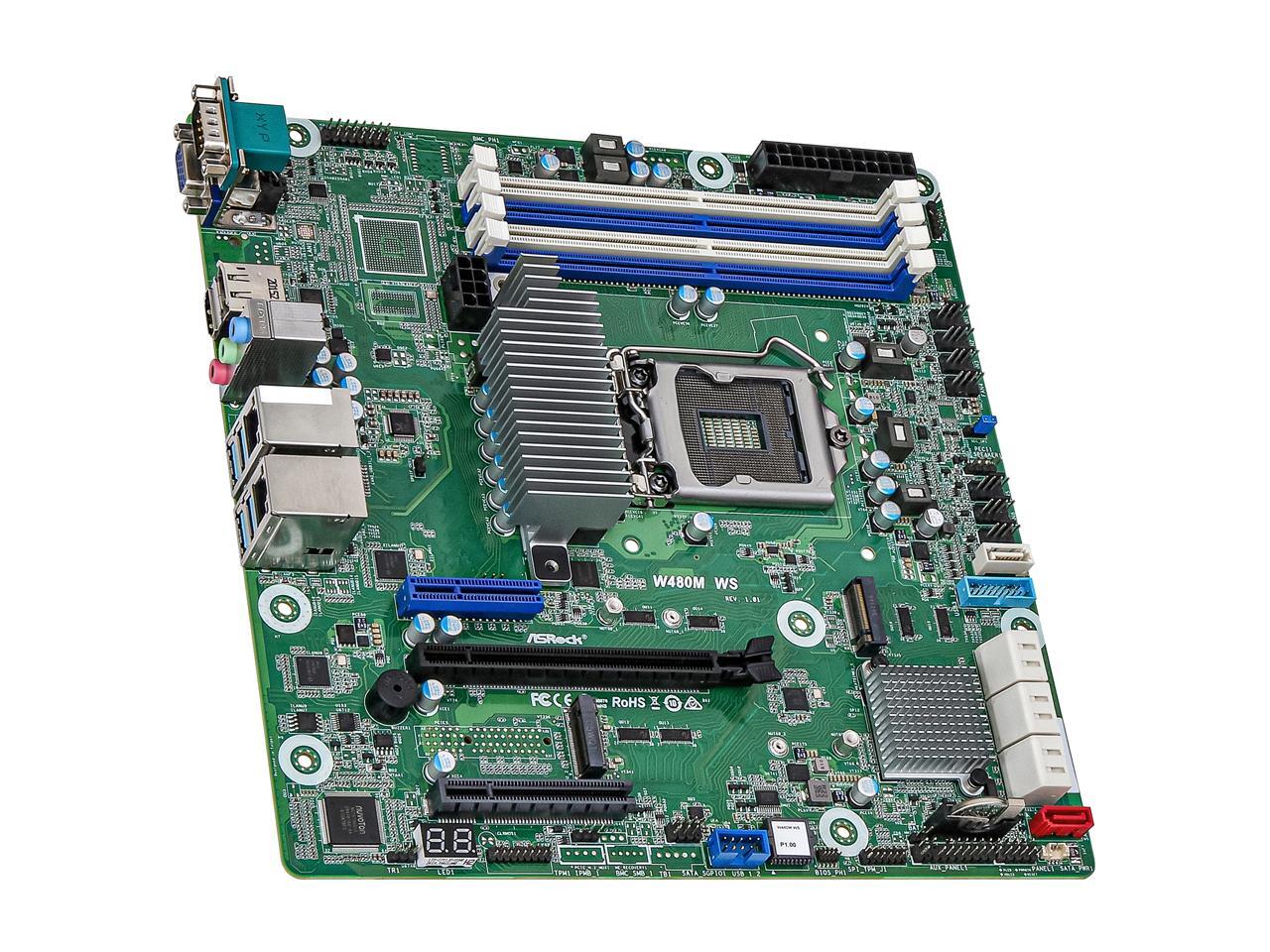

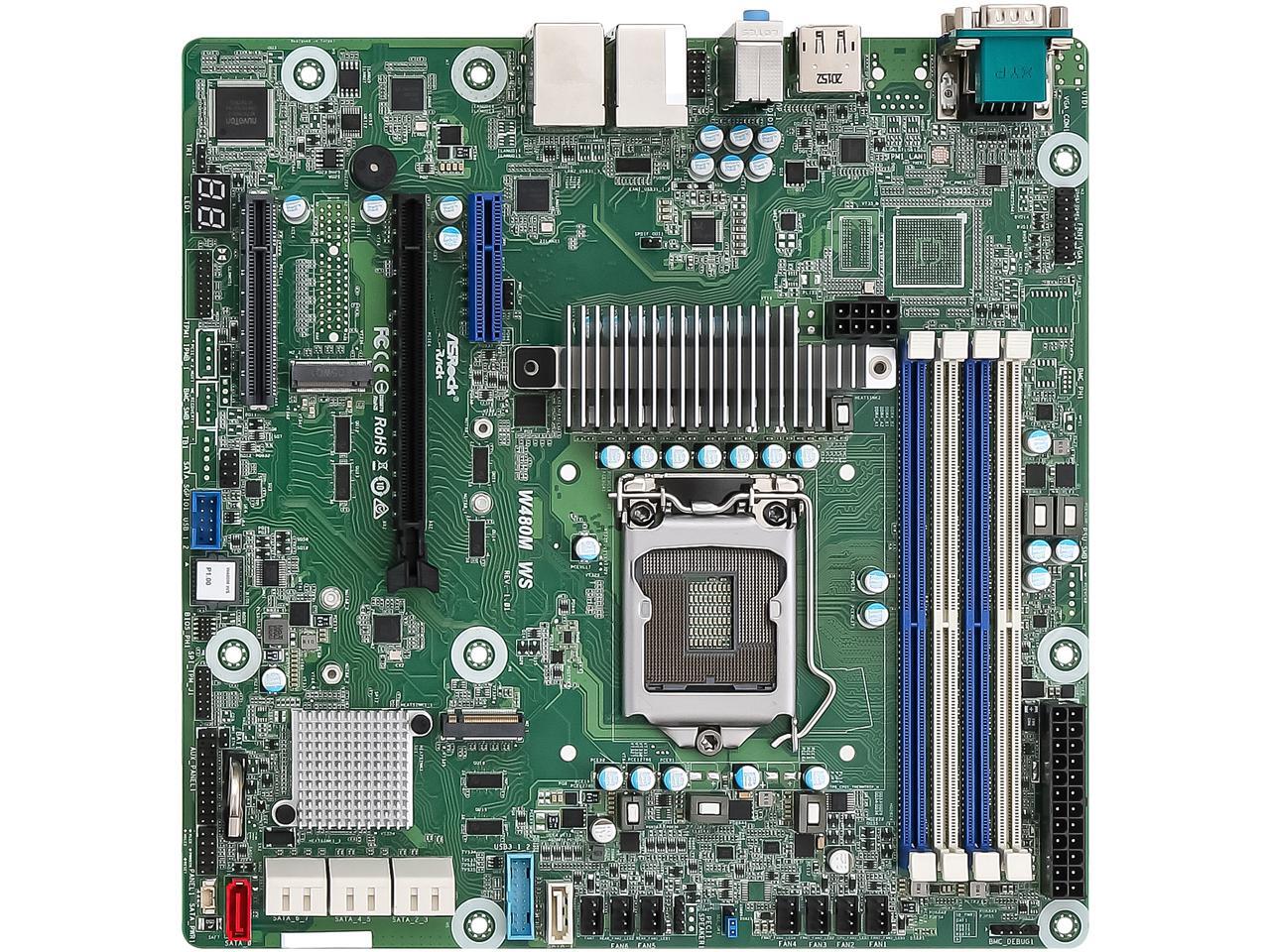

AsRock Rack W480M WS mATX Workstation Motherboard Intel LGA 1200 Xeon W-1200 W480
See more "asrock rack"
Check more best sellers of "Server Motherboards"
Check more lowest price of "Server Motherboards"
In stock.
Ships from United States.

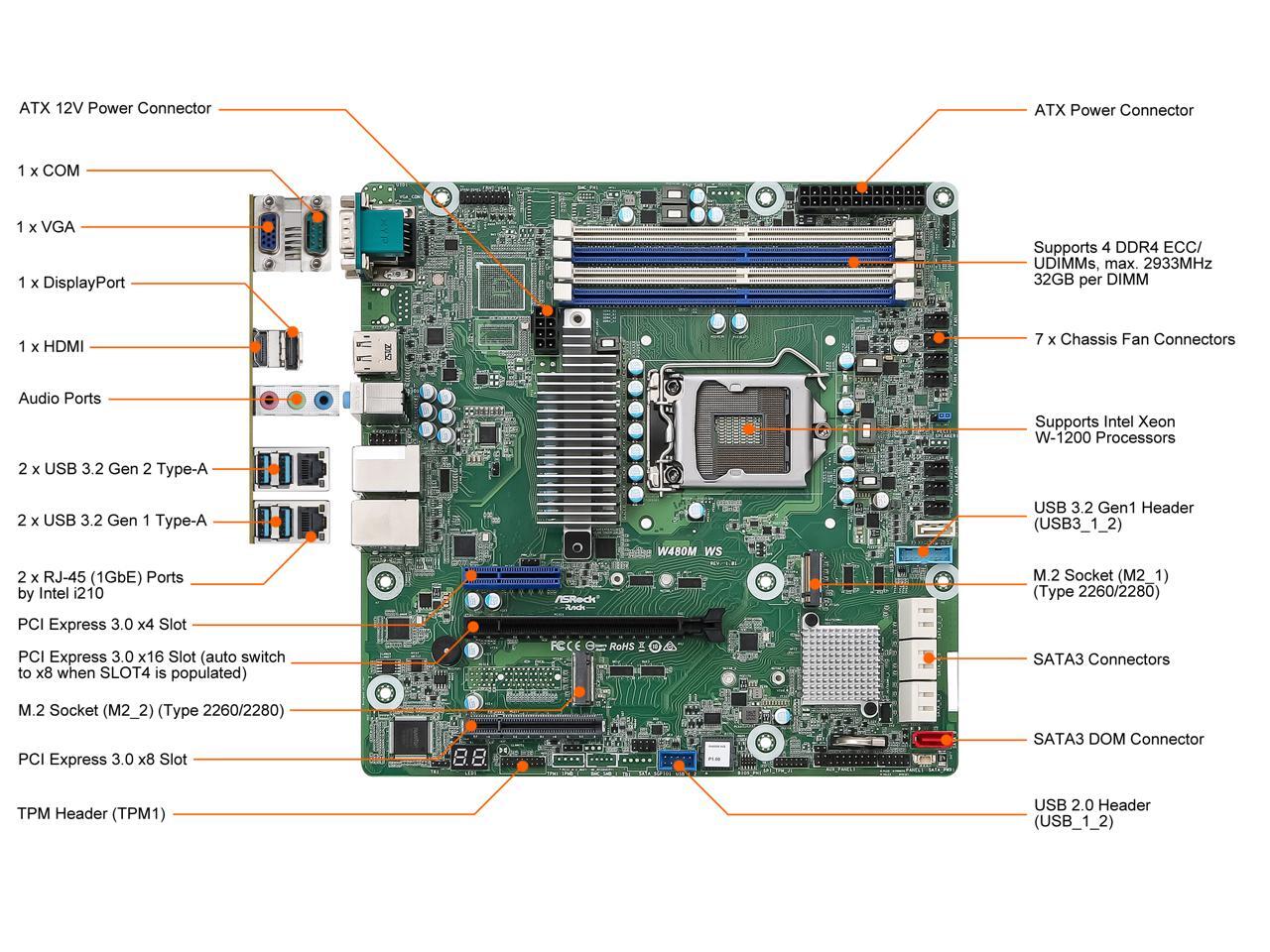

- mATX 9.6'' x 9.6''
- Support Intel Xeon W-1200 & Intel 10th Gen Intel Core? Processors
- Support 4 x DIMM slots, DDR4 ECC/ UDIMMs, max. 2933MHz 32GB per DIMM
- Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 2 x M.2 (PCIe3.0 x4)
- Support 8 x SATA 6Gb/s (7 x SATA 7-pin + 1 x SATA 7+2 pin for SATA DOM)
- Support 2 x RJ45 1GbE LAN ports by Intel i210
- Support CPU integrated Intel UHD Graphics: 1 x HDMI + 1 x DP + 1 x DB15 + 1 x (15-pin) header
- Support Audio Codec ALC892
- Entry Workstation Board with Multi Video Output
+
+
Specs
Reviews
Learn more about the ASRock Rack W480M WS
| Best Seller Ranking | #14 in Server Motherboards |
|---|
| Brand | AsRock Rack |
|---|---|
| Model | W480M WS |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Intel Xeon W-1200, 10th Gen Intel Core Processors |
| North Bridge | Intel W480 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933*/2666/2400 *2933 MHz supported by Intel Xeon W-1290/W-1270 series processors, and 10th Gen Intel Core i9/i7 processors |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | SLOT6: PCI Express 3.0 x16 (auto switch to x8 when SLOT4 is populated) |
|---|---|
| PCI Express x8 | SLOT4: PCI Express 3.0 x8 |
| PCI Express x4 | SLOT7: PCI Express 3.0 x4 |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 2 M-key (PCIe3.0 x4); supports 2280/2242 form factor |
| Audio Chipset | Realtek ALC892 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| COM | 1 |
|---|---|

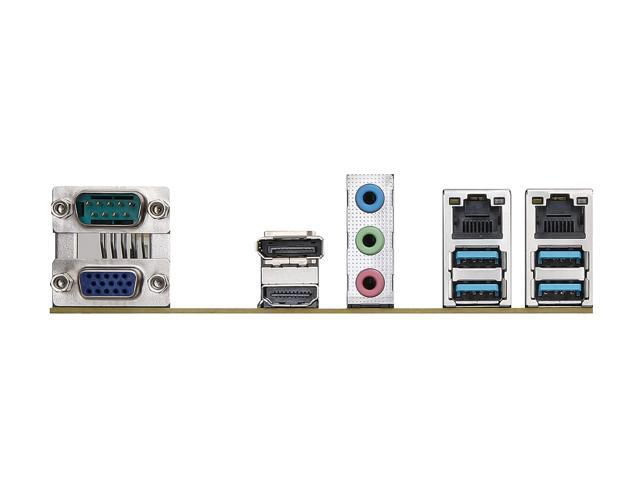

| Video Ports | 1 x HDMI,1 x VGA, 1 x DisplayPort |
| RJ45 | 2 x RJ45 |
| USB 3.0 | 2 x USB 3.2 Gen 1 Type-A |
| USB 3.1 | 2 x USB 3.2 Gen 2 Type-A |
| Audio Ports | 3 Ports |
| Other Connectors | SATA DOM: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. Thermal Sensor Header: 1 VGA Header: 1 Buzzer: 1 Fan Header: 7 (4-pin) USB 3.2 (Gen1) Header: 1 (supports 2 USB3.2 Gen1 ports) USB 2.0 Header: 1 ( supports 2 USB2.0 ports) System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 SGPIO Header: 1 Power Connector: 24-pin (ATX), 8-pin (12V), 4pin (12V) ME/SPS Recovery: 1 Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | Micro ATX |
|---|---|

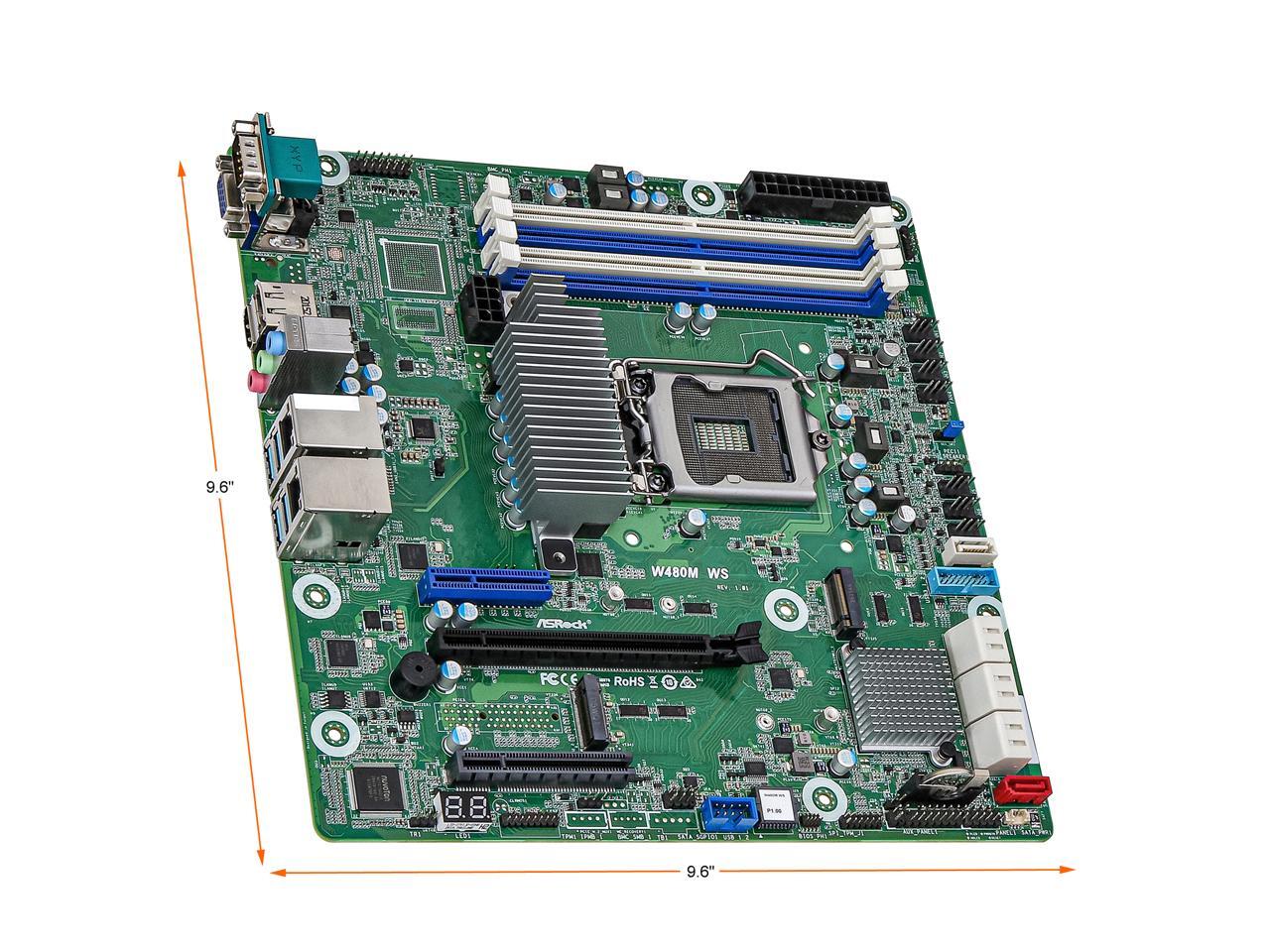

| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | March 24, 2021 |
|---|
