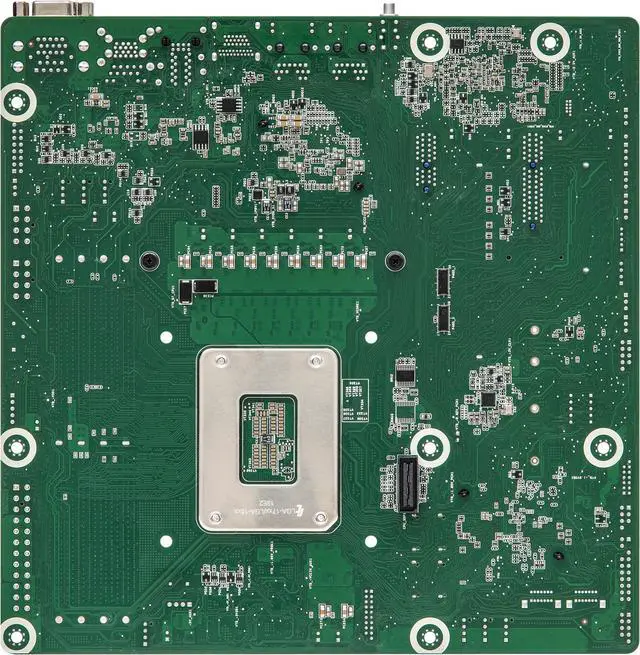

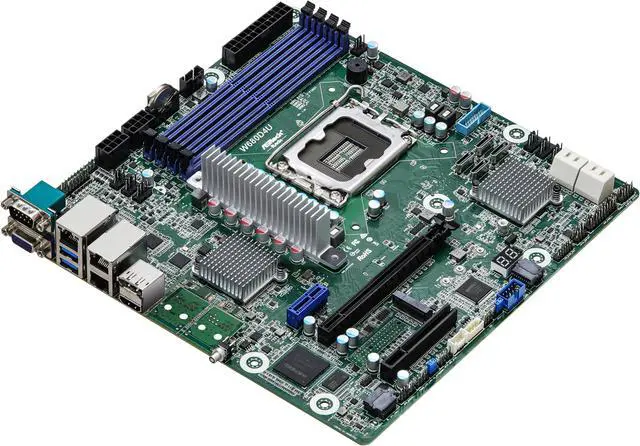

Asrock Rack W680D4U Micro-ATX Server Motherboard 12th Gen Intel Core series processors LGA 1700 Dual 1GbE PCIe Gen4.0
- Micro-ATX (9.6" x 9.6")
- Support 12th Gen Intel Core series processors
- Support 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- Support 1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe3.0 x1
- Support 3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- Support 1 M.2 (PCIe3.0 x4)
- Support 2 RJ45 (1GbE) by Intel i210
- Support up to 8 SATA 6Gb/s
- Support 1 VGA, 1 HDMI, 1 DisplayPort
- Support remote Management (IPMI)
Learn more about the ASRock Rack W680D4U
| Brand | AsRock Rack |
|---|---|
| Model | W680D4U |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th Gen Intel Core series processors |
| Number of Processor Support | 1 |
| North Bridge | Intel W680 |
|---|
| Memory Slots | 4 DIMM slots (2DPC) |
|---|---|
| Memory Standard | DDR5 4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R) |
| Maximum Memory Supported | 128GB |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | SLOT6: PCIe4.0 x16* [CPU] *SLOT6 auto-switch to PCIe4.0 x8 when SLOT4 occupied |
|---|---|
| PCI Express x8 | SLOT4: PCIe4.0 x8* [CPU] |
| PCI Express x1 | SLOT7: PCIe3.0 x1 [PCH] |
| M.2 | 1 M-key (PCIe3.0x4) [PCH]; support 2280/2260/2242/2230 form factor |
|---|
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x DisplayPort / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A |
|---|
| Other Connectors | Power Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED VGA header: 1 Speaker Header: 1 (4-pin) Buzzer: 1 Fan Header: 7 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) ME/SPS Recovery: 1 USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) USB 2.0 Header: 1 (9-pin, 2 USB2.0) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | November 03, 2022 |
|---|
