Out of stock
  • $512.99
Price alert
Add to wish list(Found on 9 wish lists)
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Get Educated

Make informed decisions with expert advice. Learn More

Shop All ASRock Rack Products

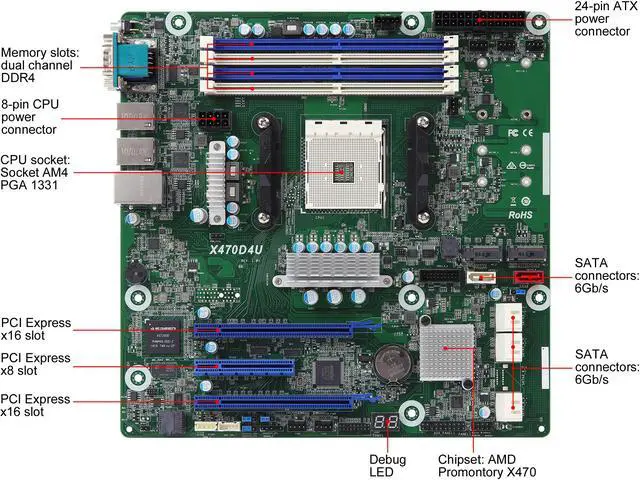

AsRock Rack X470D4U2-2T Micro ATX Server Motherboard AM4 Ryzen & Ryzen 7nm PGA1331 AMD X470 Dual 10 GLAN

(33)(9) Write a Review
  • mATX 9.6" x 9.6"
  • Support AMD AM4 Socket Ryzen Series CPUs (Raven Ridge and Pinnacle Ridge) and Ryzen 7nm CPUs
  • Support 4 x DDR4 DIMM slots, Dual Channel. ECC and non-ECC UDIMM, max. 128GB
  • Support up to 6 x SATA3 6.0Gb/s (inculded 1 x SATA DOM) + 2 x M.2
  • Support 2 x PCIe 3.0 x16 + 1 x PCIE 2.0 x1
  • Support 2 x 10G base-T by Intel X550-AT2 + 1 x IPMI Dedicated LAN
  • Cloud Computing / Web hosting
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews (33)
See all Q & A

Learn more about the ASRock Rack X470D4U2-2T

Model
Brand AsRock Rack
Model X470D4U2-2T
Supported CPU
CPU Socket Type Socket AM4
CPU Type Supports:
AMD Ryzen 5000, 4000, 3000, and 2000 G-Series Desktop Processors with Radeon Graphics
AMD Ryzen 5000, 3000, and 2000 Series Desktop Processors
AMD Ryzen PRO 5000, 4000, 3000, and 2000 Series Desktop Processors
Chipsets
North Bridge AMD X470
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 2666 / 2400 / 2133 MHz
Maximum Memory Supported Support up to 128GB DDR4 ECC / UDIMM
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.
PCIE4: Gen3 x8 link
Other Slots PCIE5: Gen2 x1 link
Storage Devices
SATA 6 x SATA3 6.0 Gb/s (1 x SATA DOM port)
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
Number of LAN 2 x RJ45 10G base-T by Intel X550-AT2
1 x RJ45 Dedicated IPMI LAN port by RTL8211E

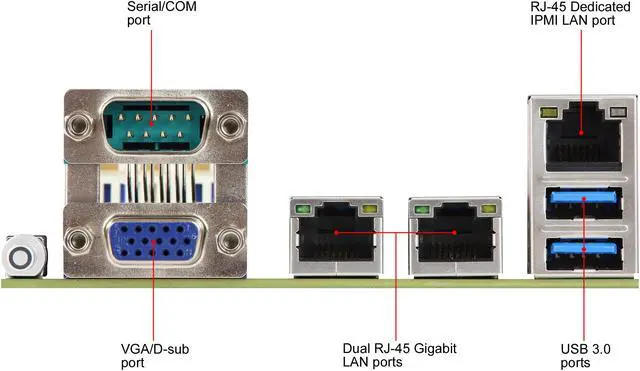

Rear Panel Ports
COM 1
Video Ports 1 x D-Sub
RJ45 2 x RJ45 10 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT / LINK LED and SPEED LED)
USB 3.1 2 x USB 3.1
Features
Features Supports AMD AM4 Socket Ryzen Series CPUs

Supports 4 x DDR4 ECC and non-ECC UDIMM, max. 64 GB

Supports up to 6 x SATA3 6.0Gb/s (inculded 1 x SATA DOM), 2 x M.2

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)

Supports 2 x RJ45 10G base-T by Intel X550-AT2

Supports 2 x PCIe 3.0 x16, 1 x PCIE 2.0 x1
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg July 24, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
