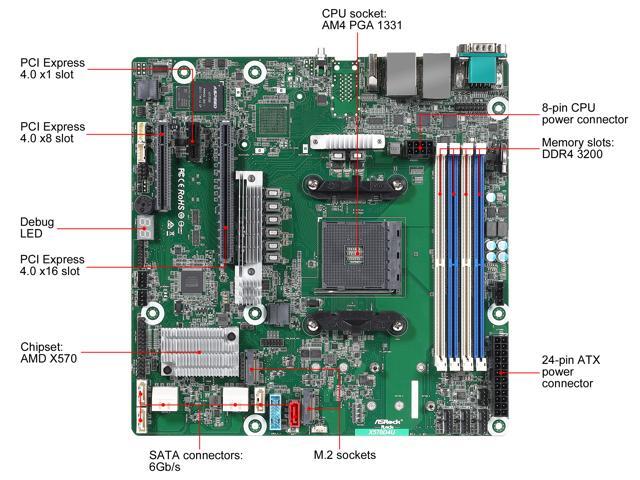

AsRock Rack X570D4U micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual GLAN
#1 Best Seller
in 30 days
See more "asrock rack"
Check more best sellers of "Server Motherboards"
Check more lowest price of "Server Motherboards"
In stock. Limit 100 per customer.
Ships from United States.
- micro-ATX (9.6"x 9.6")
- Support 3rd Gen AMD Ryzen Processors
- Support 4 x DIMM slots, DDR4 ECC and non-ECC UDIMM (* ECC support varies by CPU), max: 32GB per DIMM
- Support 1 x PCIe 4.0 x16 + 1 x PCIe4.0 x8 + 1 x PCIe4.0 x1
- Support 2 x M.2 (PCIe4.0x4/ SATA)
- Support 8 x SATA 6Gb/s
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI
+
+
Specs
Reviews
Learn more about the ASRock Rack X570D4U
| Best Seller Ranking | #1 in Server Motherboards |
|---|
| Brand | AsRock Rack |
|---|---|
| Model | X570D4U |
| CPU Socket Type | AM4 PGA 1331 |
|---|---|
| CPU Type | Supports: AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors |
| North Bridge | AMD X570 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
|---|---|
| PCI Express x8 | SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| PCI Express x1 | SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| SATA | 12 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Additional RAID Controller | X570 (12 SATA 6Gb/s, support RAID 0/1/10): 8 SATA 7-pin connectors, including 1 support SATA DOM 4 SATA via optional M2-HD M.2 device |
| M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10Gbps |
| COM | 1 |
|---|---|

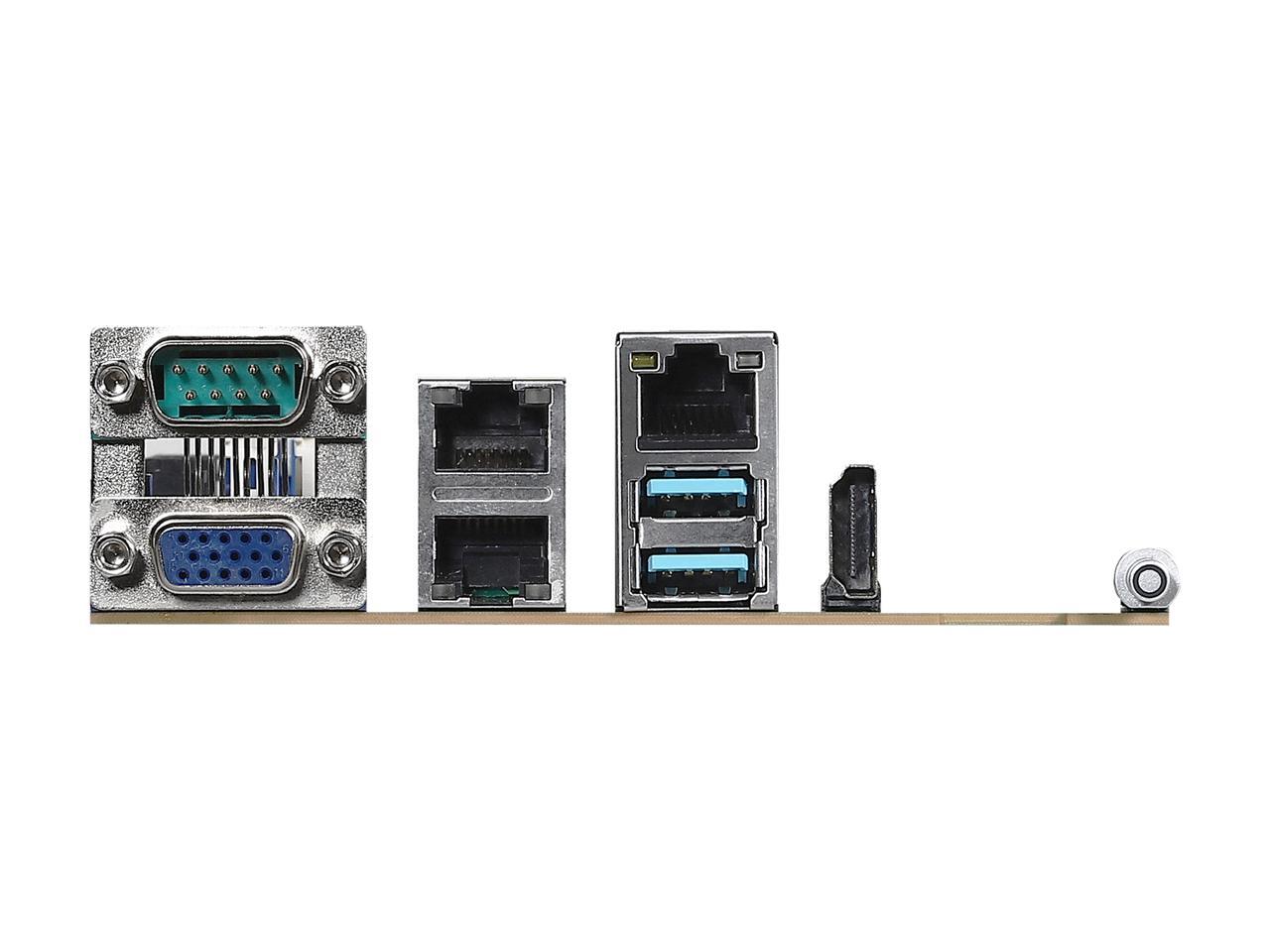

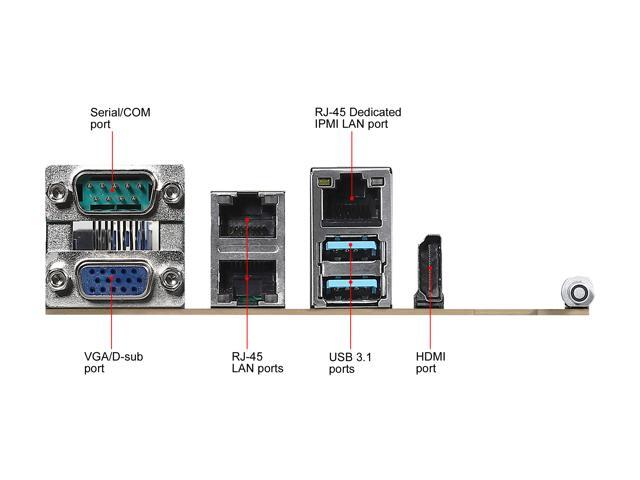

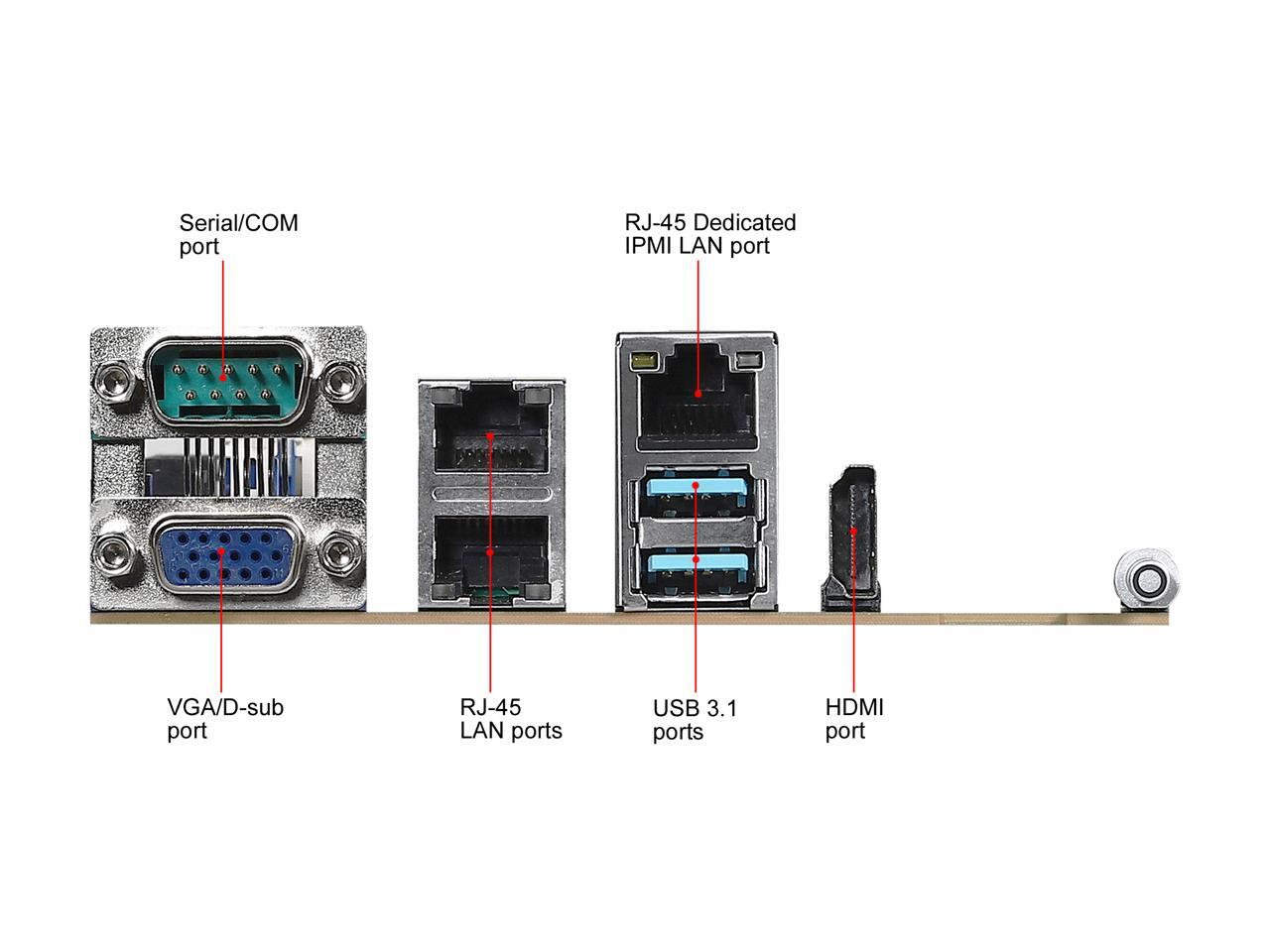

| Video Ports | 1 x HDMI + 1 x VGA |
| RJ45 | 2 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| Other Connectors | Front Lan LED Connector: 1 for LAN3/LAN4 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TR1 Header: 1 TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 3 (6-pin), 3 (4-pin) Front Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 Power Connector: 1 ATX main power (24-pin), 1 ATX 12V (8-pin) Clear CMOS: 1 contact pads |
|---|
| Form Factor | Micro ATX |
|---|---|

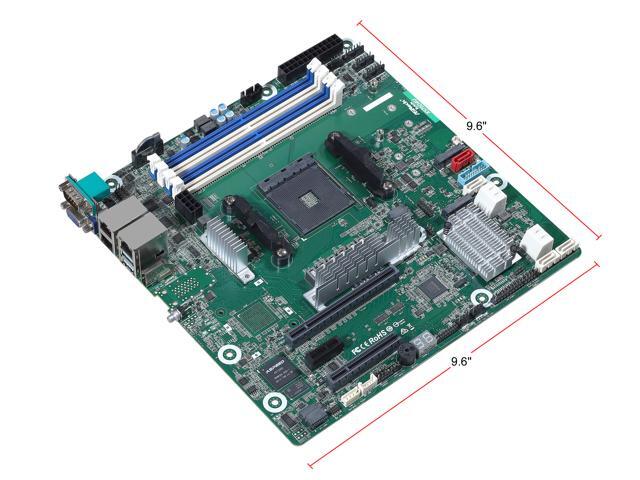

| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | September 29, 2020 |
|---|
