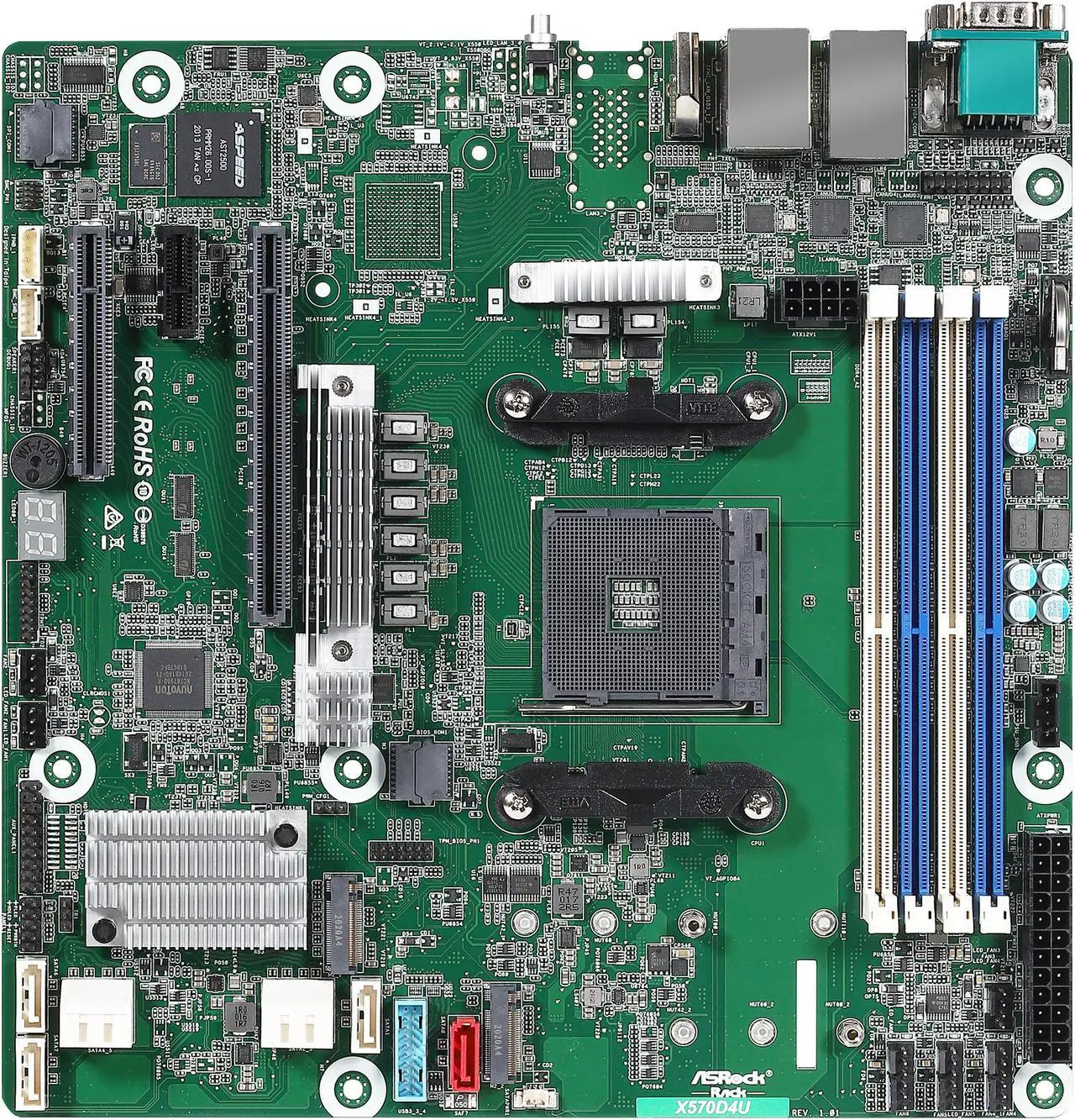

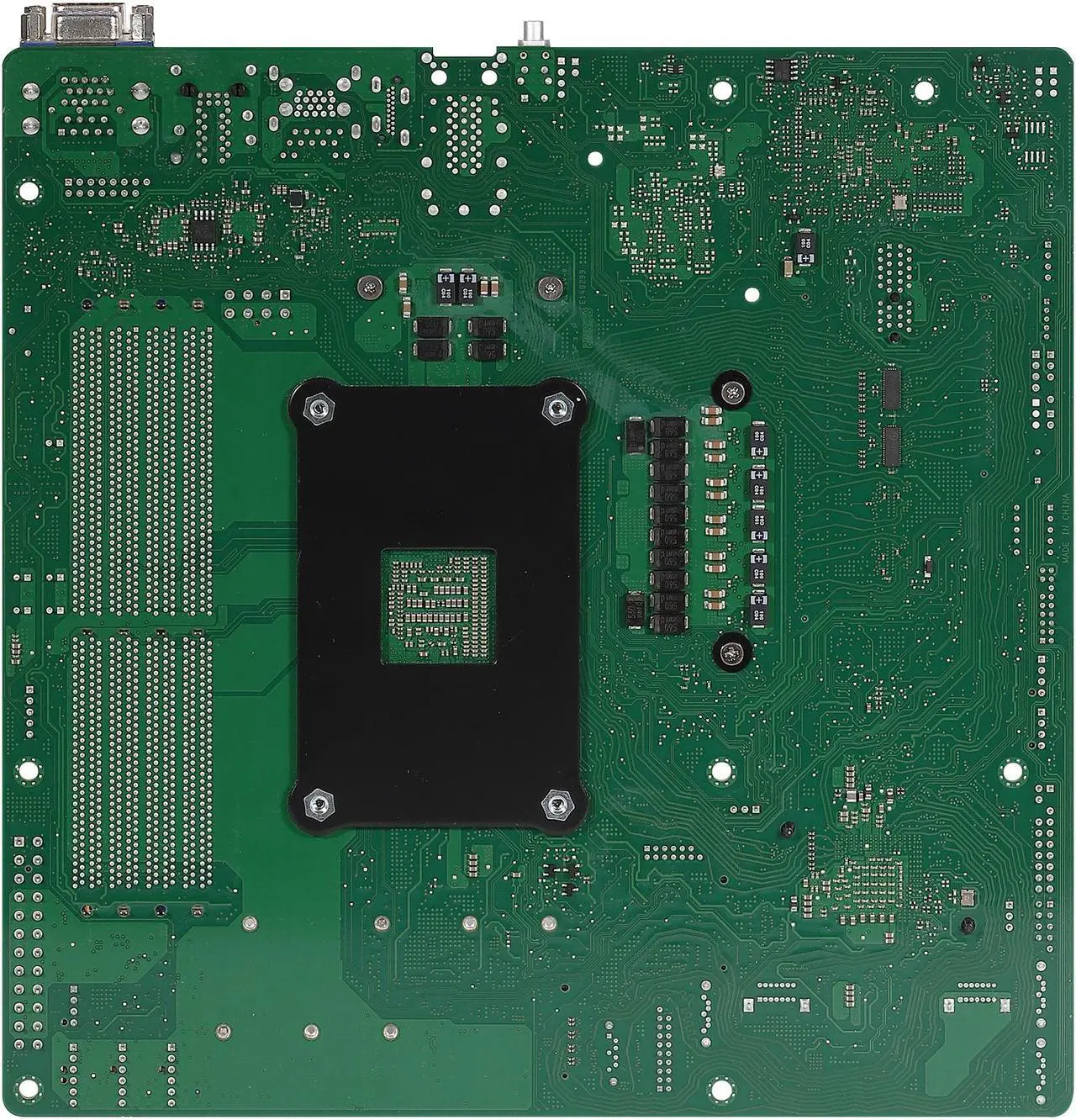

AsRock Rack X570D4U micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual GLAN
- micro-ATX (9.6"x 9.6")
- Support 3rd Gen AMD Ryzen Processors
- Support 4 x DIMM slots, DDR4 ECC and non-ECC UDIMM (* ECC support varies by CPU), max: 32GB per DIMM
- Support 1 x PCIe 4.0 x16 + 1 x PCIe4.0 x8 + 1 x PCIe4.0 x1
- Support 2 x M.2 (PCIe4.0x4/ SATA)
- Support 8 x SATA 6Gb/s
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI
+
+
Specs
Reviews (9)
Learn more about the ASRock Rack X570D4U
| Best Seller Ranking | #19 in Server Motherboards |
|---|
| Brand | AsRock Rack |
|---|---|
| Model | X570D4U |
| CPU Socket Type | Socket AM4 |
|---|---|
| CPU Type | Supports: AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors |
| North Bridge | AMD X570 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
|---|---|
| PCI Express x8 | SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| PCI Express x1 | SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| SATA | 12 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Additional RAID Controller | X570 (12 SATA 6Gb/s, support RAID 0/1/10): 8 SATA 7-pin connectors, including 1 support SATA DOM 4 SATA via optional M2-HD M.2 device |
| M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10Gbps |
| COM | 1 |
|---|---|

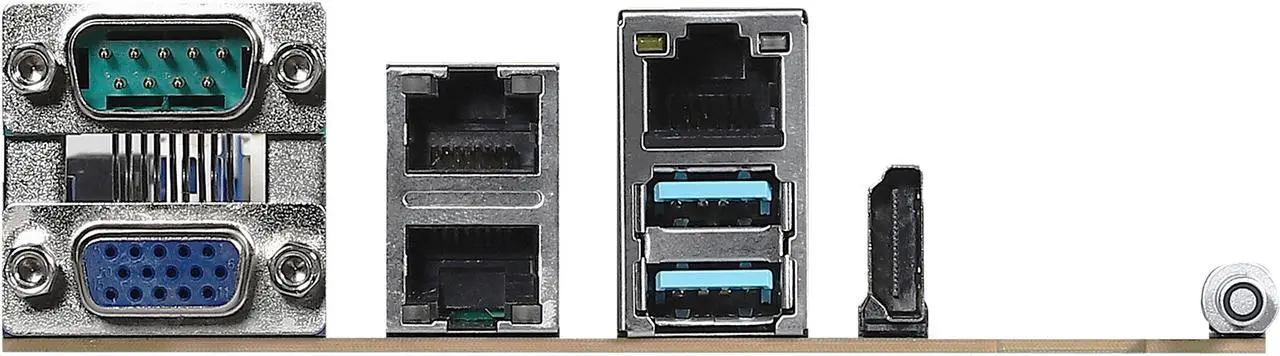

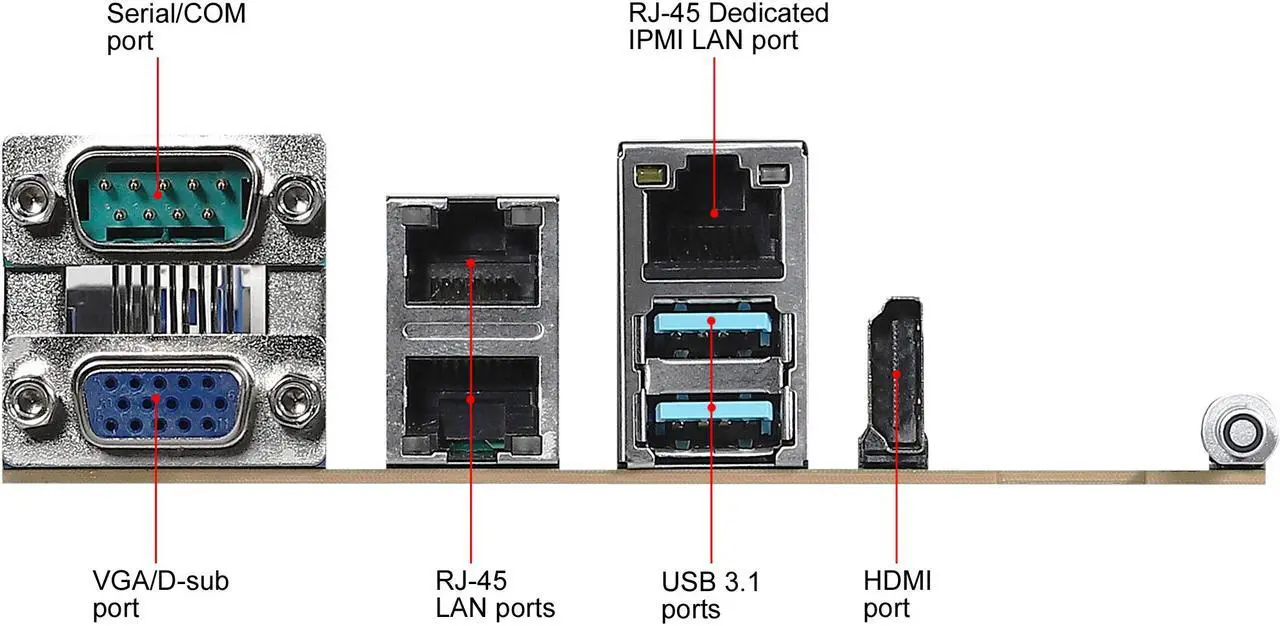

| Video Ports | 1 x HDMI + 1 x VGA |
| RJ45 | 2 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| Other Connectors | Front Lan LED Connector: 1 for LAN3/LAN4 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TR1 Header: 1 TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 3 (6-pin), 3 (4-pin) Front Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 Power Connector: 1 ATX main power (24-pin), 1 ATX 12V (8-pin) Clear CMOS: 1 contact pads |
|---|
| Form Factor | Micro ATX |
|---|---|

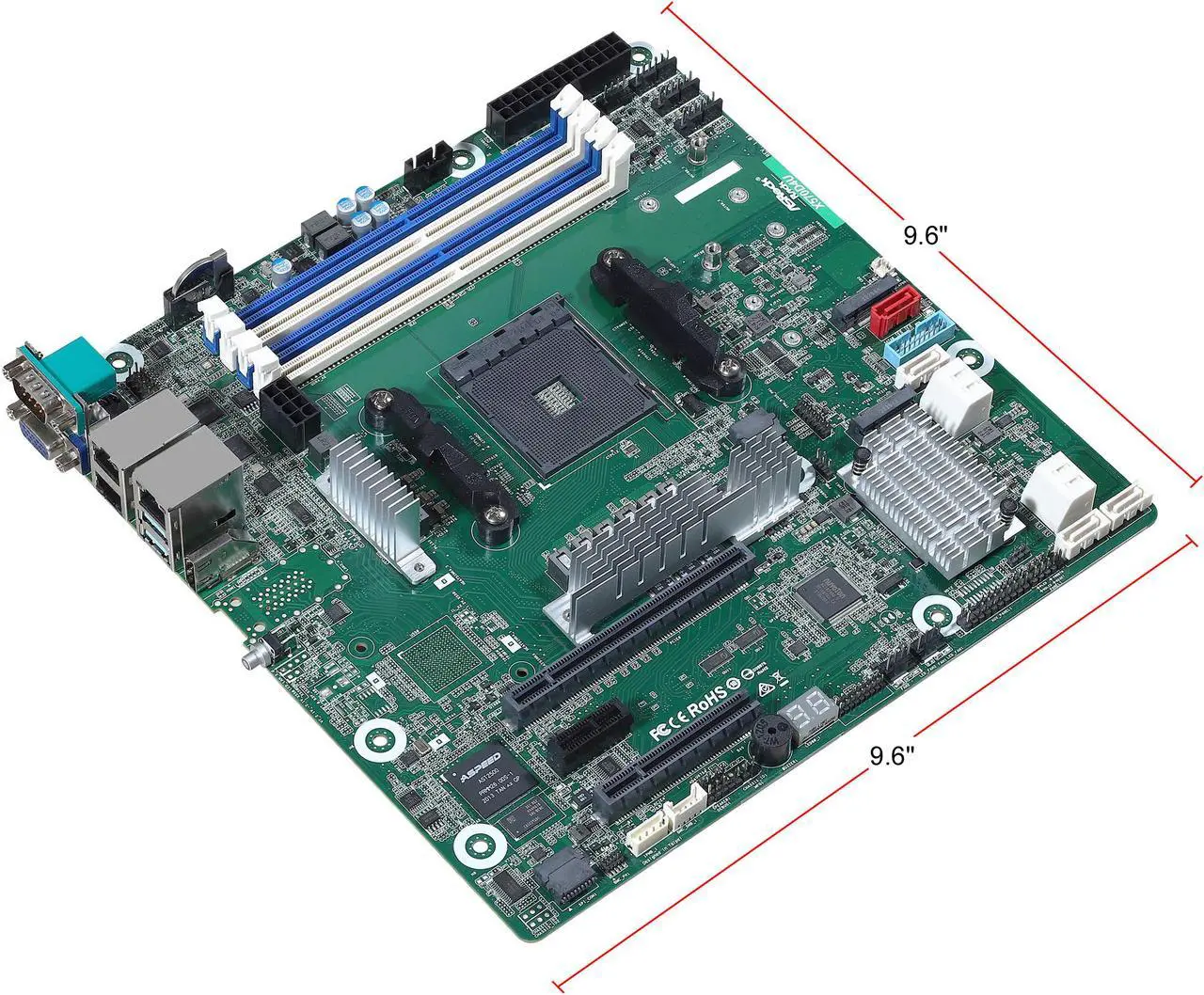

| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | September 29, 2020 |
|---|
