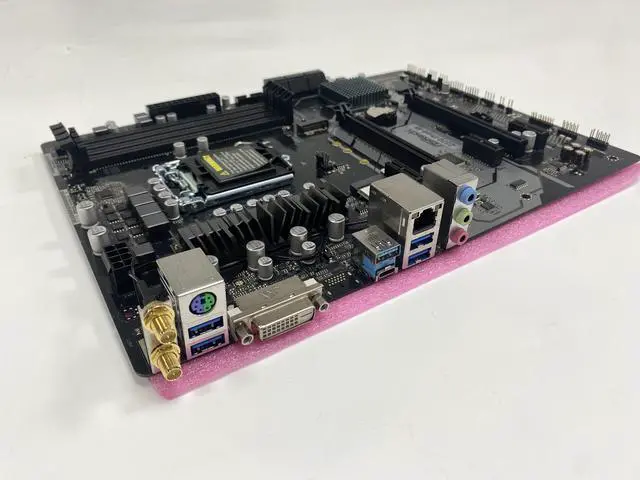

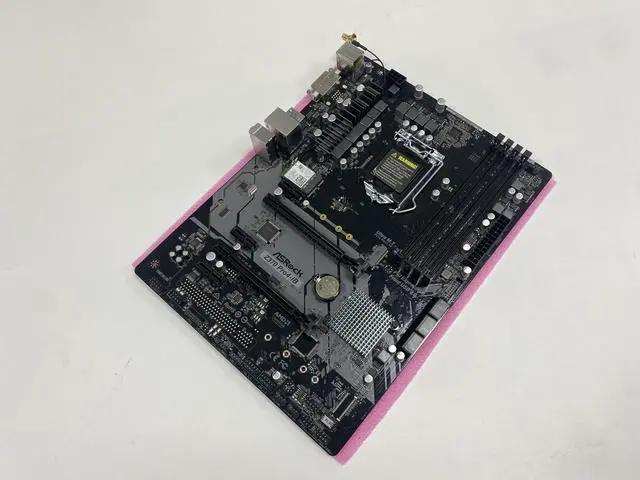

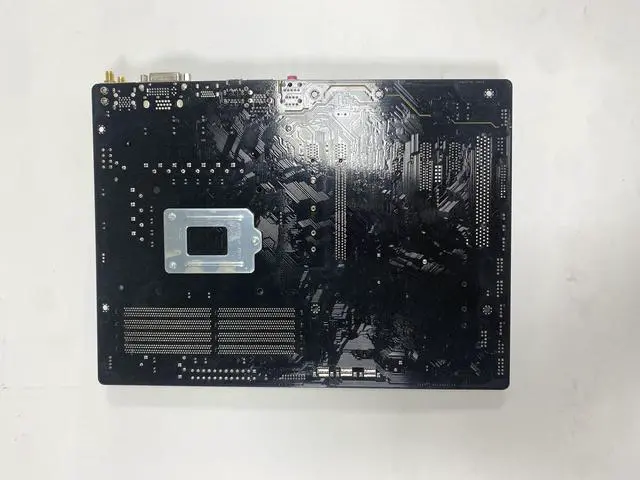

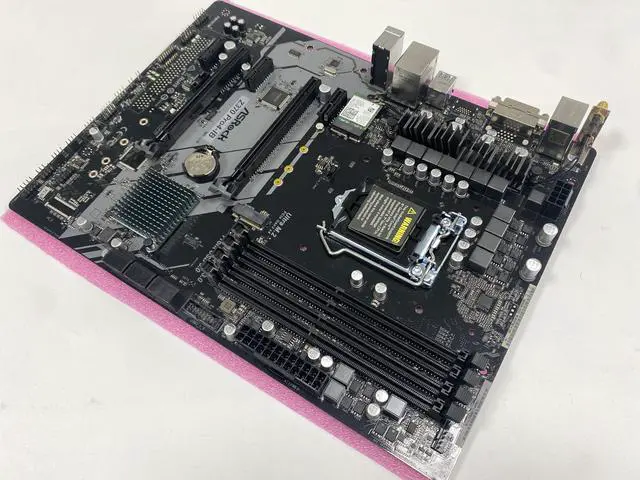

Model: Z370 Pro4-IB
Part Number: 80-MXB7M0-A1A02
Compatible Part Numbers: 80-MXB7M0-A1A01
Chipset: Intel Z370
Socket: Intel LGA1151
Compatible/Supported CPU: 8th 9th Generation Intel Core Processors
Max Supported Memory: Up to 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC892 Codec
Input/Output Ports: 2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port; 1 x DVI-D Port; 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection); 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: 2 x PCI Express 3.0 x16 Slots; 3 x PCI Express 3.0 x1 Slots;
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!
