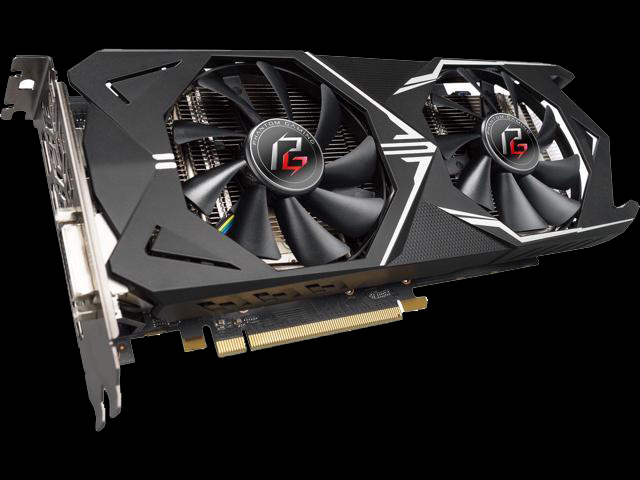

ASRock Phantom Gaming X Radeon RX 570 DirectX 12 RX570 4G OC 4GB 256-Bit GDDR5 PCI Express 3.0 x16 HDCP Ready Video Card
- 4GB 256-Bit GDDR5
- Core Clock OC Mode: 1331 MHz
- Default Mode: 1280 MHz
- Silent Mode: 1228 MHz
- 1 x Dual-link DVI-D 1 x HDMI 2.0 3 x DisplayPort 1.4
- 2048 Stream Processors
- PCI Express 3.0 x16
- OC Mode: 1331 MHz / 7028 MHz
- Default Mode: 1280 MHz / 7000 MHz
- Silent Mode: 1228 MHz / 6972 MHz
- 4 GB GDDR5
- Double Ball Bearings Fan Design
- High Performance Composite Heatpipes
- Support 8K Resolution
- Graphic Outputs: 3 DisplayPort, HDMI, DVI
Phantom Gaming Tweak Utility
- Temperature and Fan Speed Monitoring
- Core / Memory Clock Tweak
- Core / Memory Voltage Tweak

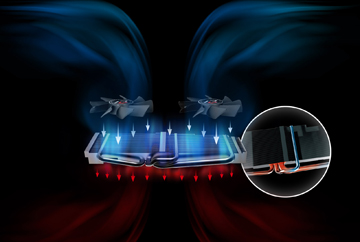

DUAL FAN DESIGN
2X fans for extremely making system cooling optimized.

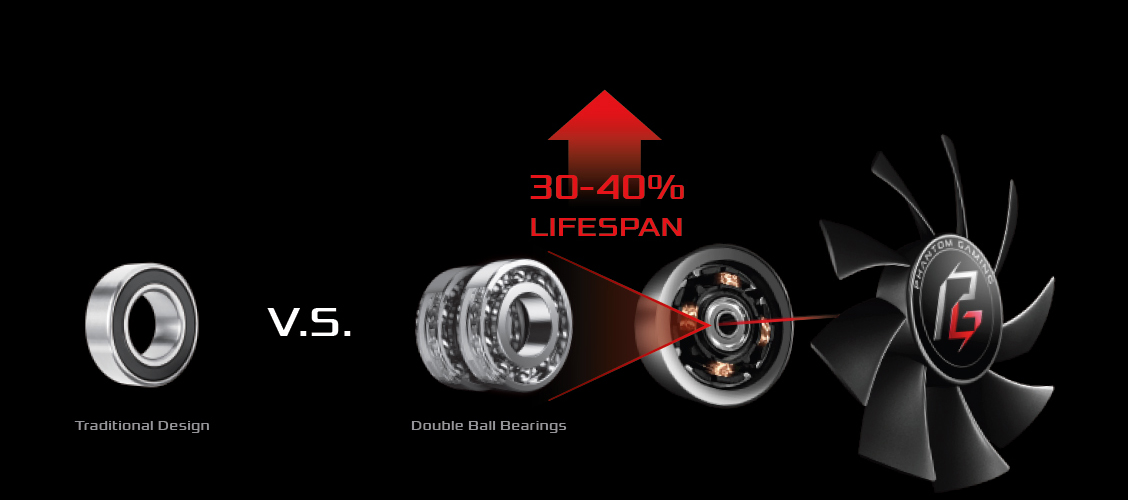

DOUBLE BALL BEARINGS FAN DESIGN
Reduce friction, allow fan to run smoother and with a lifespan up to 50,000-100,000 hours. Compared to traditional design with oil leakage problem, it improves lifespan by 30 ~ 40% and with an enhanced cooling efficiency significantly.
The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.
ULTRA COOL XXL ALUMINUM ALLOY HEATSINK & HEATPIPE DESIGN
Equipped with huge heatsink and heatpipe designs to improve thermal transfer effectively.

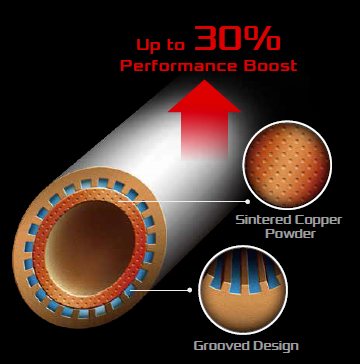

HIGH PERFORMANCE COMPOSITE HEATPIPES
Combined with grooved and copper powder sintered interfaces, the composite heatpipe design efficiently improve thermal transfer of heat between two solid interfaces and increase cooling capacity Up to 30% Performance Boost.

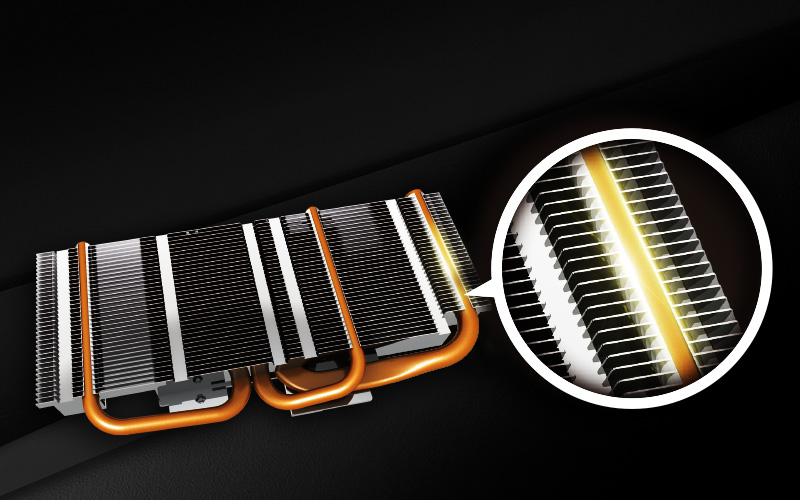

HIGH-DENSITY METAL WELDING
Effectively isolate all convergence of the gap between pipe and stacked fins, hence improve heat transfer effectively.

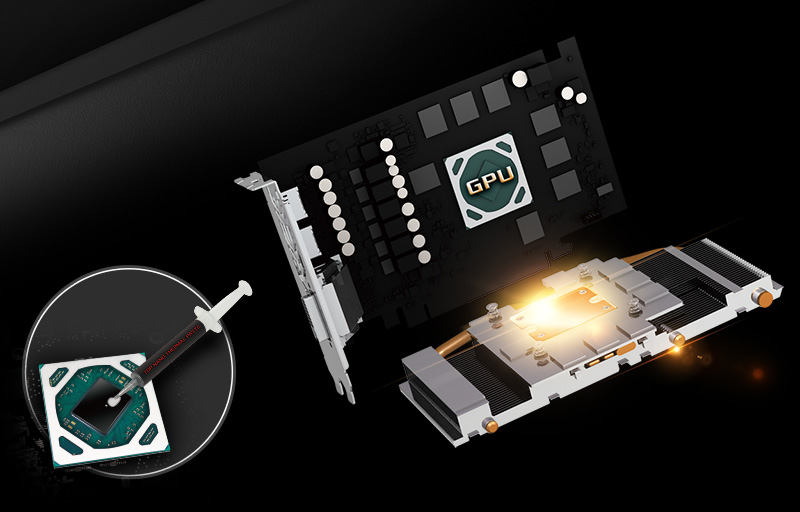

COPPER BASE HEATSINK DESIGN
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

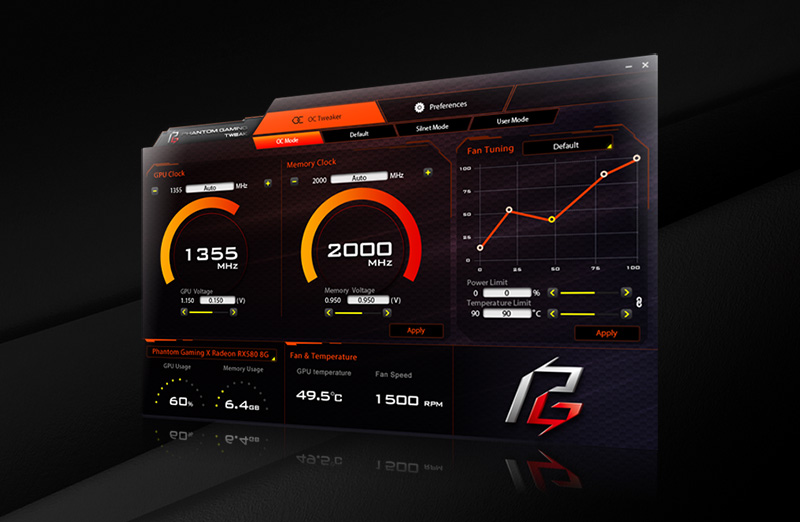

PHANTOM GAMING TWEAK
Smart FAN speed control support and instant performance tweaking.
AMD RADEON Software ADRENALIN EDITION
|Graphics Engine||AMD Radeon RX 570|
|Bus Standard||PCI Express x16 Gen3|
|Video Memory||GDDR5 4GB|
|Engine Clock||1280 MHz|
|Memory Clock||7000 MHz|
|Resolution||Digital Max Resolution: 8K (7680 x 4320)|
|Interface||1 x Dual-link DVI-D|
|1 x HDMI 2.0|
|3 x Display Port 1.4|
|Power Connectors||1 x 8-pin|
|Accessories||1 x Support CD|
|1 x Quick Installation Guide|
|Dimensions||215.14 x 128.98 x 43.65mm|
