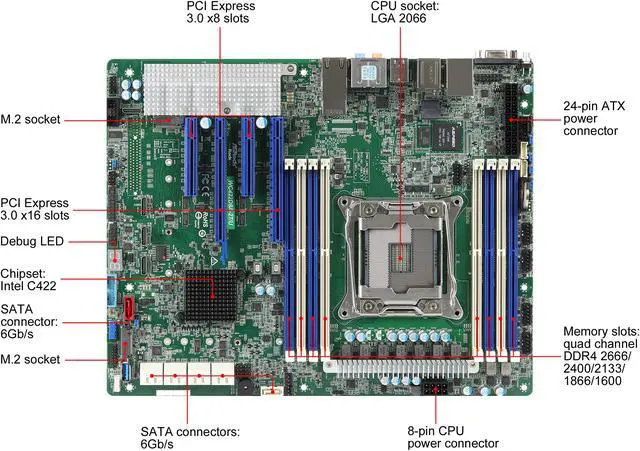

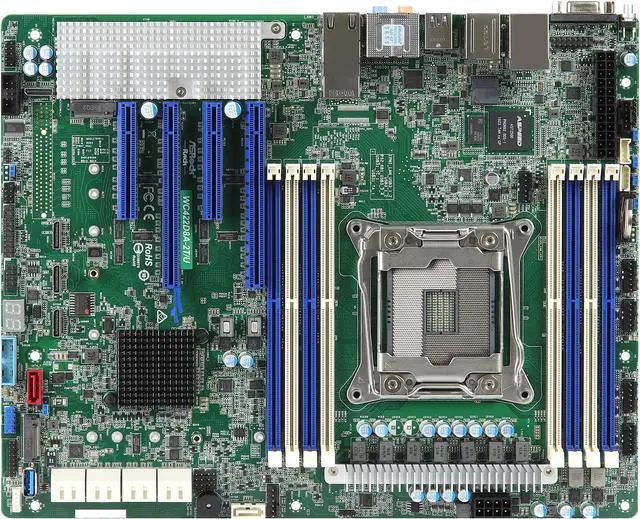

AsRock Rack WC422D8A-2T/U ATX Server Motherboard Single Socket R4 LGA 2066 Intel C422

Be the first to review this product...
  • ATX 12" x 9.6"
  • Support Intel Skylake-W Processors
  • Support 8 x DIMM slot, Quad channels DDR4 2666 R DIMM& LR DIMM, up to 256GB RDIMM (32GB w/ 8Gb DRAM) or up to 512GB LRDIMM (64GB w/ 8Gb DRAM)
  • Support 2 x PCIe 3.0 x16 + 2 x PCIe 3.0 x8 + 2 x M.2 (M2_1: 2230/2242/2260/2280/22110, supports SATA 6.0Gb/s/PCIE3.0(x4), M2_2:2230/2242/2260/2280/22110, supports PCIE3.0(x4))
  • Support 8 x SATA3 6Gb/s (1x SATA3 share with SATA DOM or M.2) + 2 x SATA3 6Gb/s from Additional Storage Controller 88SE9172 + 4 x Oculink for U.2
  • Support 2 x 10GLAN by Intel X550 + 1 x dedicated IPMI
  • Support Audio by Realtek ALC892 (5+1 Jack)
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack WC422D8A-2T/U

Model
Brand ASRock
Model WC422D8A-2T/U
Supported CPU
CPU Socket Type LGA 2066
CPU Type Supports Intel Skylake-W Processors
Chipsets
North Bridge Intel C422
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard R DIMM: 2666/2400/2133/1866/1600MHz
LR DIMM: 2666/2400/2133/1866/1600MHz
Maximum Memory Supported Support up to 256GB RDIMM (32GB w/ 8Gb DRAM)
Support up to 512GB LRDIMM (64GB w/ 8Gb DRAM)
Channel Supported Quad Channel
Registered Yes
Expansion Slots
PCI Express 3.0 x16 Slot4: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
Slot6: Gen3 x16 link, auto switch to x8 link if Slot5 is occupied
Storage Devices
SATA 8 x SATA 6.0Gb/s
Additional SATA 2 x SATA 6.0Gb/s
M.2 2 (M2_1: 2230/2242/2260/2280/22110, supports SATA 6.0Gb/s/PCIE3.0(x4), M2_2:2230/2242/2260/2280/22110, supports PCIE3.0(x4))
Onboard Video
Onboard Video Chipset Aspeed AST2500 4GB DDR4 VRAM
Onboard Audio
Audio Chipset Realtek ALC892
Onboard LAN
LAN Chipset Intel X550
LAN Speed 2 x RJ45 GLAN
Max LAN Speed 10Gbps

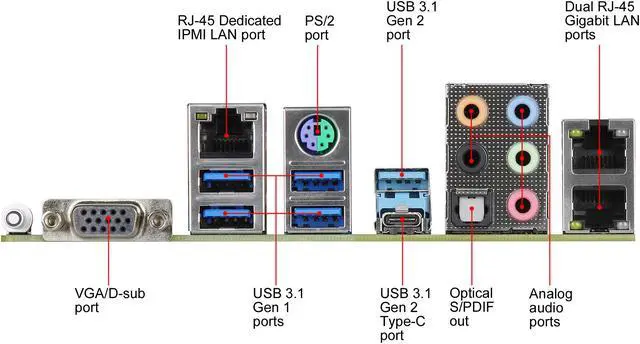

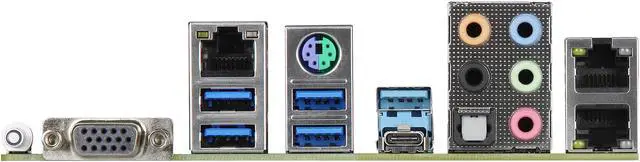

Rear Panel Ports
PS/2 1
Video Ports 1
RJ45 2 x RJ45 10G base-T(by Intel X550) + 1 x RJ45 Dedicated IPMI LAN port
USB 3.1 4 x USB 3.1 Gen1
2 x USB 3.1 Gen2 (1 type A, 1 type C)
Audio Ports 5+1 jack
Onboard Ports
Other Connectors 1 x COM Header
1 x SATA DOM
1 x Auxiliary Panel Header (includes chassis intrusion, location button & LED, and front LAN LED)
1 x TR1 Header
1 x TPM Header
1 x IPMB Header
1 x VGA Header
1 x PMBus CONN
1 x Buzzer
4 x NVME support (Oculink from CPU)
6 x 6-pin Fans (1CPU/5 system)
1 x (24-pin) + 1 x (8-pin) + 1 x (8-pin) ATX Power
1 x USB 3.1 (Gen1) Header ( support 2 USB3.0)
1 x USB 2.0 Header ( support 2 USB2.0)
1 x Type A USB 3.1 (Gen1) Port
1 x Front Panel
1 x Speaker Header
1 x BMC_SMB Header
2 x SGPIO Header
1 x VROC KEY
1 x Clear CMOS
Dimensions
Form Factor ATX

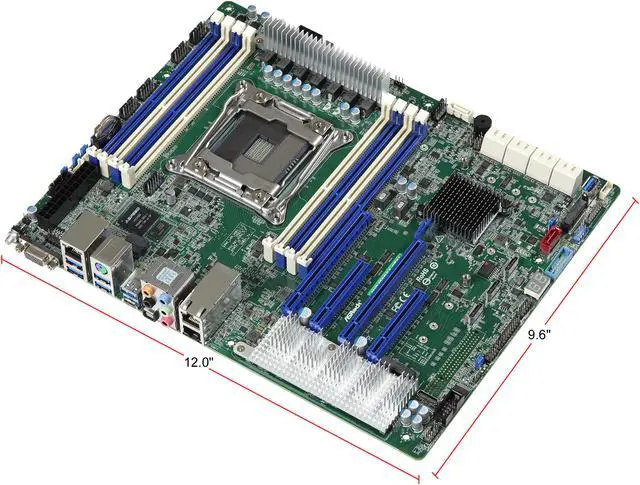

Dimensions (W x L) 12.0" x 9.6"
Additional Information
First Listed on Newegg March 11, 2020
