ASRock Wolfdale1333-D667 LGA 775 Intel 945GC Micro ATX Intel Motherboard
- Intel 945GC
- Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
- DDR2 667
Specs
Reviews (17)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Wolfdale1333-D667
| Brand | ASRock |
|---|---|
| Model | Wolfdale1333-D667 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Extreme / Core 2 Duo / Pentium D / Celeron |
| FSB | 1333/1066 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945GC |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8101E |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 3 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.7" |
| Power Pin | 24 Pin |

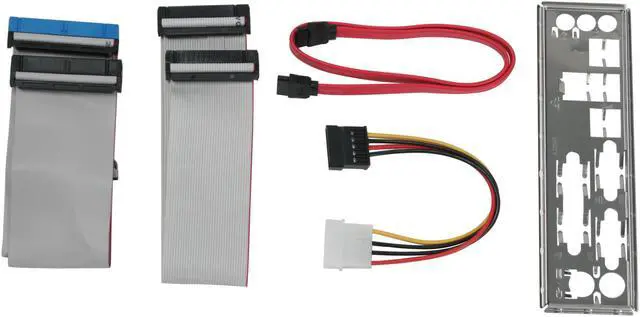

| Package Contents | Wolfdale1333-D667 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | December 28, 2007 |
|---|
