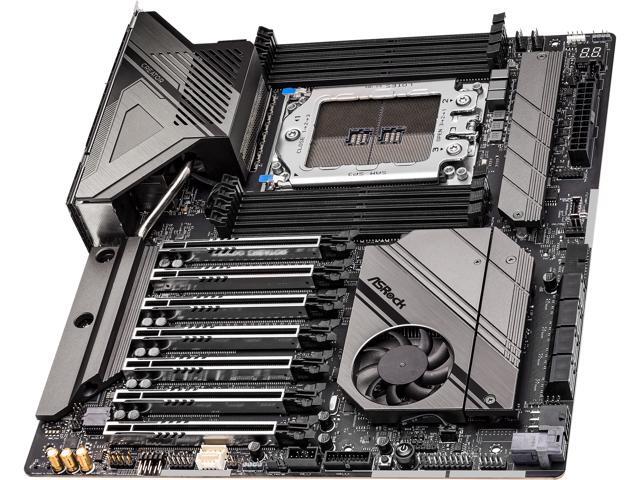

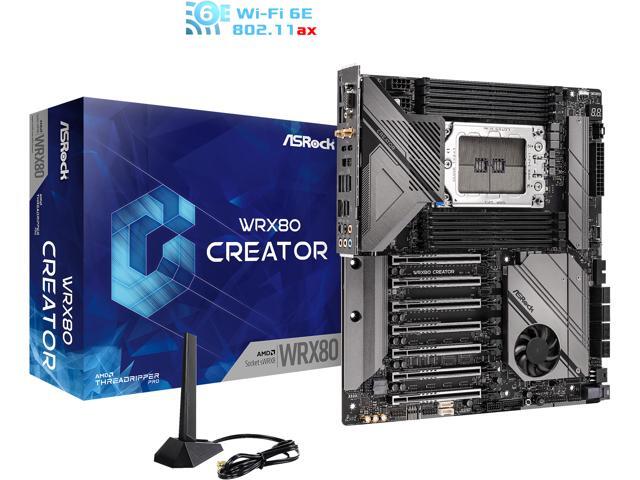

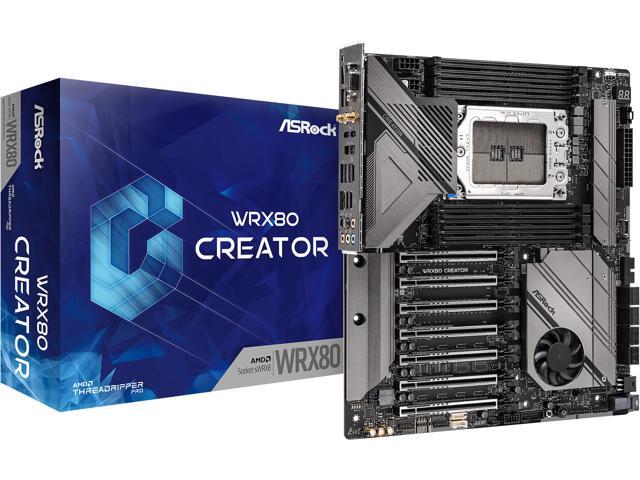

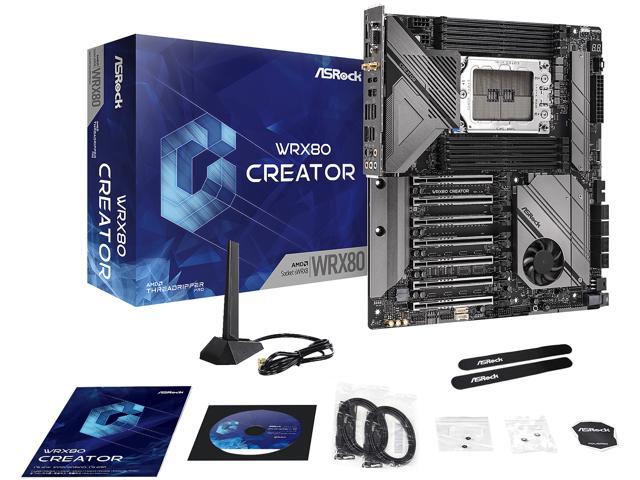

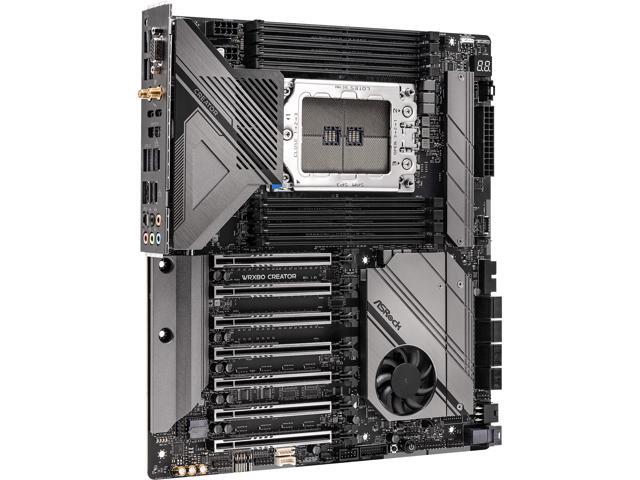

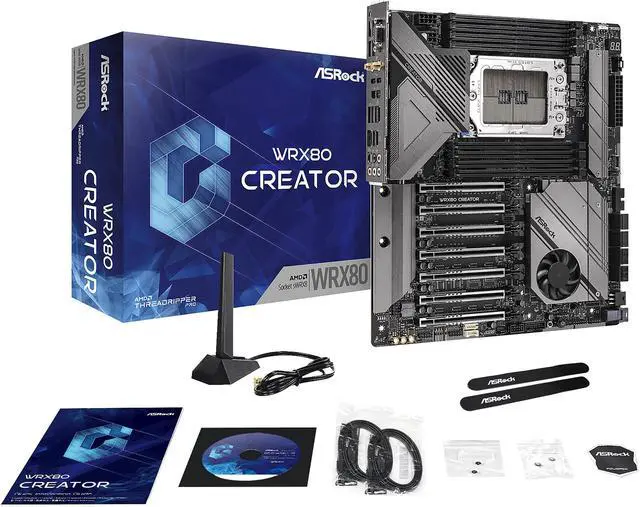

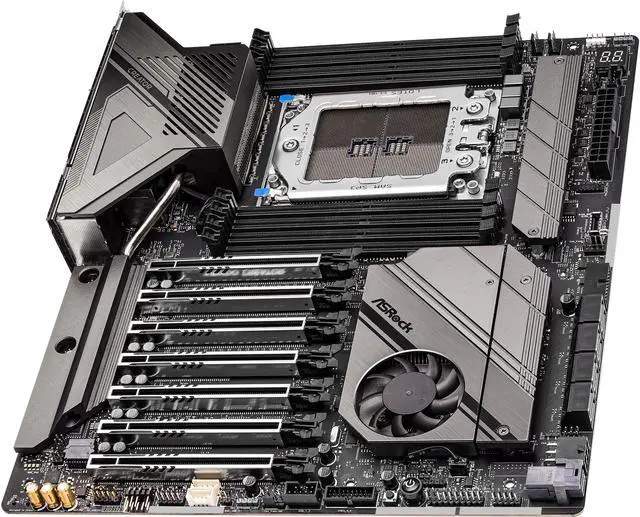

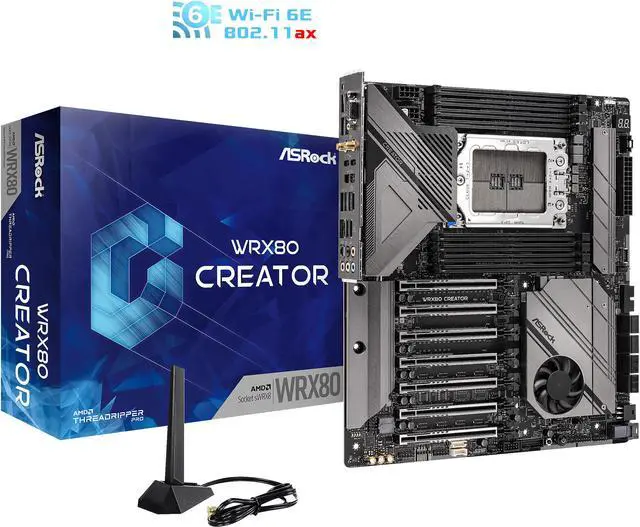

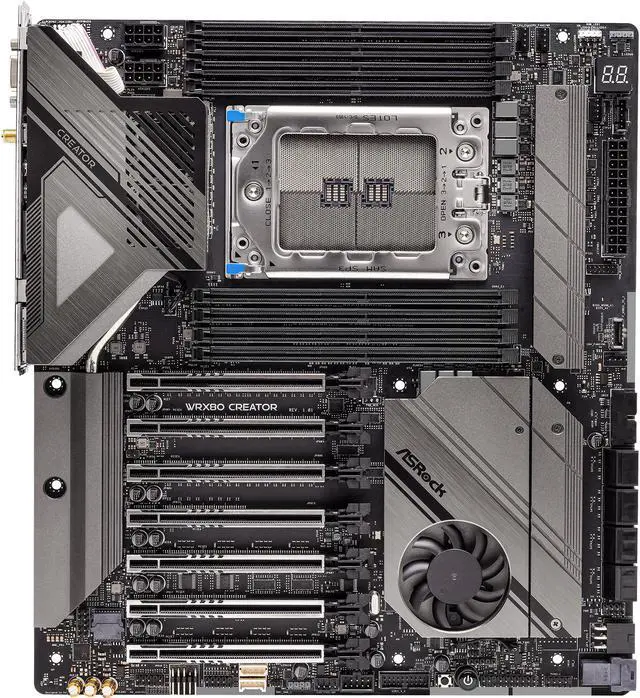

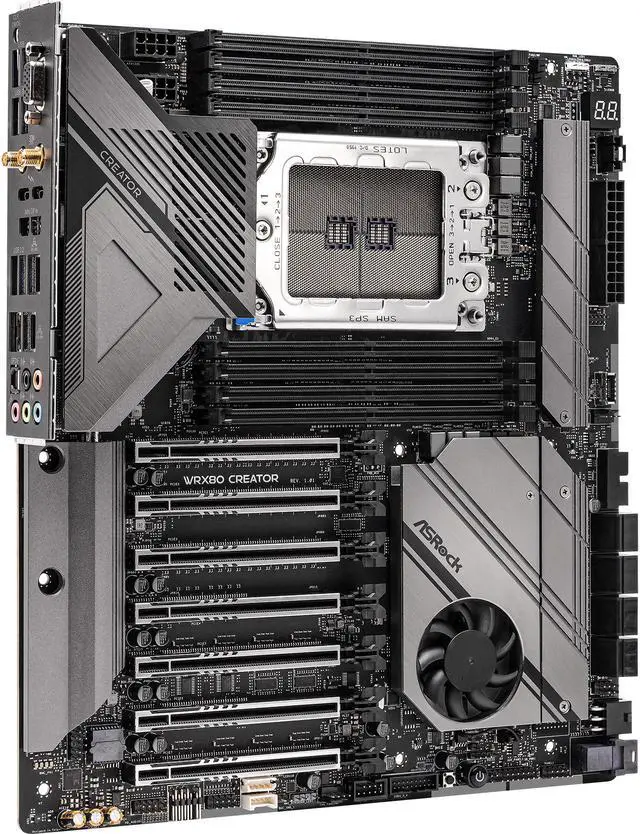

ASRock WRX80 CREATOR sWRX8 AMD WRX80 Extended ATX AMD Motherboard

(1) Write a Review
  • Supports AMD Ryzen Threadripper PRO 3000WX/5000WX Series Processors
  • 8 Power Phase Design, 105A SPS, Premium Power Choke
  • XXL Aluminum Alloy Heatsink & Heatpipe Design
  • 14 Layer Server-Grade Low-Loss PCB
  • Supports DDR4 4533+(OC)
  • 7 PCIe 4.0 x16
  • AMD 4-Way CrossFireX
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4)
  • 2 Thunderbolt 4 Type-C
  • 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)
  • 6 USB 3.2 Gen1 (4 Front, 2 Rear)
  • 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
  • 2 Intel X710-AT2 10Gb/s LAN, 1 Dedicated IPMI LAN
  • Intel 802.11ax (WiFi 6E) + Bluetooth
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock WRX80 CREATOR

Model
Brand ASRock
Model WRX80 CREATOR
Supported CPU
CPU Socket Type sWRX8
CPU Type Supports AMD Ryzen Threadripper PRO 5000WX / 3000WX Series Processors
Chipsets
Chipset AMD WRX80
Memory
Number of Memory Slots 8x288pin (DDR4)
Memory Standard Supports DDR4 4533+(OC)*
Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 *

* Supports DDR4 3200 natively.
Maximum Memory Supported 2TB
Channel Supported Eight Channel
ECC Supported ECC & non-ECC
Registered Yes
Buffer Supported Buffered and un-buffered
Expansion Slots
PCI Express 4.0 x16 7 x PCI Express 4.0 x16*

* PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8.
* Supports NVMe SSD as boot disks.
Other Slots 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Devices
Serial ATA (SATA) 8 x SATA 6Gb/s
M.2 CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x U.2 Connector

* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC4050H+ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel X710-AT2
Max LAN Speed 2 x 10Gbps
Wireless LAN 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Bluetooth Yes

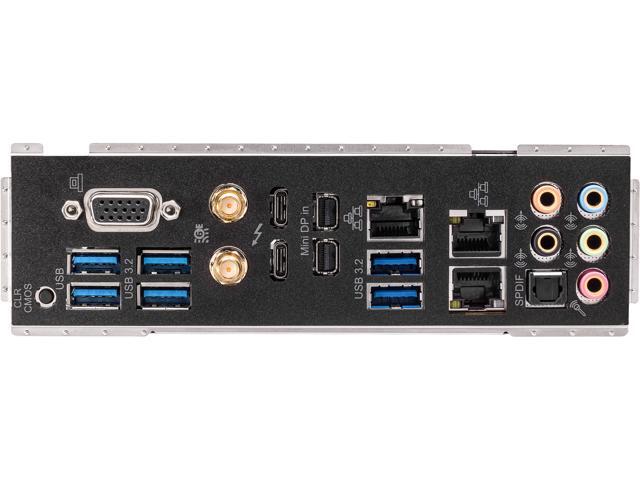

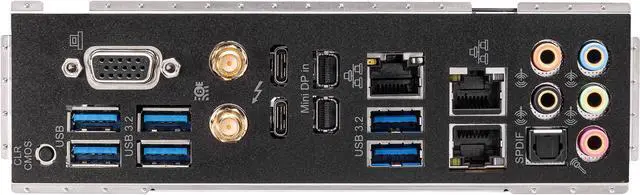

Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x D-Sub Port
1 x Optical SPDIF Out Port
2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
2 x Mini DisplayPort Input Ports (For Thunderbolt)**
4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)***
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

* Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W).
** Please choose regular mini DisplayPort to DisplayPort adapter Cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.
*** Ultra USB Power is supported on USB31_1_2 ports.
*** ACPI wake-up function is not supported on USB31_1_2 ports.
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x COM Port Header
1 x Intelligent Platform Management Bus Header
1 x PSU SMBus Header
1 x BMC SMBus Header
1 x Auxiliary Panel Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Right Angle Front Panel Audio Connector*******
1 x Non Maskable Interrupt Button Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button

* Supports in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
****** We recommend using a PSU with a max. current of 3A on +5VSB.
******* Connect the audio device to either one of the audio connectors.
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.7"
Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)******
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
Software Feature
Windows 11 Supported
Additional Information
First Listed on Newegg June 13, 2022
