ASRock X570 STEEL LEGEND WIFI AX AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • AMD X570
  • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
  • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400 /2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews

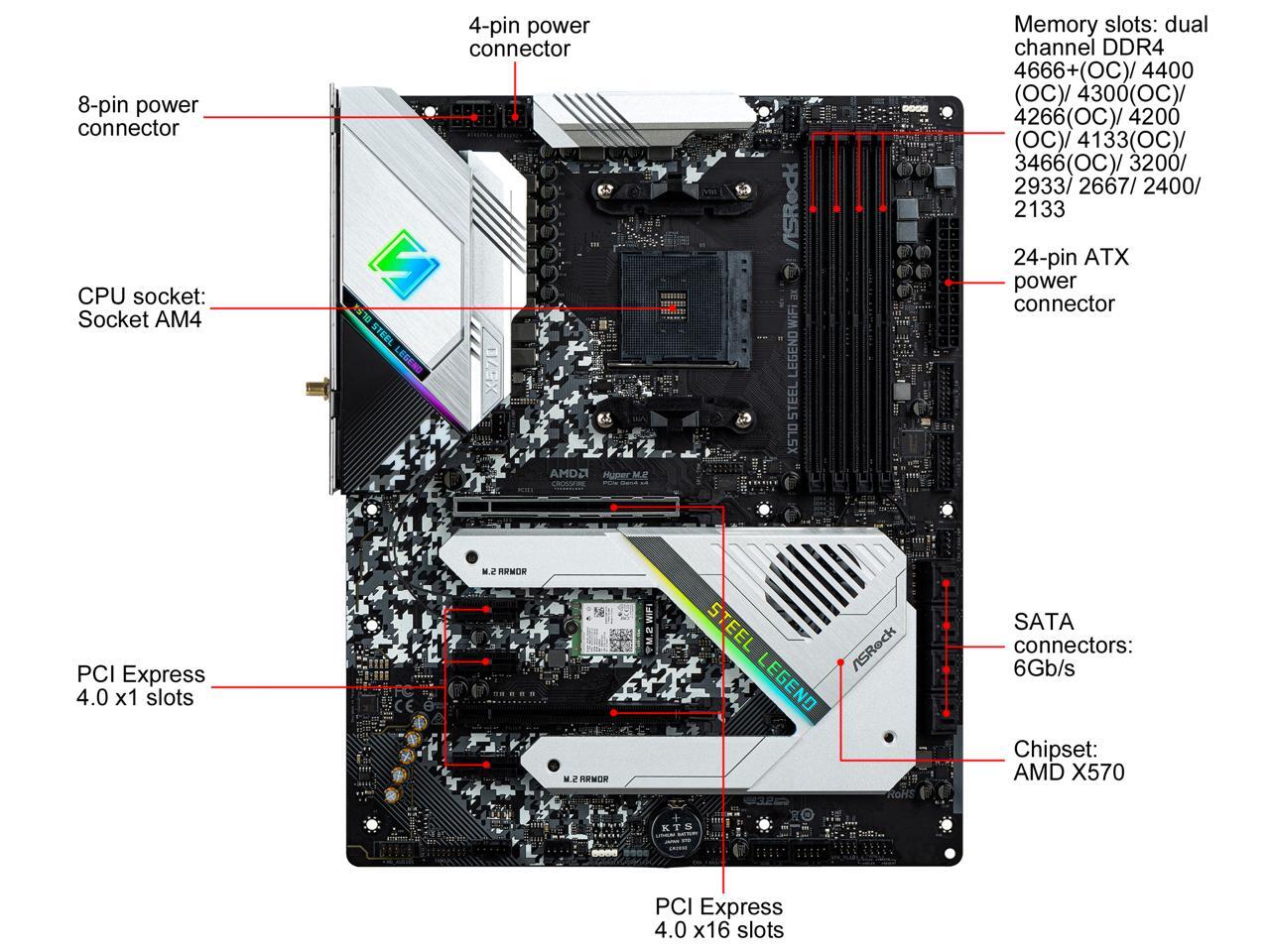

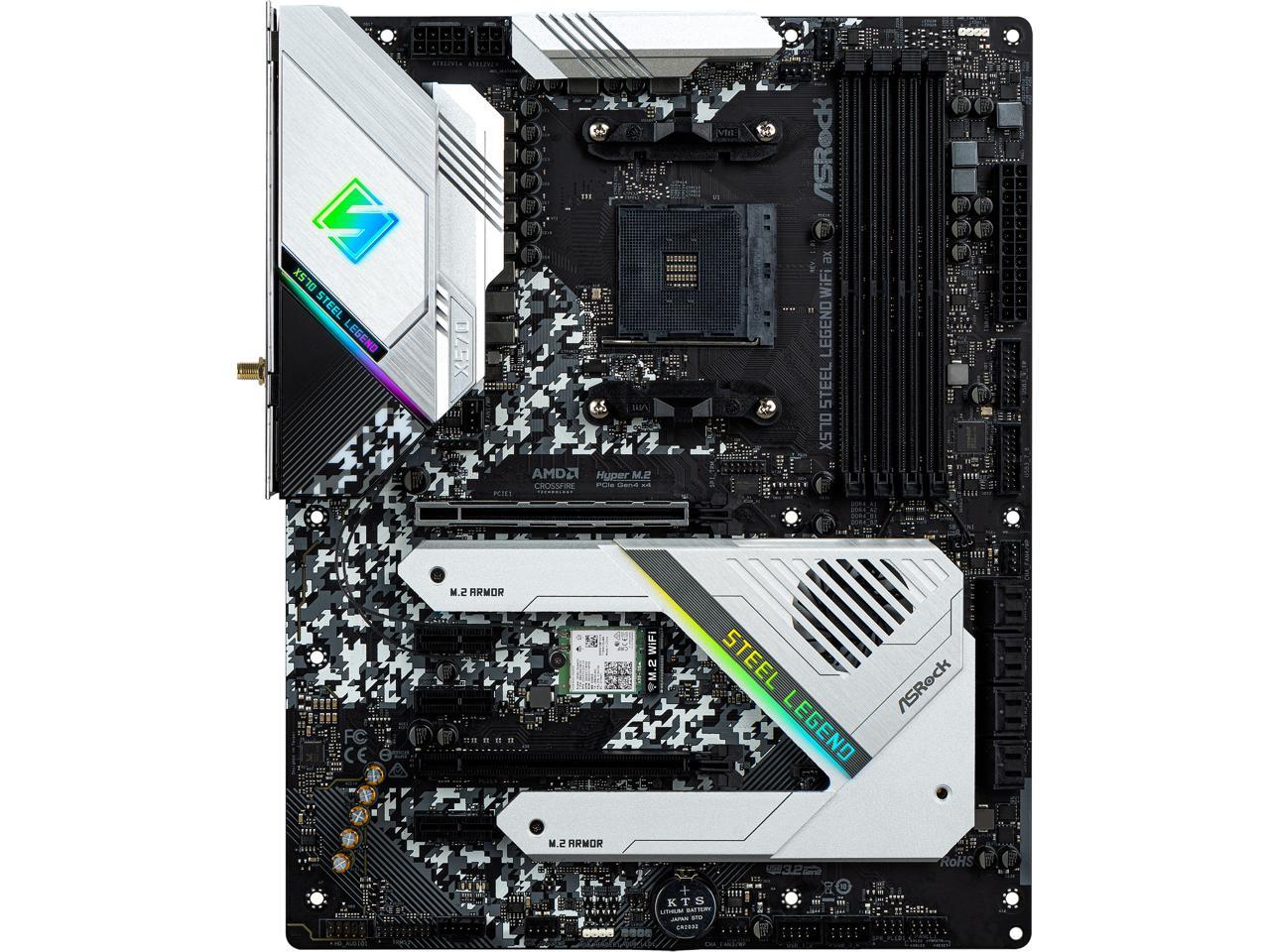

ASRock X570 Steel Legend WiFi ax Motherboard Standing Up, Next to Its Product Box and the AMD 50 Logo
ASRock X570 Steel Legend WiFi ax
  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series Processors
  • 10 Power-Phase Design
  • Supports DDR4 4666+ (OC)
  • 2x PCIe 4.0 x16 and 3x PCIe 4.0 x1
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
  • 8x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 & SATA3) and 1x Hyper M.2 (PCIe Gen4 x4)
  • 2x USB 3.2 Gen 2 (Rear Type-A + C) and 10x USB 3.2 Gen 1 (4x Front, 6x Rear)
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth 5.0 & Intel® Gigabit LAN
  • ASRock Polychrome SYNC
SteelLegend-KeyImage
SteelLegend Tough as steel, true legend
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task–with style!
Your-PC-Transformed-X570 Steel Legend WiFi ax, different angles of the motherboard
Revolutionary X570 Motherboards:
Your PC Transformed

A More Reliable Design That Delivers

AMD Ryzen 3000 Series Banner
WiFi 802.11ax Graphic and Antenna
Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with a next-generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Bluetooth 5.0 and 2.4Gbps WiFi Icon 802.11 ac versus 802.11ax that's 40% faster
PCIeSteel-X570 Steel Legend WiFi ax
Steel Slot with New-Gen PCI-Express 4.0

The next-generation PCI Express 4.0 is capable of performing up to twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also make sure heavy graphics cards can be well-installed into the PCI-E slot safely.

DualM2-SSD-X570 Steel Legend WiFi ax
Dual Hyper M.2 for SSDs

Supports the next generation of PCI Express 4.0 M.2 SSDs that perform at up to twice the speed, compared to previous 3rd generation. Now, you can have a lightning fast data-transferring experience.

POLYRGBLED-X570 Steel Legend WiFi ax
Rule Your Own Lighting Way with Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

ASRock Polychrome RGB and Sync Badges The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
RGB_accessories and components
IOShield-X570 Steel Legend WiFi ax

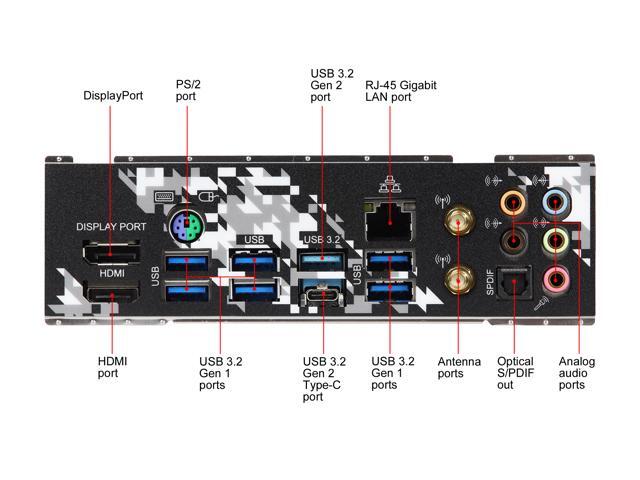

Flexible Integrated I/O Shield

Unlike most so-called pre-mounted I/O shields that are only decorated with fancy color schemes, we reserve more space to make a more adjustable IO shield during installation, thus fitting the chassis perfectly without any mechanical issue.

PowerPhase10-X570 Steel Legend WiFi ax
10 Power-Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

DrMOS-X570 Steel Legend WiFi ax
Dr. MOS

Dr.MOS is the integrated power-stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal results and superior performance.

USB 3.2 GEN2
Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen 2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen 2 devices and to deliver up to 10Gbps data-transfer rates. USB 3.2 Gen2 do

USB 3.2 Gen2 doubles the data transfer rate
USB 3.2 GEN2 2X faster data transfer than USB 3.2 Gen 1
USB 3.2 Gen2 Type-C doubles the charge speed!
USB 3.2 GEN2 2X faster charging than USB 3.2 Gen 1
PREMIUM60APOWERCHOKE-X570
PREMIUM 60A POWER CHOKE

ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

StatusLED-X570 Steel Legend WiFi ax
Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

PuritySound4-X570 Steel Legend WiFi ax
Purity Sound 4

It's time to enjoy the most purified audio performance with ultra-high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

Thunderbolt 3 Header
Thunderbolt 3 AIC Header

Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC card!
1: Only three TB3 devices can be detected.
2 : Some USB 3.2 Type-C devices will cause system reboot after wake up from S3/S4.
3 : Cannot light up the TB3 monitor after wake up from S3/S4, re-plug the cable is needed.
4 : Does not support Thunderbolt 3 PCIe graphics card box.

Super Alloy Motherboard Graphic
XXL Aluminum Alloy Heatsink

SA-Heatsink-X570

Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.

Premium 60A Power Choke
SA-60APowerChoke-X570

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
SA-DrMOS

Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Premium Memory Alloy Choke
SA-MemoryAlloyChoke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps
SA-ComboCaps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, helping overclockers achieve higher scores.

Nichicon 12K Black Caps
SA-Nichicon12KBlack

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor

SA-Armor-X570

A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB

SA-MattePCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High-Density Glass-Fabric PCB
SA-HDPCB

Using a high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

FullSpike Protection Logo
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

ASRock APPShop
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock X570 STEEL LEGEND WIFI AX

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 month to 1 year
Verified Owner
3/ 5
Not a good buy, bios looks like junk! Will have problems running ram at advertised speed. Find another board. 8/8/2020 6:55:52 PM

Pros: Could be visually appealing to some

Cons: Bios, Ram support, even the RGB sucks. While I know this is a very opinion based comment; this bios is very messy and overly complex.

Overall Review: I wouldn't buy again, it was an x570 board that matched the build's aesthetics. Not sure if I want to replace it with something else. But not happy white this pile at all.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Huge headake 7/16/2020 12:03:18 PM

Pros: Lights up cool.
Camo is my favorite color.
Has slots of everything a modern consumer PC may want.
The WiFi built into an M.2 slot is neat and I am a big fan of the external desktop antenna. I simply cannot get a signal past the laundry room otherwise.

Cons: Broken on arrival, had to RMA. The RMA fixed nothing.
The RGB lights up as long as the PSU has power. So If I want to get any sleep I have to switch off the PSU as well as the PC.

Overall Review: Sent the motherboard I sent back to ASrock because one of the PCIE x16 slots was busted and it was past the 30 day return window at Newegg. They sent it back to me still busted with zero explanation. I didn't even know that they had received it! I considered submitting another RMA but then I would have to pay shipping again. So I’ll just use the second slot until I need to replace it.
One star because ASRock did not fix it.

1 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Dear Shame,

Thank you for purchase and review.
The mainboard has been replaced with another (verify with serial number) and fully tested by technician to assure working fine before shipped to avoid back and forth shipping.
If replacement mainboard having same issue, we will be more than happy to assist you.
To turn off the RGB when system is off, please adjust the BIOS setting below.
Advanced\Onboard Devices Configuration (OR) Chipset Configuration\ Turn On LED in S5 [Disable].
Save and exit.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great product for my needs! 6/30/2020 10:20:48 AM

Pros: Great build quality! I've had several different AsRock motherboards and all have had great build quality. No issues. I'm running the following on this board:
AMD Ryzen 5 3600X included cooler
EVGA nVidia Geforce RTX 2070
G.Skill G.SKILL Trident Z Royal Series 32GB (2 x 16GB) 288-Pin DDR4 SDRAM DDR4 3600 (PC4 28800) Desktop Memory Model F4-3600C19D-32GTRS

Cons: None for me.

Overall Review: I highly recommend this product for those that don't want to over pay for features they will never use.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great motherboard for the price, and probably has better features than expected. 5/8/2020 4:11:19 PM

Pros: Lots of fan headers, and configurable options, with a good layout and I love the integrated I/O shield. This is my first integrated WIFI board as well, and I'm never going back, as it's a good backup to run phone WIFI hotspot as a backup for when the main internet goes down. Construction is good, overclocking options seem to be all there, despite Ryzen having limitations in overclocking.

Cons: In my opinion, the software options on this motherboard are lacking compared to the competition. An example is ASUS, having much more robust options for fan control and a better overclocking interface in their software suite. It would be nice to be able to control the fans independent of each other and independent of the profile you're on, as well as making custom profiles. Also, the program (A-Tuning) is very basic overall, with limited system options.

This is a minor gripe, but I think it's important for someone that's going to buy X570, no matter the price point.

Overall Review: Overall, it's a great motherboard, despite having limited software. I would recommend it, and in fact, I'd say it's more for the enthusiast that's not going to use the software suite anyway, and just use either the BIOS or other means to control their system.

Did you find this review helpful?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Pay attention when downloading Bios update! 5/3/2020 3:55:14 PM

Pros: Safe m.2 slots
Reinforced PCI slot for heavy GPU

Cons: Needs Bios update in order to set XMP profiles

Overall Review: Out of the box, this board is great. Booted no issue. Went back into BIOS to change my rams xmp profile to the rated 3600 speed and immediately went into an empty boot. Reset cmos and tried again, same result.

I went to asrocks website to download the bios drivers and tried to install it, only for the board to not recognize it. After 20 minutes of messing about and CMOS resets, I realized I had grabbed the basic version of the board and not the WIFI version. It will and does matter. Grabbed the correct one and the utility found it right away and installed. After a reboot into BIOS, ram xmp profile was set and worked like a charm.

:) smile

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
So far I love this motherboard. 4/29/2020 4:54:34 PM

Pros: It's as fast as you could need, has great features, and at a decent mid range price.

Cons: No usb 3.2 front port, that's my only complaint

Overall Review: This board should last me a long time. Otherwise I'd say I'd buy it again.

1 out of 1 people found this review helpful. Did you?
Anonymous
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Overall decent; good cooling; some finicky drivers 4/19/2020 9:13:54 AM

Pros: - cooling
- wifi ax
- price

Cons: - one giant piece that covers the MB fan and 2 m.2 slots... come on! (please include separate covers next time)
- the one giant cover mentioned above makes installing m.2 drives a little cumbersome.
- some RGB gets covered up by the GPU
- don't manually update Bluetooth drivers. Use the ones from ASRock's website.

Overall Review: separate covers for each m.2 slots

1 out of 1 people found this review helpful. Did you?
Anonymous
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Asrock x570 steel legend 4/18/2020 10:59:26 PM

Pros: Lights up

Cons: Non

Overall Review: AWESOME

Did you find this review helpful?
