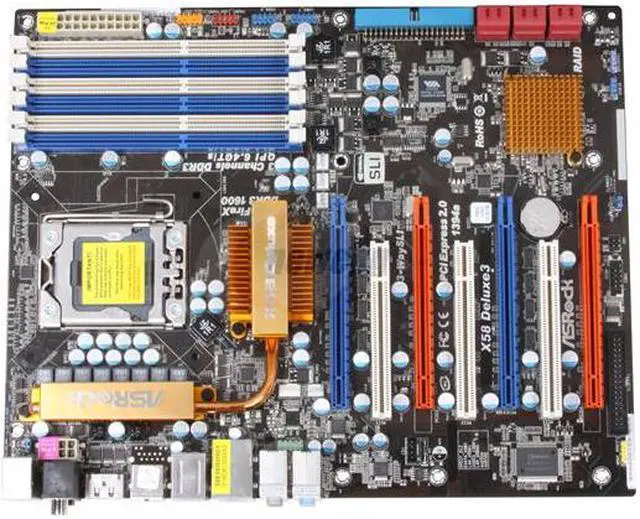

ASRock X58 Deluxe3 LGA 1366 Intel X58 ATX Intel Motherboard
- Intel X58
- Core i7 (LGA1366)
- DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock X58 Deluxe3
| Brand | ASRock |
|---|---|
| Model | X58 Deluxe3 |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| Supported CPU Technologies | System Bus up to 6400 MT/s; Intel QuickPath Interconnect Supports Hyper-Threading Technology Supports Untied Overclocking Technology Supports EM64T CPU |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 6x240pin |
|---|---|
| Memory Standard | DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066 |
| Maximum Memory Supported | 24GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 4 x PCI Express 2.0 x16 slots (blue @ x8 / x16 mode, orange @ x8 / N/A mode) (Double-wide slot spacing between each PCI-E slot) |
|---|---|
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | Realtek ALC890 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 5 USB 2.0 ports) |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

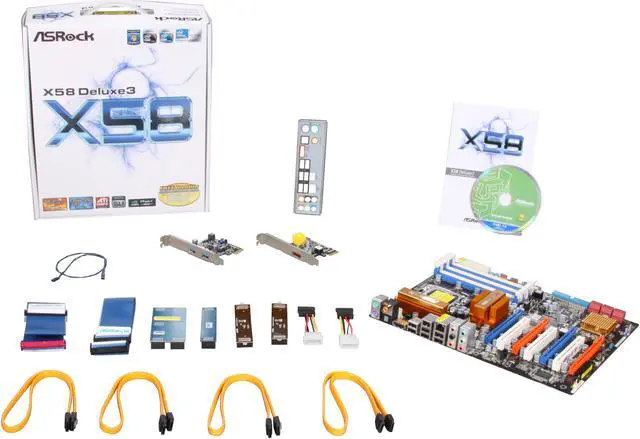

| Features | Supports DDR3 ECC, un-buffered memory with Intel Workstation 1S Xeon processors 3500 series Supports Intel Extreme Memory Profile (XMP) Supports ATI Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI, 3-Way SLI and SLI Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA Free Bundle: CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial Free Bundle: 2 x ASRock XFire_Bridge_3S Cards, 1 x ASRock SLI_Bridge_3S Card, 1 x ASRock 3-Way SLI Bridge Card, 1 x ASRock SATA3 Card, 1 x ASRock USB 3.0 Card |
|---|
| First Listed on Newegg | January 20, 2010 |
|---|
