Question 1

Does this mobo have integrated wifi and bluetooth? (Antennas included too?)

Accepted Answer

Yes it does have integrated wifi and bluetooth, and it includes antennas for both. But I found the signal to be absurdly  weak on bluetooth. My Xbox One controller, my bluetooth speaker and my home theater all have a terrible choppy connection if farther than 3 feet from the antenna. I haven't tried buying a better antenna.  I don't know if this is a common issue or if I got a lemon...

Question 2

Does this have a connection for front panel ports? Only seeing front panel audio listed. Have an Antec Twelve Hundred and want to make sure I can use those front USB ports. Thanks.

Accepted Answer

Yes it supports USB 3.0 and 2.0 front panel headers.

Question 3

Does this come with the dual band antenna(s)?

Accepted Answer

Yes it does; it also comes with bluetooth.

Question 4

Will DDR3 ram work on this motherboard? I have not seen it mentioned anywhere which would lead me to believe it does not. Can anyone confirm my concerns?

Accepted Answer

DDR4 slots are not backwards compatible with DDR3 memory and vice versa.

Generally speaking when they change the name of a standard for memory it is an indicator that it is no longer compatible with older standards, and frequently indicates a complete change to the physical interface (IE number of pins used). Otherwise it would just be a change to the operating frequency or other spec within the existing memory standard and would not be renamed.

Question 5

Does it come with an OS?

Accepted Answer

If by OS you mean operating system, then no. No motherboards come with an operating system as far as I know, but Ubuntu Linux is free. You will still need to provide your own case, power supply, processor, hard drive, and memory.

Question 6

Is the CD provided with the motherboard a requirement or is there an online download alternative?

Accepted Answer

There are online alternatives. Google the motherboard and click the link to ASRock's site and click the support tab. There should be downloads for everything you need including bios updates.

Question 7

I'm confused about the M.2 slots...are there two on the board, with one being used for the wifi/bluetooth and one left available for something like an ssd drive?

Accepted Answer

On the Z270 Killer SLI/ac there are two M.2 slots on the motherboard, both available for use as you please. The WiFi/Bluetooth components do not use any of these slots. You can check them on the ASRock website, they have a page for the board with comments about the slots, and also check the manual, it can give you more info about them and other ports.

Question 8

Does This Support  the Intel G3930 Kaby Lake Dual-Core 2.9 im using this  a experiment?

Accepted Answer

I am currently using a Kaby Lake Quad-Core 3.8 GHz LGA 1151 91W BX80677I57600K on this board and it is running beautifully. Both the G3930 and the CPU I'm using are socket LGA 1151, so your experiment should work. I hope this helps!

Question 9

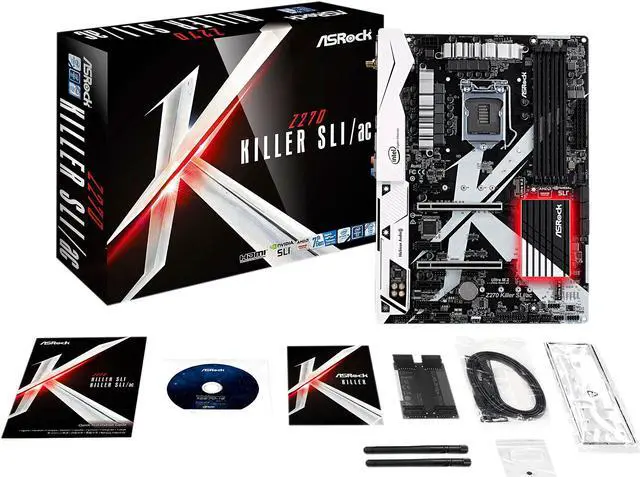

is there anything else that comes with the board like sata cables, the m.s screws, or anything thing else since the packaging isn't listed like other boards?

Accepted Answer

It does not have screws, but is does come with Sata cables and a CD.  I don't think is was any different than any other main board I have gotten in the past.

Question 10

Can I put an Intel Core i7-8700K onto this board?

Accepted Answer

I don't know

Brand	ASRock
Model	Z270 KILLER SLI/AC

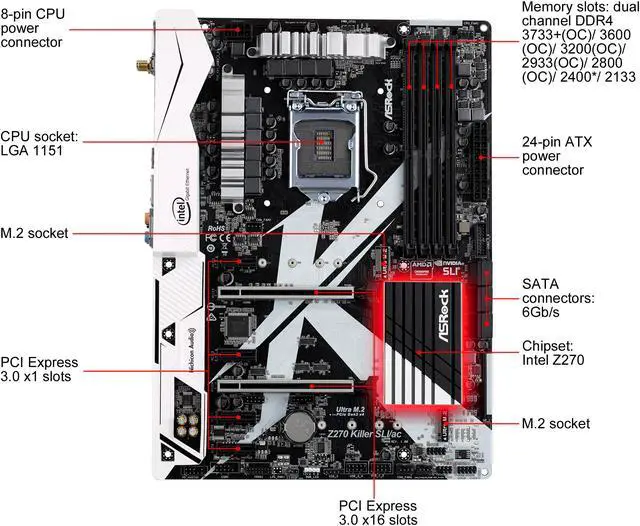

CPU Socket Type	LGA 1151
CPU Type	7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) * Not Compatible with Intel 8th Gen CPUs
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3733+(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400/ 2133 7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133. *Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported	64GB Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4)) Supports NVMe SSD as boot disks
PCI Express x1	4 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE2)

Serial ATA (SATA)	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.
M.2	2 x Ultra M.2 Sockets, support type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
SATA RAID	0/1/5/10

ASRock Z270 KILLER SLI/AC LGA 1151 Intel Z270 HDMI USB 3.1 ATX Motherboards - Intel

Z270
KILLER SLI/ac

Product Brief:

Dual Ultra M.2 For SSD

2 PCI-E Steel Slots :

AURA RGB LED

Intel ® 802.11ac WiFi & LAN port

USB Type-C

ASRock Intel ® 4-Layer Memory POOL Technology

Learn more about the ASRock Z270 KILLER SLI/AC

Customer Reviews of the ASRock Z270 KILLER SLI/AC

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
Wireless LAN	Intel 802.11 ac Wi-Fi Module (Free Bundle) Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps
Bluetooth	Supports Bluetooth 4.0 / 3.0 + High speed class II

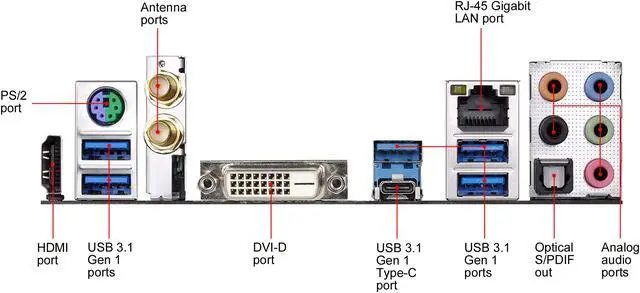

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1	5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB Type-C	1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
S/PDIF Out	1 x Optical
Audio Ports	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Antenna Connectors	2 x Antenna Ports

Onboard USB	3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors	1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion Header 1 x Power LED and Speaker Header 1 x AURA RGB LED Header* 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) 1 x Thunderbolt AIC Connector (10-pin)**** Supports up to 12V/3A, 36W LED Strip. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. ***Only one Thunderbolt AIC Card is supported.

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 8.8"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Item#: N82E16813157746
