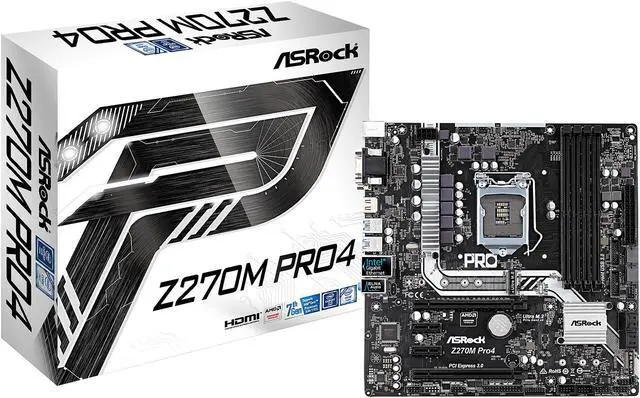

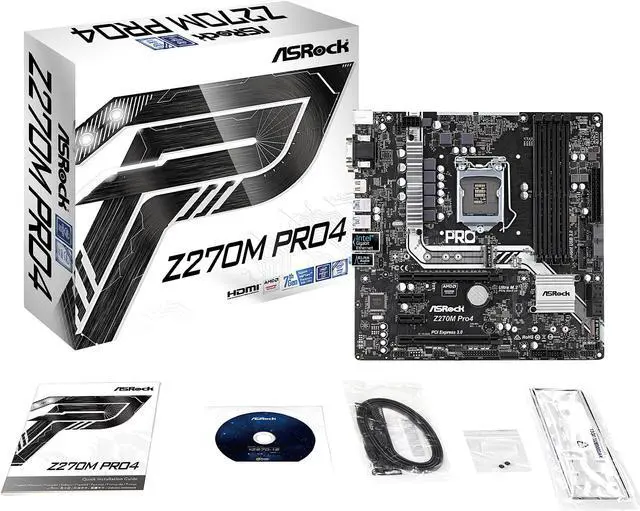

Images from RETAIL item, box contents may vary.

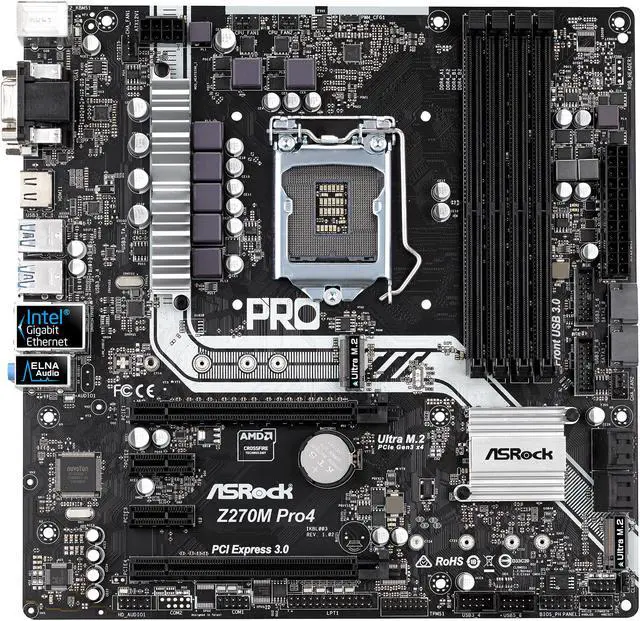

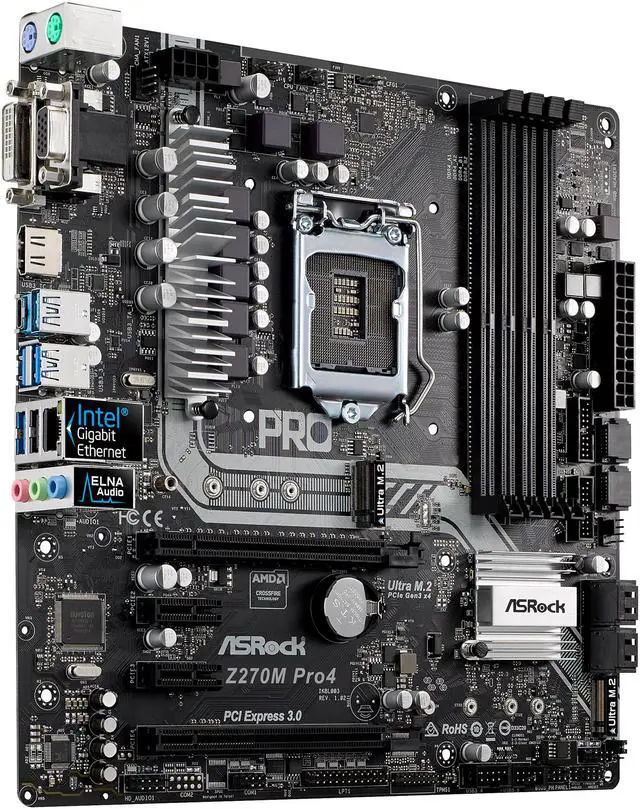

ASRock Z270M Pro4 LGA 1151 Intel Z270 HDMI USB 3.1 Micro ATX Motherboards - Intel
OPEN BOX Product Type
- Intel Z270
- Supports 7th and 6th Generation Intel Core i7/i5/i3/ Pentium/Celeron Processors (Socket 1151)
- DDR4 3600+(OC)*/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400**/ 2133
- *Please refer to Memory Support List on ASRock's website for more information.
- **7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z270M Pro4
| Brand | ASRock |
|---|---|
| Model | Z270M Pro4 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports 7th and 6th Generation Intel Core i7/i5/i3/ Pentium/Celeron Processors (Socket 1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel Z270 |
|---|
| Onboard Video Chipset | Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics Gen9 LP, DX11.3, DX12 HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU) HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU) Max. shared memory 1024MB* Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *The size of maximum shared memory may vary from different operating systems. *Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. ***Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600+(OC)*/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400**/ 2133 *Please refer to Memory Support List on ASRock's website for more information. **7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133. |
| Maximum Memory Supported | 64GB *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** 1 x Ultra M.2 Socket (M2_2), supports type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)** **Supports Intel Optane Technology **Supports NVMe SSD as boot disks **Supports ASRock U.2 Kit |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

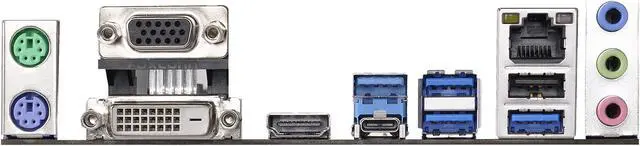

| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|---|---|
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 4 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment Software and UEFI: Software - ASRock A-Tuning - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V OS: - Microsoft Windows 10 64-bit (For 7th Gen Intel CPU) - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)* *To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. *For the updated Windows 10 driver, please visit ASRock's website for details. Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| First Listed on Newegg | October 23, 2017 |
|---|
