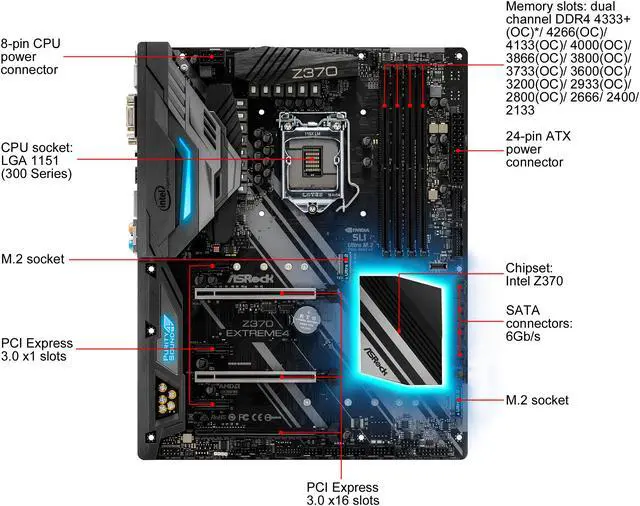

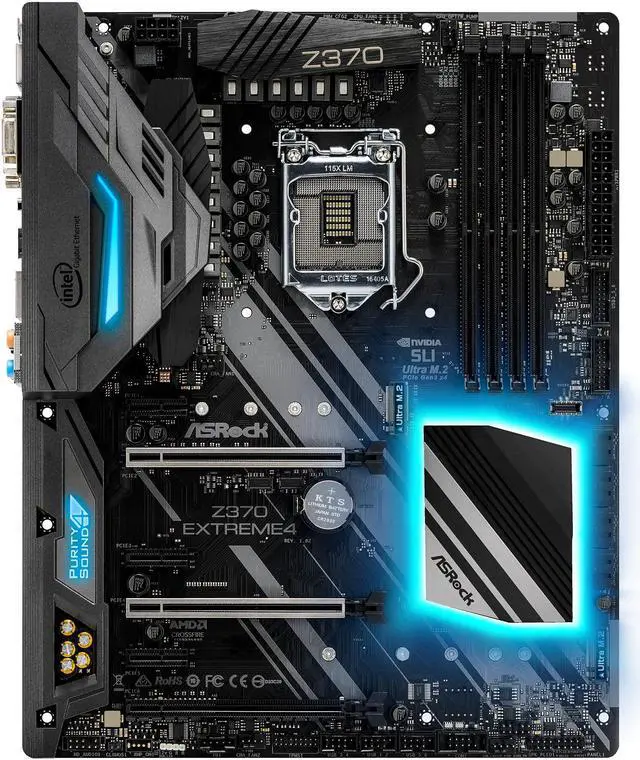

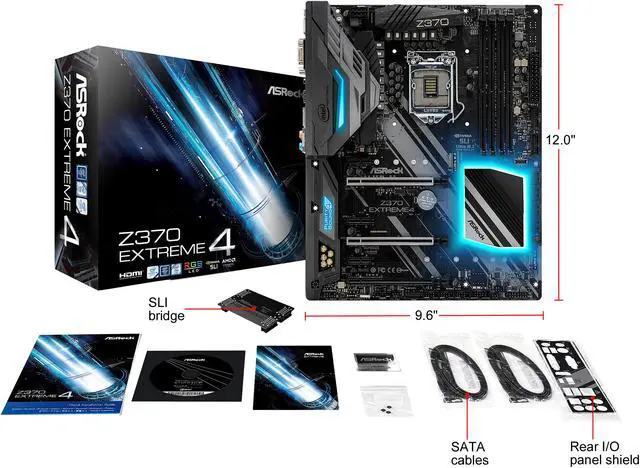

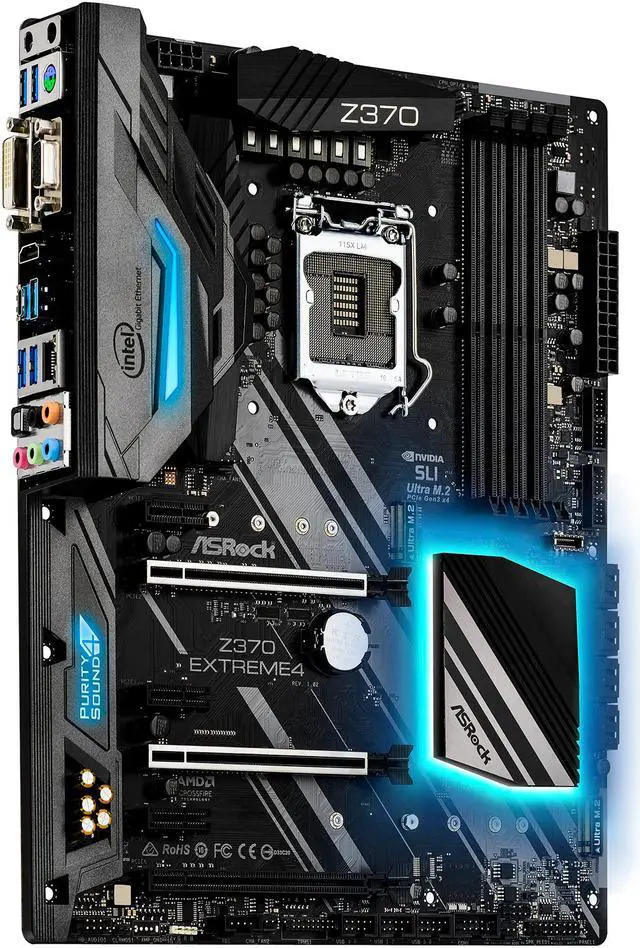

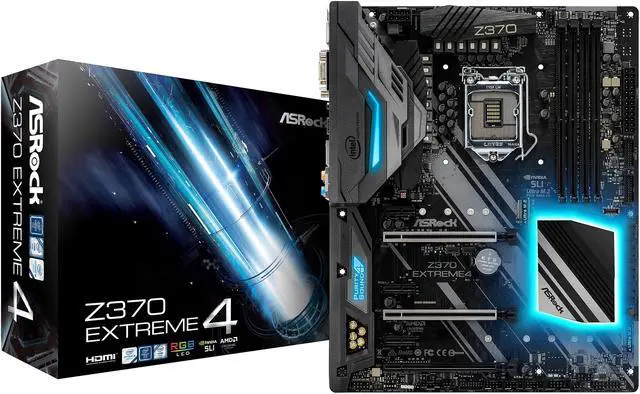

ASRock Z370 Extreme4 LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

OPEN BOX

Intel Z370
Supports 8th Generation Intel Core Processors (Socket 1151)
*Not backward compatible with older generation of LGA 1151 CPUs
Supports DDR4 4333+(OC)*/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
*8th Gen Intel CPU supports DDR4 up to 2666.
*Please refer to Memory Support List on ASRock's website for more information.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Z370 Extreme4

Model
Brand	ASRock
Model	Z370 Extreme4

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 8th Generation Intel Core Processors (Socket 1151) *Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel Z370

Onboard Video
Onboard Video Chipset	Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1 Max. shared memory 1024MB** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. *The size of maximum shared memory may vary from different operating systems.

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Supports DDR4 4333+(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 8th Gen Intel CPU supports DDR4 up to 2666. *Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported	64GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* * Supports NVMe SSD as boot disks
PCI Express x1	3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots	1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module 15µ Gold Contact in VGA PCIe Slot (PCIE2)

Storage Devices
Serial ATA (SATA)	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug * M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. * M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

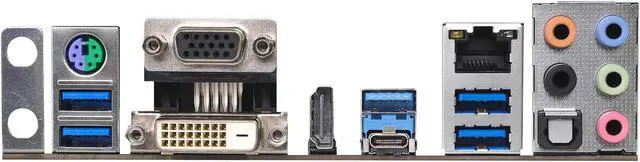

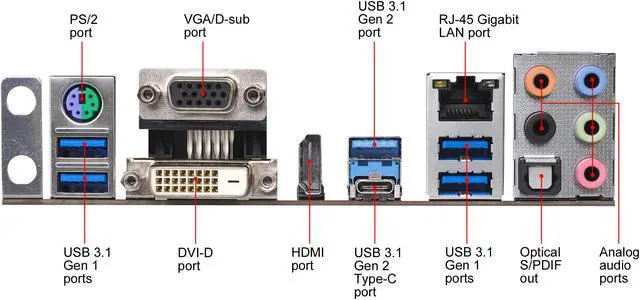

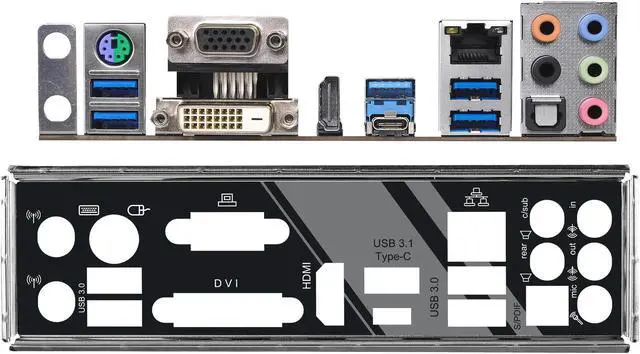

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 4 x USB 3.1 Gen 1 Type-A
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub Port 1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1	1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Intel Z370) (Supports ESD Protection)
S/PDIF Out	1 x Optical
Audio Ports	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Antenna Connectors	2 x Antenna Ports

Internal I/O Connectors
Onboard USB	3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel Z370) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel Z370) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)
Other Connectors	1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 1 x CPU Fan Connector (4-pin) 1 x CPU Optional/Water Pump Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin)**** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) Supports in total up to 12V/3A, 36W LED Strip. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

Additional Information
Date First Available	June 24, 2018
