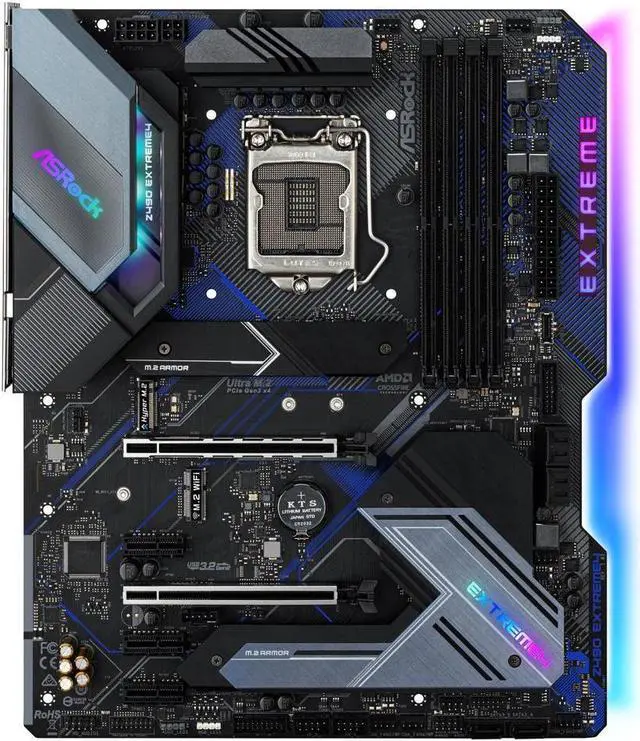

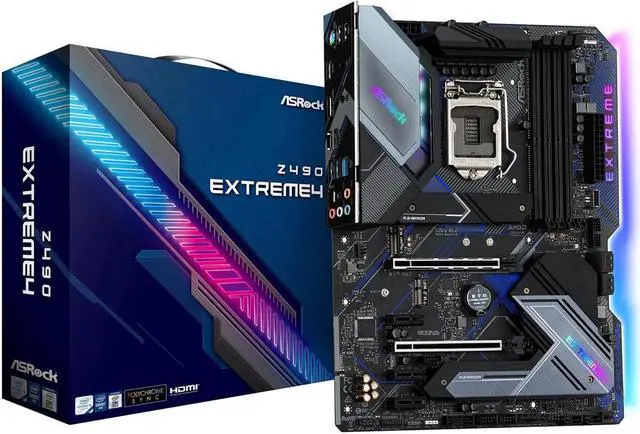

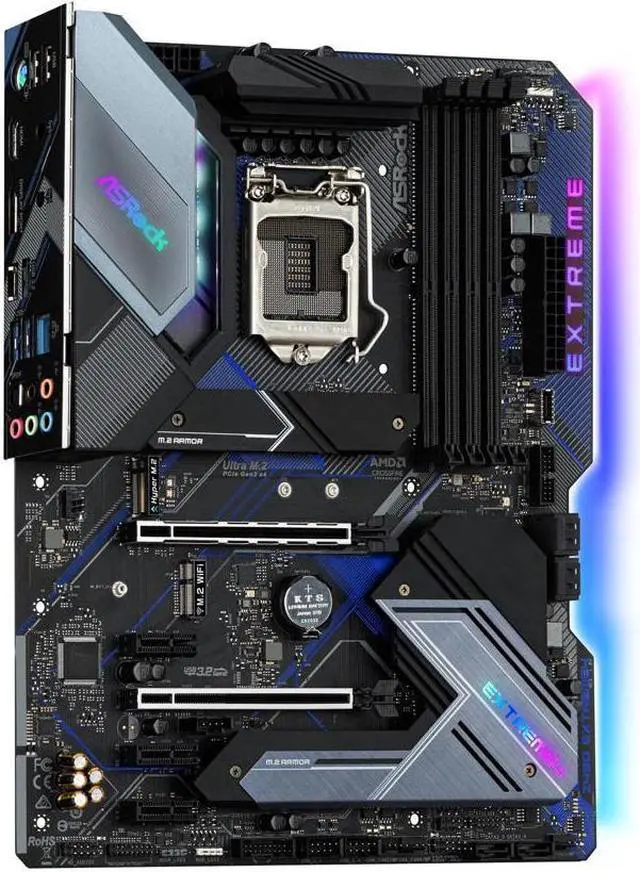

    ASRock Z490 Extreme4 LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

    REFURBISHED Product Type
    Be the first to review this product...
    • Intel Z490
    • Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
    • Supports DDR4 4266+(OC)*/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
    • * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    • * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock Z490 Extreme4

    Model
    Brand ASRock
    Model Z490 Extreme4
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
    Supported CPU Technologies Turbo Boost Technology 3.0
    Chipsets
    Chipset Intel Z490
    Onboard Video
    Onboard Video Chipset Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
    Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
    Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

    * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** VP9 10bit and VC-1 are for decode only.
    ** VP8 and VP9 encode are not supported by Windows OS.
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard Supports DDR4 4266+(OC)*/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
    * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    Maximum Memory Supported 128GB
    ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
    * Supports NVMe SSD as boot disks
    PCI Express x1 3 x PCI Express 3.0 x1 Slots
    Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
    15µ Gold Contact in VGA PCIe Slot (PCIE1)
    Storage Devices
    Serial ATA (SATA) 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
    * If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
    * If M2_3 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
    M.2 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
    1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
    ** Supports Intel Optane Technology
    ** Supports NVMe SSD as boot disks
    ** Supports ASRock U.2 Kit
    Intel Optane Ready Yes
    SATA RAID RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
    Onboard Audio
    Audio Chipset Realtek ALC1200
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps

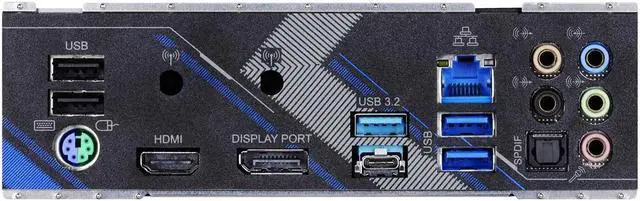

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Ports
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out Port
    2 x USB 2.0 Ports (Supports ESD Protection)
    1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)
    1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Ports (Intel Z490) (Supports ESD Protection)
    * Ultra USB Power is supported on USB3_12 ports.
    * ACPI wake-up function is not supported on USB3_12 ports.
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    1 x Front Panel Type C USB 3.2 Gen1 Header (Intel Z490) (Supports ESD Protection)
    Other Connectors 1 x SPI TPM Header
    1 x Power LED and Speaker Header
    2 x RGB LED Headers
    * Support in total up to 12V/3A, 36W LED Strip.
    2 x Addressable LED Headers
    * Support in total up to 5V/3A, 15W LED Strip.
    1 x CPU Fan Connector (4-pin)
    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
    * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    * CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
    * CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
    1 x Front Panel Audio Connector
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
    1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
    1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
