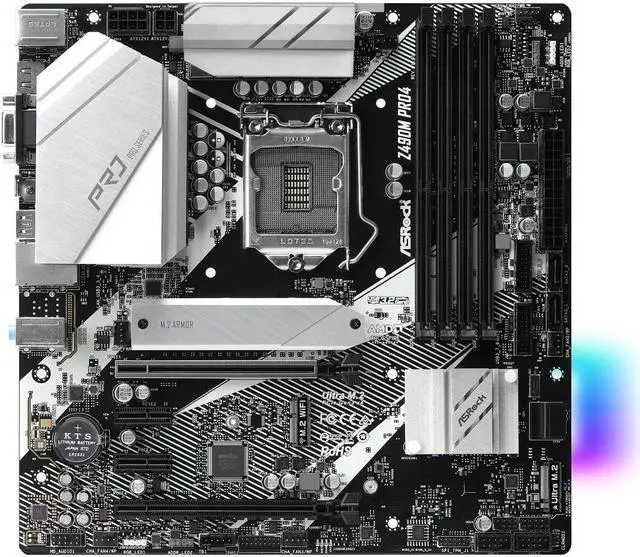

ASRock Z490M Pro4 LGA 1200 Intel Z490 Micro ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z490
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Supports DDR4 4500+(OC)*/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
- * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
- * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z490M Pro4
| Brand | ASRock |
|---|---|
| Model | Z490M Pro4 |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors (Socket 1200) |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 * VP9 10bit and VC-1 are for decode only. * VP8 and VP9 encode are not supported by Windows OS. - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 4500+(OC)*/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
| Maximum Memory Supported | 128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 Slots |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_1 is occupied, SATA3_3 will be disabled. |
|---|---|
| M.2 | 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| Intel Optane Ready | Yes |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 |
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

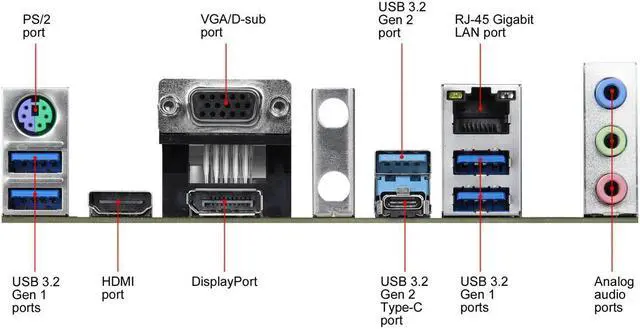

| Back I/O Ports | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers * Support in total up to 12V/3A, 36W LED Strip. 2 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x 4-pin 12V Power Connector |
| First Listed on Newegg | May 29, 2025 |
|---|
