    ASRock Z590 STEEL LEGEND LGA 1200 Intel Z590 ATX Intel Motherboard

    (367)(48) Write a Review
    • Z590 EXTREME
    • Z590 PHANTOM GAMING 4
    • Z590 PHANTOM GAMING-ITX/TB4
    • Z590 PRO4
    • Z590 STEEL LEGEND
    • Z590M-ITX/AX
    • Z590M PHANTOM GAMING 4
    • Intel Z590
    • Supports 10th Gen Intel Core Processors
    • Supports 11th Gen Intel Core Processors
    • 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    • 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
    • * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
    • * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    • * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (367)

    Learn more about the ASRock Z590 STEEL LEGEND

    Model
    Brand ASRock
    Model Z590 STEEL LEGEND
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Gen Intel Core Processors
    Supports 11th Gen Intel Core Processors
    Supported CPU Technologies Turbo Boost Technology 3.0
    Chipsets
    Chipset Intel Z590
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*

    * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
    * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 11th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
    10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

    * Supports NVMe SSD as boot disks
    PCI Express x1 3 x PCI Express 3.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)**
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    ** Supports Intel Optane Technology
    ** Supports NVMe SSD as boot disks
    ** Supports ASRock U.2 Kit
    SATA RAID 0/1/5/10, Intel Rapid Storage Technology 18
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

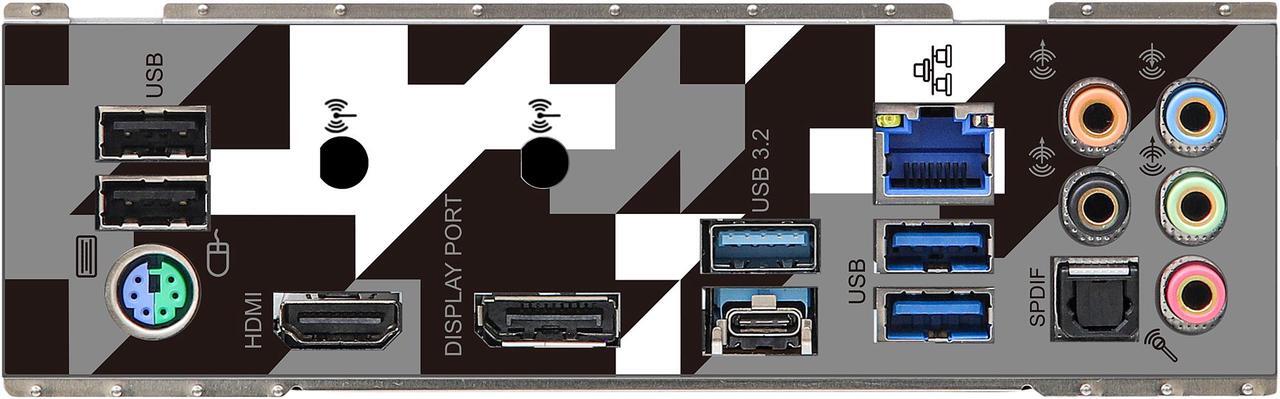

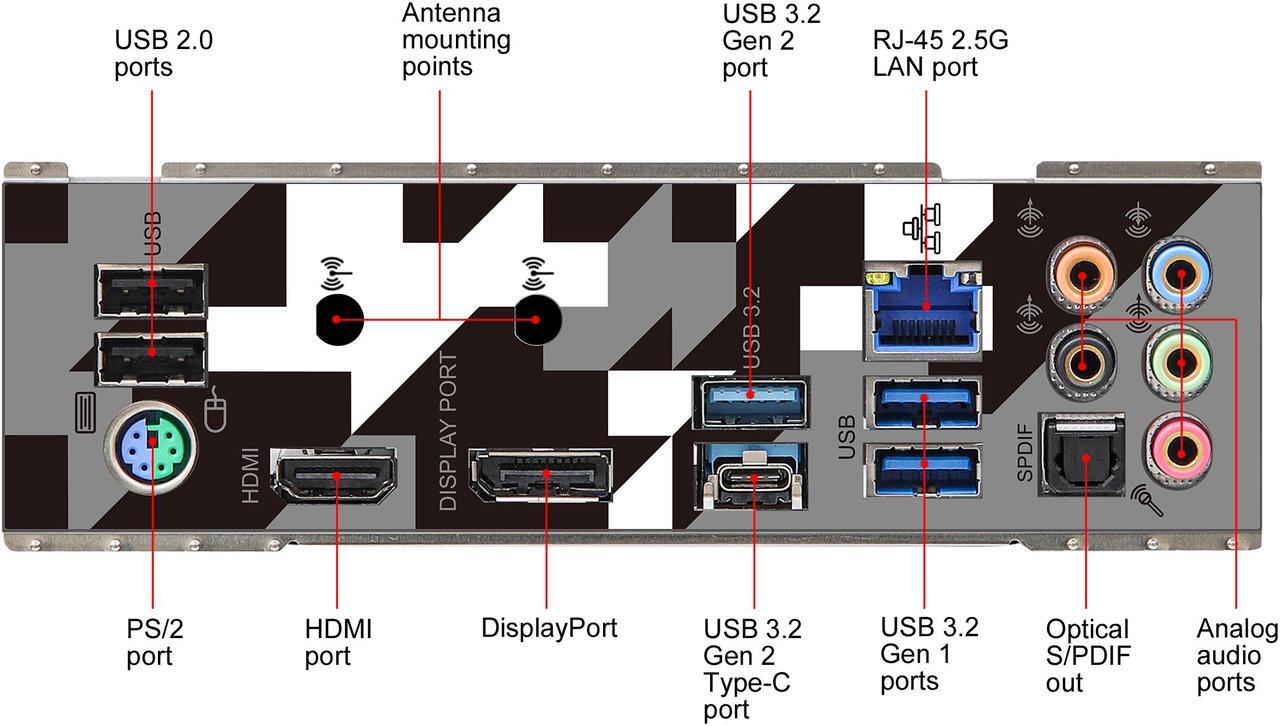

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out Port
    1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    * Ultra USB Power is supported on USB3_12 ports.
    * ACPI wake-up function is not supported on USB3_12 ports.
    2 x USB 2.0 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Internal I/O Connectors
    Other Connectors 1 x SPI TPM Header
    1 x Power LED and Speaker Header
    2 x RGB LED Headers
    * Support in total up to 12V/3A, 36W LED Strip
    2 x Addressable LED Headers
    * Support in total up to 5V/3A, 15W LED Strip
    1 x CPU Fan Connector (4-pin)
    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
    * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
    1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    1 x Front Panel Audio Connector (15µ Gold Audio Connector)
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Features
    Features ASRock USB 3.2 Gen2
    - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium Power Choke
    - 50A Dr.MOS
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    2.5G LAN
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock Ultra USB Power
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Packaging

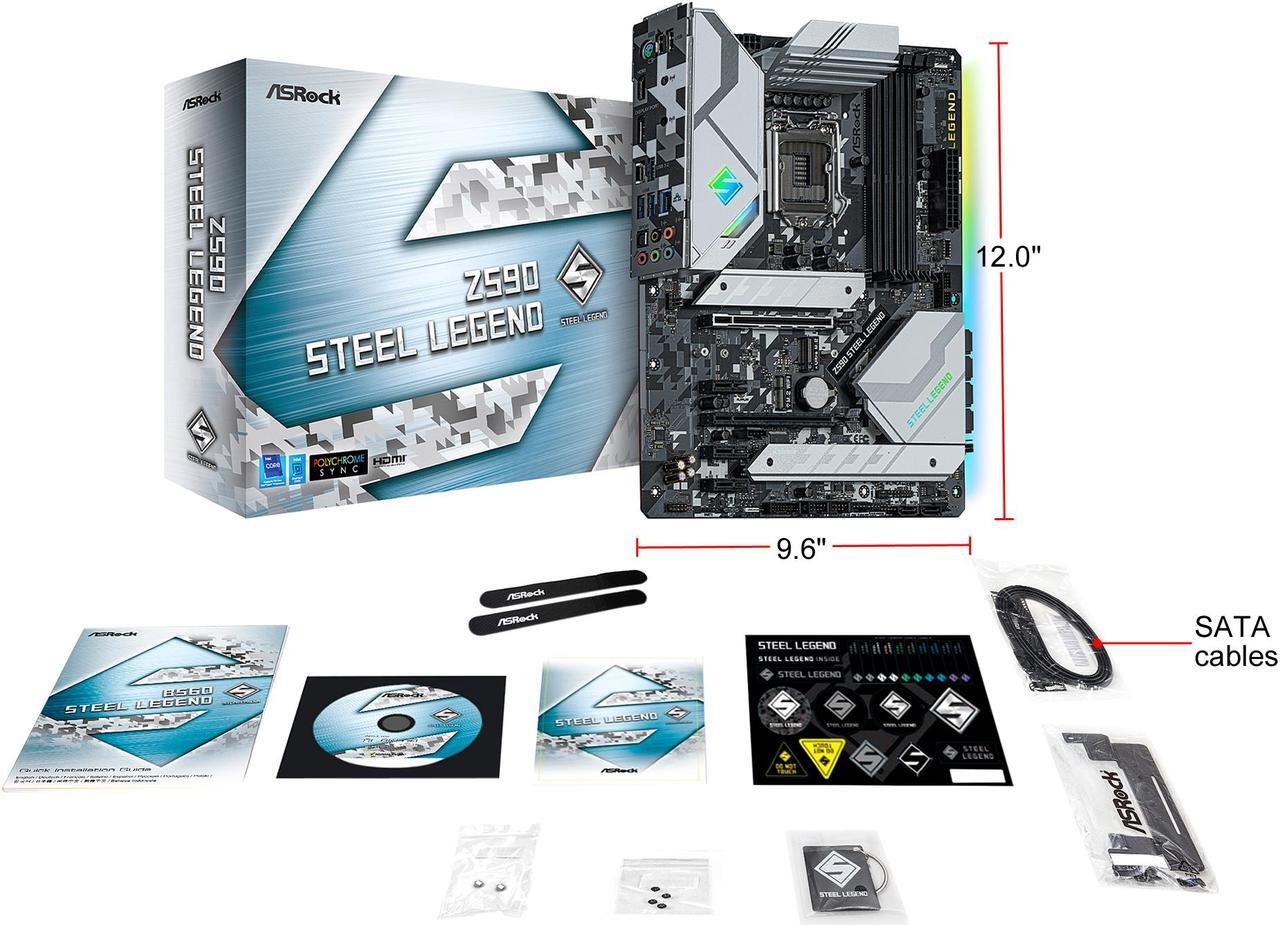

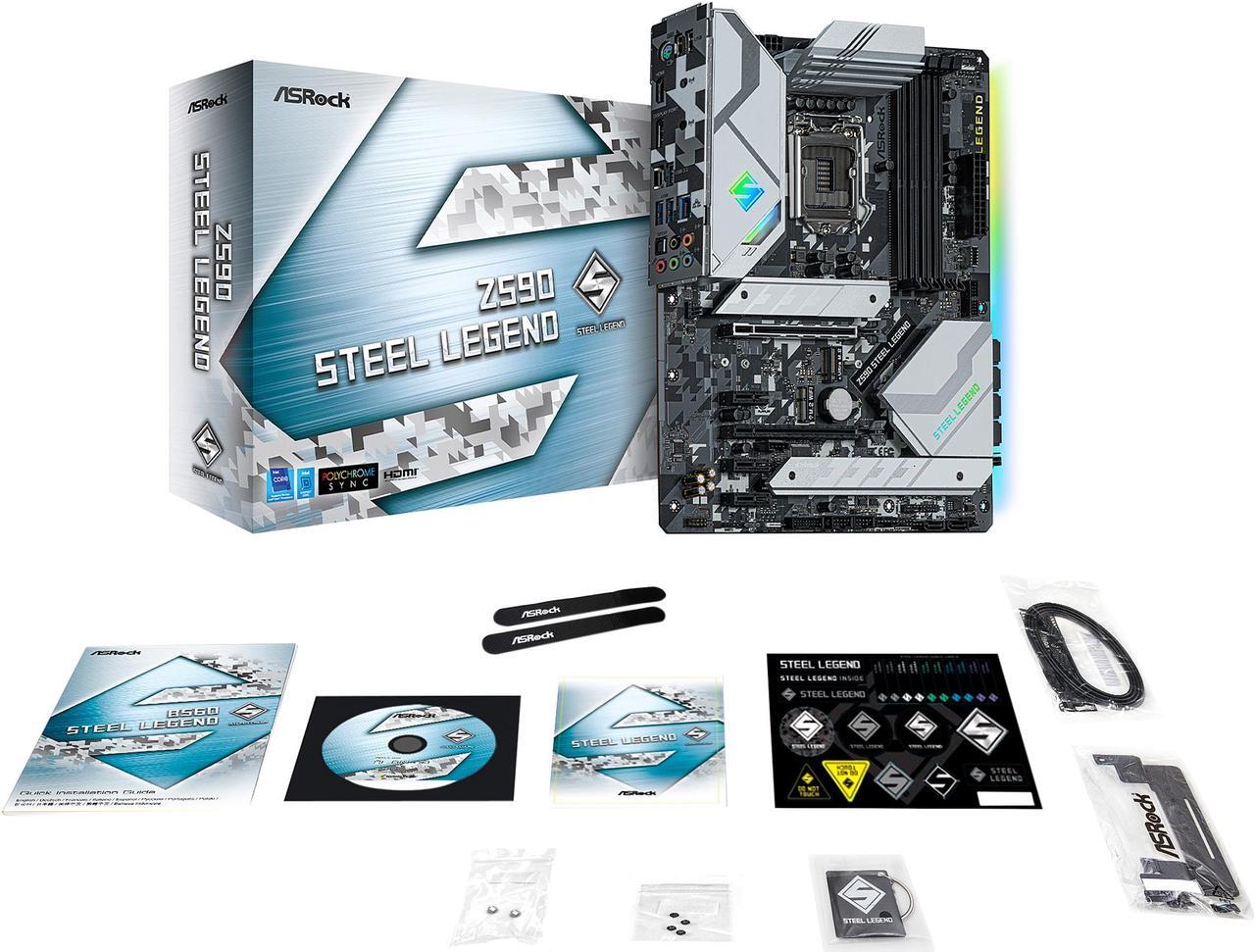

    Package Contents Quick Installation Guide, Support CD
    2 x SATA Data Cables
    4 x Screws for M.2 Sockets
    2 x Standoffs for M.2 Sockets
    1 x Graphics Card Holder
    Additional Information
    Date First Available April 24, 2025
