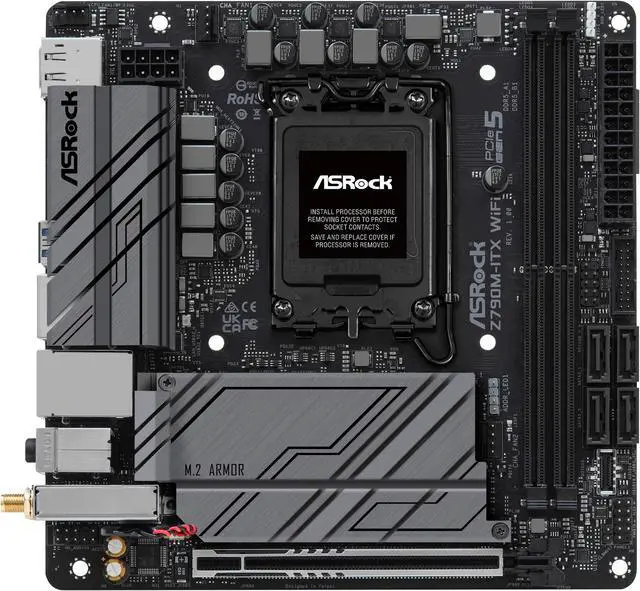

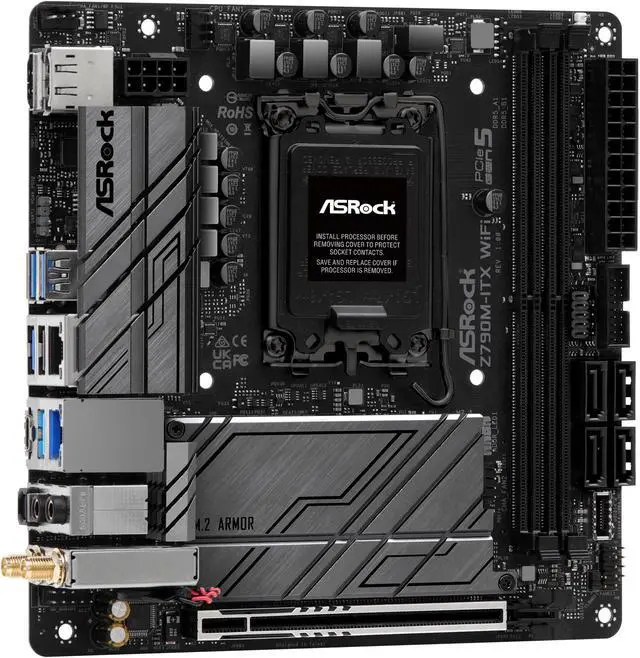

ASRock Z790M-ITX WIFI Intel LGA1700 (14th,13th,12th Gen) Mini-ITX Mainboard, 2 slots DDR5, PCIE 5.0 x16, HDMI 2.1port, Dual Lan 2.5Gb, 1Gb, Dual M.2 slots 7.1 Nahimic Audio, USB3.2 Gen2X2 Type_C, 7+1+1 Power Phase
- BIOS update may be required when used with some 14th generation Intel Core processors.
- Supports 14th / 13th / 12th Gen Intel Core Processors (LGA1700).
- Supports DDR5 6800MHz (OC).
- 7+1+1 Power Phase, Dr.MOS for VCore+GT.
- 1 PCIe 5.0 x16.
- Graphics Output Options: HDMI, DisplayPort, eDP.
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4): 1 Hyper M.2 (SATA & PCIe Gen4x4).
- 1 USB 3.2 Gen2x2 Rear Type-C: 1 USB 3.2 Gen2x2 Front Type-C, 4 USB 3.2 Gen2 Rear Type-A, 2 Front USB 3.2 Gen1, 3 USB 2.0 (1 Rear, 2 Front).
- Intel 2.5G LAN: Intel 1G LAN, 802.11ax (WiFi 6E) + Bluetooth.
- Supports ASRock Auto Driver Installer.
Combo Up Savings Up To $160+
The more you add, the more you'll save!+
+
Specs
Reviews (423)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z790M-ITX WIFI
| Best Seller Ranking | #36 in Intel Motherboards |
|---|
| Brand | ASRock |
|---|---|
| Model | Z790M-ITX WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* 1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively. |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * Supports PCIe riser cards to extend one x16 slot to two x8 slots * Supports NVMe SSD as boot disks |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 5 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I226-V |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| Bluetooth | Yes |

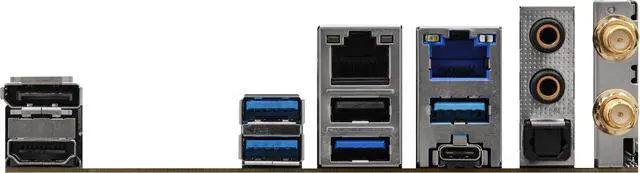

| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 2.0 Port 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** |
|---|---|
| Other Connectors | 1 x eDP Signal Connector 1 x RGB LED Header* 1 x Addressable LED Header** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 2 x Chassis Fan Connectors (4-pin)**** 1 x Front Panel Audio Connector * Supports in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** CPU_FAN1/WP supports the fan power up to 2A (24W). *** CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. **** CHA_FAN1~2 support the fan power up to 1A (12W). ***** Actual speed depends on USB devices and extension cable in the chassis |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Features | Superb Productivity - PCIe Gen5 (Graphic) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer |
|---|

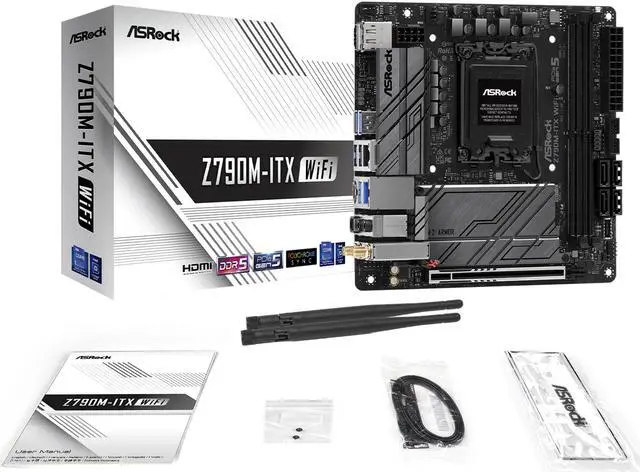

| Package Contents | 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets |
|---|
| Date First Available | September 27, 2022 |
|---|
