Question 1

This motherboard support windows 7 64bit?

Accepted Answer

Yes.  I own a computer repair company and we sell a ton of machines with this board.  Never had any problems.  All of them Windows 7 64 bit.

Question 2

Not a question, unless I can ask how to get Newegg to correct their listing? This board does not have internal usb3 connectors as is stated in the specifications list. Newegg should change this in their listing. I bought the board for a case with a front usb3 connector and now will have to return it and find something else.

Accepted Answer

You can always click the [+] FEEDBACK button on the top of the screen to let Newegg know of their issue. For me I just used a USB 2.0 to USB 3.0 Converter in order to be able to use the USB3 ports at the front of my case as normal USB 2 ports.

Question 3

This is not a question, the 1-egg reviews for this product are inaccurate. There is nothing wrong with the board, the Athlon series of CPUs does not have a built in GPU. Onboard video will not work on ANY FM2+ motherboard with an Athlong GPU-less CPU. An A-Series APU is required for onboard video to work. ??

Accepted Answer

Yeah I found that fact obnoxious as well because it just shows the reviewers didn't fully read the product listing. The board worked perfectly fine for me with an AMD A4-7300 Richland Dual-Core 4.0GHz Socket FM2 65W Desktop Processor AD7300OKHLBOX with a built in AMD Radeon HD 8470D on the APU.

I think most these reviewers are still used to built in on-board video cards, but as far as I can see they hardly do that anymore. I dont mind as it means the graphics is cooled as good as the CPU so it works better.

Thanks for bringing this to peoples attention hopefully some of them will read it before buying it so it stops getting such bad reviews over user error.

Question 4

would this board work fine with an Athlon 860k if im using an graphic card ?

Accepted Answer

It should since both your CPU and the motherboard use a FM2+ socket.  You may have to disable the on-board video if you plan on using your own graphics card but you should be able to do that in the UEFI BIOS/CMOS settings.

Question 5

What is a heatsink that someone can say that they've actually used on this board? Heatsink connectors look wider than average so I need a compatible one.

Accepted Answer

I used  a Arctic Freezer 7 PRO and Standard AMD heatsink too

Brand	ASUS
Model	A68HM-E

CPU Socket Type	FM2+
CPU Type	A- Series (FM2+) / Athlon Series

Number of Memory Slots	2x240pin
Memory Standard	DDR3 2400(O.C.)/2133/1866/1600/1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 2 2: Only FM2+ Processors can support PCIe3.0.
PCI Express x1	1 x PCIe 2.0 x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	4 x SATA 6Gb/s port(s), gray
SATA RAID	0/1/10/JBOD

Meet Your Seller

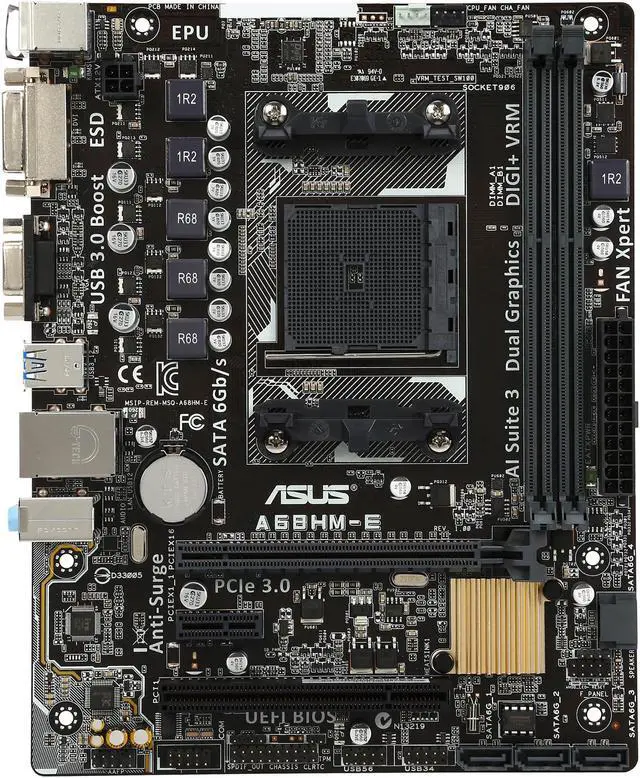

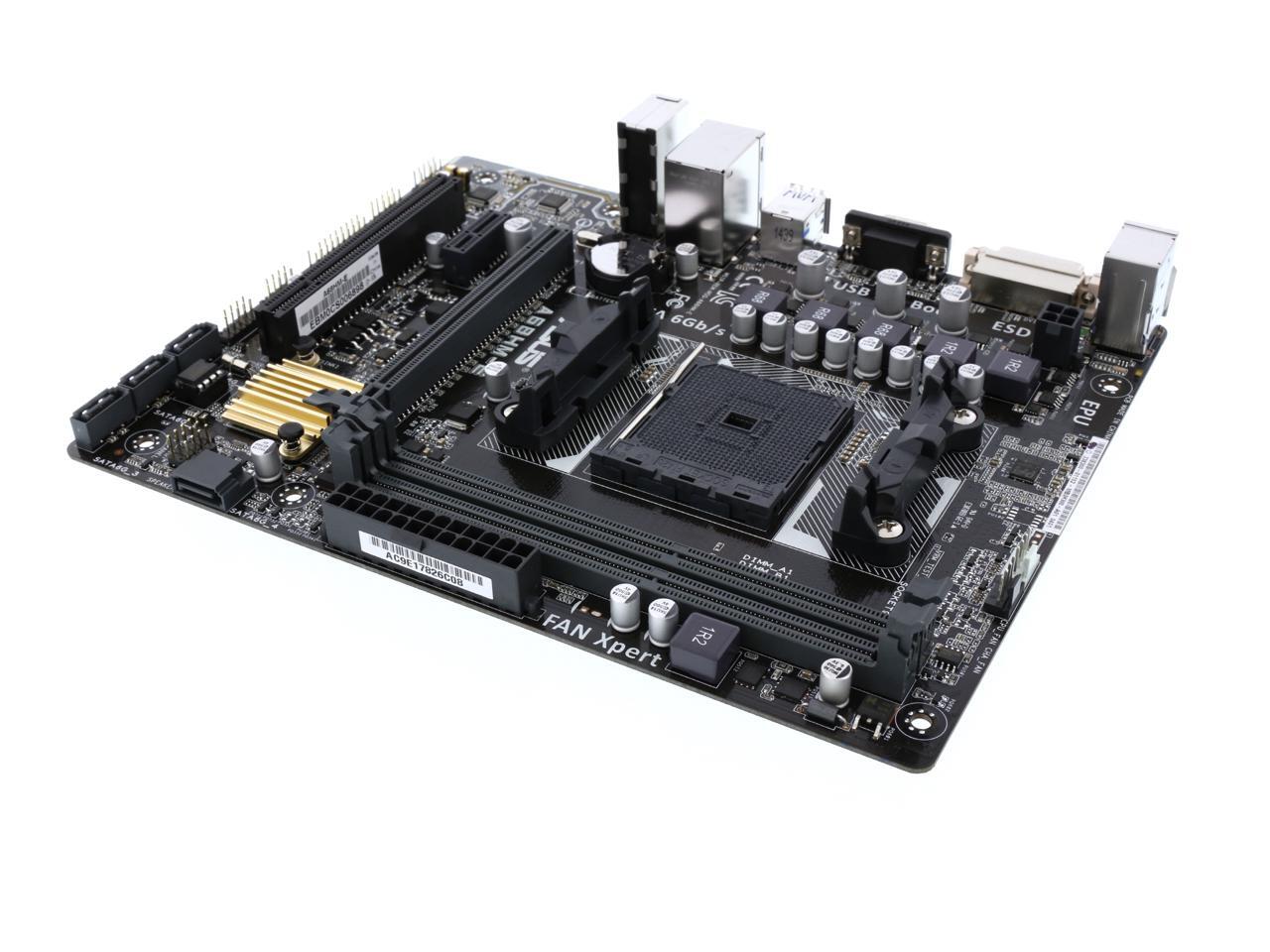

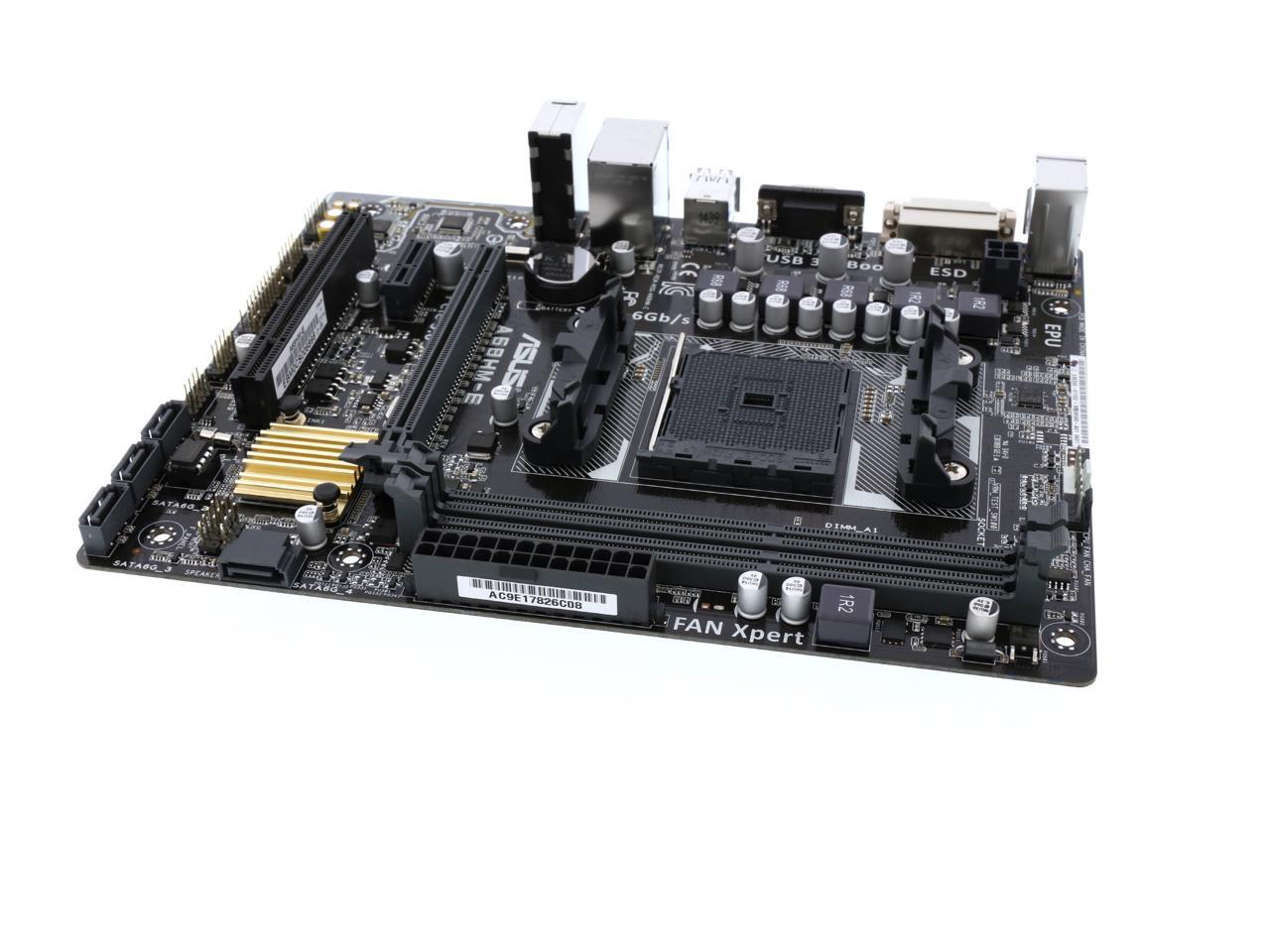

ASUS A68HM-E FM2+ AMD A68H FCH (Bolton D2H) USB 3.0 Micro ATX AMD Motherboard

Used - Very Good

Learn more about the ASUS A68HM-E

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

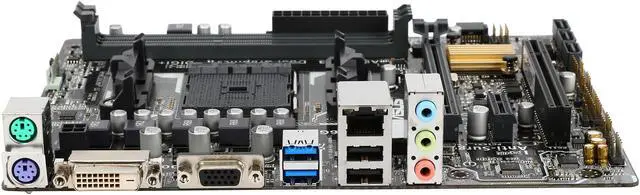

Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
Video Ports	1 x DVI 1 x D-Sub
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.2"
Power Pin	24 Pin

Onboard Audio
Audio Chipset	Realtek ALC887-VD
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111GR
Max LAN Speed	1Gbps
