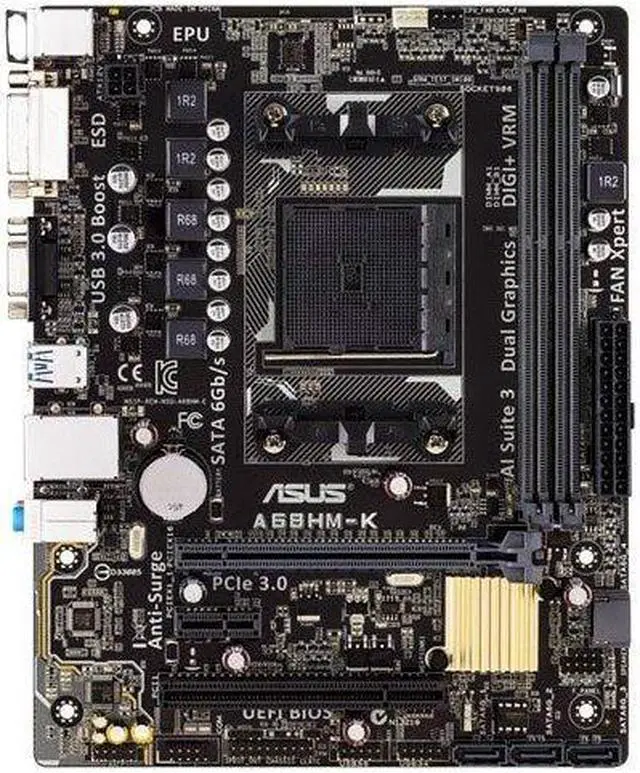

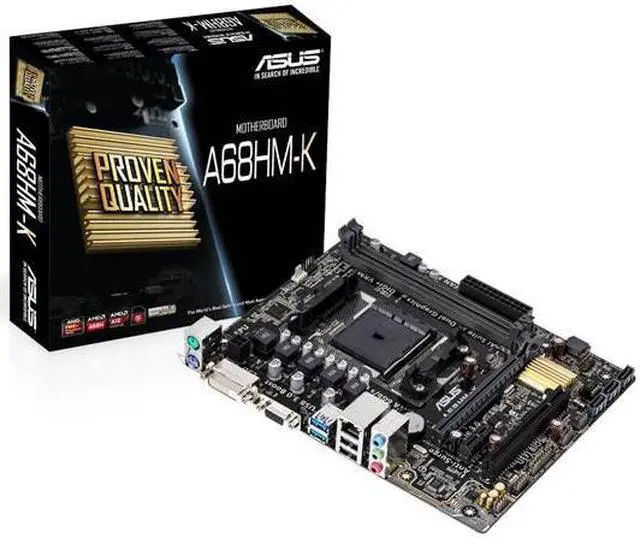

ASUS A68HM-K AMD FM2+ Socket A68H Chipset Micro ATX Motherboard

CPUAMD Socket FM2+ Athlon/A- Series Processors Supports CPU up to 4 coresSupports AMD® Turbo Core 3.0 Technology* Refer to for CPU support listChipsetAMD A68H FCH (Bolton D2H) Memory2 x DIMM, Max. 32GB, DDR3 2400(O. C. )/2133/1866*/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Support AMD Memory Profile (AMP) memory* The Max. 32GB memory capacity can be supported with DIM
Ms of 16GB (or above). ASUS will update QVL once the DIM
Ms are available on the market. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. ** Refer to for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. GraphicIntegrated AMD Radeon R/HD8000/HD7000 Series Graphics in the
A-Series APU Multi-VGA output support: DVI/RGB ports - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz- Supports RGB with max. resolution 1920 x 1600 @ 60 HzMaximum shared memory of 2048 MBAMD® Dual Graphics technology support *1Expansion Slots1 x PCIe 3.0 / 2.0 x16 *21 x PCIe 2.0 x1 1 x PCI
StorageAMD A68H FCH (Bolton D2H) chipset: 4 x SATA 6Gb/s port (s), graySupport Raid 0, 1, 10, JBODLAN
Realtek® 8111GR, 1 x Gigabit LAN Controller (s) AudioRealtek® ALC887-VD 8-Channel High Definition Audio CODEC *3-
Supports: Jack-detection, Multi-streaming, Front
Panel Jack-retaskingAudio Feature: -
Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio
PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals-
Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelityUSB
PortsAMD A68H FCH (Bolton D2H) chipset: 6 x USB 2.0 / 1.1 port (s) (2 at back panel, black, 4 at mid-board)AMD
A68H FCH (Bolton D2H) chipset: 2 x USB 3.0 port (s) (2 at back panel, )Special
FeaturesASUS EPU: -
EPU ASUS Exclusive Features: - AI Suite 3- Ai Charger- Anti-Surge- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost- Disk UnlockerASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 -

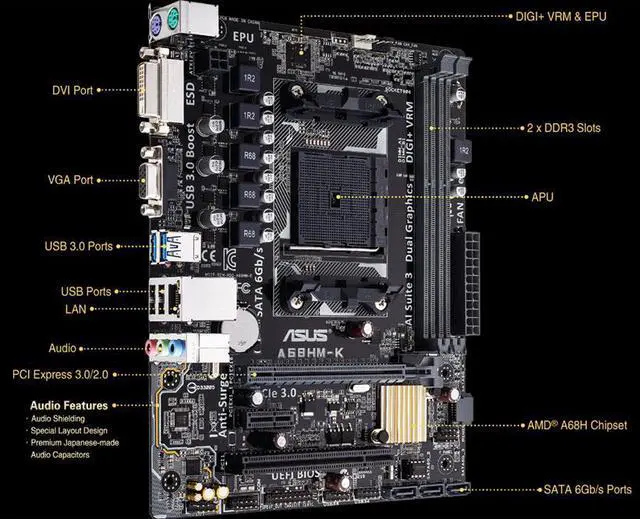

Push NoticeASUS Q-Design: - ASUS Q-SlotOperating System SupportWindows® 8.1, 32bit/64bitWindows® 8, 32bit/64bitWindows® 7, 32bit/64bitWindows® XP, 32bitBack I/O Ports1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI1 x D-Sub1 x LAN (RJ45) port (s) 2 x USB 3.0 2 x USB 2.0 3 x Audio jack (s) Internal I/O Ports2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s) 1 x TPM connector (s) 1 x COM port (s) connector (s) 4 x SATA 6Gb/s connector (s) 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 4-pin ATX 12V Power connector (
