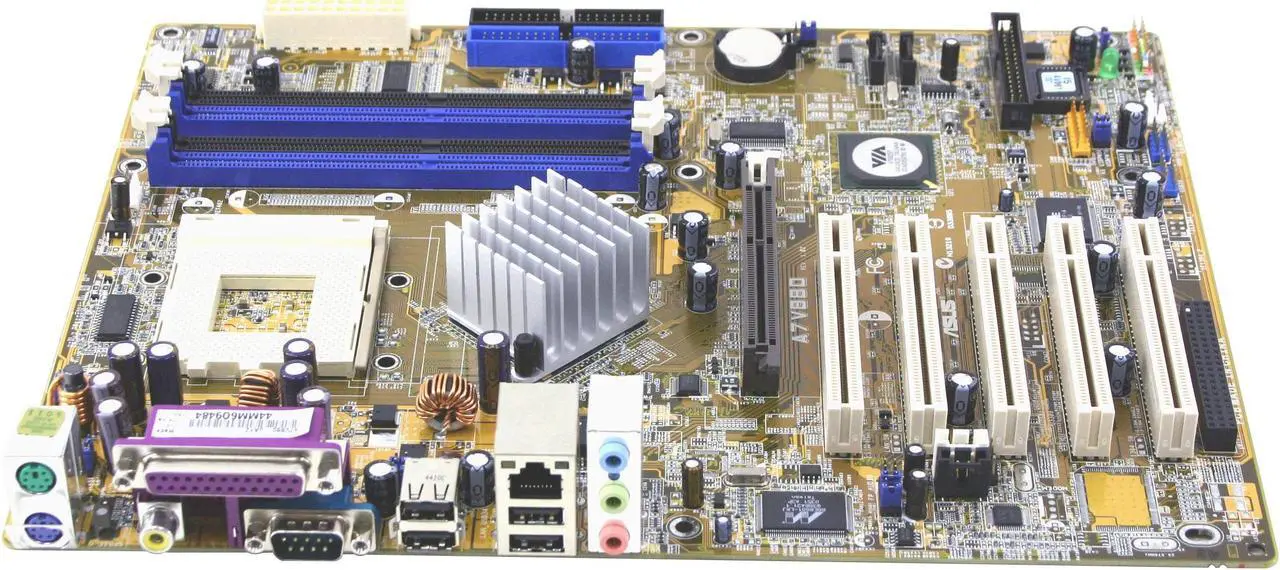

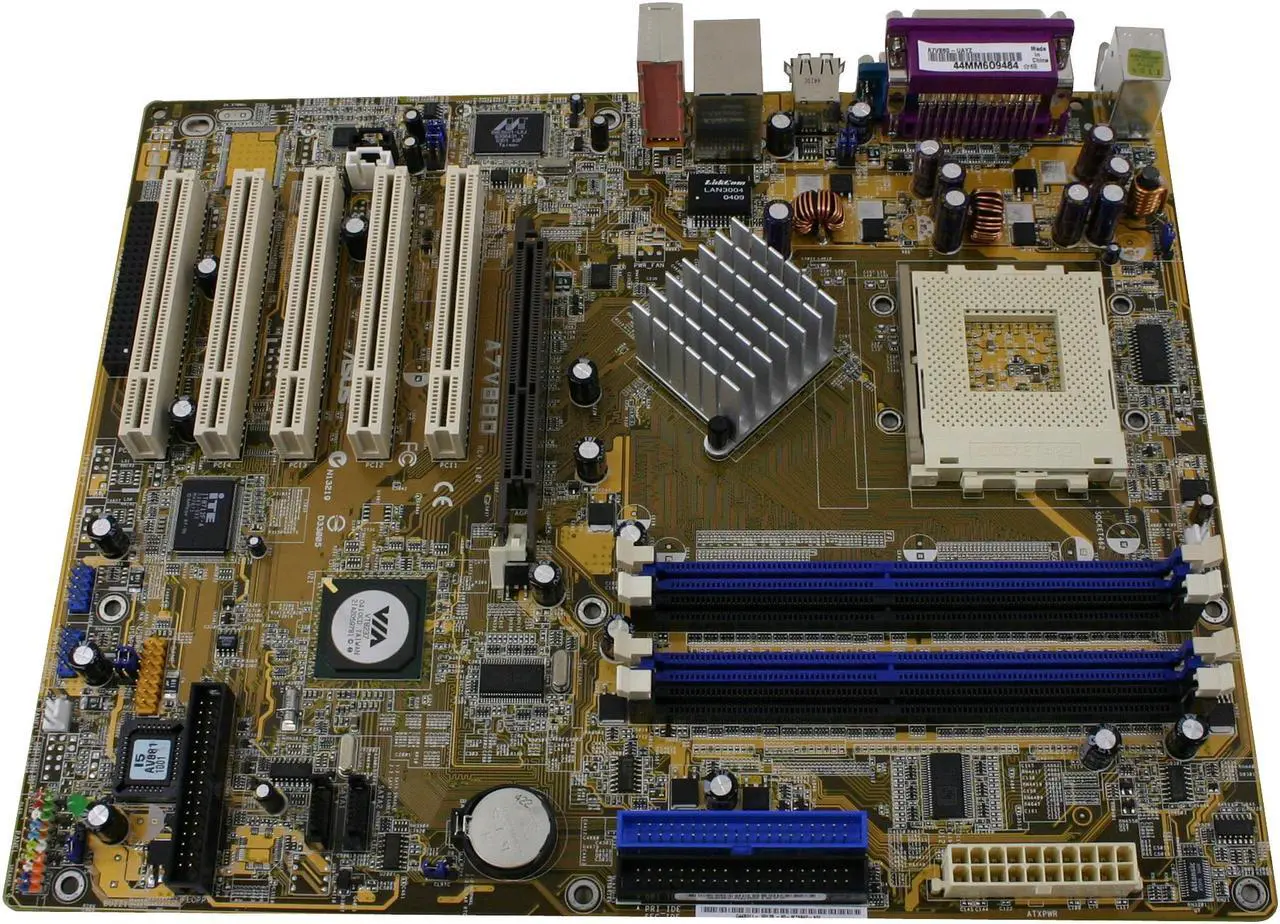

ASUS A7V880 462(A) VIA KT880 ATX AMD Motherboard

(48) Write a Review
  • VIA KT880
  • Athlon XP / Athlon / Duron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (48)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASUS A7V880

Model
Brand ASUS
Model A7V880
Supported CPU
CPU Socket Type 462(A)
CPU Type Athlon XP / Athlon / Duron
FSB 400/333 MHz
Chipsets
Chipset VIA KT880
South Bridge VIA VT8237
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Other Slots 1 x ASUS Wi-Fi
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset ADI SoundMAX
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Marvell 88E8001
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Features
Features ASUS JumperFree
ASUS C.P.R.(CPU Parameter Recall)
CPU and Memory voltage adjustable
SFS (Stepless Frequency Selection) at 1MHz increment
Adjustable FSB/DDR ratio.
Wake on Ring, Lan, USB, Keyboard & Mouse
STR (Suspend-to-RAM)
STD (Suspend-to-Disk)
ASUS C.O.P. (CPU Overheating Protection)
ASUS C.P.R. (CPU Parameter Recall)
ASUS MyLogo
ASUS EZ Flash
ASUS Q-FAN
ASUS CrashFree BIOS 2
ASUS Instant Music~Lite
Additional Information
Date First Available July 13, 2004
