Learn more about the ASUS A8N-SLI
Model
Brand
ASUS
Model
A8N-SLI
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB
1000 MHz
Chipsets
Chipset
NVIDIA nForce4 SLI
Memory
Number of Memory Slots
4x184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
2 x PCI Express x16
PCI Express x1
2 x PCI Express x1
PCI Slots
3 x PCI Slots
Storage Devices
PATA
2 x ATA100 4 Dev. Max
PATA RAID
NV RAID 0/1/0+1 JBOD
SATA 3Gb/s
4 x SATA 3Gb/s
SATA RAID
NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC850
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x LPT (Parallel Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2
2
LPT
1
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
3 x USB 2.0 connectors support 6 ports
Onboard 1394
1 x 1394a connector support 1 port
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Packaging
Package Contents

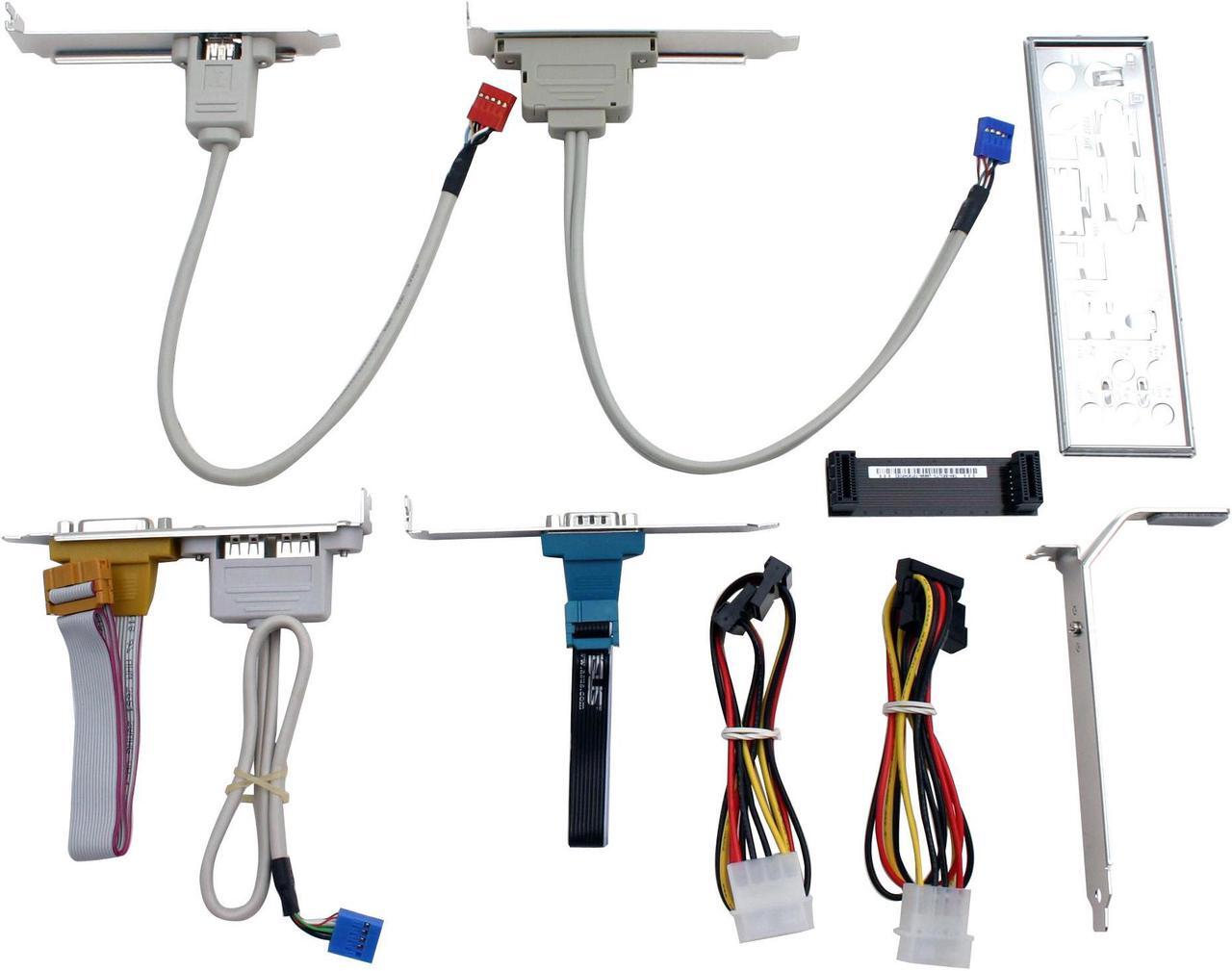

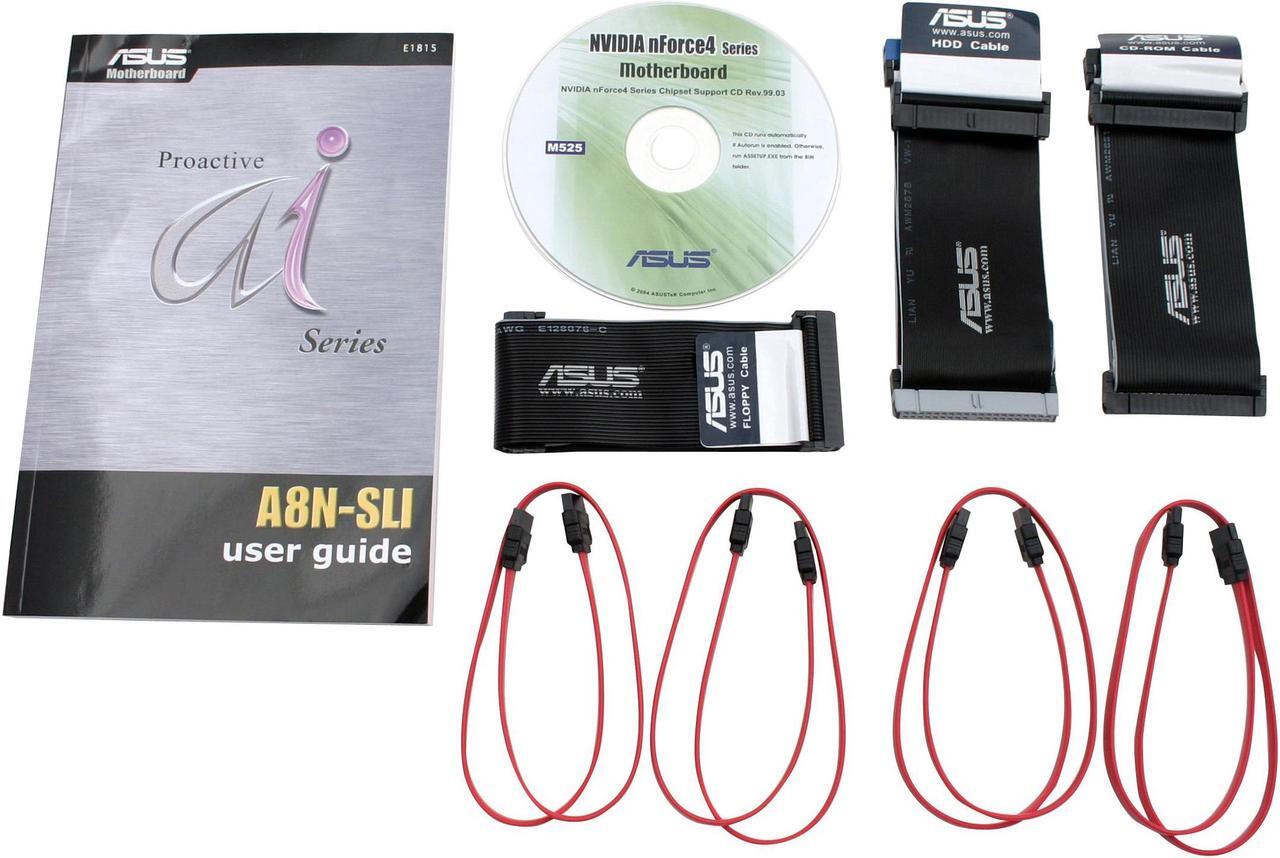

A8N-SLI Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to SATA Power Cable SLI Bridge SLI Retention Bracket USB Bracket IEEE 1394 Bracket Serial/COM Bracket USB and Game/MIDI Bracket
