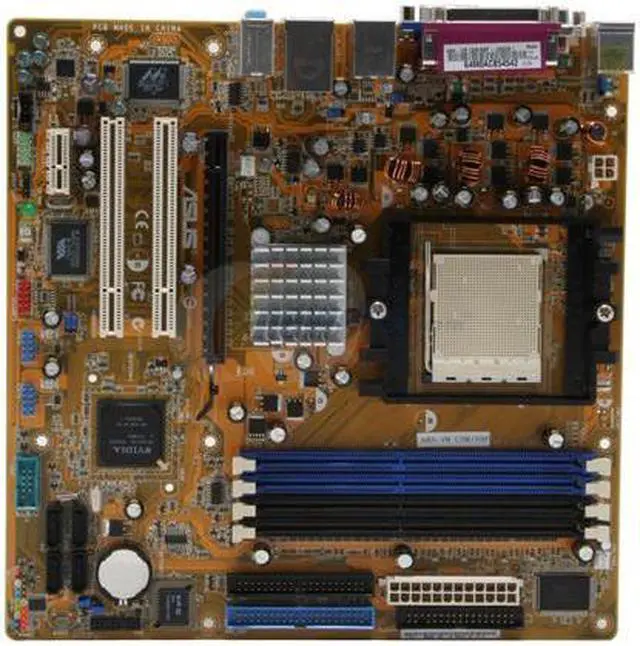

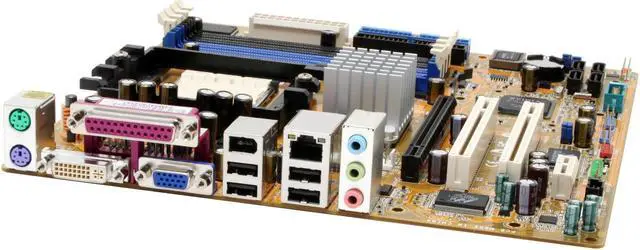

ASUS A8N-VM CSM/NBP 939 NVIDIA GeForce 6150 Micro ATX AMD Motherboard for Business Users
- NVIDIA GeForce 6150
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR 400
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS A8N-VM CSM/NBP
| Brand | ASUS |
|---|---|
| Model | A8N-VM CSM/NBP |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6150 |
|---|---|
| South Bridge | NVIDIA nForce 430 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6150 |
|---|
| Audio Chipset | ADI AD1986A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Marvell 88E1111 PHY |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | A8N-VM CSM/NBP has joined AMD CSIP(Commercial Stable Image Platform) program and been certified by NBP(Nvidia Business Platform) program which ensure solid quality and stable drivers for serious business users. |
|---|
| First Listed on Newegg | May 09, 2006 |
|---|
