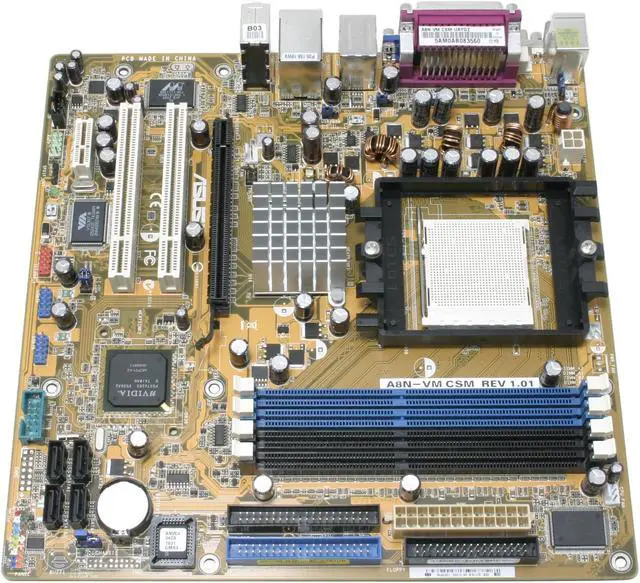

ASUS A8N-VM CSM 939 NVIDIA GeForce 6150 Micro ATX AMD Motherboard

(304) Write a Review
  • NVIDIA GeForce 6150
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (304)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASUS A8N-VM CSM

Model
Brand ASUS
Model A8N-VM CSM
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
Chipsets
Chipset NVIDIA GeForce 6150
South Bridge NVIDIA nForce 430
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/0+1/5
Onboard Video
Onboard Video Chipset NVIDIA GeForce 6150
Onboard Audio
Audio Chipset ADI AD1986A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Marvell 88E1111 PHY
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
LPT 1
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents A8N-VM CSM
User Manual
Driver Disk
Rear I/O Panel Shield
2 x IDE/PATA Cable
FDD Cable
2 x SATA Cable
4-pin to SATA Power Cable
IEEE 1394 Bracket
Additional Information
First Listed on Newegg November 04, 2005
