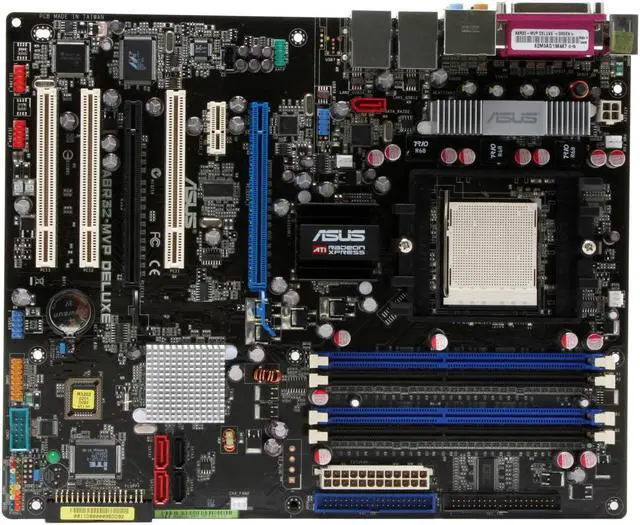

Manufacturers, more and more, are targeting specific markets with their motherboards. ASUS, particularly, likes to build boards aimed at gamers. The ASUS A8R32-MVP Deluxe motherboard delivers screaming high-end graphics performance and video quality through true Dual x 16 PCIe design and CrossFire support, and lets you play with your overclock options to adjust your system performance to your individual needs.
With up to 4GB of onboard DDR400 memory, and connections for a variety of SATA and FireWire devices, this inexpensive board is a real steal for the creative tweaker!
Manufacturers, more and more, are targeting specific markets with their motherboards. ASUS, particularly, likes to build boards aimed at gamers. The ASUS A8R32-MVP Deluxe motherboard delivers screaming high-end graphics performance and video quality through true Dual x 16 PCIe design and CrossFire support, and lets you play with your overclock options to adjust your system performance to your individual needs.
With up to 4GB of onboard DDR400 memory, and connections for a variety of SATA and FireWire devices, this inexpensive board is a real steal for the creative tweaker!
ATI CrossFire Multi-GPU Technology SupportThe ASUS A8R32-MVP Deluxe fully supports ATI CrossFire technology. The ATI CrossFire Xpress 3200 chipset delivers unrivalled bandwidth for true full-bandwidth 2x16 PCI Express slots and offers the utmost flexibility and options to support the fastest GPUs and connector-free CrossFire graphics cards.
SATA on the GoThe A8R32-MVP Deluxe supports next-generation Serial ATA (SATA) 3Gb/s-based hard drives. The external SATA port located on the back I/O panel provides easy setup and hot-plug functions so you can backup photos, videos and other multimedia content on external devices with ease.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
AI NET2ASUS AI NET2 remotely detects cable connections when powering up. Any faulty connections within 100 meters will be reported at an accuracy of up to 1 meter.
Precision TweakerDesigned for serious overclockers Precision Tweaker offers a powerful arsenal of overclocking options to help you achieve maximum system performance!
PEG LinkThe PEG (PCI-Express Graphics) Link enables GPU and VGA memory throughput boosts via the motherboard BIOS. Delicate fine-tuning of PCI-Express card parameters has allowed ASUS to achieve enhanced system stability during high-speed graphics operation.
Learn more about the ASUS A8R32-MVP Deluxe
Model
Brand
ASUS
Model
A8R32-MVP Deluxe
Supported CPU
CPU Socket Type
939
CPU Type
AMD Opteron/Athlon 64 FX/ Athlon 64 X2/ Athlon 64
FSB
1000 MHz
Chipsets
Chipset
ATI CrossFire Radeon Xpress 3200
South Bridge
ULi M1575
Memory
Number of Memory Slots
4x184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
2 x PCI Express x16
PCI Express x1
1 x PCI Express x1
PCI Slots
3 x PCI Slots
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA RAID
0/1/0+1/5
Additional RAID Controller
Sil 3132
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC882
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Marvell 88E8053
Second LAN Chipset
Marvell 88E8001
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
Back I/O Ports
1 x LPT (Parallel Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2
2
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors support 4 ports
Onboard 1394
2 x 1394a connectors support 2 ports
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Packaging
Package Contents

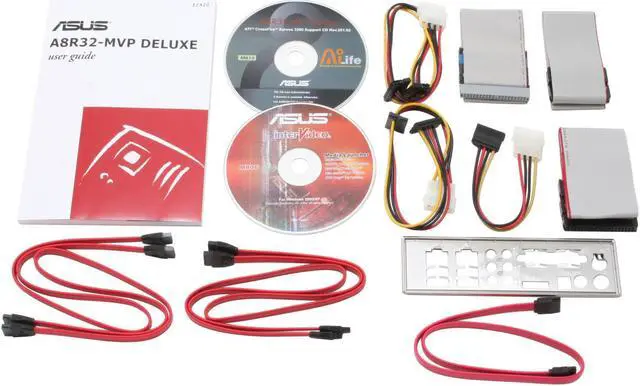

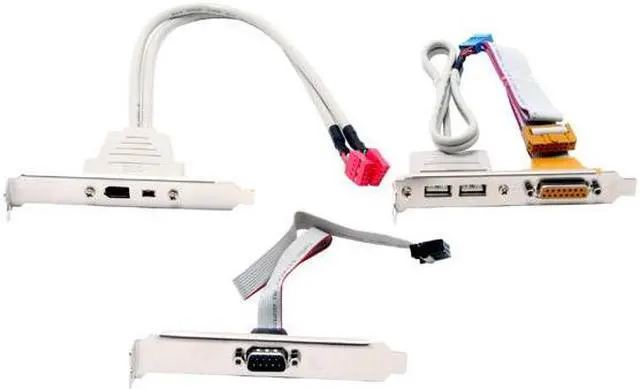

A8R32-MVP Deluxe User Manual Driver Disk Rear I/O Panel Shield FDD Cable 2 x IDE/PATA Cable 3 x SATA Cable 3 x 4-pin to SATA Power Cable IEEE 1394 Bracket IEEE 1394 and USB Bracket Serial/COM Bracket
