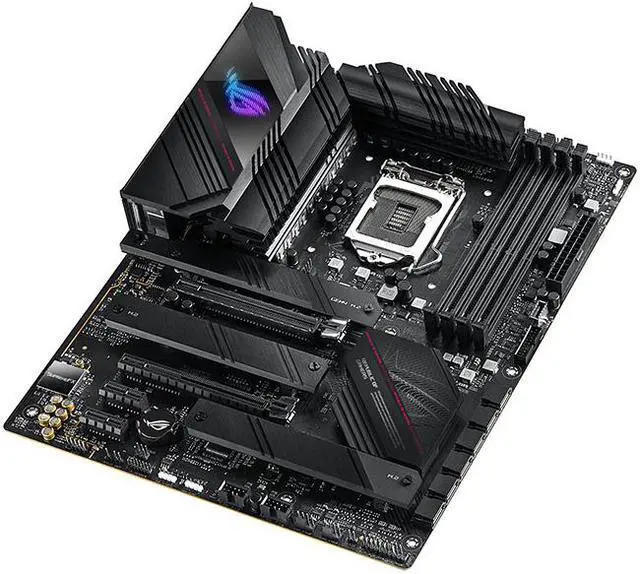

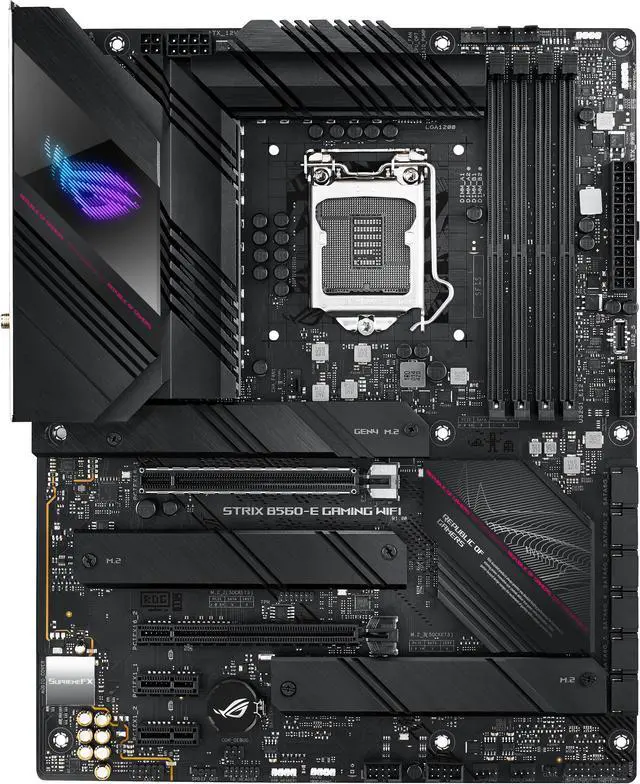

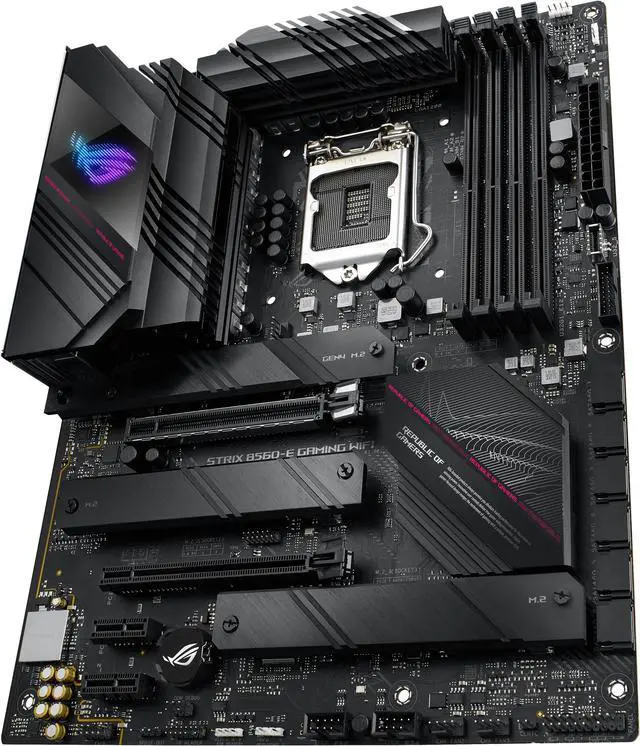

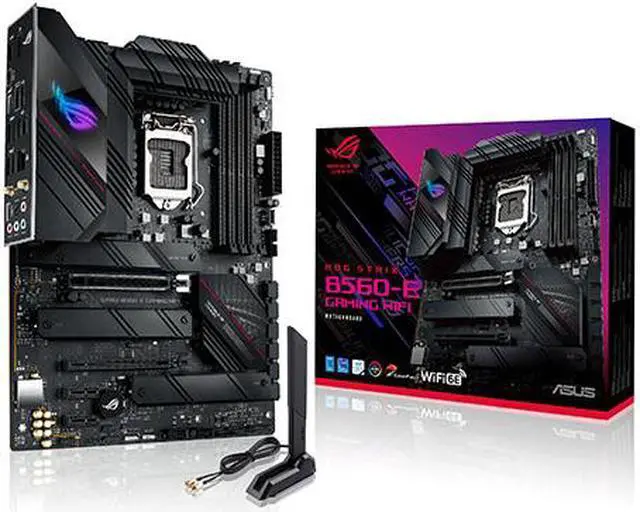

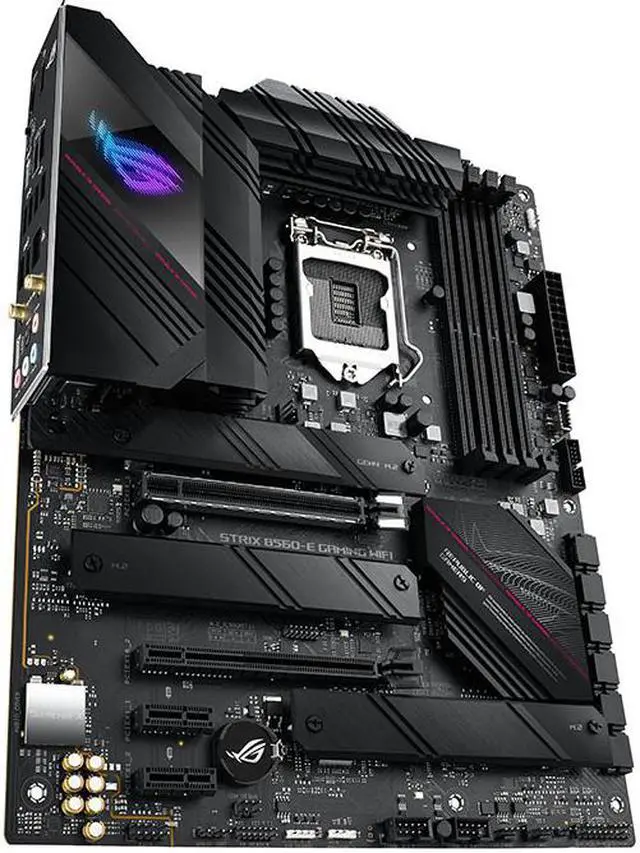

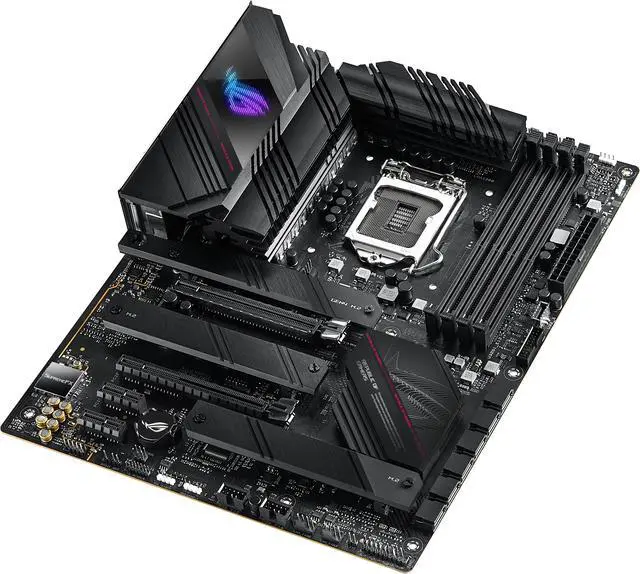

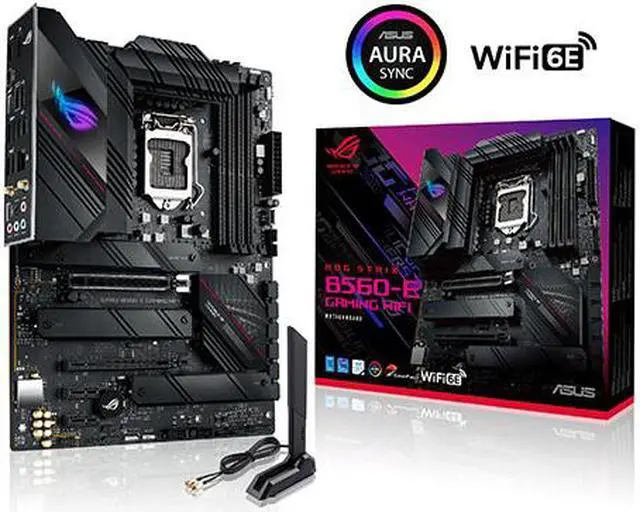

ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 Intel B560 DDR4 ATX Motherboard (90MB1880-M0EAY0)
- LGA 1200
- Intel B560
- ATX
- DDR4
- 128 GB
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Internal IO
- Number of M.2 (M) slots: 3
- Supported storage drive interfaces: M.2,SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Peripheral (Molex) power connectors (4-pin): 1
- Number of SATA III connectors: 6
- Number of chassis fan connectors: 3
- Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX Power connector (24-pin): Yes
- Number of displays supported: 2
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B560
- HDMI version: 2.0
- Motherboard form factor: ATX
- Component for: PC
- Audio output channels: 7.1 channels
- Supported storage drive types: HDD & SSD
- Windows operating systems supported: Windows 10 x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B560
- Audio output channels: 7.1 channels
- Motherboard form factor: ATX
- Component for: PC
- Processor manufacturer: Intel
- Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
- Processor socket: LGA 1200
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory channels: Dual-channel
- Non-ECC: Yes
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3200,3333,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
- Maximum internal memory: 128 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2,SATA III
- Number of storage drives supported: 9
- Number of displays supported: 2
- Maximum resolution: 5120 x 2880 pixels

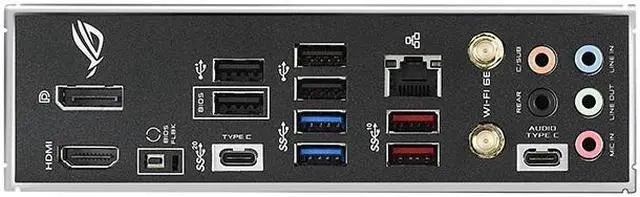

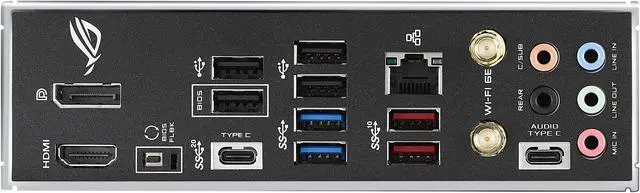

- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- DisplayPort version: 1.4
- USB connector type: USB Type-A, USB Type-C
- USB 2.0 ports quantity: 4
- Microphone in: Yes
- Headphone outputs: 1
- HDMI version: 2.0
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- DisplayPorts quantity: 1
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- LAN controller: Intel I225-V
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Windows operating systems supported: Windows 10 x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B560
- Audio output channels: 7.1 channels
- Motherboard form factor: ATX
- Component for: PC
- Audio chip: Realtek ALC4080
- Number of M.2 (M) slots: 3
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- BIOS type: UEFI
- BIOS memory size: 128 Mbit
- Maximum resolution: 5120 x 2880 pixels
- Windows operating systems supported: Windows 10 x64
- Width: 305 mm
- Depth: 244 mm
