ASUS;B150-PLUS;B150-PRO D3 B150-PLUS D3 - CD-rom land

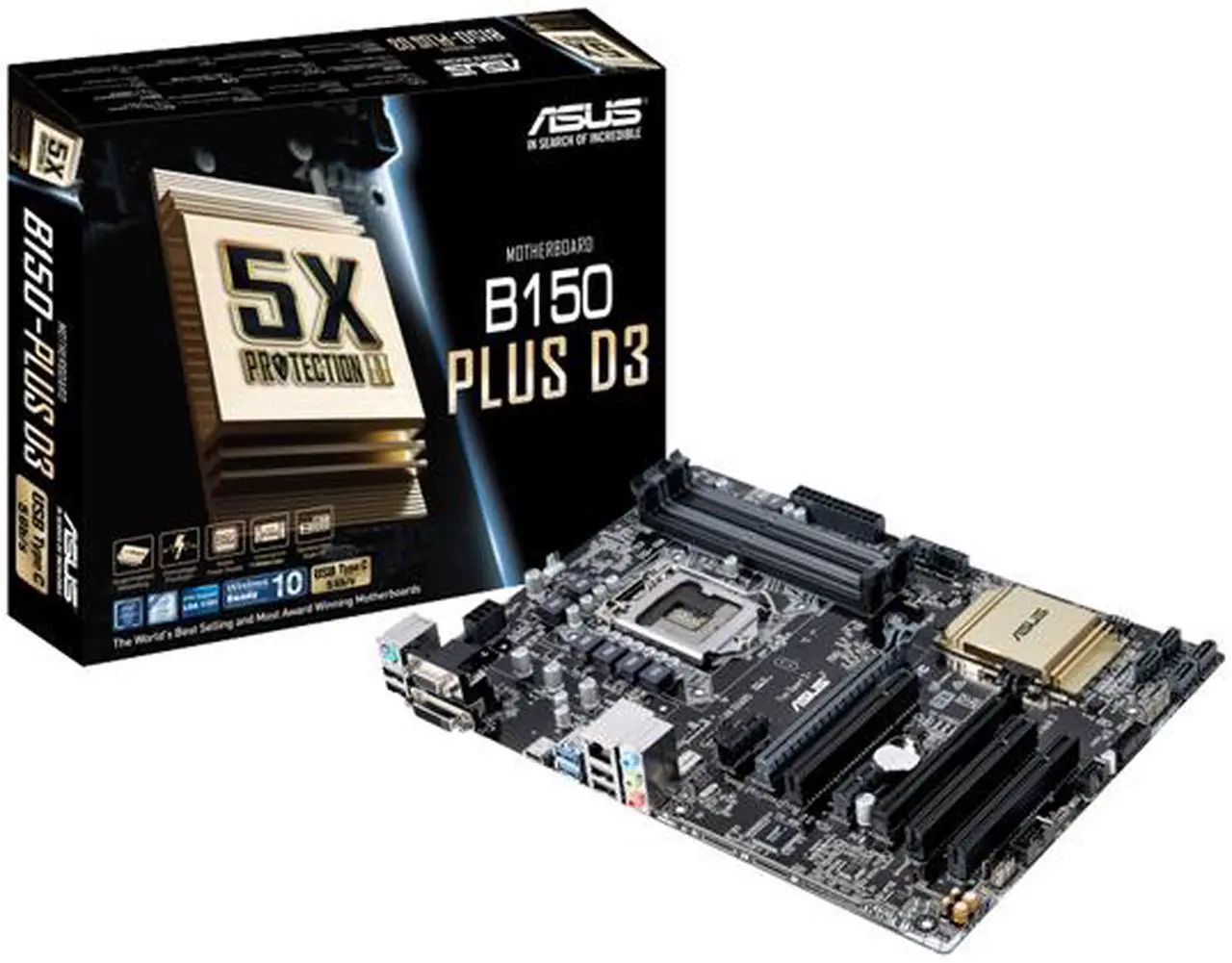

Main image of ASUS B150-PLUS D3 LGA 1151 Intel B150 USB 3.0 ATX Intel Motherboard

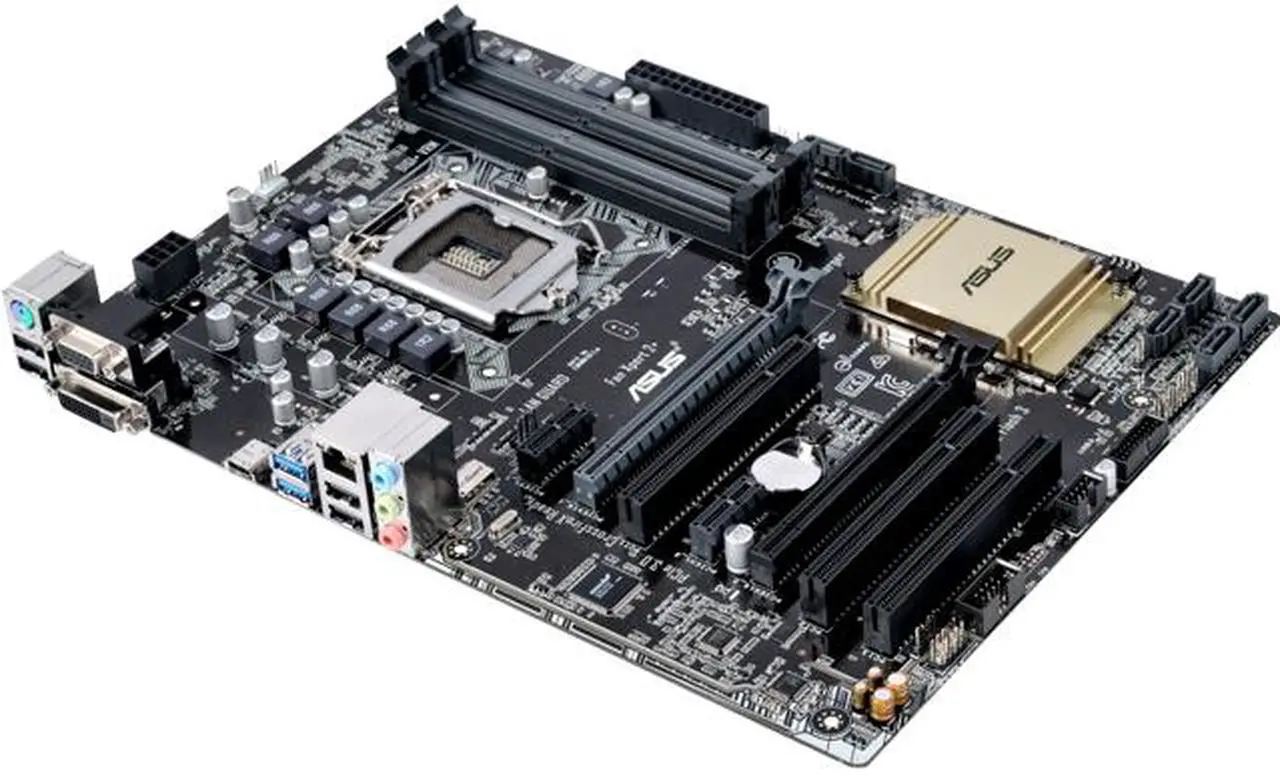

Alt view image 2 of 3 - ASUS B150-PLUS D3 LGA 1151 Intel B150 USB 3.0 ATX Intel Motherboard

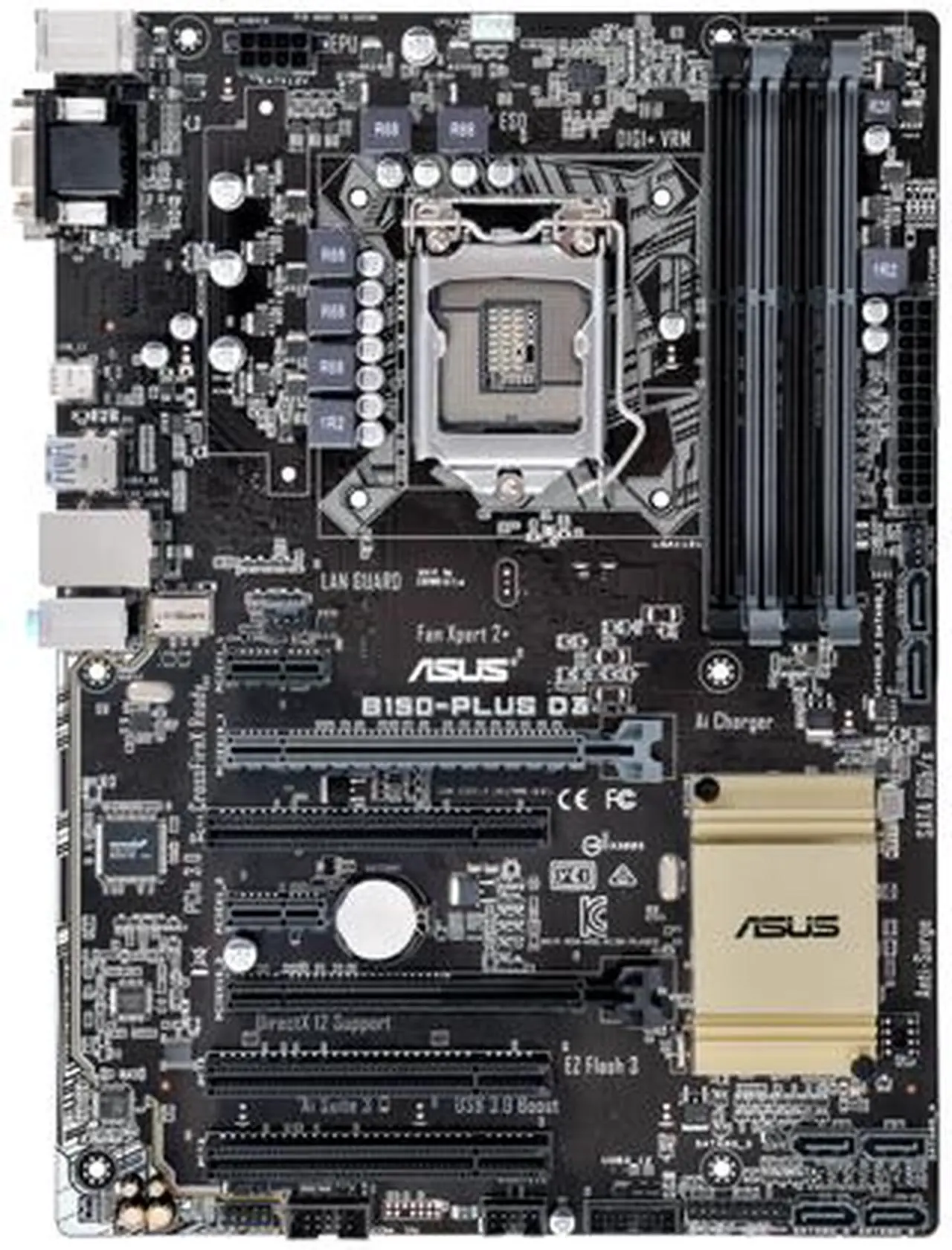

Alt view image 3 of 3 - ASUS B150-PLUS D3 LGA 1151 Intel B150 USB 3.0 ATX Intel Motherboard

Shop All ASUS Products | Visit Smith's Computer Market Store

ASUS B150-PLUS D3 LGA 1151 Intel B150 USB 3.0 ATX Intel Motherboard

Used - Good

5X Protection II
DDR3/DDR3L memory compatibility
USB Type-C
Epic gaming audio with LED-illuminated shielding
UEFI BIOS with EZ Flash 3
Fan Xpert 2+

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by Smith's Computer Market Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x240pin
Memory Standard	DDR3 1866(O.C.)/1600/1333
Maximum Memory Supported	64GB

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
PCI Express x1	2 x PCIe 3.0/2.0 x1
PCI Slots	3 x PCI Slots

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D 1 x D-Sub
RJ45	1 x LAN (RJ45) port(s)
USB 3.0	1 x USB 5Gb/s port(s) Type-C ( support 3A power output ) 2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin, [White]) 2 x Chassis Fan connector(s) (2 x 4 -pin, [Black]) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

Model
Brand	ASUS
Model	B150-PLUS D3

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.6"
Power Pin	24 Pin
