    ASUS B150M PRO GAMING LGA 1151 Intel B150 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboards - Intel

    Used - Good Product Type
    • Intel B150
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    • DDR4 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASUS B150M PRO GAMING

    Model
    Brand ASUS
    Model B150M PRO GAMING
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    Chipsets
    Chipset Intel B150
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support
    VGA output support: HDMI port
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    Maximum shared memory of 1024 MB
    Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 2133
    Expansion Slots
    PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16 (x16 mode)
    PCI Express x1 2 x PCIe 3.0/2.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) *1

    *1: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
    Onboard Audio
    Audio Chipset SupremeFX High Definition Audio CODEC
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps
    Rear Panel Ports

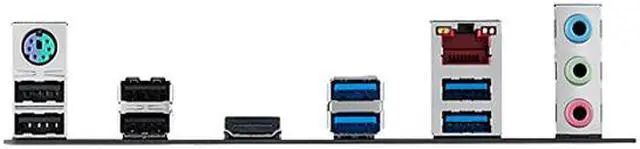

    Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 2.0/1.1 / 4 x USB 3.0
    PS/2 1 x PS/2 keyboard/mouse port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.0 4 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    Other Connectors 1 x COM port(s) connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.2" x 8.6"
    Features
    Features Special Features:
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    ASUS Exclusive Features:
    - AI Suite 3
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution:
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY:
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - Push Notice
    ASUS Q-Design:
    - ASUS Q-Shield
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Media Streamer

    Operating System Support:
    Windows 10, 64bit
    Windows 8.1, 64bit
    Windows 7, 32bit/64bit

    BIOS:
    128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

    Manageability:
    WfM 2.0, DMI 3.0, WOL by PME, PXE

    Support Disc:
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
    Packaging
    Package Contents Accessories:
    User's manual
    ASUS Q-Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x pack of cable tie
    1 x Supporting DVD
    1 x 12 in 1 Cable Label(s)
    Additional Information
    First Listed on Newegg December 25, 2024
