What are the dimensions and weight of the ASUS ExpertCenter PN54-S1-BB3000ETL?

The dimensions are 1.34 inches x 5.12 inches x 5.12 inches and it weighs 1.21 lbs.

What is the maximum storage capacity supported by the ASUS ExpertCenter PN54-S1-BB3000ETL?

The maximum storage capacity supported is 2TB using 2 x M.2 2280 PCIe Gen4x4 NVMe SSD.

BOSGAME P2 Plus Mini PC, Intel Core i7-12700H Processor, 32GB DDR5 512GB SSD, 2*2.5G LAN, Thunderbolt 4, Triple 4K Display, WiFi 6 & BT 5.2

See price in cart

$428^.99

Free 30-day Returns

Limit 2 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

antonline

Hot Seller

4.5 (17,982 total ratings)

$457^.70
+ FREE SHIPPING

NothingButSavings

Top Rated

4.5 (9,003 total ratings)

$463^.28

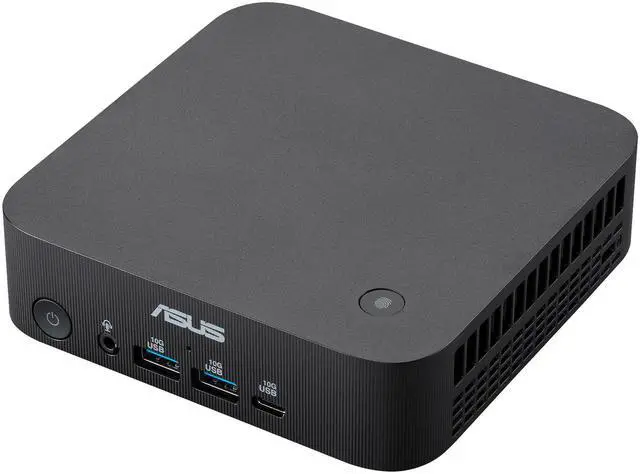

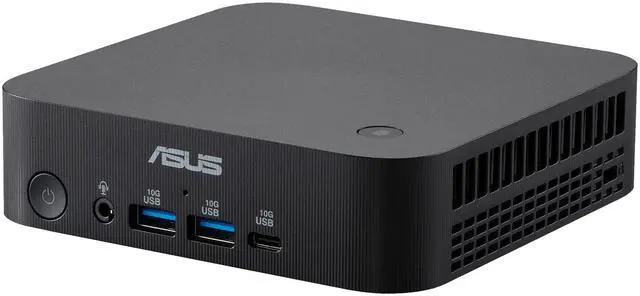

Main image of ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 2 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 3 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 4 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 5 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 6 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 7 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 8 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 9 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 10 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 11 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 12 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 13 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Alt view image 14 of 14 - ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Shop All ASUS Products

ASUS ExpertCenter PN54-S1-BB3000ETL Barebone Mini PC with AMD Ryzen 3 210 Processor, AMD Radeon 740M Graphics, WiFi 7 & Bluetooth 5.4, Dual 2.5G LAN,Toolless Chassis Access, VESA Mount Included

Be the first to review this product...

Type: AMD Ryzen 3 210

AMD Ryzen 7 260
AMD Ryzen 5 220
AMD Ryzen 3 210

Powerful Multitasking: Featuring AMD Ryzen 3 210 Series Processors designed for powerful, efficient multitasking.
Immersive 4K Visuals: AMD Radeon 740M Graphics delivers breathtaking detail across up to four 4K displays.
Ultrafast and Versatile connectivity: Enjoy ultrafast connectivity with Wi-Fi 7 and Bluetooth 5.4 and benefit from a versatile array of connectivity options, including 6 USB ports, dual 2.5G LANs, and dual DisplayPort.

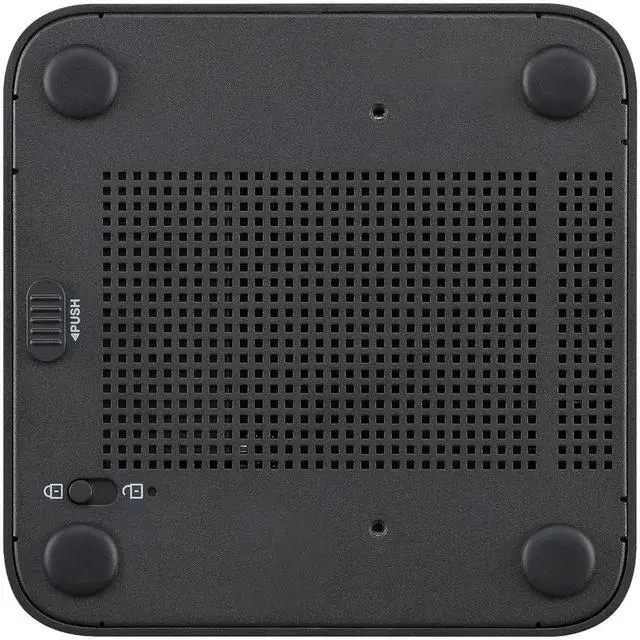

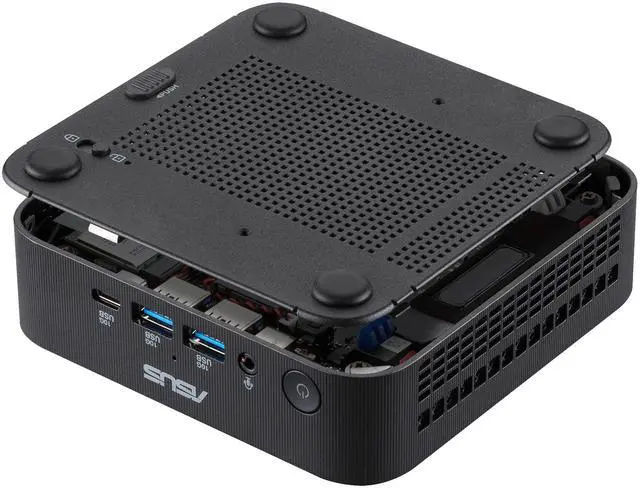

Effortless Upgrades: Tool-free design allows quick access and easy component upgrades without hassle.
Sleek, Durable Design: Housed in a sleek 34mm chassis built for 24/7 operation, combining compact form with eco-conscious durability and long-term reliability.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	ASUS
Series	ExpertCenter
Model	PN54-S1-BB3000ETL
Part Number	90MR01D2-M001C0
Color	Black
Form Factor	Slim

CPU Supported
CPU Type	AMD Ryzen 3 210
CPU Cores	4-Core

Memory Supported
Memory slot	2 x 262Pin SO-DIMM
Memory Type Supported	DDR5 5600

Storage
M.2 Slot	2 x M.2 2280 PCIe Gen4x4 NVMe SSD (supports 256GB ~ 2TB)

Graphics
Integrated Graphics	AMD Radeon 740M

Communications
LAN	2 x Realtek RTL8125B-CG (2.5 GbE)
Max LAN Speed	2.5Gbps
Wireless LAN	Mediatek MT7925B22M, Wi-Fi 7, 2x2
WiFi Generation	Wi-Fi 7
Bluetooth	Bluetooth 5.4

Front Panel Ports

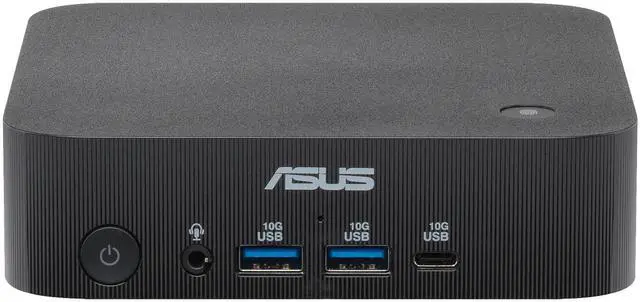

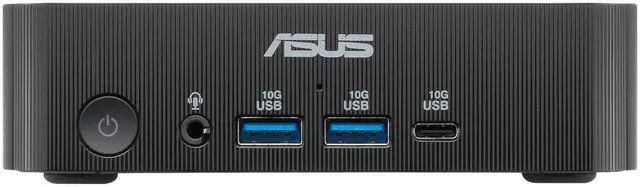

Front USB	1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps) 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports	1 x Audio Jack (Line out/Mic in/Headphone out)

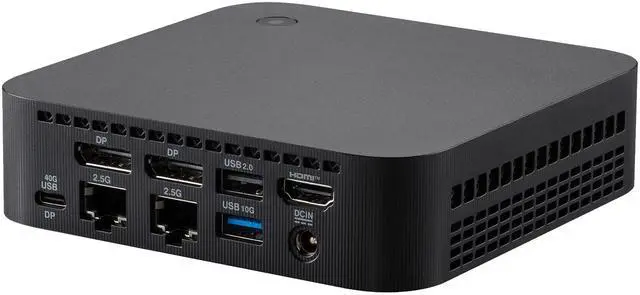

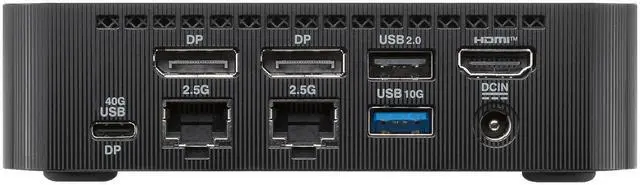

Back Panel Ports
HDMI	1 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort	2 x DisplayPort 1.4
Rear USB	1 x USB 4.0 Type-C (with DP1.4/PD-in*, 5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 (5V/0.5A)
RJ45	2 x Realtek 2.5G LAN (RJ45)
Other Rear Ports	1 x DC-in 1 x Kensington Lock Slot (Side)

Power Supply
Power Supply	120W Power Adapter

Physical SPEC
Dimensions	1.34" x 5.12" x 5.12" (0.6L)
Weight	1.21 lbs.

Features
Features	TPM: dTPM 2.0 (Hardware) Internal Speaker: Yes

Packaging

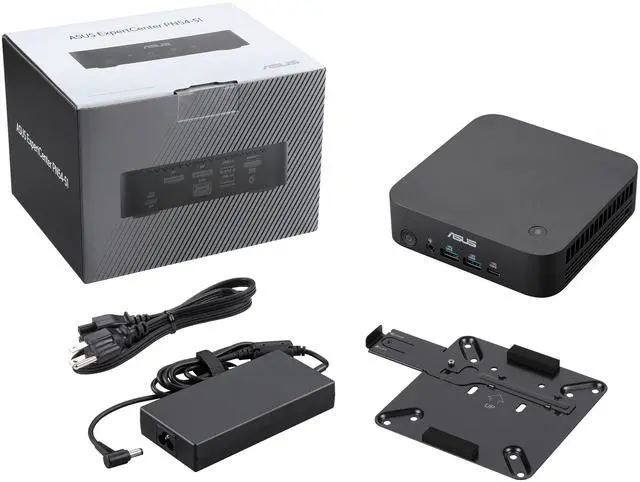

Packaging	VESA Mount / AC Power Adapter / Power Cord

Additional Information
First Listed on Newegg	March 24, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
