Learn more about the ASUS Crosshair II Formula
Model
Brand
ASUS
Model
Crosshair II Formula
Supported CPU
CPU Socket Type
AM2+/AM2
CPU Type
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB
2600 MHz
Chipsets
Chipset
NVIDIA nForce 780a SLI
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 1066
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
3 x PCIe 2.0 x16 support NVIDIA SLI Tech @ dual x16 or 3-way@x8, x8, x 8
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA RAID
0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset
NVIDIA GeForce 8 series
Onboard Audio
Audio Chipset
ADI AD1988B
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports

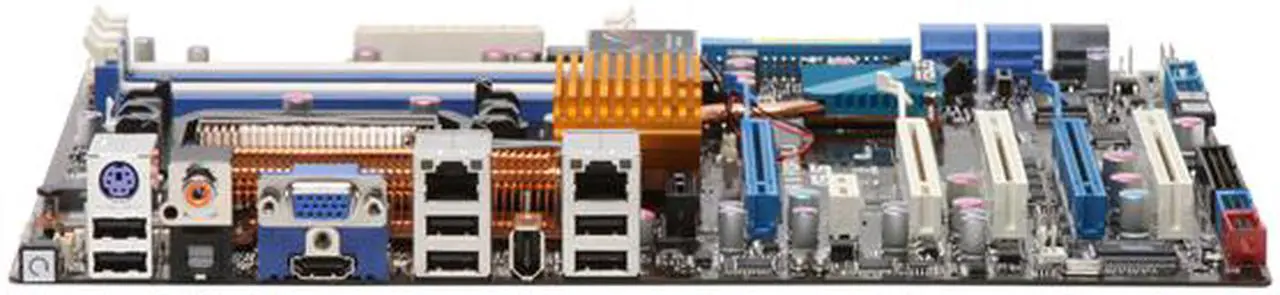

Back I/O Ports
1 x D-Sub / 1 x HDMI / 1 x PS/2 / 6 x USB 2.0/1.1
PS/2
1
Video Ports
D-Sub
HDMI
1 x HDMI
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical, 1 x Coaxial
Internal I/O Connectors
Onboard USB
3 x USB connectors support additional 6 USB 2.0 ports
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Packaging

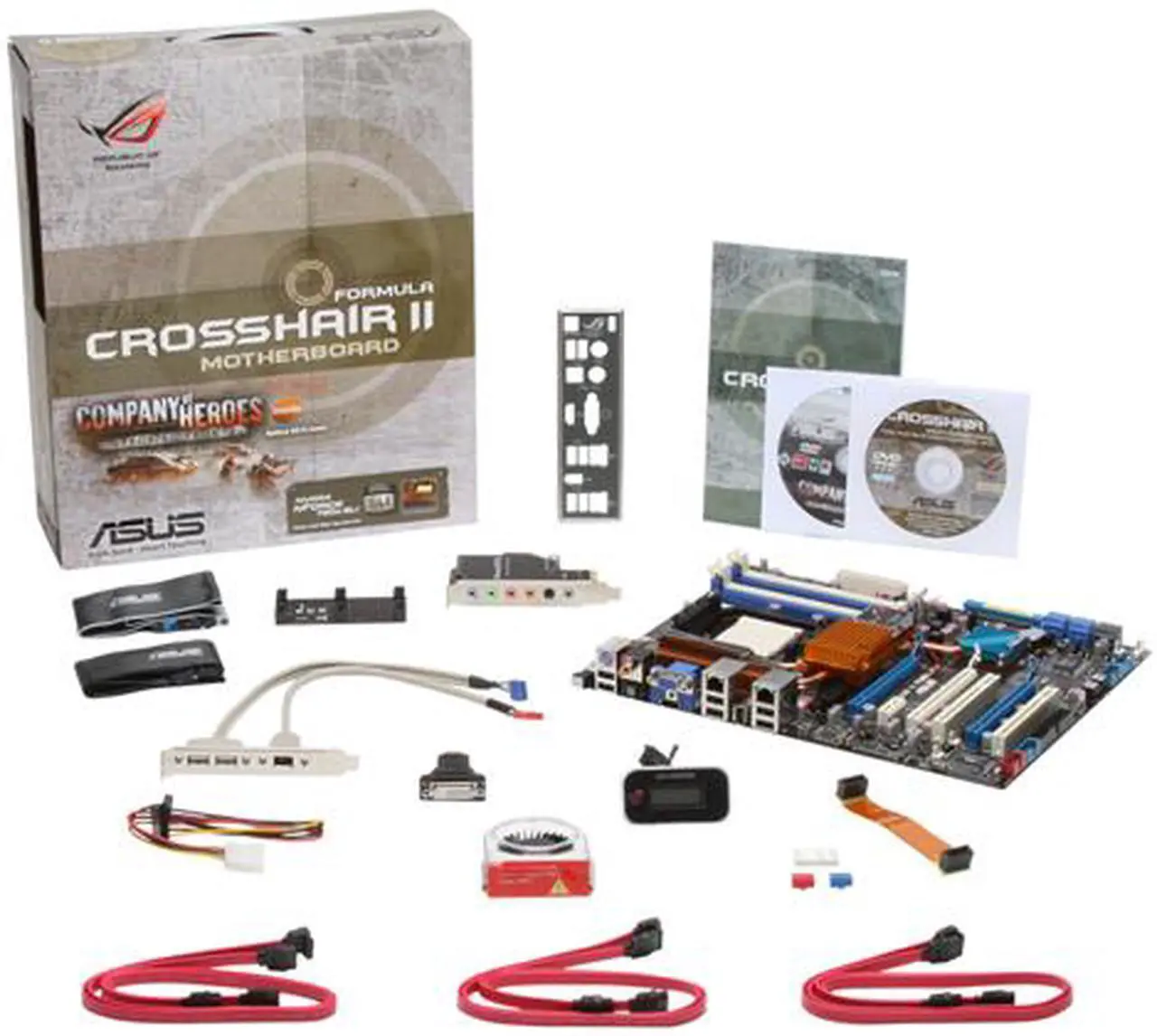

Package Contents
Crosshair II Formula Driver Disk User Manual Game Disk Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable 2-way & 3-way SLI Bridge USB & IEEE 1394 Bracket HDMI to DVI Adapter Audio Card Accessories
