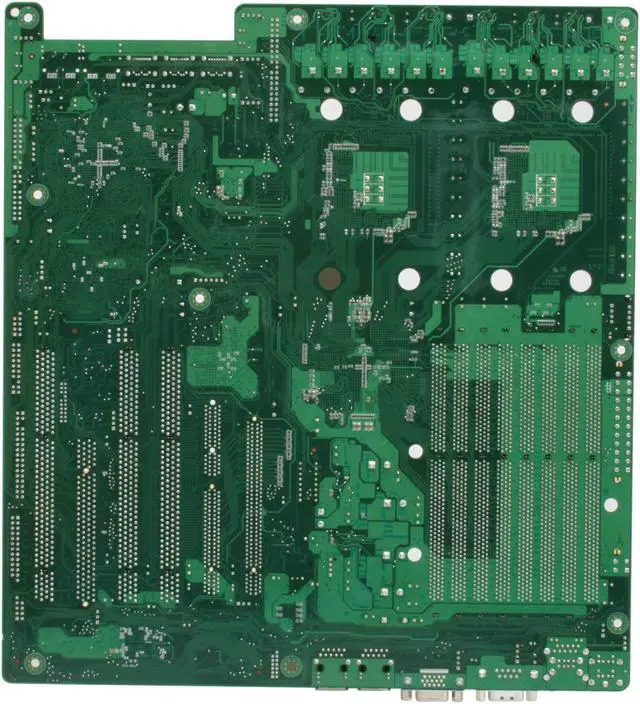

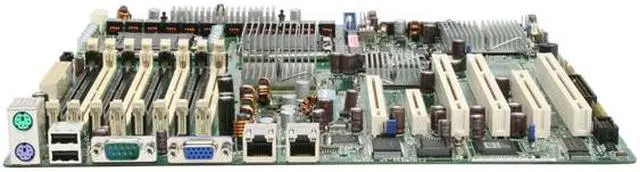

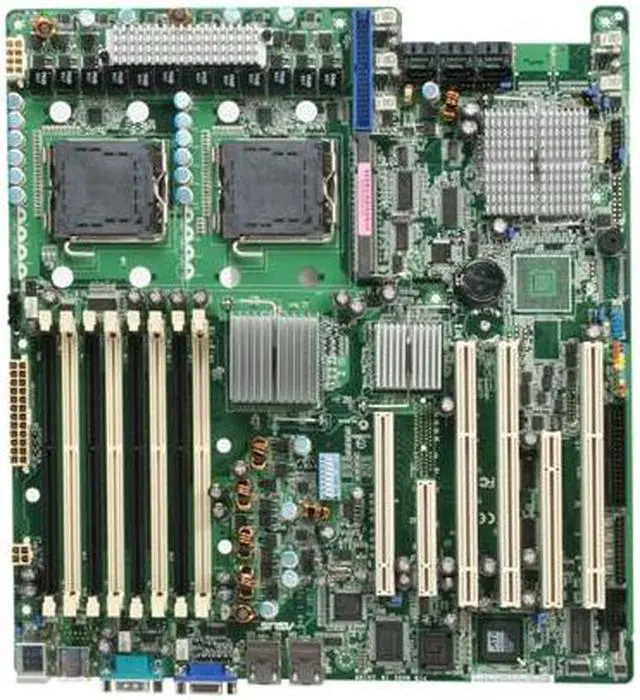

ASUS DSBF-D Dual LGA 771 Intel 5000P SSI EEB 3.61 Dual Intel Xeon Server Motherboard - OEM
- Dual LGA 771
- Intel 5000P Intel 6702PXH 64-bit PCI Hub
- 8 x 240Pin
Specs
Reviews (8)
Learn more about the ASUS DSBF-D
| Brand | ASUS |
|---|---|
| Model | DSBF-D |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Quad-Core Intel Xeon 5400 Series (45nm) Dual-Core Intel Xeon 5200 Series (45nm) Quad-Core Intel Xeon 5300 Series Dual-Core Intel Xeon 5100 Series |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5000P |
|---|---|
| South Bridge | Intel 6321ESB |
| Other Chipset | Intel 6702PXH 64-bit PCI Hub |
| Number of DDR2 Slots | 8 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Four Channel |
| Registered | FBDIMM |
| PCI Express x16 | 1 x PCI-E x16 (x 8 link) |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 |
| PCI-X Slots (64-bit 133MHz) | 3 |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x SODIMM socket for ASMB3-SOL |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | Intel 82563EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82563EB |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | SSI EEB 3.61 |
|---|---|
| Dimensions (W x L) | 13.0" x 12.0" |

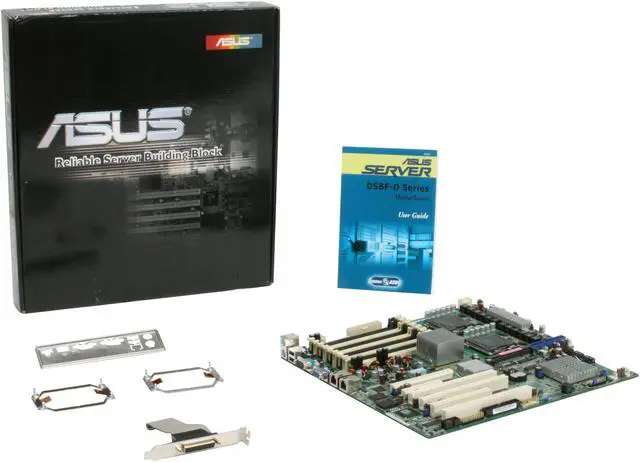

| Package Contents | DSBF-D 6 x SATA Cable 3 x Power Cable CPU Clip User Manual Driver Disk IDE/PATA Cable FDD Cable |
|---|
| Date First Available | February 08, 2007 |
|---|
