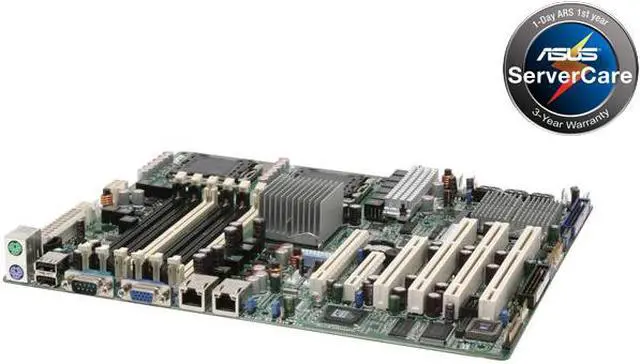

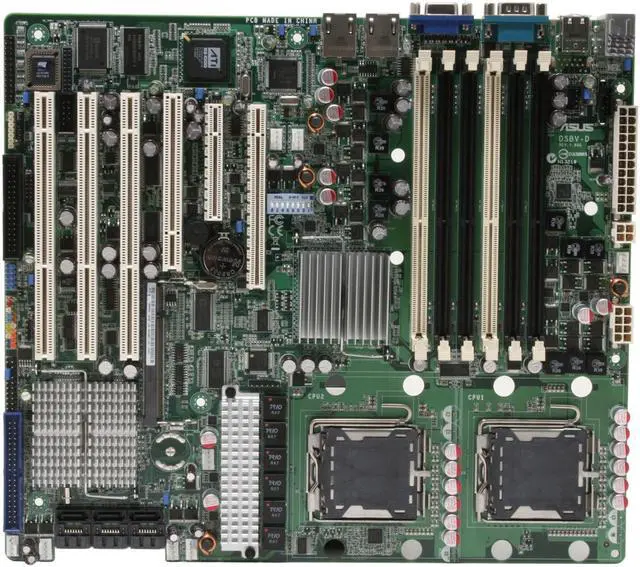

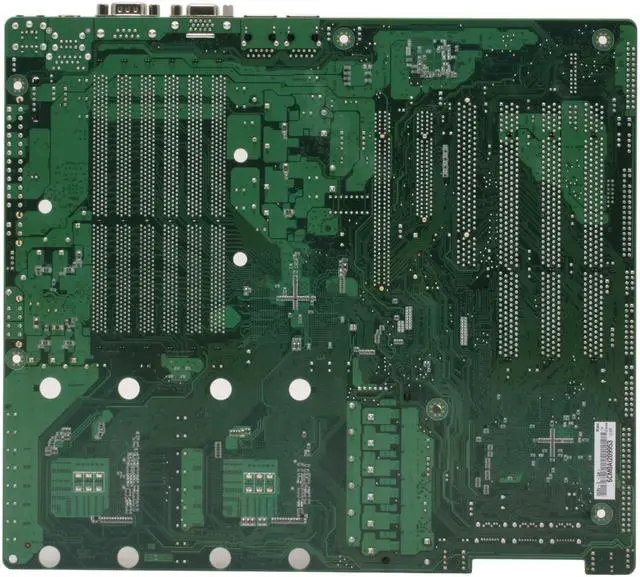

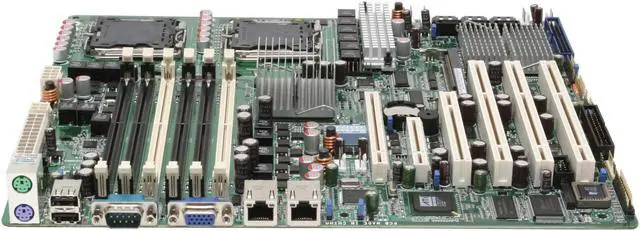

ASUS DSBV-D SSI CEB 1.1 Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

OPEN BOX Product Type
  • Dual LGA 771
  • Intel 5000V
  • 6 x 240Pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ASUS DSBV-D

Model
Brand ASUS
Model DSBV-D
Supported CPU
CPU Socket Type Dual LGA 771
CPU Type Dual Intel Xeon
System Bus 1333/1066 MHz
Chipsets
North Bridge Intel 5000V
South Bridge Intel 6321ESB
Memory
Number of DDR2 Slots 6 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported Maximum 24GB ~ (depends on model)
Channel Supported Dual Channel
ECC Supported Yes
Registered FBDIMM
Expansion Slots
PCI Express x16 1 x PCI-E x 16 (x 8 link)
PCI Express x8 1 x PCI-E x 8 (x 4 link)
PCI-X Slots (64-bit 133MHz) 3
PCI Slots 1 x PCI Slot
Other Slots 1 x SODIMM socket for optional management card
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 6 x SATA 3.0Gb/s
SATA RAID Intel Matrix Storage(Windows) support RAID 0, 1, 0+1, RAID 5 (S/W)
LSI MegaRAID (Linux/Windows) support RAID 0, 1, 0+1
Onboard Video
Onboard Video Chipset ATI ES1000
Onboard LAN
LAN Speed 10/100/1000Mbps
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor SSI CEB 1.1
Dimensions (W x L) 12.0" x 10.5"
Additional Information
Date First Available December 18, 2008
