This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Core Clock: 1470 MHz Max Resolution: 7680 x 4320 DisplayPort: 1 x DisplayPort 1.4 DVI: 1 x DL-DVI-D HDMI: 2 x HDMI 2.0b Card Dimensions (L x H): 9.50" x 5.10" Slot Width: 2.5 Slot DirectX: DirectX 12
Learn more about the ASUS DUAL-RTX2060S-O8G-EVO-V2
Model
Brand
ASUS
Series
Dual
Model
DUAL-RTX2060S-O8G-EVO-V2
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
GeForce RTX 2060 SUPER
Core Clock
1470 MHz
Boost Clock
OC Mode: 1725 MHz Gaming Mode (Default): 1695 MHz
CUDA Cores
2176 Cores
Memory
Effective Memory Clock
14000 MHz
Memory Size
8GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6
Ports
Multi-Monitor Support
4
HDMI
2 x HDMI 2.0b
DisplayPort
1 x DisplayPort 1.4
DVI
1 x DL-DVI-D
Details
Max Resolution
7680 x 4320
SLI Support
No
Virtual Reality Ready
Yes
Thermal Design Power
215W
System Requirements
550W Power Supply
Power Connector
8-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
2.2
Features
Features

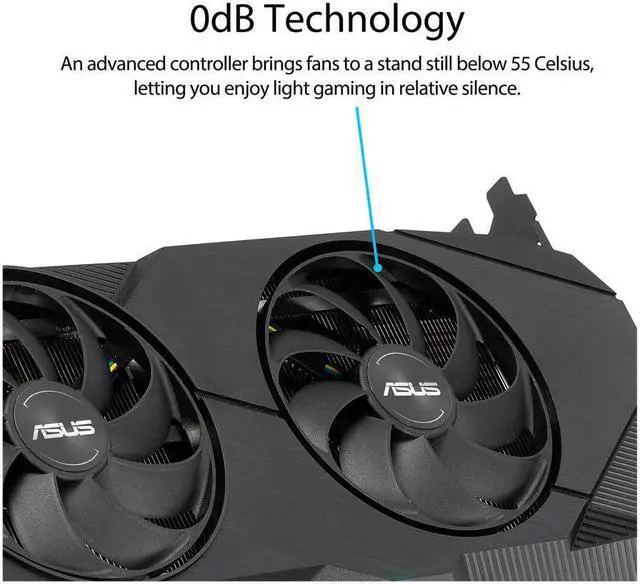

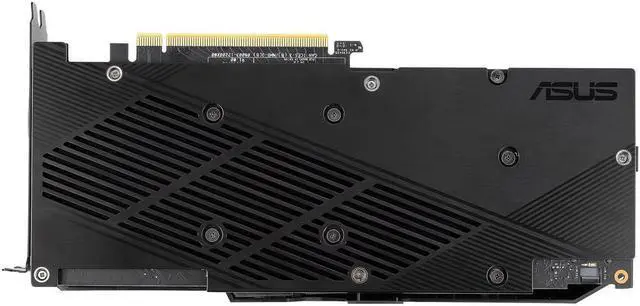

OC Edition: Boost Clock 1725 MHz (OC Mode) / 1695 MHz (Gaming Mode). RT Cores: Dedicated ray tracing hardware enables fast real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. Concurrent Floating Point and Integer Processing: Turing GPUs more efficiently process the compute heavy workloads of modern games. Ultra-fast GDDR6: Experience up to 496 GB/s of memory bandwidth for high-speed, high-resolution gaming. Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. 0dB Technology lets you enjoy light gaming in relative silence. DirectCU II brings copper heatpipes into direct contact with the die for better cooling. Auto-Extreme Technology uses automation to enhance reliability. A Protective backplate secures components during transportation and installation. 144-hour Validation Program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Form Factor & Dimensions
Form Factor
ATX
Max GPU Length
242 mm

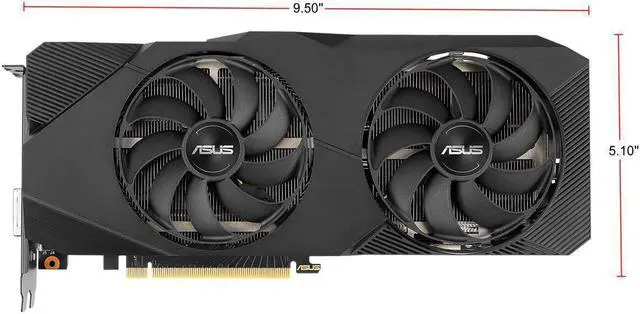

Card Dimensions (L x H)
9.50" x 5.10"
Slot Width
2.5 Slot
Additional Information
First Listed on Newegg
September 15, 2022
Customer Reviews of the ASUS DUAL-RTX2060S-O8G-EVO-V2
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
