Learn more about the ASUS DUAL-RX6600XT-O8G
ModelBrand | ASUS |
---|
Series | Dual |
---|
Model | DUAL-RX6600XT-O8G |
---|
InterfaceInterface | PCI Express 4.0 |
---|
ChipsetChipset Manufacturer | AMD |
---|
GPU Series | AMD Radeon RX 6000 Series |
---|
GPU | Radeon RX 6600 XT |
---|
Architecture | RDNA 2 |
---|
Boost Clock | OC mode: up to 2607 MHz Gaming mode: up to 2593 MHz |
---|
Stream Processors | 2048 Stream Processors |
---|
MemoryEffective Memory Clock | 16 Gbps |
---|
Memory Size | 8GB |
---|
Memory Interface | 128-Bit |
---|
Memory Type | GDDR6 |
---|
3D APIDirectX | DirectX 12 Ultimate |
---|
OpenGL | OpenGL 4.6 |
---|

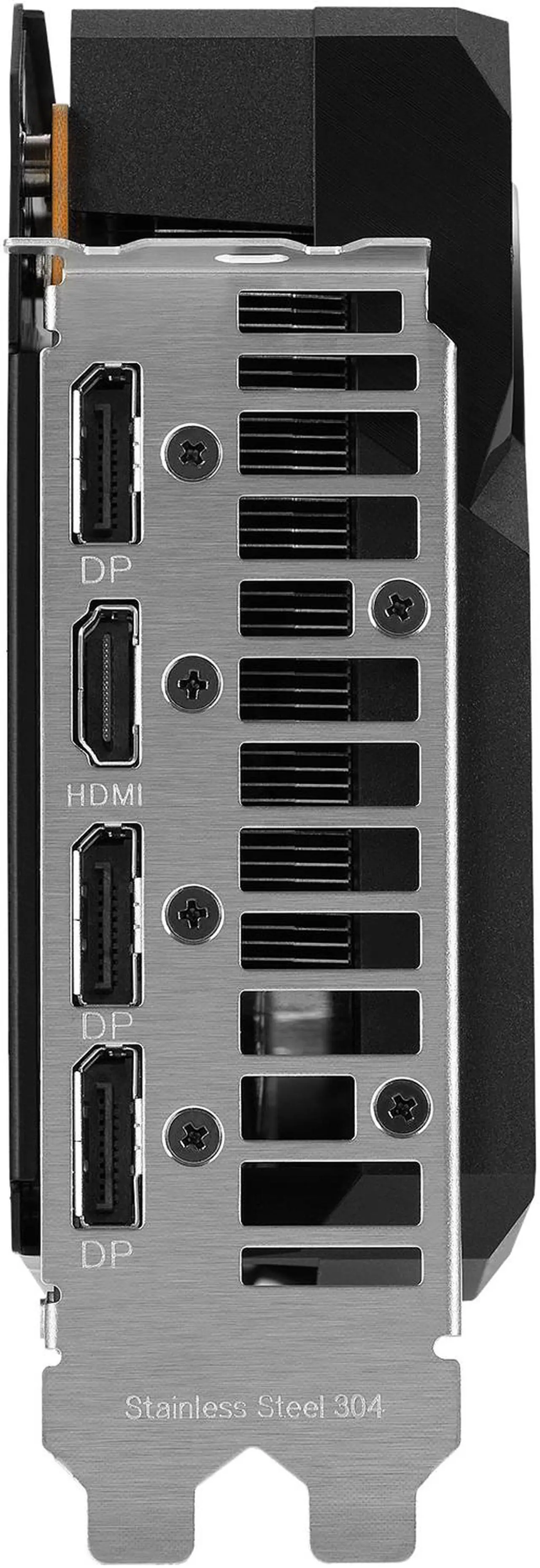

PortsMulti-Monitor Support | 4 |
---|

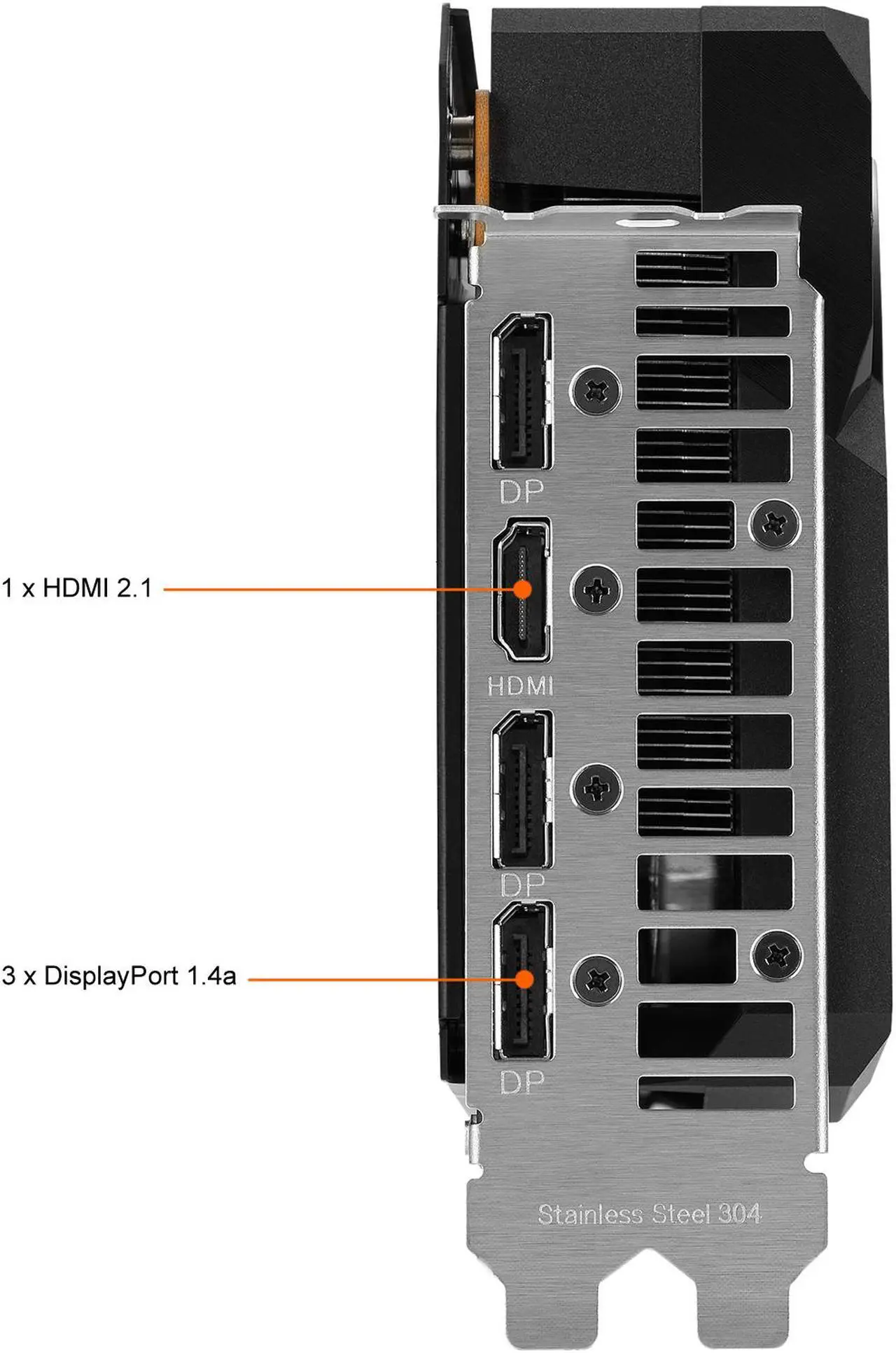

HDMI | 1 x HDMI 2.1 |
---|
DisplayPort | 3 x DisplayPort 1.4a |
---|
DetailsMax Resolution | 7680 x 4320 |
---|
CrossFireX Support | Crossfire Support for DirecX 12 and Vulkan |
---|
Virtual Reality Ready | Yes |
---|

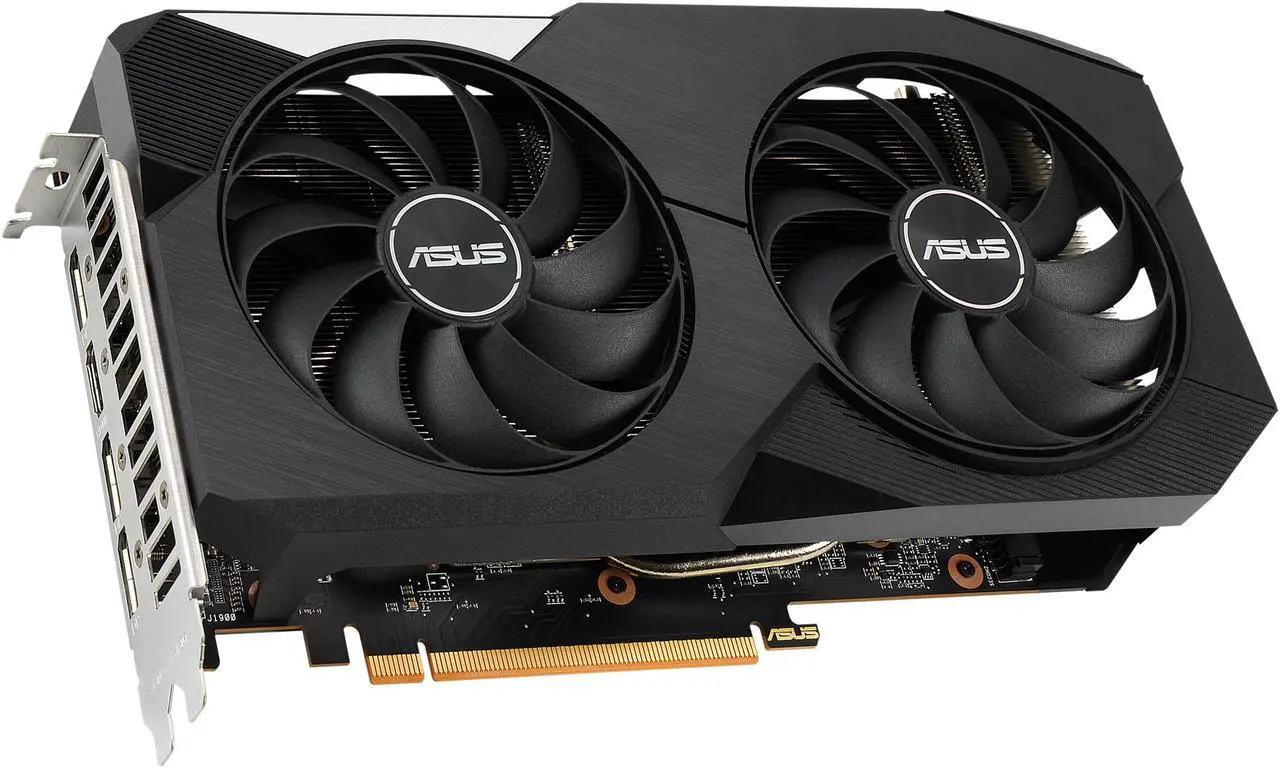

Cooler | Double Fans |
---|
Recommended PSU Wattage | 500W |
---|
Power Connector | 1 x 8-pin |
---|
HDCP Ready | 2.3 |
---|
FeaturesFeatures | Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
Auto-Extreme Technology uses automation to enhance reliability.

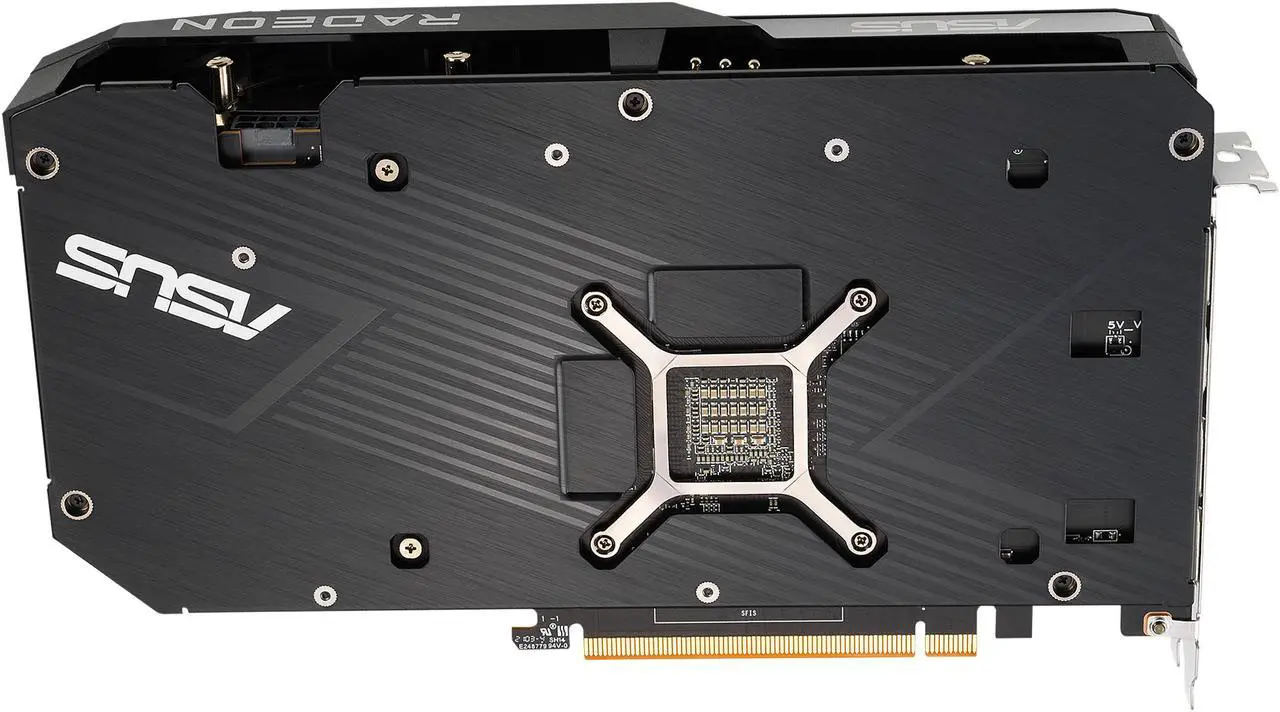

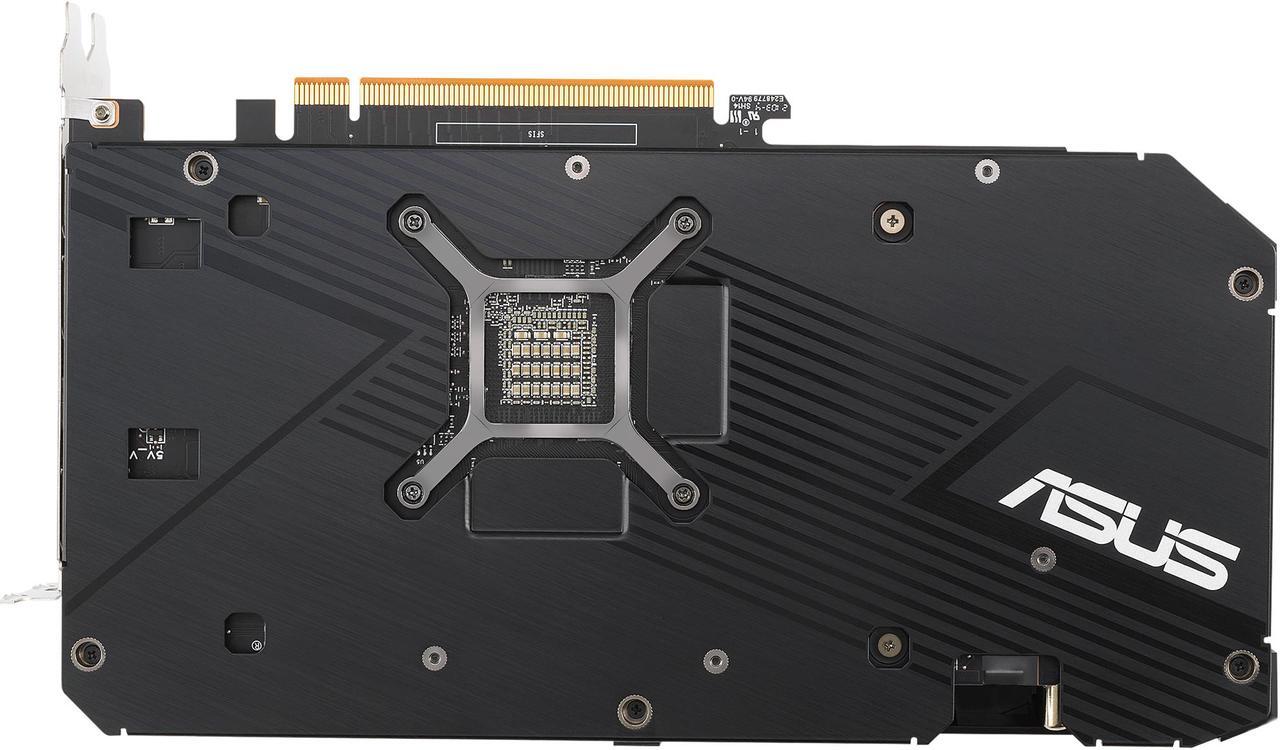

A protective backplate prevents PCB flex and trace damage. |
---|
Form Factor & DimensionsForm Factor | ATX |
---|
Max GPU Length | 243 mm |
---|

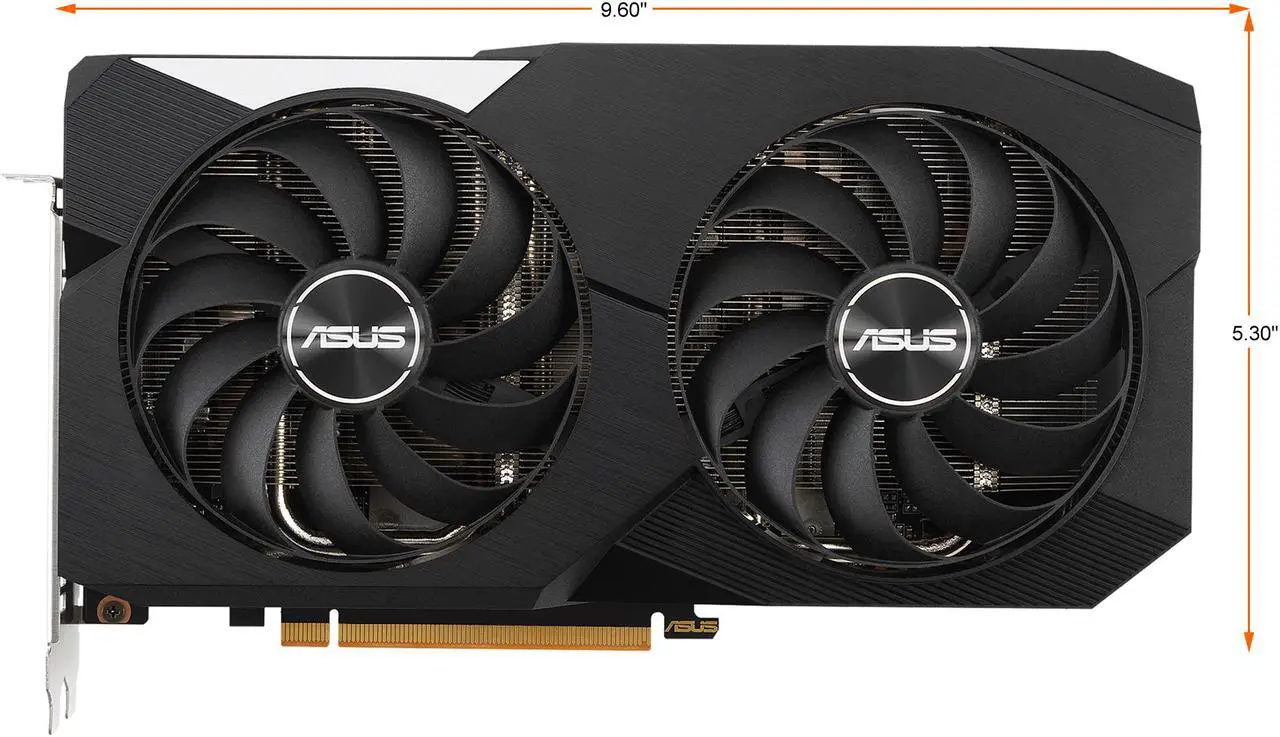

Card Dimensions (L x H) | 9.60" x 5.30" |
---|
Slot Width | 2.5 Slot |
---|
PackagingPackage Contents | Accessories: 1 x Collection Card 1 x Speedsetup Manual |
---|
Additional InformationDate First Available | October 28, 2024 |
---|
