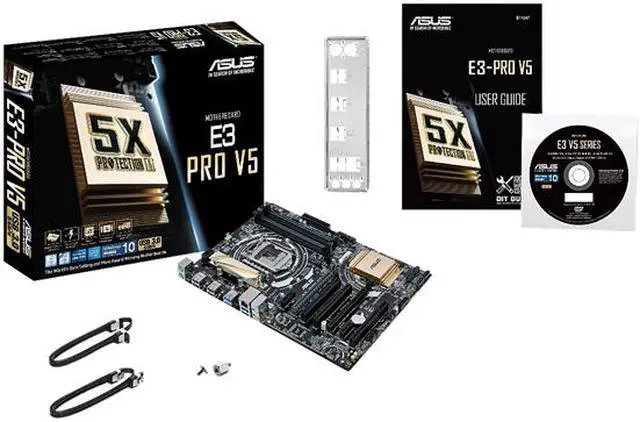

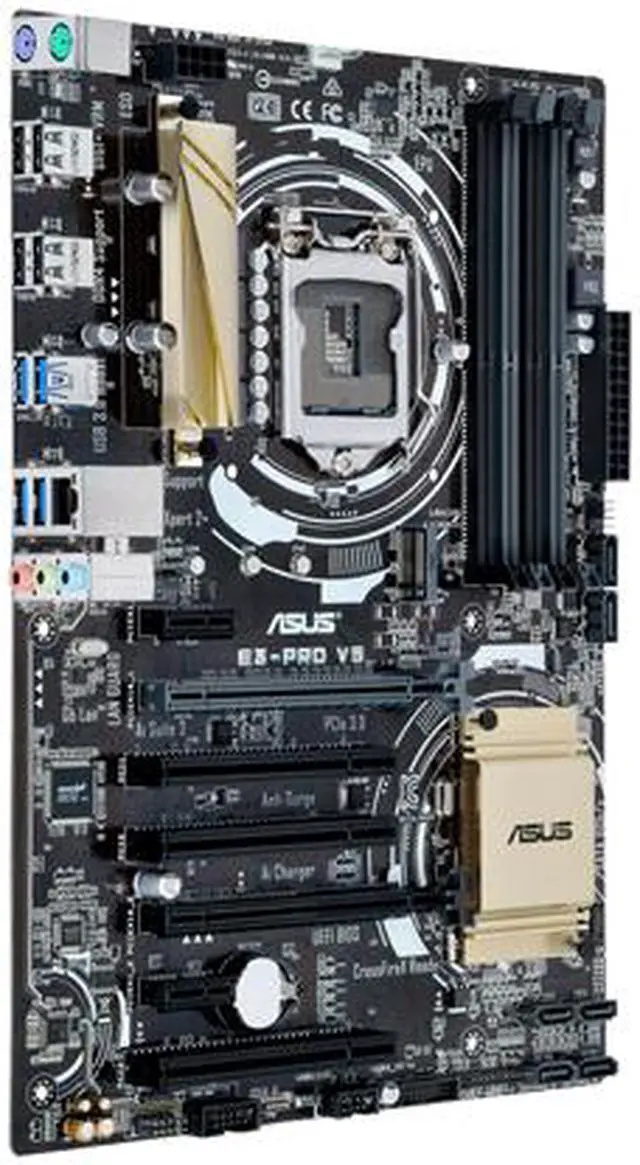

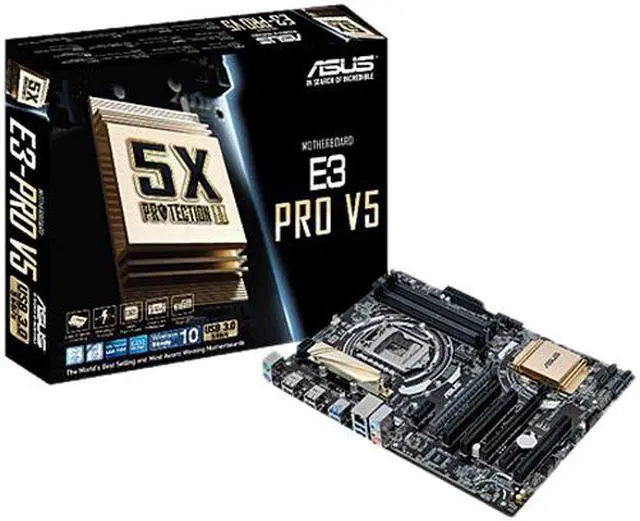

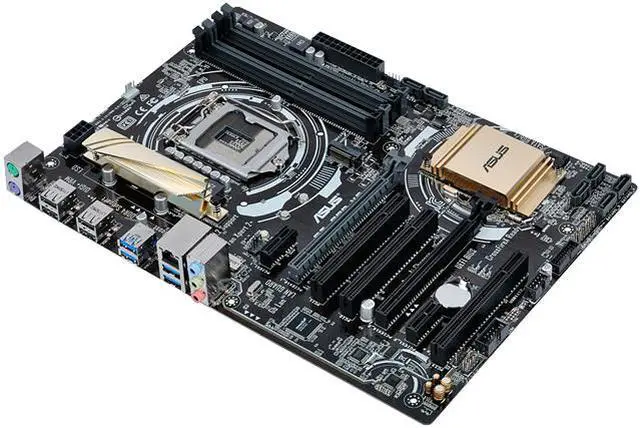

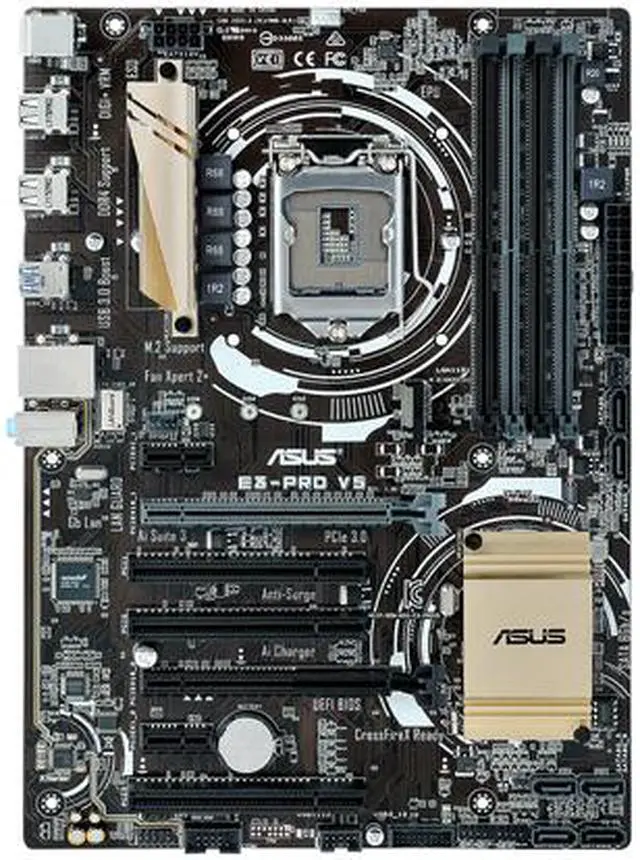

ASUS E3-PRO V5 (ASUS-90MB0QJ0-M0UAY0) LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard
Used - Like New Product Type
- Intel C232
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium / Xeon (LGA1151)
- DDR4 2133
+
+
Specs
Learn more about the ASUS E3-PRO V5 (ASUS-90MB0QJ0-M0UAY0)
| Brand | ASUS |
|---|---|
| Model | E3-PRO V5 (ASUS-90MB0QJ0-M0UAY0) |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium / Xeon (LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel C232 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 *1: When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0/2.0 x1 |
| PCI Slots | 3 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) *2 *2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. * M.2 Socket and PCIe X16_2 connector support PCIe mode and share bandwidth. By default, the device detection priority of the system is as follows: SATA Mode M.2 > PCIe X16_2 connector. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887-VD2 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

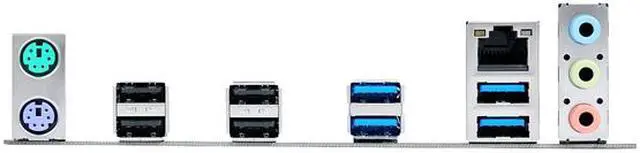

| Back I/O Ports | 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.6" |
| Power Pin | 24-pin EATX Power connector(s) 8-pin ATX 12V Power connector(s) |
| Features | Supreme ATX C232 with 5X Protection II for dependable stability, LED-illuminated audio shielding and DDR4 support. 5X Protection II - Advanced hardware safeguards for all-round protection DDR4 Memory compatibility Lightning-fast M.2 support Epic gaming audio with LED-illuminated shielding Media-acclaimed UEFI BIOS with EZ Flash 3 Easy PC DIY with safe motherboard-mounting design Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance |
|---|
| First Listed on Newegg | September 08, 2025 |
|---|
