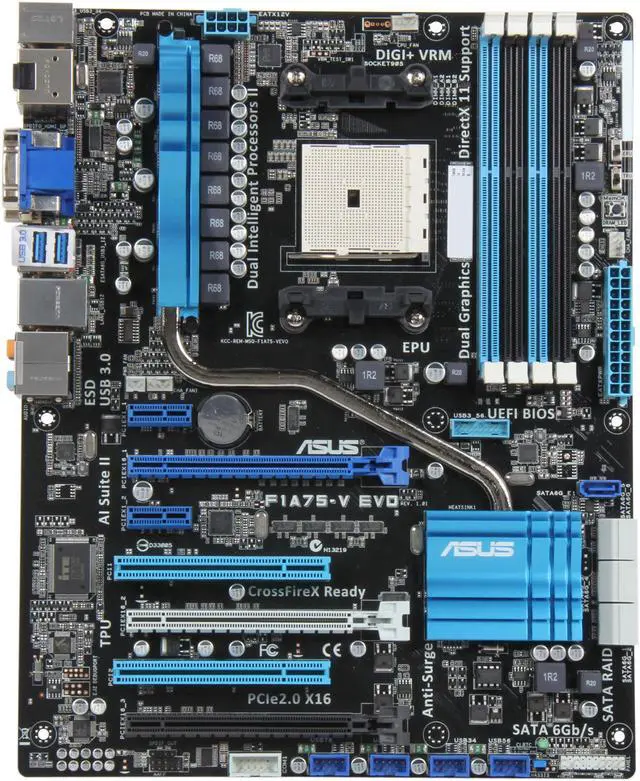

ASUS F1A75-V EVO FM1 AMD A75 (Hudson D3) USB 3.0 HDMI ATX AMD Motherboard with UEFI BIOS

Name: ASUS F1A75-V EVO FM1 ATX AMD Motherboard with UEFI BIOS
Brand: ASUS
SKU: N82E16813131784
Rating: 4 (17 reviews)

(17) Write a Review

AMD A75 (Hudson D3)
A4 / A6 / A8 / E2 APU
DDR3 1866 / 1600 / 1333 / 1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (17)

Any questions? Our AI beta will help you find out quickly.

Try me now

This motherboard supports AMD A-& E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Number of Memory Slots	4x240pin
Memory Standard	DDR3 1866 / 1600 / 1333 / 1066
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	3 (x16/0 or x8/x8, x4)
PCI Express x1	2 x PCI Express x1
PCI Slots	2 x PCI Slots

Serial ATA (SATA)	7 x SATA 6Gb/s
SATA RAID	6 x SATA 6Gb/s port(s) support RAID 0, 1, 10, JBOD

Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

ASUS F1A75-V EVO FM1 AMD A75 (Hudson D3) USB 3.0 HDMI ATX AMD Motherboard with UEFI BIOS

Learn more about the ASUS F1A75-V EVO

Customer Reviews of the ASUS F1A75-V EVO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

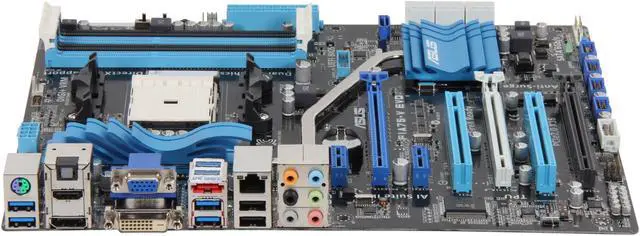

Back I/O Ports	1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 / 6 x Audio Jacks
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
eSATA	1 x eSATA 6Gb/s
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	2 x USB 3.0 + 8 x USB 2.0
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es)

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin
