Learn more about the ASUS F2A85-M2
Model
Brand
ASUS
Model
F2A85-M2
Supported CPU
CPU Socket Type
FM2
CPU Type
APU (FM2 Socket)
Chipsets
Chipset
AMD A85X (Hudson D4)
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 1866/1600/1333/1066
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x4
1 (PCIe 2.0)
PCI Express x1
1 (PCIe 2.0)
PCI Slots
1 x PCI Slot
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
SATA RAID
0/1/0+1/5/10/JBOD
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111DP
Max LAN Speed
1Gbps
Rear Panel Ports
PS/2
1 x PS/2 keyboard 1 x PS/2 mouse
COM
1
Video Ports
1 x DVI 1 x D-Sub
DisplayPort
1 x DisplayPort
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Other Connectors
1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s)
Physical Spec
Form Factor
Micro ATX
Power Pin
24 Pin
Features
Features
TPM IC Onboard - Protect Your Important Data
USB 3.0 Boost - Accelerated USB 3.0 Data Transfer Rates with ASUS USB 3.0 Boost Technology
ASUS EPU : - EPU
ASUS Exclusive Features : - AI Suite II - Ai Charger+ - USB 3.0 Boost
ASUS Quiet Thermal Solution : - ASUS Fan Xpert+
ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Packaging

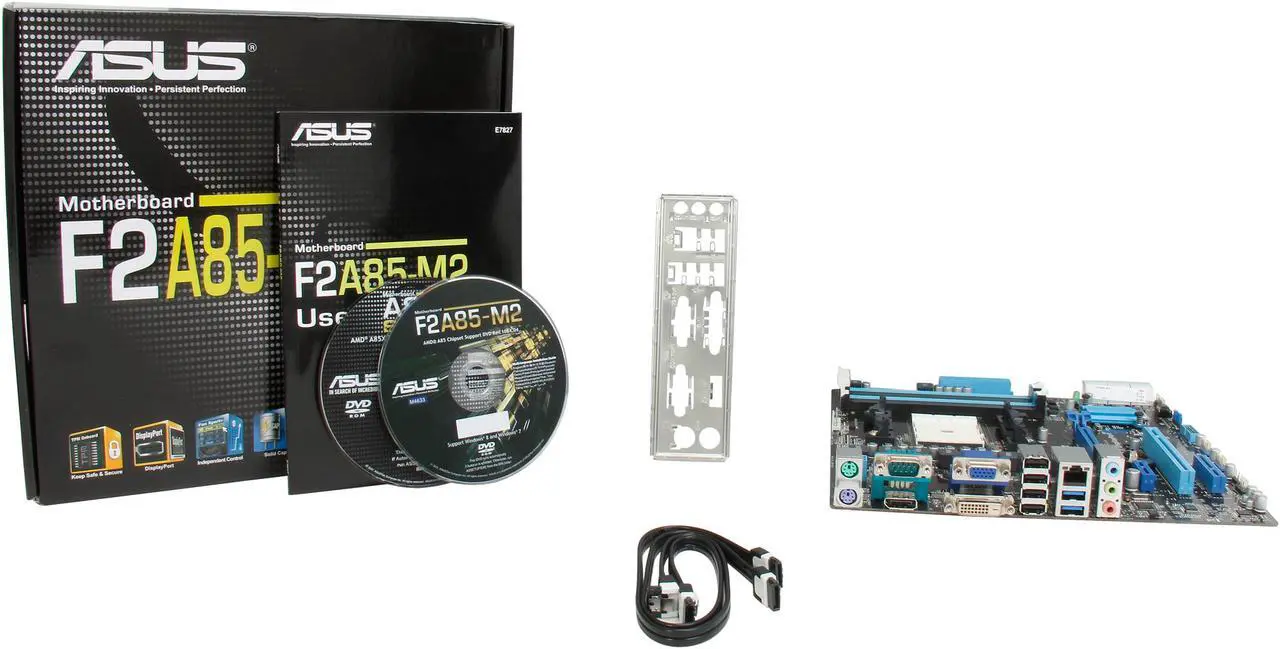

Package Contents
ASUS F2A85-M2 Motherboard User's manual 2 x SATA 6Gb/s cable(s)
