Question 1

What is the difference between this model, and the one on Asus's website? The first thing that stands out is the one on Asus's website has three fans, instead of two. What else is different?

Accepted Answer

ASUS has different several models of the cards based around the same chipset (RTX2080 in this case). The STRIX cards have 2xHDMI and 2xDisplayPort and 1xUSB-C whereas the Dual series have 1xHDMI, 3xDisplayPort and 1xUSB-C. The fan configuration is also different so in theory the STRIX card may run a bit cooler but the dual fan is very capable. The STRIX cards require 2x8-port power connectors and the DUAL cards are 1x8 and 1x6 so slightly less power hungry. The DUAL card is also slightly shorter (10.5"/26.8cm) vs STRIX (11.8"/29.97cm) so if you have a smaller case the STRIX may not fit. They are both wide cards to accommodate the heatsink. Hope this helps.

Question 2

While I'm waiting on the Strix version: If I would use a display port to HDMI adapter on this card, would I still have HDMI 2.0 compatibility?  I use this in my living room with a 4k tv and VR. I need two HDMIs for that and don't want to loose my 4K HDR bandwidth.

Accepted Answer

this is more of a question about the adapter you will need to buy to go from display port to HDMI 2.0. I do have a adapter from Display port to VGA and it works great.

Question 3

How many pins are required to power this?  6 + 8?

Accepted Answer

The specifications on this very page list the connection as 8 + 6.

Question 4

What's the PCIe connector specs? PCIe 3.0 x16, or maybe something better like PCIe 4.0?

Accepted Answer

PCI Express 3.0 x16

Question 5

I like how the product's title specifies that it's the "overclocked edition," but they're apparently still not allowed to list the actual boost clock frequency... and is it just me or did some of these 20-series cards have clock speeds listed a week or so ago, only to be removed later on?  Probably "nSecurity" on the part of nVidia, over the fact that the clock speeds that were listed were slightly less than those of their Pascal counterparts and therefore they were afraid this would make people think the new cards were slower.  Lol.

Accepted Answer

With the ASUS Tweak II, stock "OC" = 1830.

I am getting 36.5MH/s on Eth and 365 on SIA.

I mine while I work/sleep/away. Play when home.

Question 6

What does USB C do for a graphics card? does it work just like display port?

Accepted Answer

I believe that is Virtual Link(single cable to connect VR headsets).

Brand	ASUS
Series	Dual
Model	DUAL-RTX2080-O8G

Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce RTX 20 Series
GPU	GeForce RTX 2080
Core Clock	1515 MHz
Boost Clock	OC Mode: 1830 MHz Gaming Mode: 1800 MHz
CUDA Cores	2944 Cores

Effective Memory Clock	14000 MHz
Memory Size	8GB
Memory Interface	256-Bit
Memory Type	GDDR6

DirectX	DirectX 12
OpenGL	OpenGL 4.5

HDMI	1 x HDMI 2.0b
DisplayPort	3 x DisplayPort 1.4
Other Ports	1 x USB TYPE-C

Meet Your Seller

Sponsored Products

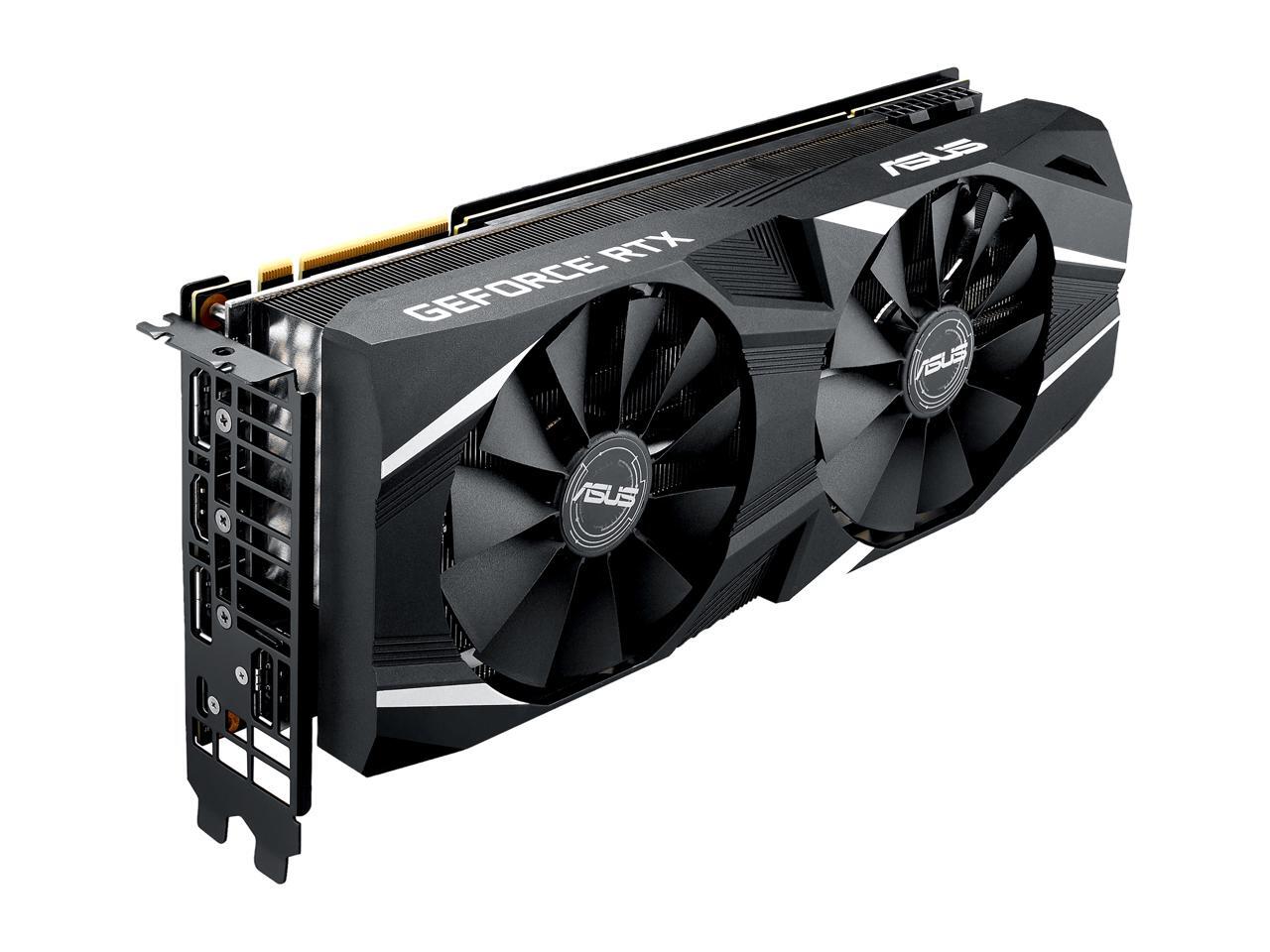

ASUS GeForce RTX 2080 Overclocked 8G GDDR6 Dual-Fan Edition VR Ready HDMI DP 1.4 USB Type-C Graphics Card (DUAL-RTX2080-O8G)

Learn more about the ASUS DUAL-RTX2080-O8G

Customer Reviews of the ASUS DUAL-RTX2080-O8G

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max Resolution	7680 x 4320
SLI Support	SLI Ready
Virtual Reality Ready	Yes
Cooler	Double Fans
Thermal Design Power	215W
Power Connector	1 x 6-pin, 1 x 8-pin
HDCP Ready	2.2

Max GPU Length	268 mm
Card Dimensions (L x H)	10.53" x 4.47"
Slot Width	2.7-slot
