All new DirectCU thermal design utilizes five all-copper heatpipes and 20% bigger dissipation area, achieving 20% cooler and 14dB quieter performance than reference
Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power and enhanced overclocking headroom
VGA Hotwire allows you to plug and solder wires on the card's voltage regulators and accurately read and control Vcore, Vmem, and PLL voltages on a hardware level
GPU Tweak utility helps you modify and tune boost clock, power target , and fan performance via an intuitive interface
Learn more about the ASUS GTX680-DC2O-2GD5
Model
Brand
ASUS
Model
GTX680-DC2O-2GD5
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce GTX 600 Series
GPU
GeForce GTX 680
Core Clock
1019MHz
Boost Clock
1084MHz
CUDA Cores
1536 Cores
Memory
Effective Memory Clock
6008 MHz
Memory Size
2GB
Memory Interface
256-Bit
Memory Type
GDDR5
3D API
DirectX
DirectX 11
OpenGL
OpenGL 4.2

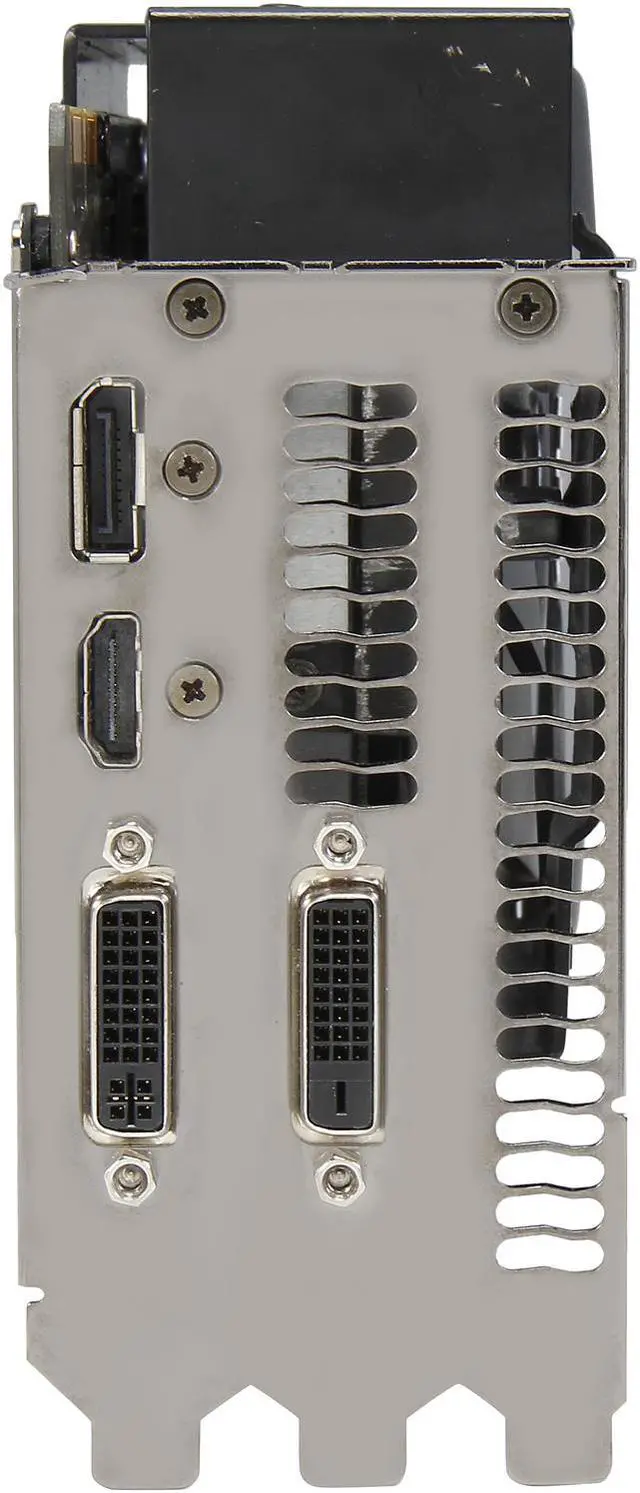

Ports
HDMI
1 x HDMI
DisplayPort
1 x DisplayPort
DVI
2 x DVI
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600 (DL-DVI)
3D VISION Game Ready
Yes
SLI Support
SLI Ready
Cooler
Double Fans
Thermal Design Power
195W
System Requirements
Up to 300W Power Require
Power Connector
1 x 6-Pin + 1 x 8-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Features
Features
All new DirectCU thermal design utilizes five all-copper heatpipes and 20% bigger dissipation area, achieving 20% cooler and 14dB quieter performance than reference
Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power and enhanced overclocking headroom.
VGA Hotwire allows you to plug and solder wires on the card's voltage regulators and accurately read and control Vcore, Vmem, and PLL voltages on a hardware level
GPU Tweak utility helps you modify and tune boost clock, power target , and fan performance via an intuitive interface
Form Factor & Dimensions
Card Dimensions (L x H)
11.8" x 5.1" x 2.3"
