Question 1

This motherboard shows that it uses DDR4 memory, but there isn't 204-pin DDR4, only DDR3. Can someone clarify this please? What is a working model of memory users have used?

Accepted Answer

260 pin SO Dimm DDR4. I utilized gskill. It is under the laptop memory section. Asus has a qualifed memory vendor list if you are worried.

Question 2

Does this come with a power supply? If not, what one did you buy?

Accepted Answer

It doesn't come with a power supply, I utilized the Asus ADP-150NB D power supply which is way more than enough juice, so the charger stays nice and cool. Should work with most 19V chargers, just have to match the plug which they don't really give a good idea what works.

Question 3

Does this motherboard include the power adapter that connects behind the motherboard in the power port (silver one)? If one is not included, is there a verified/recommended one to use? If one is included, what is the hardware limit on power in terms of maximum wattage that can be used?

Accepted Answer

ASRock recommends a 120W adapter for 65W CPUs(i7-7700) and includes a 19V/6.32A (120W) adapter with their ASRock Deskmini.

65W CPU, 6W chipset, 8W RAM, 7W M.2, 2x7W HDD

Question 4

does it support 260 pin sodimm modules?

Accepted Answer

Yes, this unit does support 260 pin modules.

Question 5

Will this board work with FreeBSD? Why is Windows listed as the only supported OS?

Accepted Answer

I'm using Ubuntu 16.10 Linux on it with some issues with wireless mouse and keyboard. Asus only says Windows because they don't test with any other OS. I also have the ASRock STX MB without any issues with 1604 LTS. Good luck with your adventures.

Question 6

Does the chipset have a heatsink? If not, how can I add one?

Accepted Answer

These boards are designed with Intel CPU coolers that provide air flow over all components(chipset, VRMs). Likely a 20mmx20mmx3mm aluminum heatsink wont interfere with M.2 2280 drive. Just use normal thermal paste and a drop of RTV high-temp silicone(gasket sealer) at corners to secure(same stuff for re-lidding CPUs). But before all that, use something like Hardware Monitor from CPUID to check if temps are actually bad. To get PCH hot, copy a ton of data, something that would take like 10minutes to copy. Large file best, instead of tons of tiny stuff that give tons of breaks.

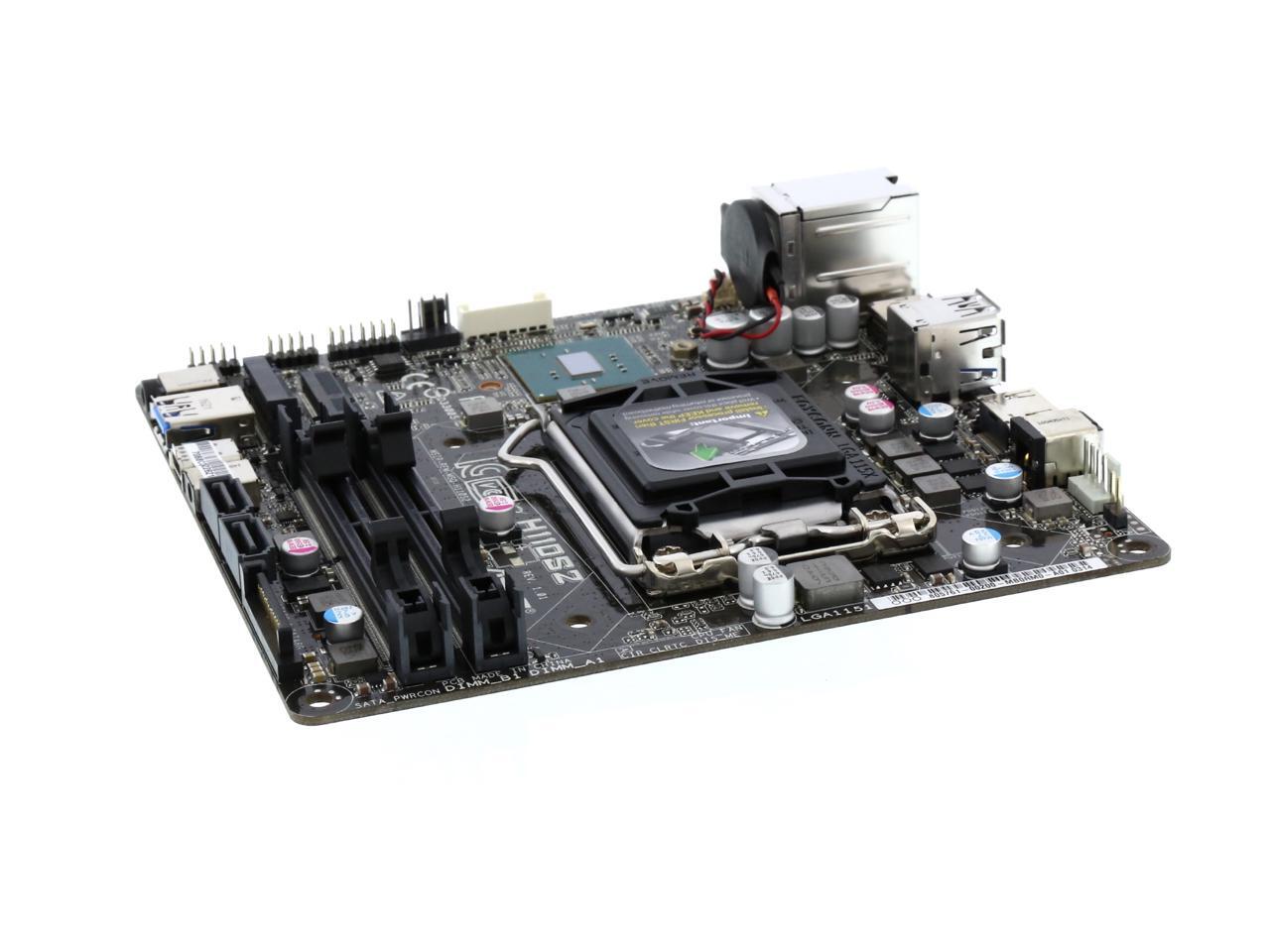

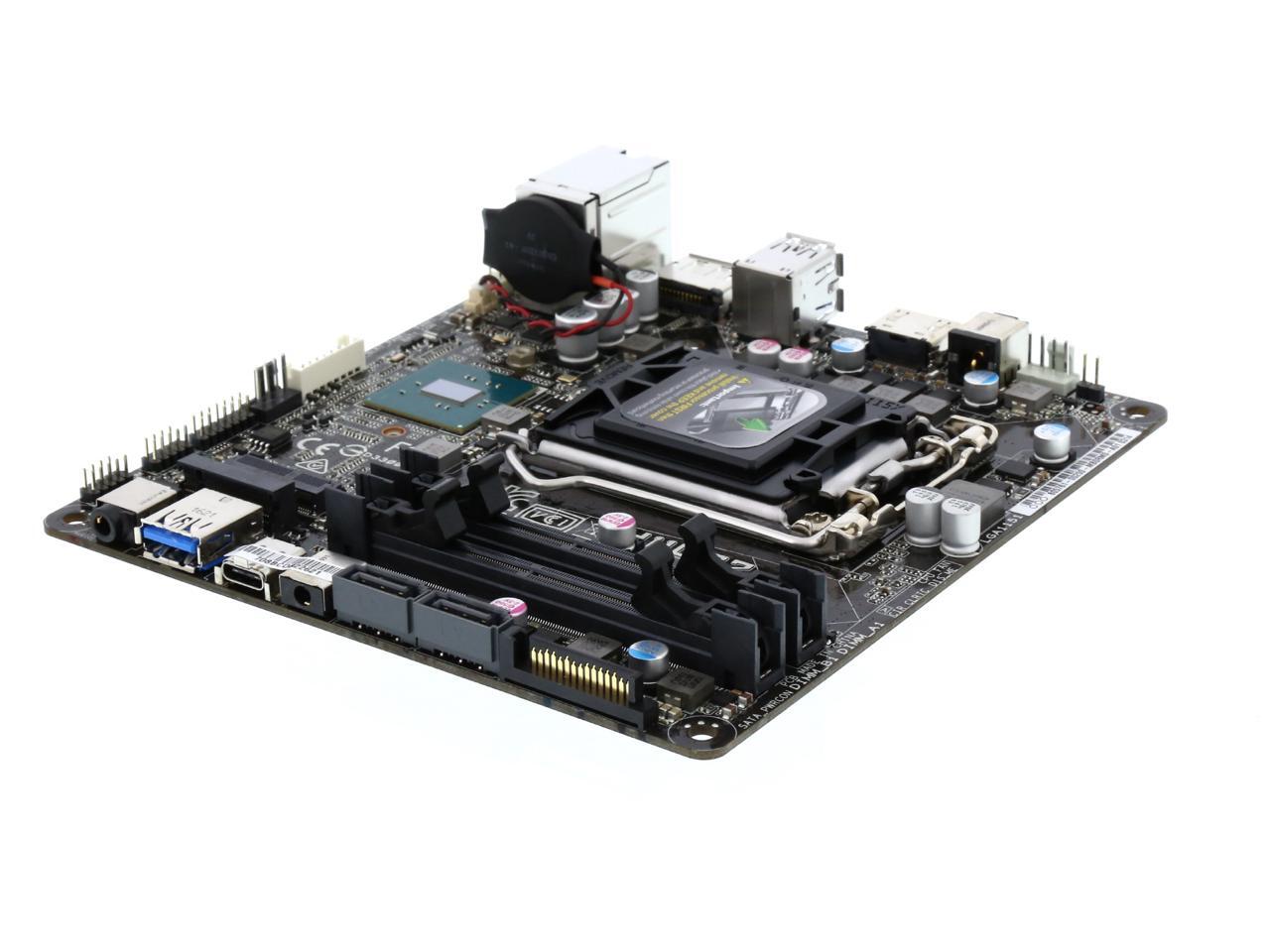

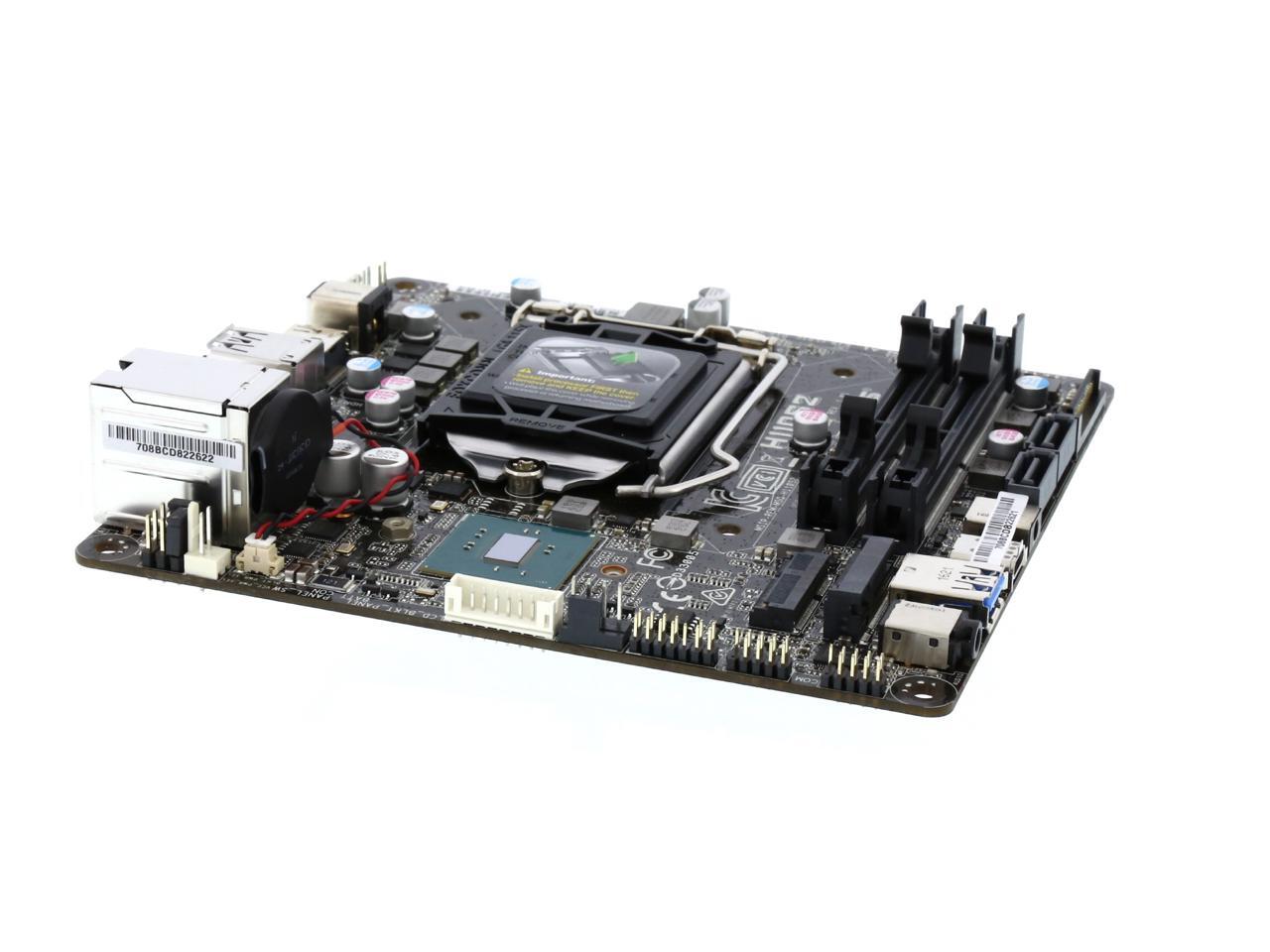

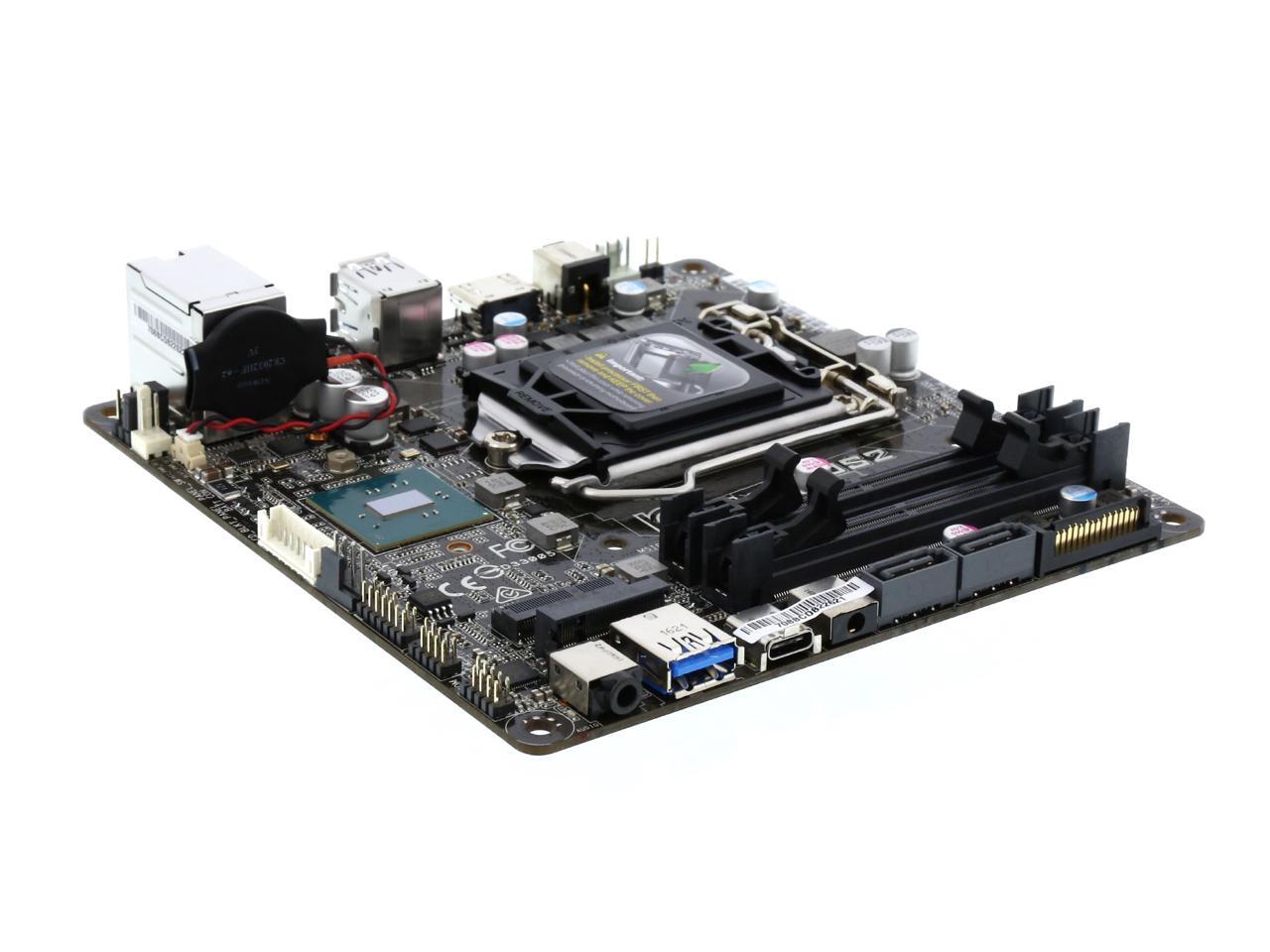

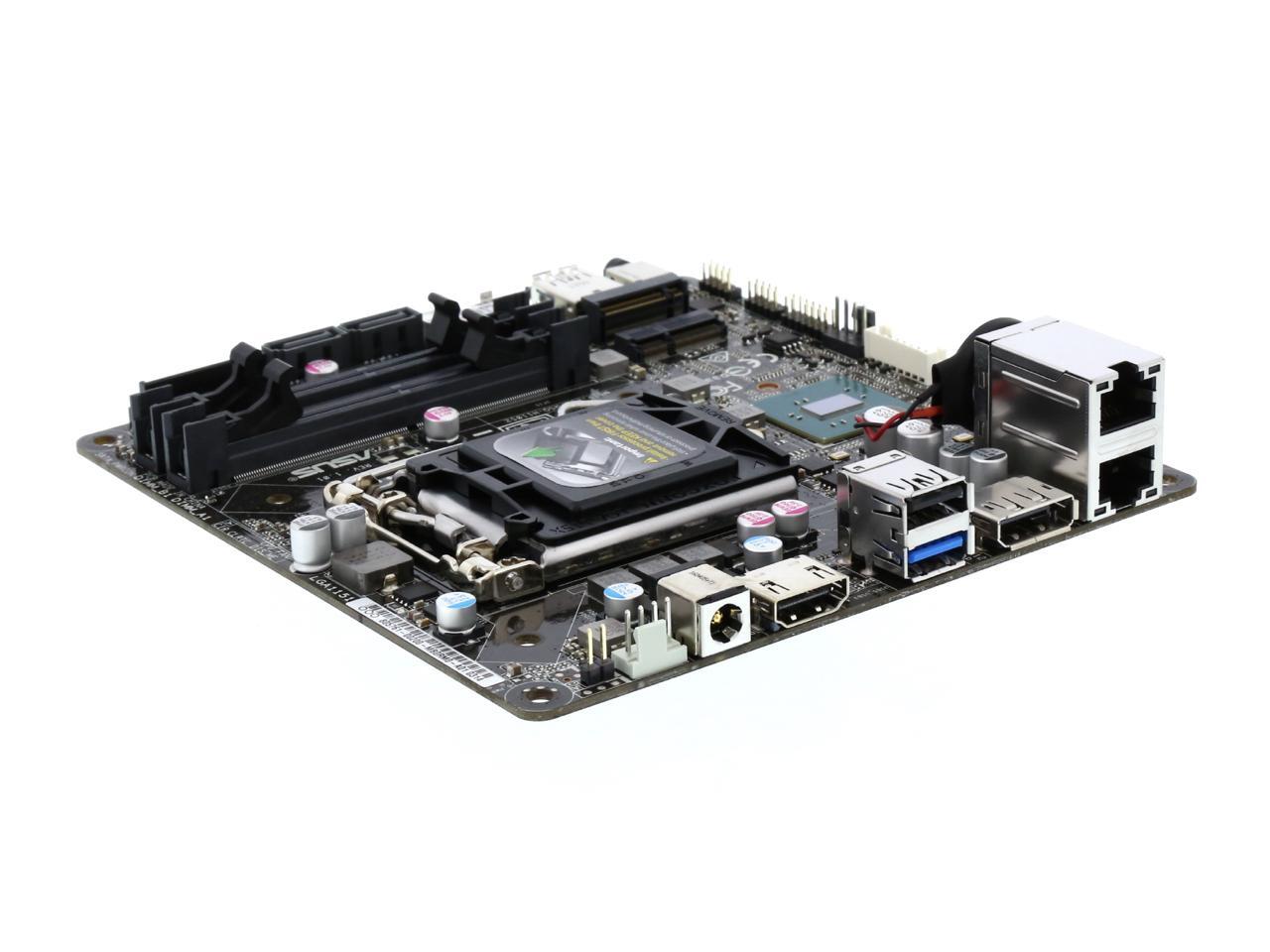

Brand	ASUS
Model	H110S2/CSM

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	2x204pin SO-DIMM
Memory Standard	DDR4 2133

Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2280 storage devices support (both SATA & PCIE mode)

Audio Chipset	Realtek ALC3236
Audio Channels	4 Channels

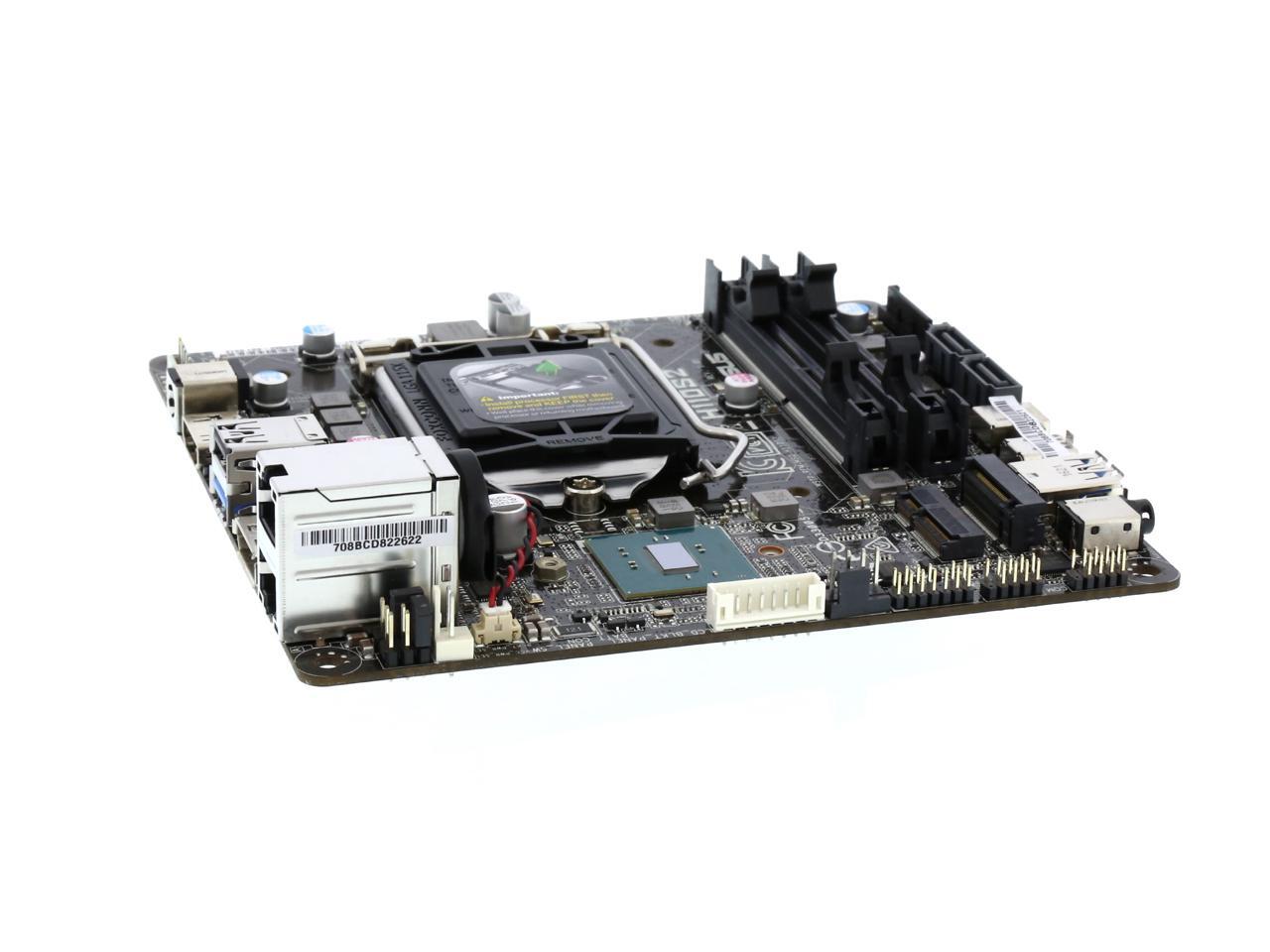

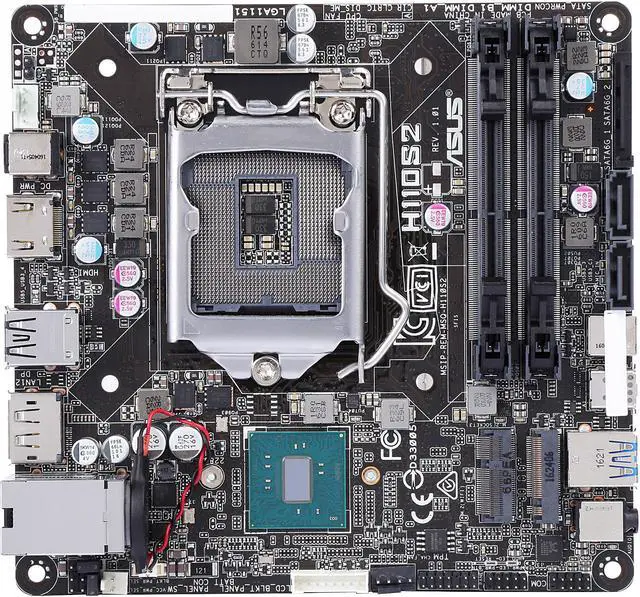

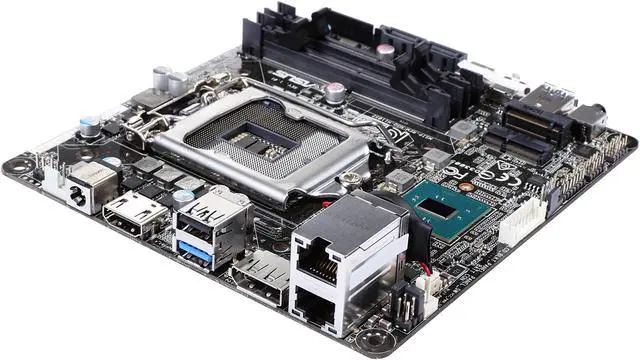

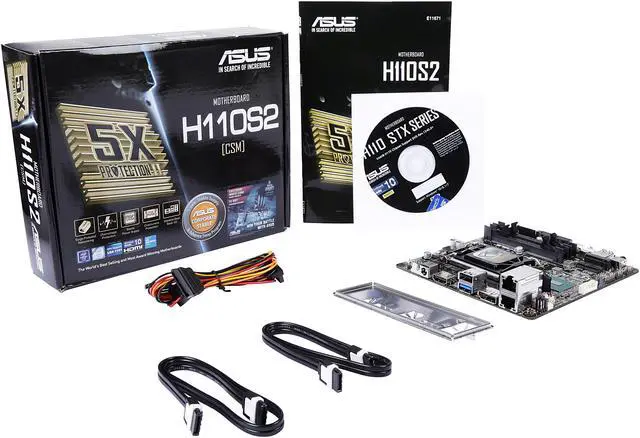

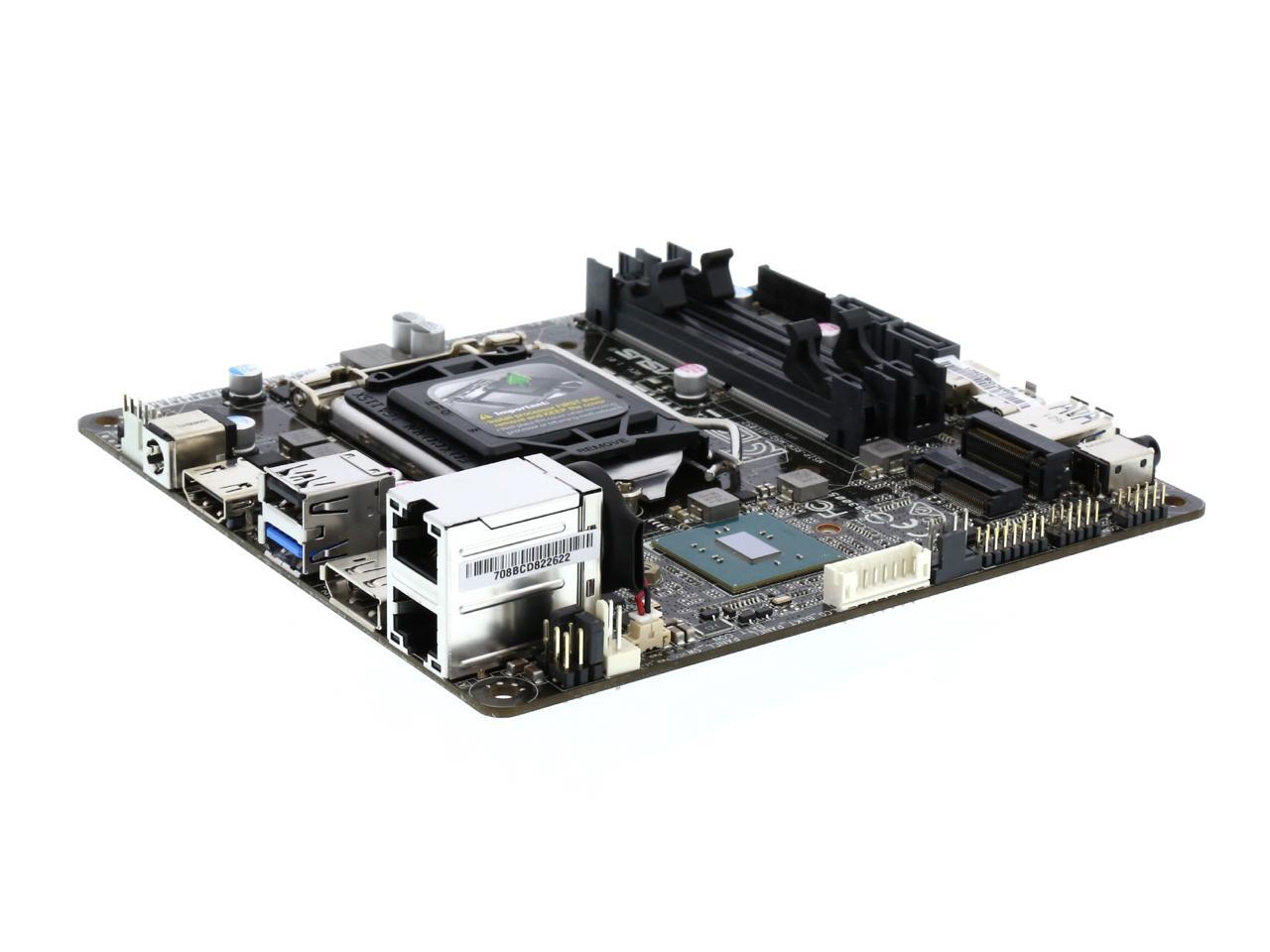

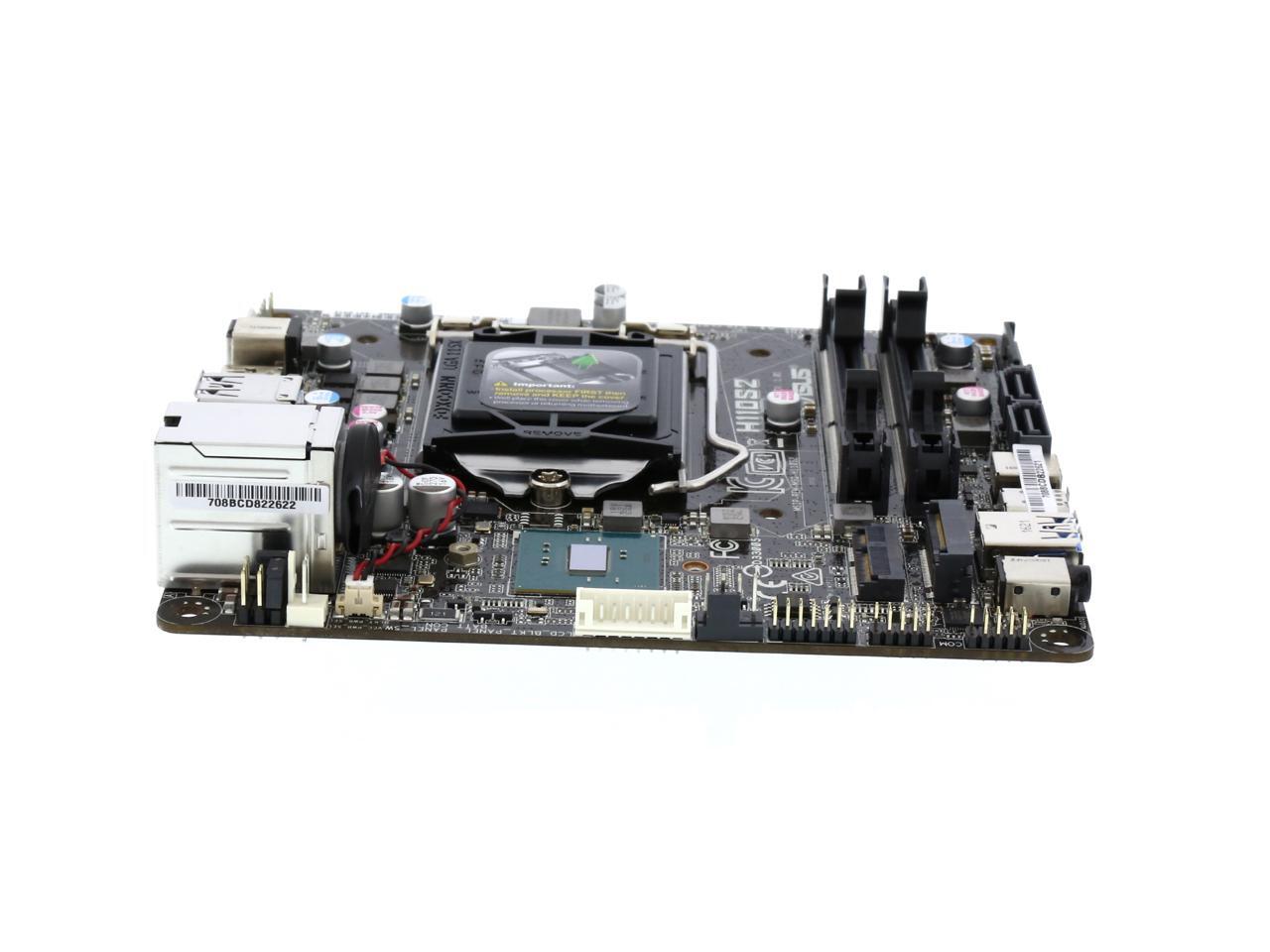

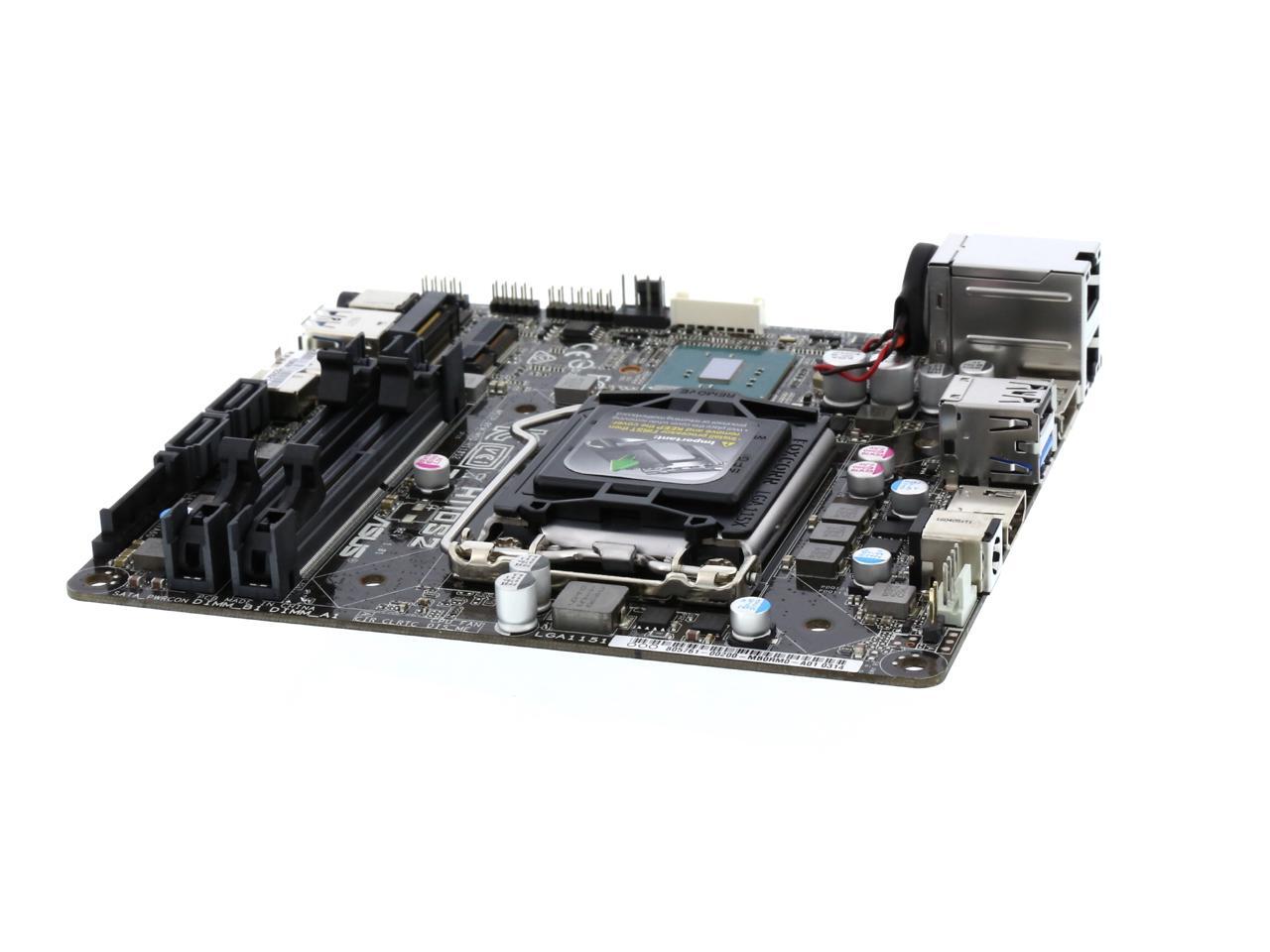

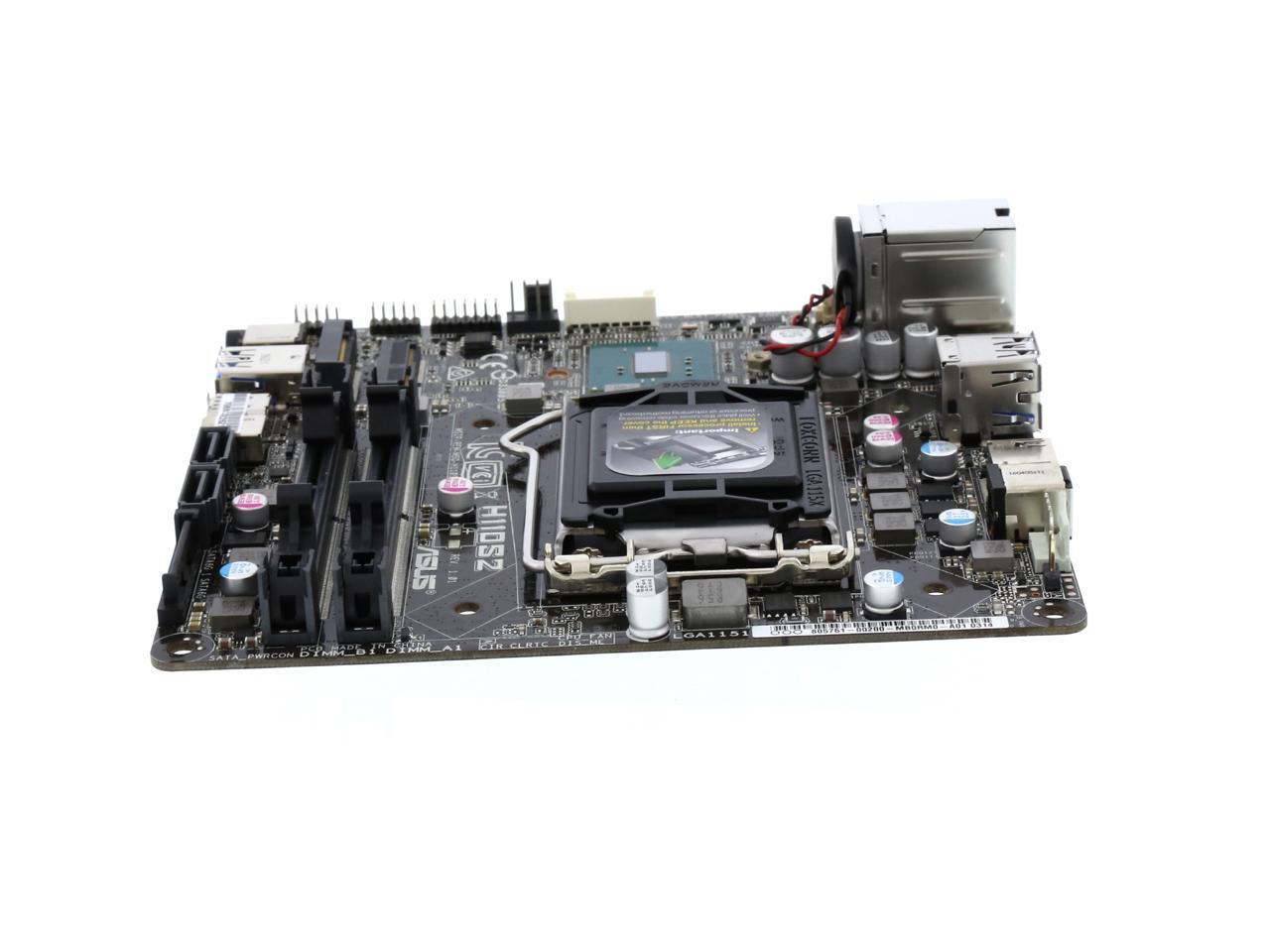

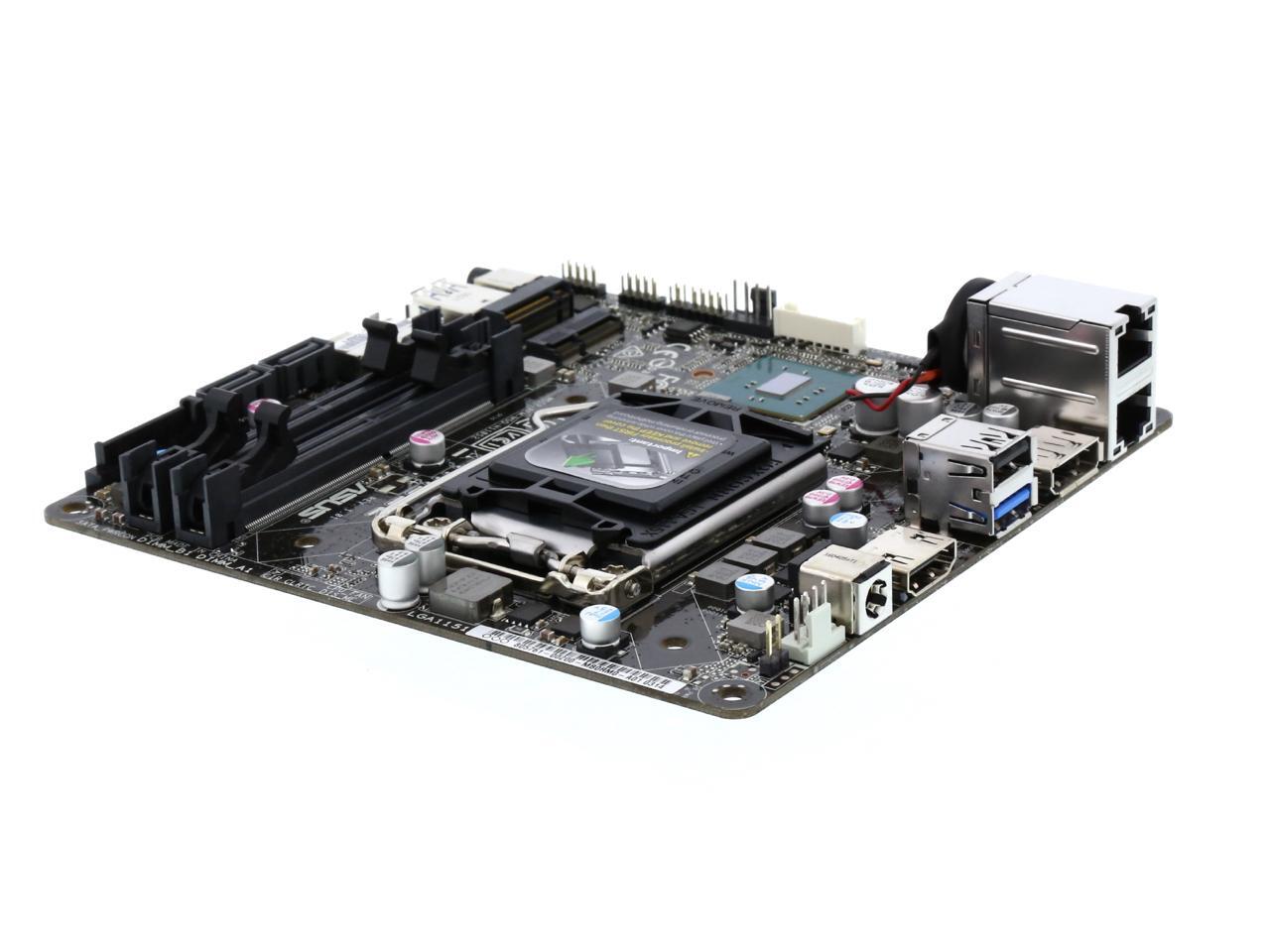

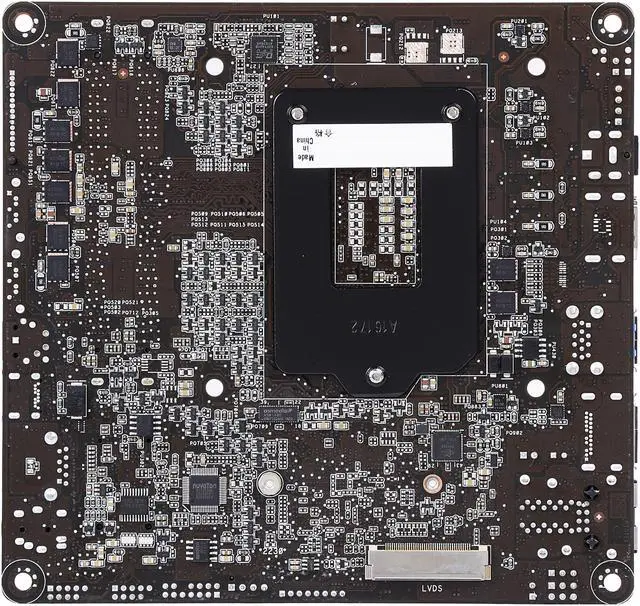

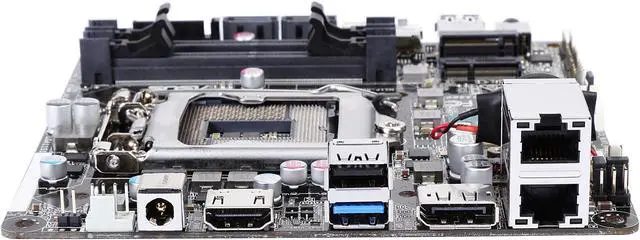

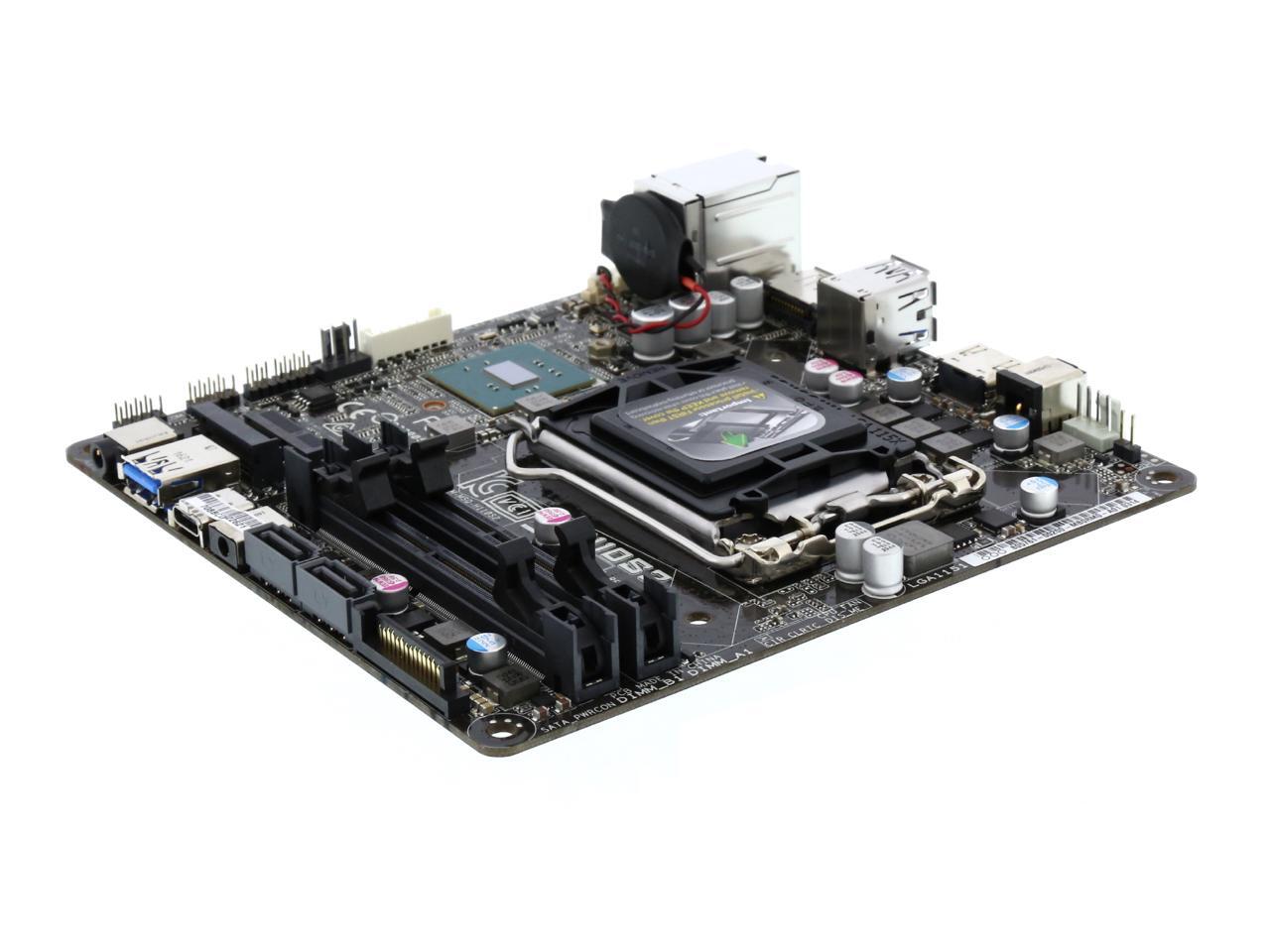

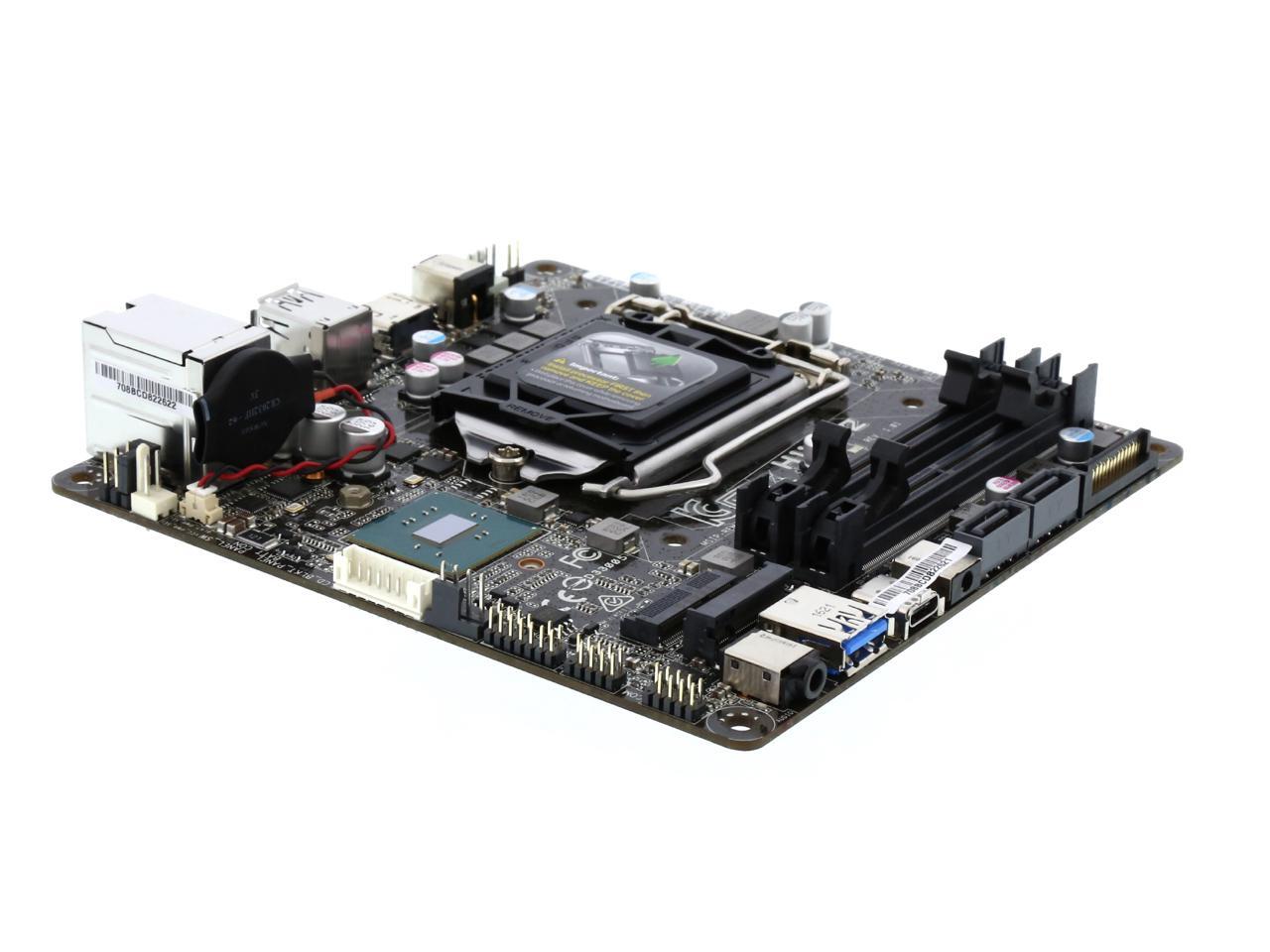

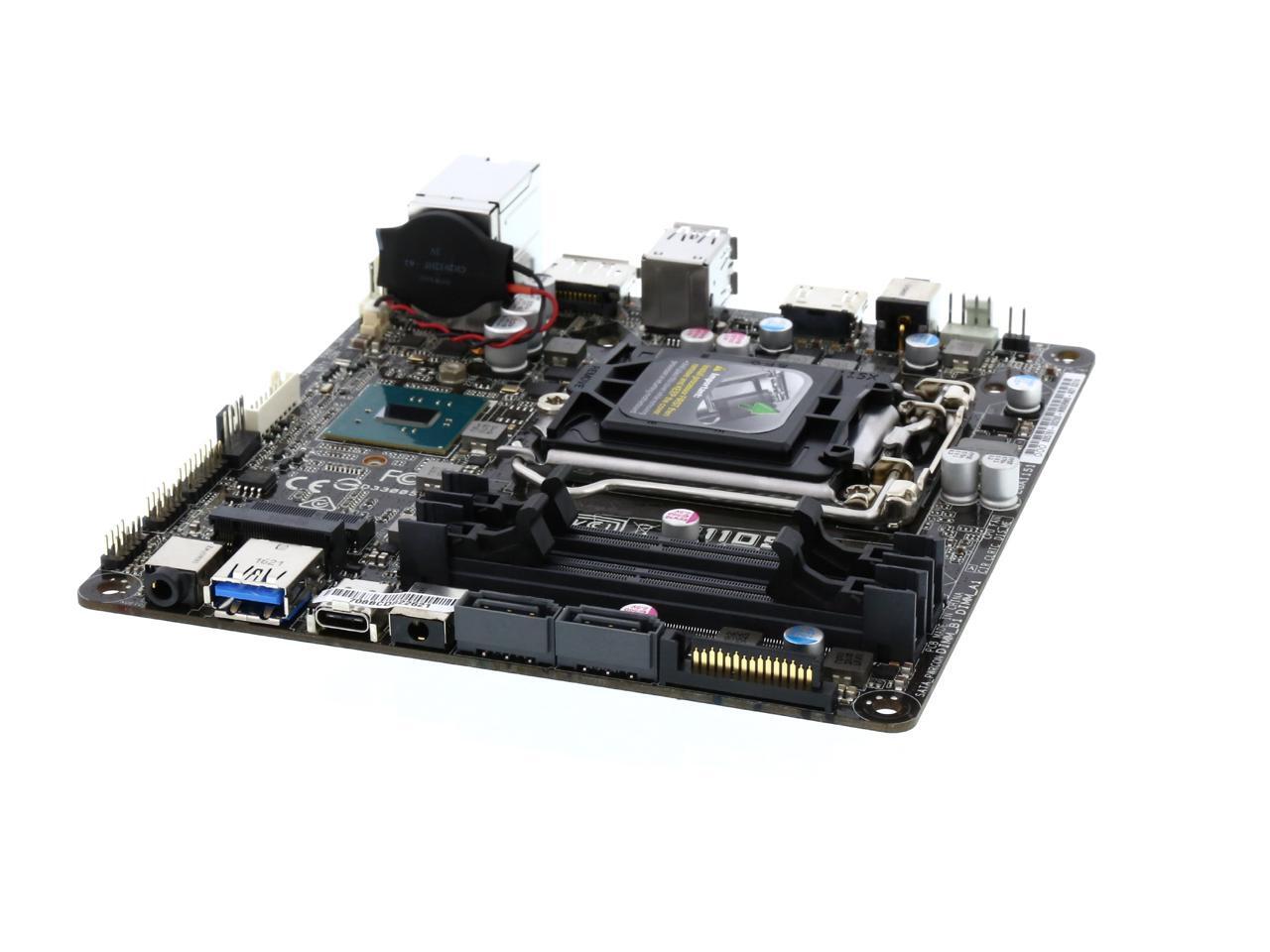

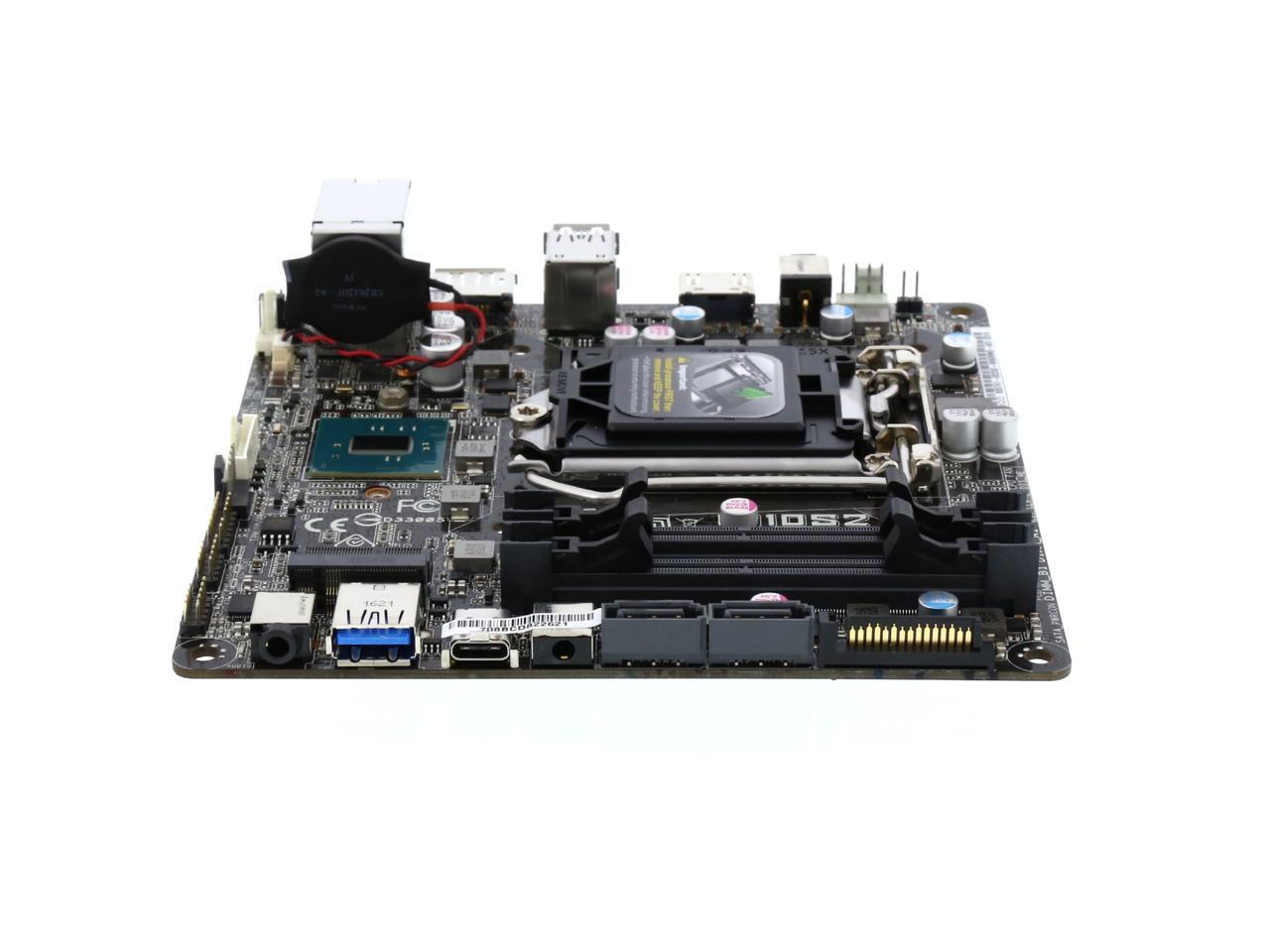

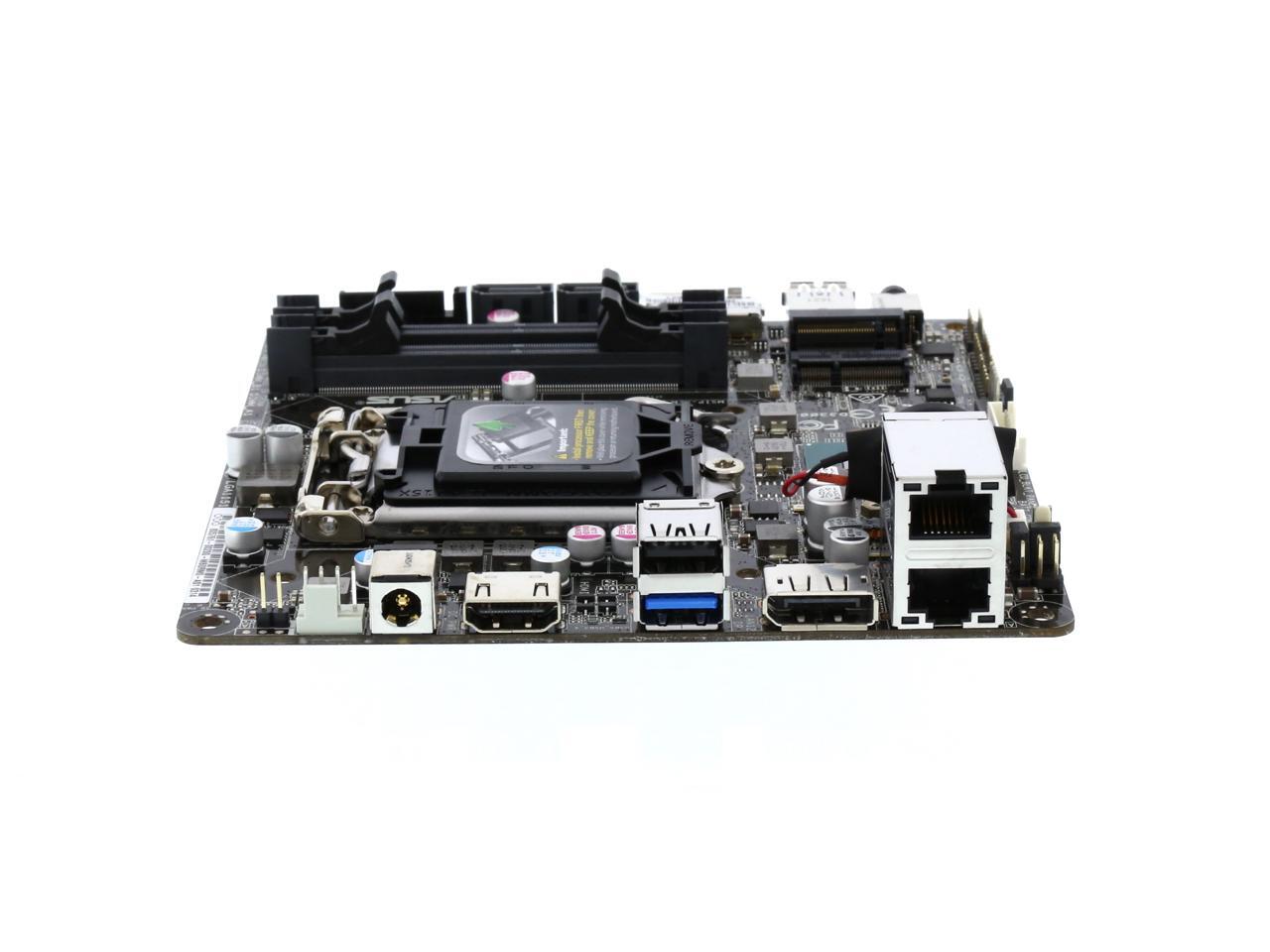

ASUS H110S2/CSM LGA 1151 Intel H110 HDMI USB 3.0 Mini STX Motherboards - Intel
