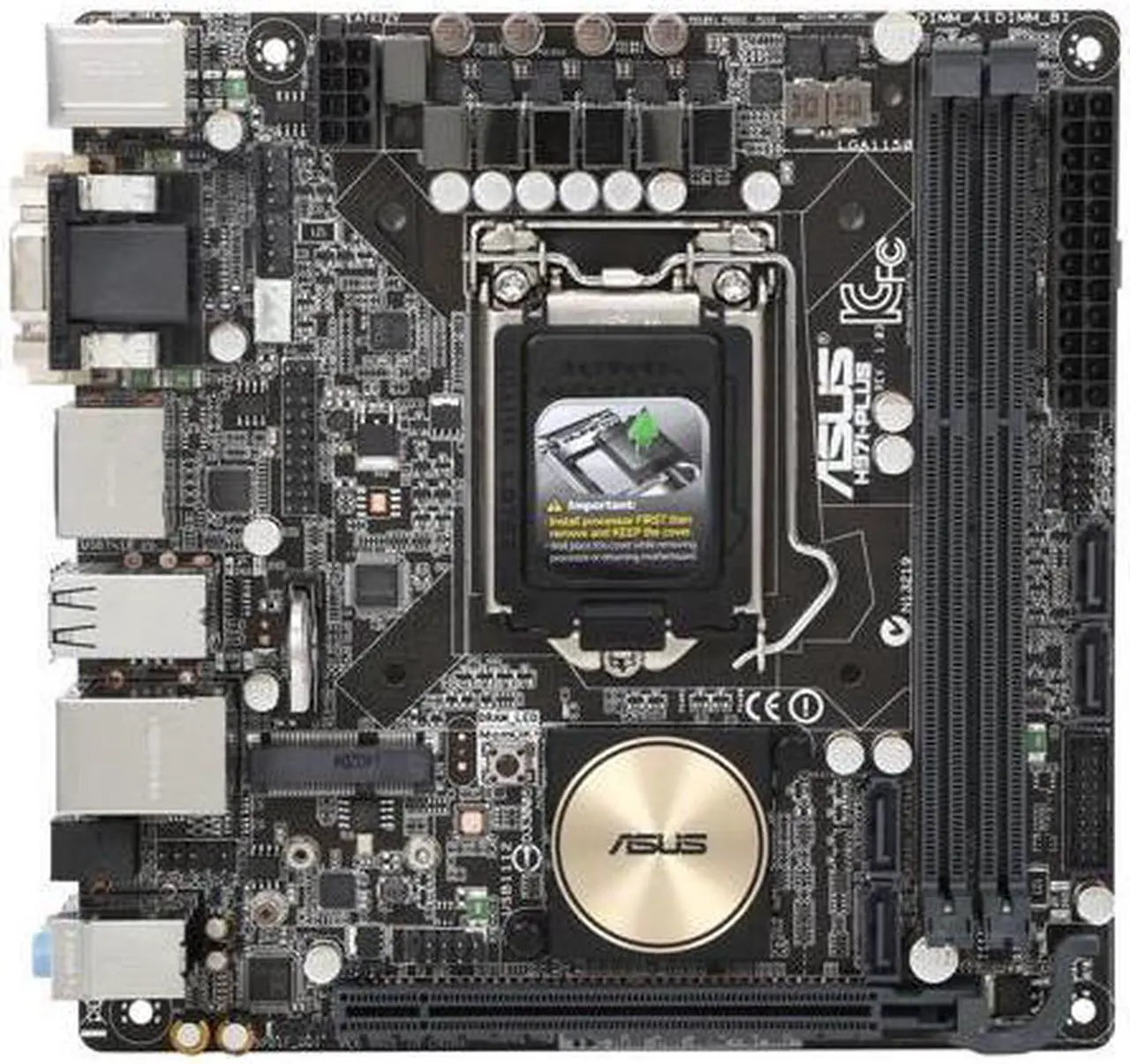

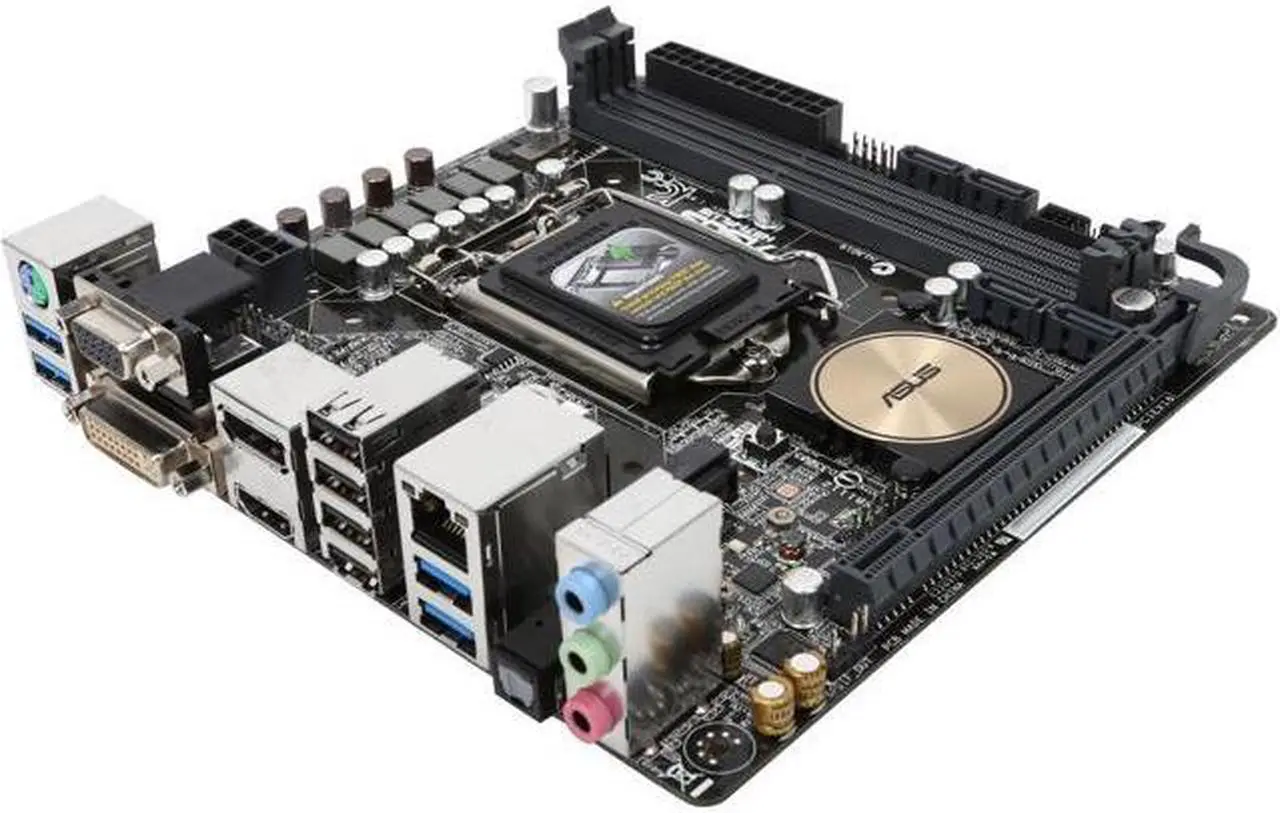

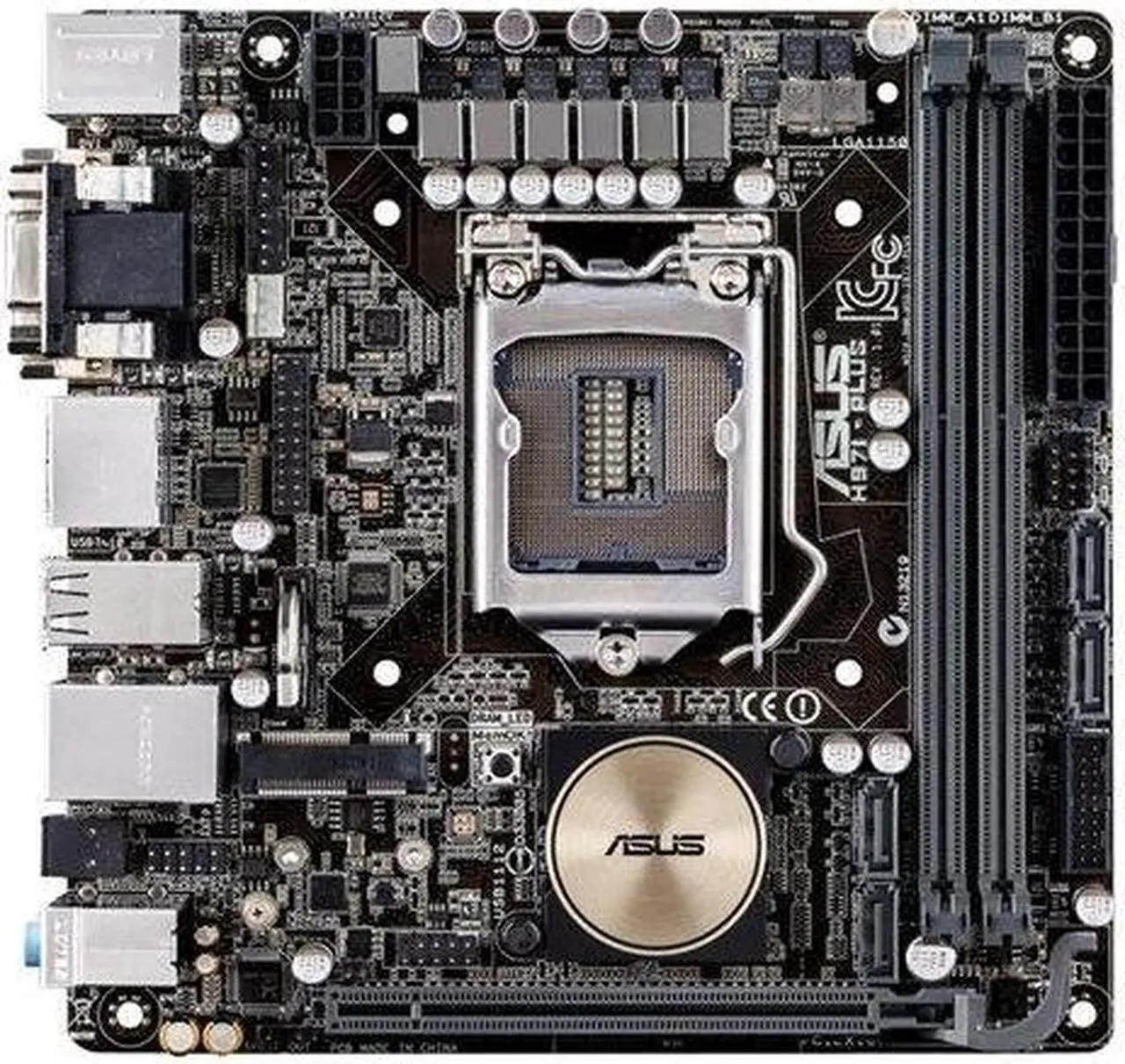

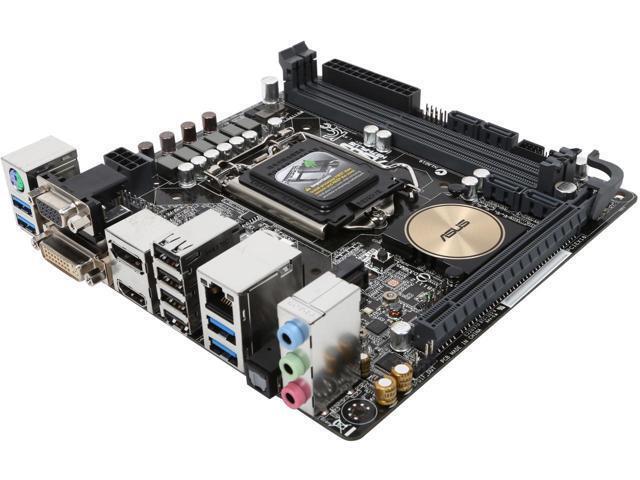

Brand | ASUS |
---|---|
Model | H97I-PLUS |
CPU Socket Type | LGA 1150 |
---|---|
CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium |
Chipset | Intel H97 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Number of Memory Slots | 2x240pin |
---|---|
Memory Standard | DDR3 1600/1333 |
Maximum Memory Supported | 16GB |
Channel Supported | Dual Channel |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
---|
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | 1 x M.2 |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek ALC887 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Intel I218-V |
---|---|
Max LAN Speed | 1Gbps |

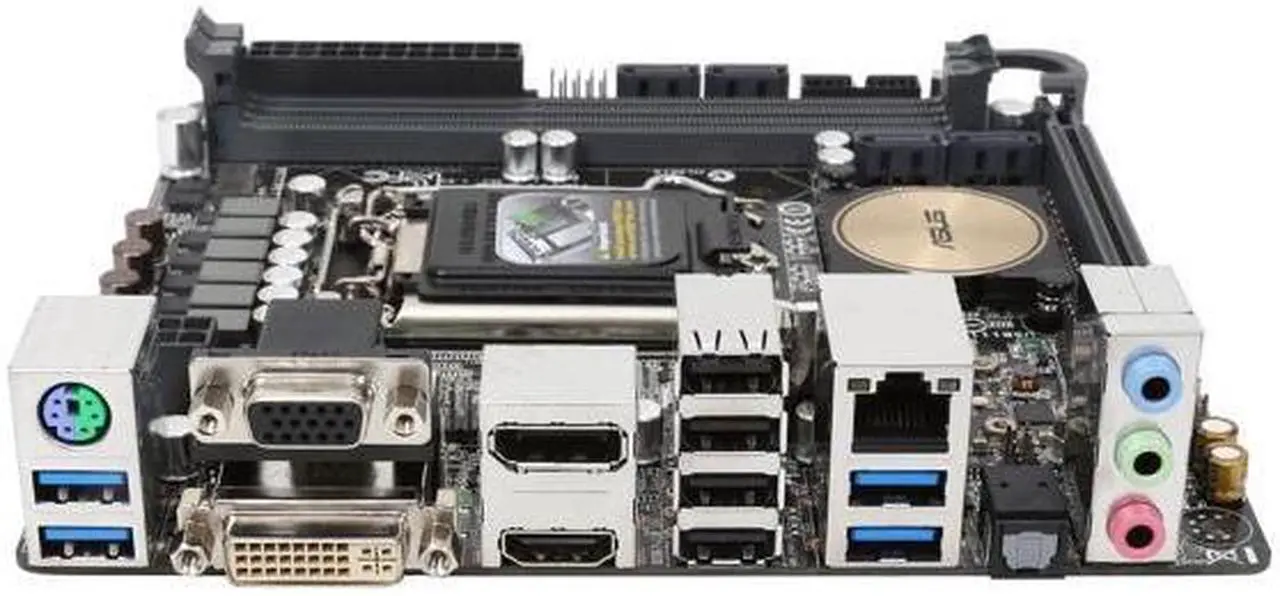

Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 2.0/1.1 / 4 x USB 3.0 |
---|---|
PS/2 | 1 x PS/2 keyboard/mouse port |
Video Ports | 1 x DVI-D 1 x VGA |
HDMI | 1 x HDMI |
DisplayPort | 1 x DisplayPort |
USB 3.0 | 4 x USB 3.0 |
USB 1.1/2.0 | 4 x USB 2.0 |
S/PDIF Out | 1 x Optical |
Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
---|---|
Other Connectors | 1 x 4-pin CPU Fan connector 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector (AAFP) 1 x S/PDIF out header 1 x TPM connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x Clear CMOS header(s) 1 x System panel connector 1 x MemOK! button |
Form Factor | Mini ITX |
---|---|
Dimensions (W x L) | 6.7" x 6.7" |
Power Pin | 24 Pin |
Features | ASUS 5X PROTECTION -ASUS motherboards safeguard your PC with 5X PROTECTION: DIGI+ VRM, DRAM Fuse, ESD Guards, High-Quality 5K-Hour Solid Capacitors, and Stainless Steel Back I/O ensure the best quality, reliability, and durability ASUS Digital Power Design -ASUS Digital Power Control: Digital Power Design for CPU -ASUS 6 Phase Power Design -ASUS CPU power utility ASUS DRAM Fuse -Enhanced DRAM overcurrent protection and short circuit damage prevention ASUS ESD Guards -Ehanced ESD protection ASUS High-Quality 5K Solid Capacitors -2.5x Long Lifespan with excellent durability ASUS Stainless Steel Back I/O -3x More durable corrosion-resistant coating UEFI BIOS -Most advanced options with fast response time M.2 onboard -The latest transfer technology with up to 10 Gb/s data transfer speeds ASUS Fan Xpert 2+ -Ultimate cooling and quietness Media Streamer -Pipe music or movies from your PC to a smart TV -Media Streamer app for portable smartphone/tablet, supporting iOS7 and Android 4.0 system Gaming Scenario ASUS Audio Features -Flawless audio that makes you part of the game ASUS Exclusive Features -USB 3.0 Boost -Ai Charger -AI Suite 3 -Disk Unlocker -MemOK! EZ DIY Push Notice -Monitor your PC status with smart devices in real time UEFI BIOS EZ Mode -Featuring friendly graphics user interface -ASUS CrashFree BIOS 3 -ASUS EZ Flash 2 Q-Design -ASUS Q-DIMM -ASUS Q-Slot |
---|
Package Contents | ASUS H97I-PLUS Motherboard 2 x Serial ATA 6.0Gb/s cables 1 x I/O shield User's manual |
---|
Date First Available | June 22, 2023 |
---|
